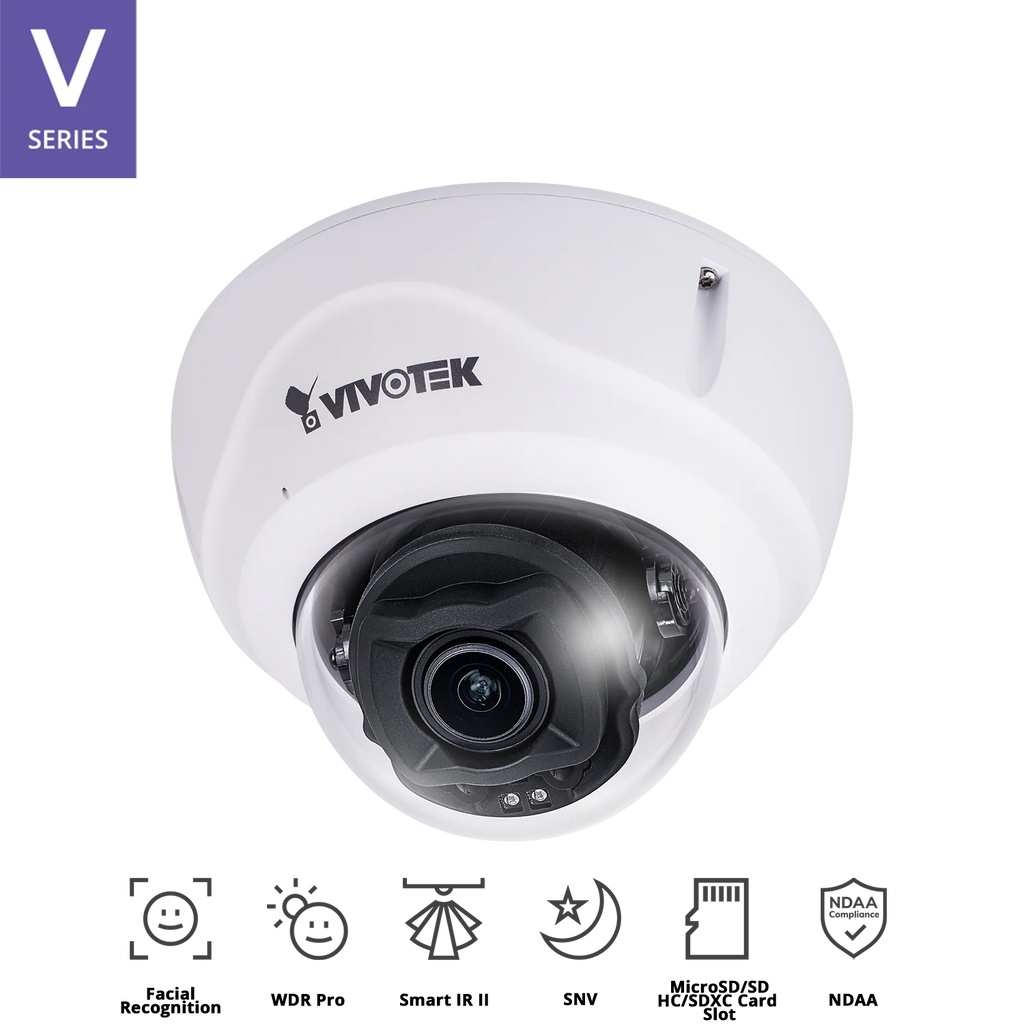

The VIVOTEK FD9387-FR-v2 is a next-generation AI-powered facial recognition camera, purpose-built for high-accuracy identification in real time. Designed with deep learning-based recognition technology, this 5MP dome camera can store up to 10,000 facial profiles directly on the device, achieving up to 99% accuracy—with no external server required.

Ideal for access control, attendance management, secure facility monitoring, and smart surveillance, the FD9387-FR-v2 simplifies deployment with a serverless infrastructure supporting up to five synchronized cameras. Its privacy mode allows organizations to selectively anonymize captured data for compliance with local privacy regulations.

Equipped with WDR Pro, Smart IR II (50m range), Supreme Night Visibility (SNV), and rugged IP66/IP67 and IK10 housing, the FD9387-FR-v2 ensures optimal performance in harsh lighting and environmental conditions, making it suitable for both indoor and outdoor security applications in the ANZ region.

What's Included in the Box:

• 1 × VIVOTEK FD9387-FR-v2 Facial Recognition Camera

• 1 × Quick Installation Guide

• 1 × Alignment Sticker

• 1 × L-Shaped Wrench

• 1 × Screw Pack

• 1 × Waterproof Accessory Pack

Key Features:

• Real-Time Facial Recognition with 99% Accuracy

• Supports 10,000 Onboard Facial Profiles

• Serverless Architecture for Up to 5 Cameras

• Smart IR II with 50M Infrared Range

• WDR Pro (120 dB) for High-Contrast Scenes

• Supreme Night Visibility (SNV) for Low-Light Conditions

• Privacy Mode for Sensitive Installations

• ONVIF Profile S/G/T Supported

• Vandal-Proof (IK10) and Weather-Proof (IP66/67)

• Power Redundancy Support: PoE, DC 12V, AC 24V

• Trend Micro IoT Security Built-In

Detailed Specifications:

Facial Recognition Performance:

• Accuracy: Up to 99%

• Profiles Supported: 10,000

• Face Detection Speed: Up to 30 faces/second

• Functionality: Age estimation, gender detection, mask support, privacy mode

• Stranger Detection: Automatic creation of new profiles

• Integration:

  • ONVIF Event Push (Profile S)

  • HTTP/HTTPS Push in JSON format

  • Compatible with VAST Security Station, Milestone, Genetec, March Networks

Camera Specs:

• Sensor: 1/2.8" Progressive CMOS

• Resolution: 2560x1920 (5MP) @ 30fps

• Lens: Motorized Vari-focal, Remote Focus (2.7–13.5 mm, F1.4–F2.8)

• IR Range: Up to 50m with 4 × IR LEDs (Smart IR II)

• Minimum Illumination:

  • 0.075 lux @ F1.4 (Color)

  • <0.01 lux @ F1.4 (B/W)

  • 0 lux with IR on

• Field of View:

  • Horizontal: 95° ~ 30°

  • Vertical: 70° ~ 23°

  • Diagonal: 128° ~ 38°

• WDR Pro (120 dB) and SNV (Low-light enhancement)

• ePTZ: 48x digital zoom (12x built-in, 4x IE plugin)

Storage:

• MicroSD/SDHC/SDXC card slot (up to 1TB)

• Seamless recording to NAS

Video:

• Compression: H.265, H.264, MJPEG

• Streams: 3 Simultaneous (up to 9 configurable profiles)

• S/N Ratio: 61 dB

• Smart Stream II for Bandwidth Optimization

• Image Settings: White balance, brightness, contrast, gamma, EIS, defog, 3DNR, privacy mask

Audio:

• Two-Way Audio (Full Duplex)

• Audio Compression: G.711, G.726

• Interface: External mic input, line output

Network & Security:

• Simultaneous Viewers: Up to 10

• Protocols: IPv4/6, HTTPS, FTP, RTSP, SMTP, TLS 1.2, SNMP, UPnP, etc.

• Cybersecurity:

  • Trend Micro IoT Protection

  • HTTPS, Digest Authentication, Access Lists, Secure Boot, Firmware Signing

Interfaces & Connectors:

• RJ-45 (10/100 Mbps Ethernet)

• Audio I/O

• Digital I/O (2 inputs / 1 output)

• Power Inputs: DC 12V, AC 24V, or IEEE 802.3at PoE Class 4

Power Consumption:

• DC 12V: Max 23W (IR ON), 18W (IR OFF)

• PoE: Max 22.5W (IR ON)

• AC 24V: Max 21W (IR ON)

Physical Specs:

• Dimensions: Ø 155 x 103.2 mm

• Weight: 909g

• Housing: IK10 Vandal-Proof, IP66/67 Weather-Proof

• Operating Temperature:

  • Start: -30°C to +60°C

  • Working (IR ON): -30°C to +50°C

• Humidity: Up to 98% RH (non-condensing)

Certifications:

• RCM (AS/NZS CISPR 32 Class A), CE, FCC, UL, VCCI, UKCA

• ONVIF Profiles G, S, T

Warranty Information:

3-Year Manufacturer’s Warranty covering all parts and performance, including local ANZ technical support through authorized distributors.

Brand Description:

VIVOTEK is a leading global manufacturer of AI-powered IP surveillance systems, providing innovative and secure solutions for advanced facial recognition, license plate detection, and behavioral analytics. Trusted by enterprises and governments worldwide, VIVOTEK is known for its robust, secure, and scalable security technology.

SKU: FD9387-FR-v2

Practical Use Scenarios:

• Corporate Offices & Secure Campuses: Real-time employee and visitor facial access control

• Education Campuses: Automated attendance systems and incident logging

• Healthcare & Aged Care: Secure zone access with facial authentication

• Retail Chains & Malls: Track repeat visitors and blacklist persons of interest

• Transport & Infrastructure Hubs: Seamless facial recognition for transit gates and security zones

• Privacy-Sensitive Zones: Use Privacy Mode to comply with GDPR and regional data protection policies

Datasheets or Downloadable Resources:

• VIVOTEK FD9387-FR-v2 Product Page

Excellence for the Australian and New Zealand Market:

• RCM-Certified to meet Australian and New Zealand electrical and EMC safety standards

• Fully weatherproof and vandal-resistant with IP66/67 and IK10 ratings for outdoor deployment

• Pre-integrated with Trend Micro IoT Security to align with increasing cybersecurity demands across Australia and New Zealand infrastructure

• Local support and warranty management via authorized VIVOTEK distributors

• Designed to operate reliably across Australia's varied climate zones, from coastal cities to regional industrial sites

 FAQs – VIVOTEK FD9387-FR-v2

Q1: How many facial profiles can the VIVOTEK FD9387-FR-v2 store?
A1: The FD9387-FR-v2 supports up to 10,000 facial profiles, stored directly on the camera without the need for a separate server.

Q2: Does the FD9387-FR-v2 require a facial recognition server to function?
A2: No, it features serverless facial recognition, allowing edge processing and profile synchronization across up to 5 cameras.

Q3: Is the VIVOTEK FD9387-FR-v2 suitable for outdoor use in Australia?
A3: Absolutely. It's IP66/IP67 and IK10 rated, making it fully weather-resistant and vandal-proof for Australian environments.

Q4: How does the privacy mode work in the FD9387-FR-v2?
A4: Privacy Mode allows users to hide personal identifiable information from external systems or prevent snapshots of POIs from being shared.

Q5: What platforms is the FD9387-FR-v2 compatible with?
A5: It integrates with VIVOTEK VAST, Milestone, Genetec, March Networks, and supports ONVIF Profile S/G/T.
