The VIVOTEK FD9388-HTV is a robust 5MP fixed dome IP camera designed to provide reliable and high-quality surveillance in a variety of challenging outdoor conditions. Built with a motorised 2.8–12 mm varifocal lens with remote focus, the camera delivers sharp, detailed images at up to 20 fps with WDR Pro (120 dB) and Supreme Night Visibility (SNV) for exceptional clarity in both bright and dim environments.
Enhanced with Smart IR and built-in IR LEDs, it offers up to 30 metres of effective night vision. The FD9388-HTV supports Smart Stream III and H.265 compression, significantly reducing bandwidth and storage needs while maintaining superior image quality.
The dome is housed in IP66 weather-resistant and IK10 vandal-proof casing and is equipped with a built-in microphone, making it ideal for audio-sensitive surveillance applications. It also features Trend Micro IoT Security, providing an extra layer of cybersecurity protection.
What’s in the Box
Main Features
-
5MP resolution (2560 × 1920) at 20 fps
-
2.8–12 mm motorised varifocal lens with remote zoom and focus
-
Supreme Night Visibility (SNV) for low-light environments
-
WDR Pro technology for high contrast lighting conditions (120 dB)
-
Built-in Smart IR LEDs, effective up to 30 metres
-
Smart Stream III with H.265, H.264, and MJPEG compression
-
Built-in Microphone with one-way audio support
-
IP66-rated weatherproof and IK10-rated vandal-resistant housing
-
Onboard MicroSD/SDHC/SDXC card slot (up to 1TB)
-
PoE support (IEEE 802.3af Class 0)
-
Trend Micro IoT Security integration
-
Compatible with ONVIF Profiles G, S, T
Detailed Specifications
| Specification |
Details |
| Model |
FD9388-HTV |
| Sensor |
1/2.7" Progressive CMOS |
| Resolution |
2560×1920 (5MP) |
| Lens |
2.8–12 mm motorised, remote focus |
| Aperture |
F1.4–F2.8 |
| Field of View |
H: 90°–30°, V: 65°–23°, D: 115°–38° |
| Shutter Speed |
1/5 sec – 1/32,000 sec |
| Minimum Illumination |
0.035 lux (Color), <0.005 lux (B/W), 0 lux with IR |
| IR Range |
30 m with Smart IR (2 IR LEDs) |
| Zoom |
ePTZ, 48× digital (12× built-in) |
| Audio |
Built-in microphone, one-way audio, G.711, G.726 codecs |
| Compression |
H.265, H.264, MJPEG |
| Streams |
3 video streams, up to 8 configurable profiles |
| S/N Ratio |
61 dB |
| Dynamic Range |
120 dB (WDR Pro) |
| Video Features |
Smart Stream III, configurable bit rate and resolution |
| Storage |
MicroSD/SDHC/SDXC card slot (up to 1TB), NAS support |
| Network Protocols |
IPv4/IPv6, RTSP/RTP/RTCP, HTTPS, SNMP, TLS 1.2, etc. |
| Users |
Live viewing for up to 10 clients |
| Security |
Trend Micro IoT Security, HTTPS, 802.1X, Digest Auth |
| Power Input |
IEEE 802.3af PoE Class 0 |
| Power Consumption |
Max 12.95 W (IR on), 9 W (IR off) |
| Operating Temp. |
-30°C to 60°C |
| Humidity |
90% RH |
| Certifications |
CE, FCC, RCM, VCCI, UL, CB, IK10, IP66 |

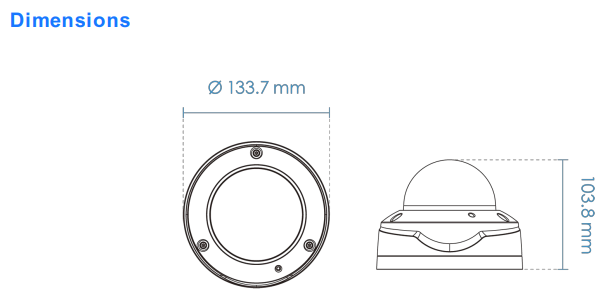

| Dimensions |
Ø 133.7 x 103.8 mm |
| Weight |
819 g |
Warranty Information
Covered under standard VIVOTEK limited manufacturer warranty. Warranty service available through official distributors or directly with VIVOTEK based on your region.

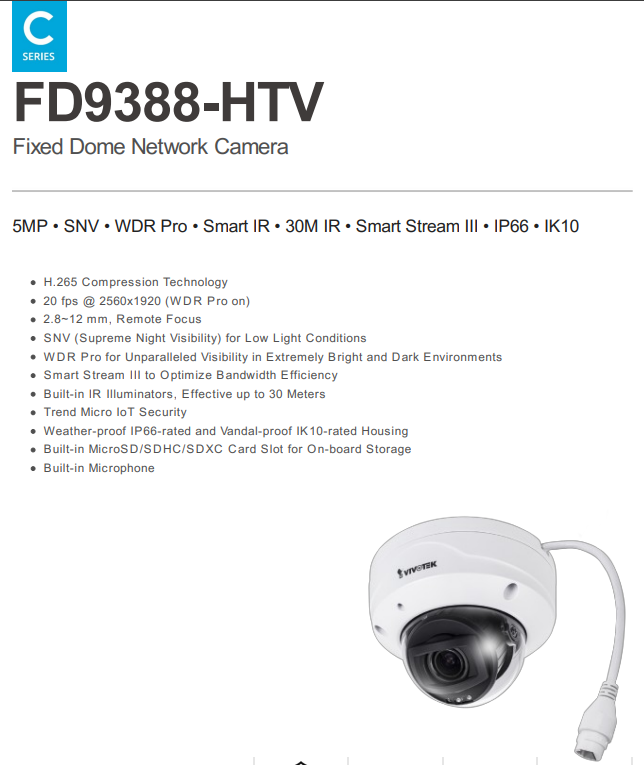

Datasheets
Brand Description
VIVOTEK Inc. is a global leader in IP surveillance technology, delivering advanced imaging, compression, and cybersecurity capabilities for the security industry. Renowned for quality, durability, and innovation, VIVOTEK solutions are trusted across commercial, industrial, and government sectors worldwide.
Practical Use Scenarios
-
Warehouses & Loading Docks: Motorised zoom provides flexible field of view adjustment
-
City Surveillance & Transport: IP66 and IK10 make it ideal for exposed public installations
-
Commercial Entrances: Audio and video coverage for monitoring visitors and vehicles
-
Educational Campuses: Vandal-resistant and weatherproof, suitable for perimeter monitoring
-
Retail Centres: Covers large areas clearly, even in low light or at night
Excellence for the Australian and New Zealand Market
-
Certified to RCM (AS/NZS CISPR 32) for local electrical compliance
-
IK10 vandal-proof and IP66-rated housing ensures long-term reliability in both urban and remote outdoor locations
-
Sourced directly from authorized Australian and New Zealand distributors for full product support and warranty handling
-
Designed to operate in local climate extremes: -30°C to 60°C and up to 90% humidity
-
Backed by local post-sale service and technical support
FAQs (Product Code: FD9388-HTV)
Q1: What is the focal length range of the FD9388-HTV?
A1: The FD9388-HTV (product code FD9388-HTV) features a motorised varifocal lens with a focal range of 2.8 to 12 mm and remote focus capabilities.
Q2: Does the FD9388-HTV support audio recording?
A2: Yes, the FD9388-HTV (product code FD9388-HTV) includes a built-in microphone and supports one-way audio.
Q3: How far can the FD9388-HTV see at night?
A3: The FD9388-HTV (product code FD9388-HTV) uses Smart IR technology with built-in LEDs, offering up to 30 meters of effective night vision.
Q4: Is the FD9388-HTV suitable for harsh outdoor conditions?
A4: Absolutely. The FD9388-HTV (product code FD9388-HTV) is IP66 weatherproof and IK10 vandal-resistant, built for tough Australian and New Zealand environments.
Q5: What type of storage does the FD9388-HTV support?
A5: The FD9388-HTV (product code FD9388-HTV) supports MicroSD/SDHC/SDXC cards up to 1TB and also allows recording to NAS.
