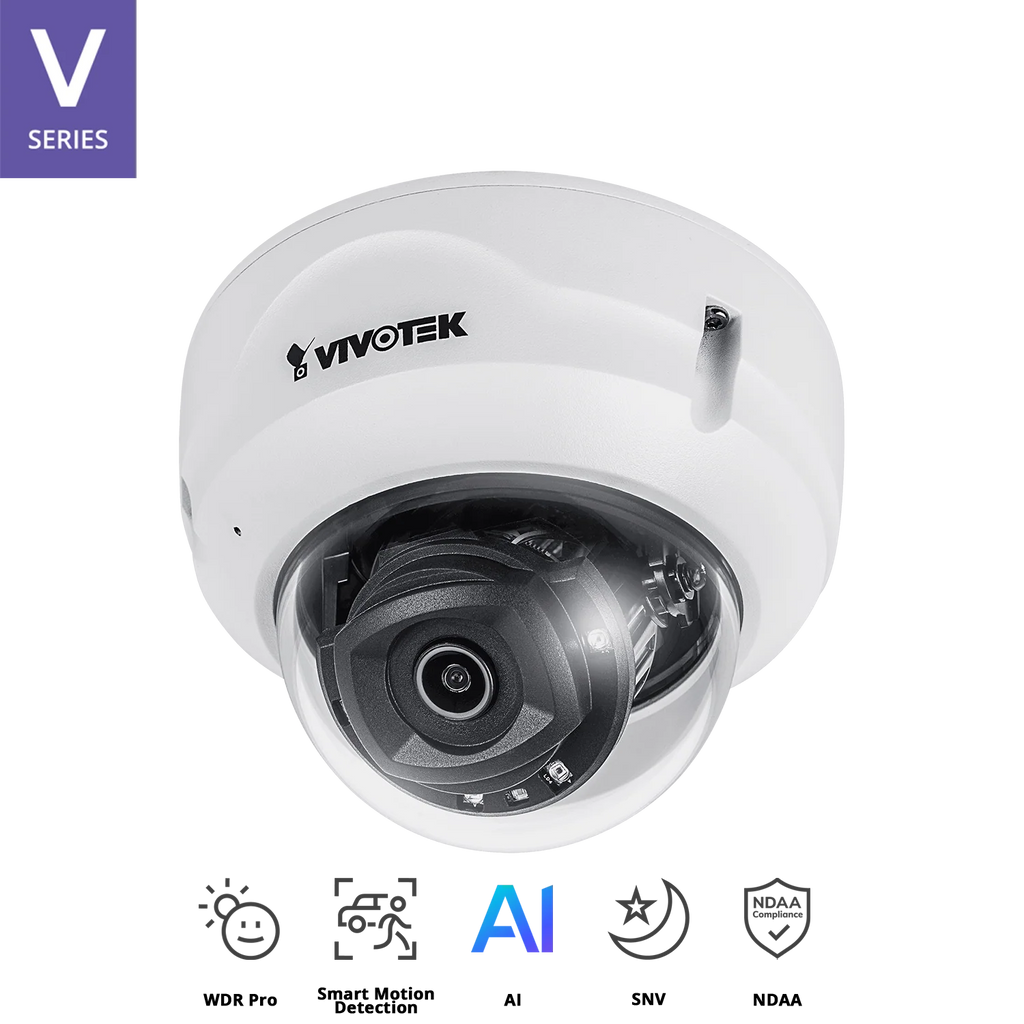

The VIVOTEK FD9389-EHV-v2 is a robust and intelligent outdoor fixed dome IP camera designed to deliver high-quality surveillance in both day and night environments. Equipped with a 5MP progressive CMOS sensor, this camera captures ultra-clear footage at 30 fps (5MP) and 60 fps (1080p), powered by advanced technologies such as WDR Pro, Smart IR, SNV (Supreme Night Visibility), and Smart Stream III for bandwidth-efficient video streaming.

Built to perform in demanding outdoor environments, the FD9389-EHV-v2 features IK10 vandal resistance, IP66-rated weatherproofing, and powerful 30-meter IR night vision. Enhanced with deep learning AI analytics, this camera provides smart motion detection, people and vehicle classification, and advanced event triggers, making it ideal for commercial buildings, schools, retail, parking lots, and perimeter security applications.

What's Included in the Box:

• 1 × VIVOTEK FD9389-EHV-v2 Fixed Dome Camera

• 1 × Quick Installation Guide

• 1 × Alignment Sticker

• 1 × Screw Pack

Key Features:

• 5MP (2560x1920) @ 30fps, Full HD (1080p) @ 60fps

• 2.8mm Fixed Lens with Wide 134° Diagonal FOV

• Built-in IR Illuminators Effective up to 30 Meters with Smart IR

• WDR Pro (120 dB) for Enhanced Image in High-Contrast Lighting

• SNV Technology for Superior Low-Light Performance

• H.265 Compression + Smart Stream III for Ultra-efficient Bandwidth Usage

• AI-Powered Analytics with Deep Learning SoC

• IP66 Weatherproof and IK10 Vandal-proof Housing

• One-Way Audio with Built-in Microphone (5m Range)

• ONVIF Profile G, S, T Support

• DORI Range: Up to 68.6m Detect, 6.9m Identify

Detailed Specifications:

Camera:

• Image Sensor: 1/2.7" Progressive CMOS

• Max. Resolution: 2560 × 1920 (5MP)

• Lens: 2.8mm Fixed-focal, F2.0

• Field of View:

  • 103° Horizontal

  • 76° Vertical

  • 134° Diagonal

• Minimum Illumination:

  • 0.06 lux (Color)

  • 0.01 lux (B/W)

  • 0 lux with IR On

• IR Range: Up to 30 meters with 4 IR LEDs

• WDR: Pro (120 dB)

• ePTZ: 48x Digital Zoom

• Shutter Speed: 1/5 to 1/32,000 sec

• Pan/Tilt/Rotation:

  • Pan: >350°

  • Tilt: 80°

  • Rotation: ±175°

Video & Streaming:

• Compression: H.265, H.264, MJPEG

• Frame Rate:

  • 30 fps @ 5MP

  • 60 fps @ 1080p

• Streams: 3 simultaneous video streams (up to 8 profiles)

• S/N Ratio: 55 dB

• Dynamic Range: 120 dB

• Smart Stream III: Yes

Audio:

• Audio Input: Built-in microphone

• Audio Range: 5 meters

• Audio Compression: G.711, G.726, MPEG-2 AAC-LC

• Audio Capability: One-way Audio

AI Analytics:

• Deep Learning SoC with AI Accelerator

• Object Detection: People, Vehicles

• Smart Motion Detection:

  • People/Vehicle Detection

  • Time Filtering

• Smart VCA:

  • Intrusion, Line Crossing

  • Loitering, Face, Crowd Detection

  • Unattended/Missing Object Detection

• Advanced Analytics (licensed):

  • Running Detection, Parking Violation, Restricted Zone Detection

Storage:

• Edge Storage: MicroSD/SDHC/SDXC (up to 1TB)

• NAS Recording Support: Yes

Networking:

• Ethernet: 10/100 Mbps RJ-45

• Protocols: HTTPS, IPv4/6, RTSP, FTP, SNMP, UPnP, TLS 1.2, and more

• Concurrent Users: Up to 10

• ONVIF: Profiles G, S, T

• Security Features:

  • Trend Micro IoT Security

  • HTTPS, CSRF, Digest Auth, Signed Firmware, Secure Boot

Power & Environment:

• Power Input: IEEE 802.3af PoE Class 0

• Power Consumption:

  • IR On: Max. 8.55W

  • IR Off: Max. 6.15W

• Operating Temp:

  • IR On: -40°C to +60°C

  • IR Off: -40°C to +50°C

• Humidity: Up to 98% RH (non-condensing)

Physical:

• Dimensions: Ø129 x 94 mm

• Weight: 605g

• Enclosure: IP66 Weatherproof, IK10 Vandal Resistant

• Certifications:

  • EMC: CE, FCC, RCM, VCCI

  • Safety: UL, CB

  • Environmental: IEC 60529, IEC 62262

DORI Range (EN 62676-4 Standard):

• Detect: 68.6m

• Observe: 27.2m

• Recognize: 13.7m

• Identify: 6.9m

Warranty Information:

The VIVOTEK FD9389-EHV-v2 comes with a 3-year limited warranty, ensuring full support and coverage through VIVOTEK-authorized channels in Australia and New Zealand.

Brand Description:

VIVOTEK is a globally respected brand in the video surveillance industry, known for delivering AI-powered smart cameras, robust analytics, and edge-to-cloud video management solutions. Their products are engineered for long-term reliability and optimal performance in demanding real-world environments.

SKU: FD9389-EHV-v2

Practical Use Scenarios:

• Retail Stores: Monitor entrances, POS areas, and customer traffic efficiently with AI smart detection.

• School Campuses: Ensure student safety with perimeter monitoring and motion-triggered alerts.

• Parking Areas: Detect people and vehicles with IR night visibility and AI event filtering.

• Warehouses & Factories: Secure indoor/outdoor assets with wide-angle coverage and rugged housing.

• Building Entrances: Vandal-proof design and high-quality imaging support secure access control systems.

Datasheets or Downloadable Resources:

• VIVOTEK FD9389-EHV-v2 Product Page


Excellence for the Australian and New Zealand Market:

The FD9389-EHV-v2 is designed with the Australian and New Zealand surveillance landscape in mind:

• RCM certified for AS/NZS compliance

• IP66/IK10-rated housing suitable for harsh weather and high-vandalism zones

• Distributed through authorized ANZ partners with local service, support, and warranty

• Fully compatible with PoE network infrastructure and leading VMS/NVR platforms

• Ideal for enterprise and government surveillance rollouts seeking NDAA-ready AI-enabled solutions

 FAQs – VIVOTEK FD9389-EHV-v2

Q1: Does the VIVOTEK FD9389-EHV-v2 support AI-based motion detection?
A1: Yes, the FD9389-EHV-v2 includes AI-powered smart motion detection that filters human and vehicle activity using deep learning for more accurate event alerts.

Q2: What is the IR night vision range of the VIVOTEK FD9389-EHV-v2?
A2: This model features built-in IR LEDs effective up to 30 meters, enhanced by Smart IR technology to prevent overexposure.

Q3: Is the VIVOTEK FD9389-EHV-v2 suitable for outdoor use?
A3: Absolutely. With an IP66-rated weatherproof and IK10-rated vandal-resistant housing, it's ideal for all-weather, high-risk environments.

Q4: Does the FD9389-EHV-v2 support edge storage?
A4: Yes, the camera supports MicroSD/SDHC/SDXC cards up to 1TB for seamless local recording, along with NAS compatibility.

Q5: Is the VIVOTEK FD9389-EHV-v2 certified for the Australian market?
A5: Yes, it is RCM certified, meets AS/NZS standards, and is available through authorized Australian and New Zealand distributors with full local support and warranty.
