The VIVOTEK IT9388-HT CCTV Kit offers a complete high-performance surveillance solution for commercial, industrial, and residential security needs. The system combines eight IT9388-HT 5 MP turret dome network cameras with the ND9326P Core+ AI 8-channel embedded PoE NVR, delivering crystal-clear imaging, intelligent video analytics, and secure data management.
The IT9388-HT cameras feature advanced WDR Pro for unparalleled visibility in high-contrast lighting, Supreme Night Visibility (SNV) for low-light performance, and built-in IR illuminators effective up to 30 m. The ND9326P recorder supports H.265/H.264 video formats, 4K display output, Deep Search capabilities, RAID 0/1 storage, and smart event management.
With vandal-proof IK10, weather-proof IP66 housings, Trend Micro IoT Security, and support for onboard or NAS recording, this kit ensures reliable, secure, and scalable protection.

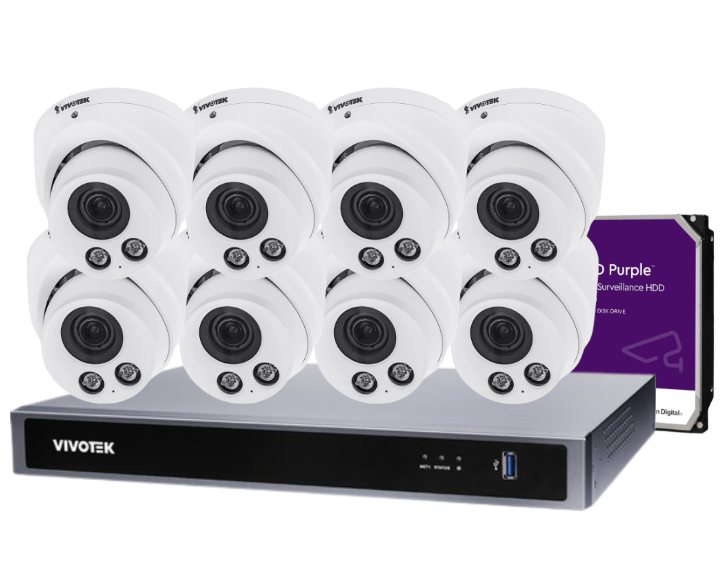

What’s Included in the Box
-
8 × VIVOTEK IT9388-HT 5 MP Turret Dome Network Cameras
-
1 × VIVOTEK ND9326P Core+ AI 8-Channel Embedded PoE NVR
-
1 × HDD (capacity as specified at purchase)
-
Quick installation guides, alignment stickers, screw packs, cable glands
Main Features
IT9388-HT Cameras:
-
5 MP resolution (2560×1920) at 20 fps with WDR Pro (120 dB)
-
2.8–12 mm motorized vari-focal lens with remote focus
-
Supreme Night Visibility (SNV) for low-light environments
-
Smart Stream III for bandwidth optimization
-
Built-in IR illuminators (up to 30 m range) with Smart IR
-
Weather-proof (IP66) and vandal-proof (IK10) housing
-
One-way audio with built-in microphone (5 m range)
-
Onboard MicroSD/SDHC/SDXC card slot and NAS recording support
-
Trend Micro IoT Security for enhanced cyber protection
ND9326P NVR:
-
8-channel Core+ AI embedded PoE NVR
-
H.265/H.264 video compression with hardware decoding
-
4K HDMI and Full HD VGA outputs
-
Deep Search AI capabilities for object, scene, and attribute search
-
Dual HDD bays (3.5″), RAID 0/1 support, USB 3.0 backup
-
PoE ports × 8 (802.3at/af, total max 120 W)
-
Multi-layout live view and playback options
-
Integrated event management, motion detection, and VCA event search
-
Web-based management via Chrome, plus VIVOTEK VAST and VORTEX app support
Detailed Specifications
| Component |
Specification |
| Camera Model |
IT9388-HT |
| Image Sensor |
1/2.7″ Progressive CMOS |
| Resolution |
2560×1920 (5 MP) |
| Lens |
2.8–12 mm motorized vari-focal |
| Aperture |
F1.4–F2.8 |
| WDR |
WDR Pro (120 dB) |
| Low Light |
SNV, 0.035 lux (Color), <0.005 lux (B/W), 0 lux with IR |
| IR Range |
30 m |
| Housing |
IP66, IK10 |
| Audio |
Built-in mic, one-way audio |
| Video Compression |
H.265, H.264, MJPEG |
| NVR Model |
ND9326P |
| Channels |
8 |
| Display Output |
HDMI (4K), VGA (Full HD) |
| Max Throughput |
192 Mbps |
| Storage |
2 × 3.5″ HDD bays, RAID 0/1 |
| PoE |
8 ports, 802.3at/af, max 120 W |
| AI Functions |
Deep Search, Smart VCA |
| Operating Temp (Camera) |
–30 °C to 60 °C |
| Operating Temp (NVR) |
–10 °C to 55 °C |
Warranty Information
Covered by VIVOTEK’s manufacturer warranty; local terms apply in Australia and New Zealand. Warranty support and service are handled by authorised distributors.
Brand Description
VIVOTEK is a global leader in IP surveillance technology, known for innovative imaging, intelligent analytics, and robust cybersecurity in their network camera and NVR solutions.
SKU
IT9388-HT_Cam (Camera) / ND9326P_NVR (Recorder)
Practical Use Scenarios
-
Retail & Hospitality: Monitor entrances, sales floors, and service areas with high-resolution, low-light clarity.
-
Industrial Facilities: Rugged design withstands outdoor and harsh environments.
-
Commercial Buildings: Intelligent Deep Search enables rapid incident investigation.
-
Residential Security: Professional-grade surveillance with simplified PoE installation.
-
Public Spaces: Reliable recording with vandal-proof, weather-resistant housing.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
This system meets Australian and New Zealand quality standards, including CE, RCM, and BIS certifications. The IP66 and IK10 ratings make it suitable for coastal and outdoor installations. Products are sourced through authorised distributors, ensuring genuine hardware, valid warranties, and direct support from VIVOTEK’s service network.
FAQs
Q1: What is the product code for the cameras in this kit?
A1: The camera model is IT9388-HT.
Q2: What is the product code for the recorder in this kit?
A2: The recorder model is ND9326P.
Q3: Does the IT9388-HT camera support onboard recording?
A3: Yes, the IT9388-HT supports MicroSD/SDHC/SDXC cards and NAS recording.
Q4: What compression formats does the IT9388-HT camera support?
A4: The IT9388-HT supports H.265, H.264, and MJPEG.
Q5: Can I use RAID with the ND9326P recorder?
A5: Yes, the ND9326P supports RAID 0 and RAID 1 configurations.
