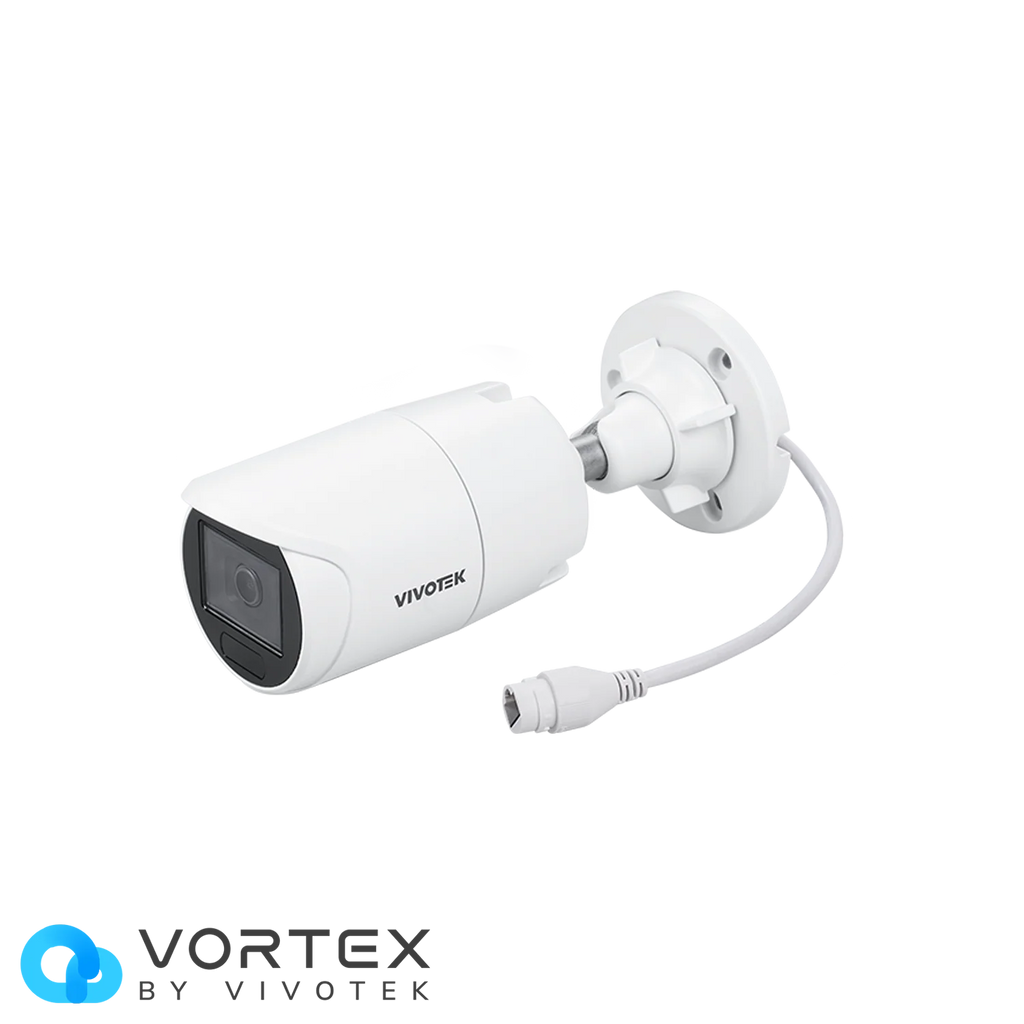

The VIVOTEK VORTEX IB833‑HV sets a new standard in network surveillance with its combination of 5 MP image clarity, edge-based recording flexibility, and intelligent visual search features. Perfect for installations that demand high-resolution monitoring and easy retrieval—think retail storefronts, facility entrances, and urban exteriors.
Key Features
-
5MP Resolution @ 15 fps – Produces crisp surveillance footage.
-
H.264 / MJPEG Compression – Offers bandwidth efficiency and flexible output quality.
-
30 m IR Night Vision – Ensures clarity even in total darkness.
-
WDR Pro & 3DNR – Delivers sharp contrast and eliminates noise in difficult lighting.
-
PoE Power – Streamlines setup with single-cable data and power.
-
Built-In 256GB microSD Card – Stores up to 30 days of video with seamless edge-recording.
-
AI Smart Search – Rapidly filter footage by people or vehicle detection.
-
Rugged Build – IP66 weather resistance and IK10 vandal protection.
-
Outdoor Ready – Functions from –30 °C to +55 °C for tough environments.
Specifications At a Glance
| Component |
Detail |
| Sensor |
1/3″ Progressive CMOS |
| Resolution |
2560 × 1920 (5MP) at 15 fps |
| Lens |
3.6 mm fixed-focal |
| IR Range |
Up to 30 m with auto-adjusting IR LEDs |
| Video Compression |
H.264 / MJPEG |
| Day/Night Performance |
Removable IR-cut filter |
| Video Enhancement |
WDR Pro, 3DNR |
| Connectivity |
PoE (IEEE 802.3af) |
| Storage |
256 GB microSD (30 days recording) |
| Durability |
IP66 / IK10 |
| Operating Temp Range |
–30 °C to +55 °C |
| Power Input |
PoE Only (DC 12V optional) |
| Smart Functionality |
AI-based people/vehicle search |
Ideal Applications
-
Retail & Commercial Stores – Keep precise track of customer movement and behavior.
-
Building Entrances & Perimeters – Capture detailed footage of visitors and vehicles.
-
Outdoor Venues & Facilities – Durable design withstands weather, vandalism, and temperature extremes.
-
Campus Deployment – Smart edge storage reduces bandwidth and central server load.
Warranty & Support
MANUFACTURES WARRANTY APPLIED
FAQs
Q1: How much video does the built-in 256GB store?
A1: At 5 MP and 15 fps with H.264, the included 256 GB microSD provides about 30 days of continuous footage, depending on activity and compression.
Q2: Can I quickly find footage of a person or vehicle?
A2: Yes—VORTEX's AI-powered Smart Search lets you jump straight to people or vehicle events, bypassing hours of unneeded video.
Q3: Is the IB833‑HV suitable for harsh Australian conditions?
A3: Absolutely. With IP66 weatherproofing, IK10 vandal resistance, and an operational range of –30 °C to +55 °C, it’s built to withstand local environments.
Q4: Can this camera operate without a separate NAS or server?
A4: Yes—its onboard storage capability (with edge recording and AI indexing) lets it operate autonomously, reducing infrastructure costs.
