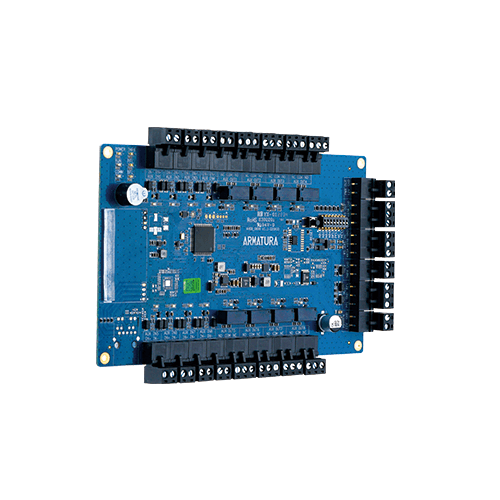

The ZKTeco AHEB-0808 Expansion Board is a high-performance I/O expansion module designed to extend the capabilities of AHSC-1000 and AHDU series controllers. Using OSDP V2.2 over RS-485 with AES128 encryption and an EAL6+ certified crypto chip, it ensures secure, reliable communication for critical access control and building automation applications.
Engineered for Advanced Security, the AHEB-0808 features 4 state-supervised inputs capable of detecting even minor resistance changes, providing robust protection against short-circuit attacks. Inputs can be configured as Active, Inactive, Short, or Open, with time zone management for precise control.
With 8 configurable relay ports (8 inputs / 8 outputs), the AHEB-0808 offers versatile deployment options in door control, alarm integration, and device automation. It supports universal 12–24VDC power input, making it adaptable to a wide range of installations.
When paired with Armatura controllers, the AHEB-0808 enables large-scale scalability—supporting up to 388 inputs or 196 outputs on a single AHDU controller, and up to 12,801 inputs/outputs in combined systems. Integration with Armatura One security software provides full configuration, monitoring, and firmware updates via encrypted communication, with upcoming Cielo365 compatibility.
What’s in the Box
Main Features
-
8 Inputs / 8 Outputs – Fully configurable for flexible building control
-
Advanced Security – AES128 encryption with EAL6+ certified crypto chip
-
4 State-Supervised Inputs – Detects resistance changes as low as 5% Ohms
-
Scalable – Supports up to 12,801 inputs/outputs in combined systems
-
Universal Voltage – Operates on 12–24VDC without extra adaptors
-
Time Zone Management – Programmable input states with scheduling
-
OSDP V2.2 Certified Communication – Reliable and secure RS-485 data transfer
-
3rd Party Integration – Compatible via RESTful API in Armatura One
-
Easy Management – Remote monitoring and updates through controller webserver
Detailed Specifications
| Specification |
Details |
| Model |
AHEB-0808 |
| Inputs |
8 (4 state-supervised) |
| Outputs |
8 configurable relay ports |
| Communication |
OSDP v2.2 over RS-485 |
| Encryption |
AES128 + EAL6+ certified crypto chip |
| Voltage |
12–24VDC |
| Integration |
Armatura One, RESTful API, 3rd party software |
| Scalability |
Up to 388 inputs/196 outputs (single AHDU), 12,801 max combined |
| Mounting |
Panel / enclosure installation |
| Operating Temperature |
-20°C to +50°C |
Warranty Information
3-Year Manufacturer Warranty – Covers defects in materials and workmanship under standard conditions.
Excellence for the Australian and New Zealand Market
-
Compatible with Australian and NZ voltage standards (12–24VDC)
-
Supplied via authorised ZKTeco distribution channels in ANZ
-
Meets OSDP compliance for secure data transfer in local building security systems
-
Backed by local warranty handling and technical support
Datasheet & Resources
📄 Download ZKTeco AHEB-0808 Datasheet
FAQs – ZKTeco AHEB-0808
Q1: How many inputs and outputs does the AHEB-0808 provide?
A1: It has 8 inputs (4 state-supervised) and 8 outputs, all fully configurable.
Q2: Does the AHEB-0808 require a specific voltage?
A2: No, it supports a universal 12–24VDC input range.
Q3: Can I use it for elevator control?
A3: While elevator control functions are exclusive to the AHEB-1616 model, the AHEB-0808 can be used for other access control and automation applications.
Q4: Is communication between the board and controller secure?
A4: Yes, it uses OSDP V2.2 over RS-485 with AES128 encryption and an EAL6+ certified crypto chip.
Q5: What software platforms does it work with?
A5: It integrates with Armatura One and supports 3rd party software via RESTful API.
