The ZKTeco EX16 is a floor extension module specifically designed to expand the capabilities of the ZKTeco EC10 Elevator Access Control Panel. Each EX16 board adds control for 16 additional floors, allowing administrators to restrict or grant elevator access by user credentials, time schedules, or both.

With support for up to 3 EX16 units per EC10, this system allows control of up to 58 floors per EC10 bundle. The EX16 connects via RS485 communication and is addressable via DIP switch settings for ease of deployment in multi-floor projects.

Whether managing residential high-rises, commercial towers, or mixed-use complexes, the EX16 delivers affordable, secure, and scalable floor access control, fully integrated with biometric, RFID, or password-based authentication methods.

What’s Included in the Box

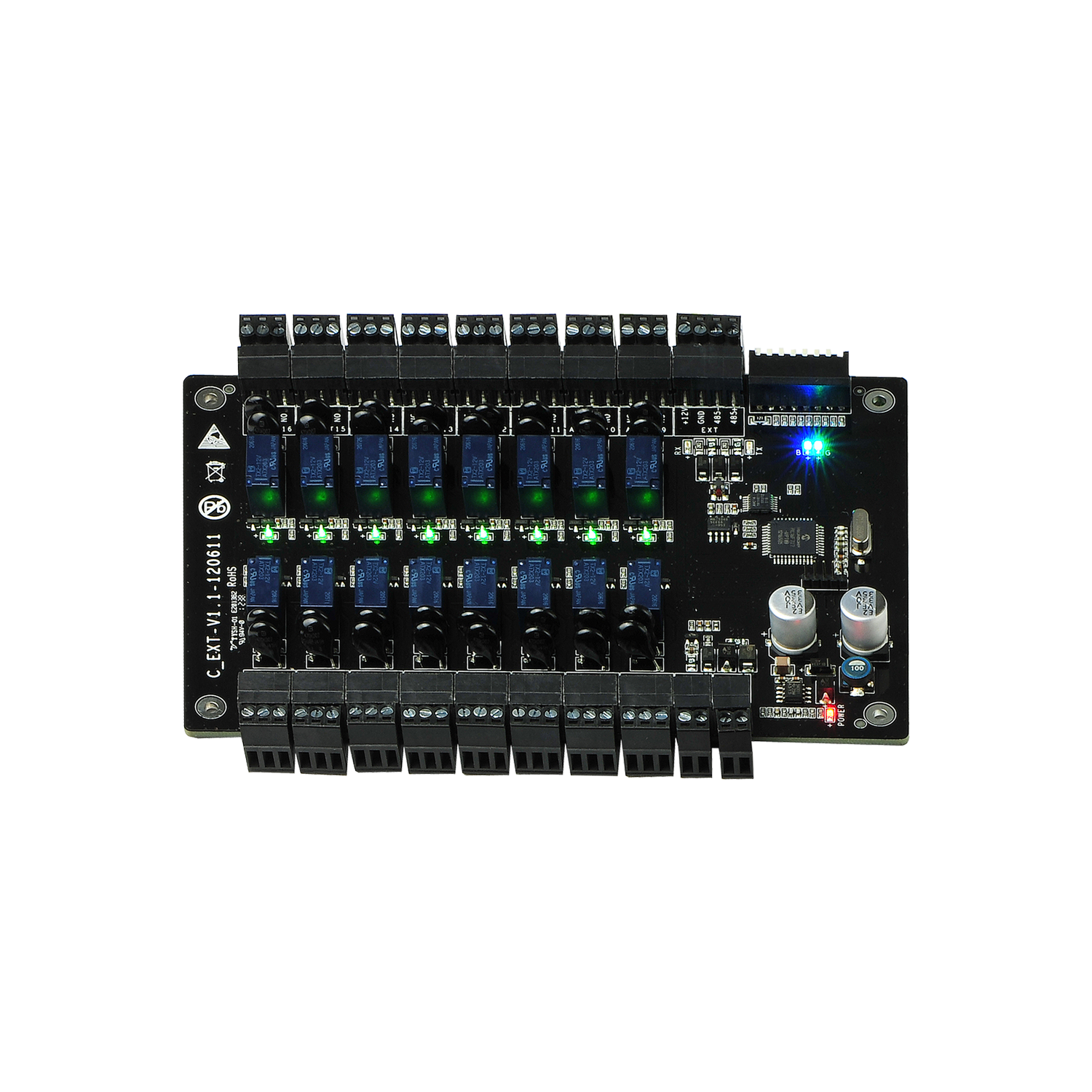

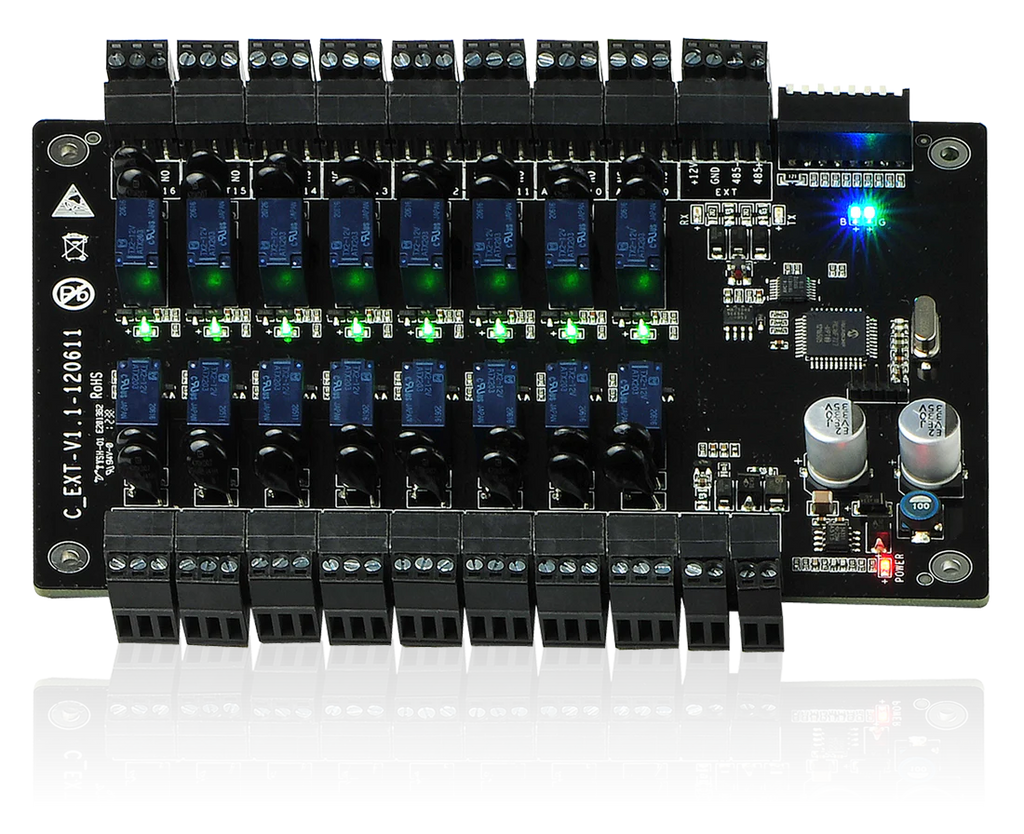

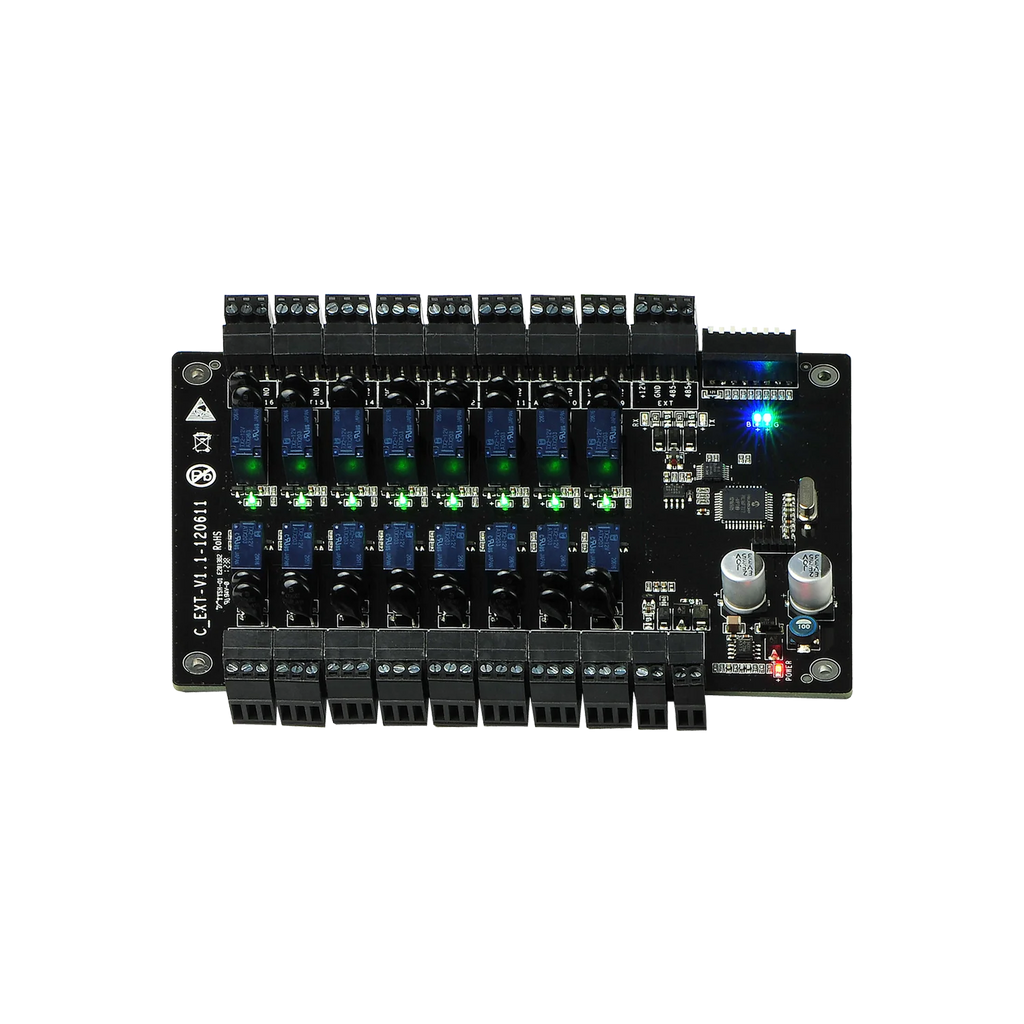

• 1 × ZKTeco EX16 Elevator Floor Extension Board

• RS485 Connector

• DIP Switch Configuration

• Mounting Accessories

• Installation Instructions

Main Features

• Adds 16 Floor Relays: Expands elevator control by 16 floors when connected to an EC10.

• Scalable Architecture: A single EC10 can support up to 3 EX16 units, extending access control to 58 total floors.

• Flexible Access Control: Supports fingerprint, proximity card, and/or PIN code authentication via connected EC10.

• Time-Based Restrictions: Configure floor access using pre-defined time schedules.

• Passage Mode: Allow unrestricted floor access during business or visiting hours.

• Secure RS485 Communication: Reliable and long-range data transfer to EC10 controller.

• Addressable via DIP Switch: Ensures proper module identification and prevents conflicts.

• Seamless Integration: Works with EC10 and is managed through the same elevator access software.

• Ideal for High-Rise Projects: Compact and powerful solution for large building elevator systems.

Detailed Specifications

Warranty Information

manufactures warranty applied

Brand Description

ZKTeco is a trusted name in biometric and access control solutions, offering scalable and reliable products for commercial and institutional security. The EX16 is part of ZKTeco’s modular elevator control ecosystem, providing smart, secure, and cost-effective solutions for managing floor-level access in modern vertical infrastructure.

SKU

EX16

Practical Use Scenarios

• High-Rise Residential Buildings: Extend elevator access per unit or resident authorization.

• Office Towers: Restrict staff and visitor access to designated business floors.

• Hotels: Assign temporary floor access based on guest credentials and stay duration.

• Hospitals: Control access to specific wards, surgical suites, and admin floors.

• Government Facilities: Ensure only authorized personnel can access secure levels.

Datasheets & Downloadable Resources

ZKTeco EX16

Excellence for the Australian and New Zealand Market

The ZKTeco EX16 extension board is engineered to meet the high standards of elevator access control expected across Australia and New Zealand:

• Compliance-Ready: Supports advanced security protocols through EC10 integration.

• Scalable Design: Ideal for ANZ commercial and multi-level residential construction.

• Genuine Distribution Channels: Products sourced through authorized partners ensure warranty coverage and firmware compatibility.

• Local Support Services: Warranty and integration support is locally managed, reducing downtime and ensuring peace of mind.

FAQs (Product Code: EX16)

1. What is the maximum number of EX16 boards that can connect to one EC10?
   Each EC10 supports up to 3 EX16 boards, enabling control for up to 58 floors.

2. What type of communication does the EX16 use?
   The EX16 uses RS485 communication to connect reliably with the EC10 controller.

3. Can EX16 modules be configured independently?
   Yes, each EX16 is addressable via DIP switches, allowing multiple units to operate on the same system without conflict.

4. Does the EX16 support fingerprint or card access on its own?
   No, the EX16 is an extension module. It requires the EC10 to operate and process authentication logic.

5. Is the EX16 suitable for commercial elevator systems in high-rises?
   Absolutely. The EX16 is specifically designed to extend floor-level control in multi-story buildings and large elevator networks.

   please contact CCTV TRADIE for stock availability
