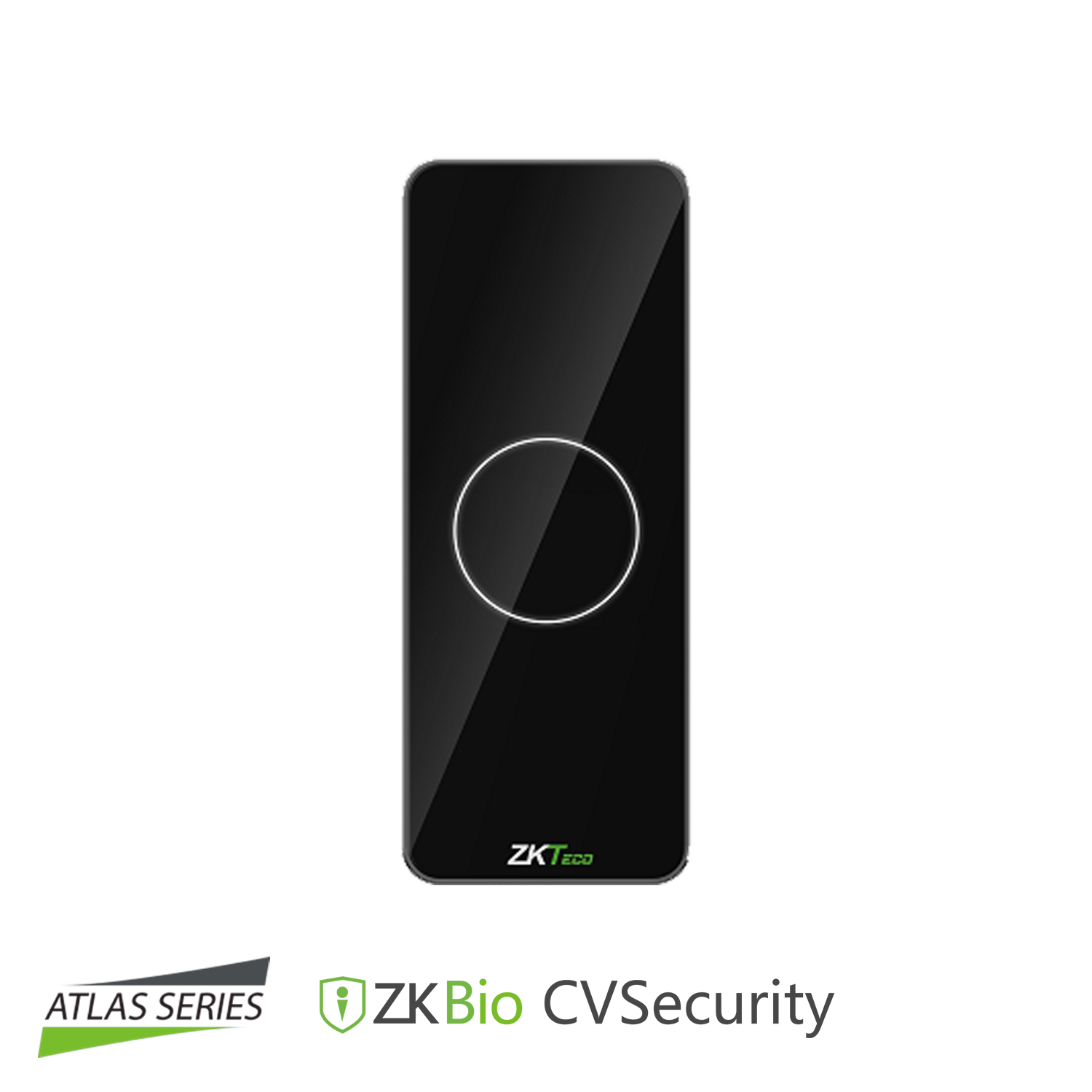

The ZKTeco ProID101 is a slimline, high-durability RFID card reader built for modern access control systems. With a durable aluminum alloy body, a tempered glass surface, and an IP65 weatherproof rating, it is engineered to withstand demanding indoor and outdoor environments.
Designed for versatility, the ProID101 supports both 125kHz ID cards and 13.56MHz IC cards (Mifare), making it ideal for multi-format credential deployments. Its LED status indicators, anti-disassembly alarm, and adjustable Wiegand output ensure reliable performance and enhanced security.
What’s in the Box
Main Features
-
Premium Build Quality – Aluminum alloy housing with tempered glass front panel
-
Dual Card Technology – Supports both 125kHz ID and 13.56MHz IC cards
-
Flexible Output Options – On-site adjustable Wiegand 26/34-bit & RS485 communication
-
Enhanced Security – Anti-disassembly tamper alarm
-
Weatherproof Protection – IP65 rating for indoor and outdoor installations
-
Modern Aesthetics – Available in black or white to complement installation environments
Detailed Specifications
| Specification |
Details |
| Model |
ProID101 |
| Supported Card Types |
125kHz ID cards, 13.56MHz IC (Mifare) cards |
| Material |
Aluminum alloy with tempered glass surface |
| Output Format |
Wiegand 26 / 34-bit (adjustable), RS485 |
| Indicators |
LED status lights |
| Security |
Anti-disassembly tamper alarm |
| Ingress Protection |
IP65 weather/dust-proof |
| Colour Options |
Black / White |
| Mounting |
Wall mount |
| Application |
Indoor / Outdoor |
Warranty Information
3-Year Manufacturer Warranty – Covers defects in materials and workmanship under normal operating conditions.
Excellence for the Australian and New Zealand Market
-
Supplied via authorised ZKTeco ANZ distributors for genuine product assurance
-
Fully compatible with ANZ access control standards
-
Suitable for harsh weather conditions common across Australia & New Zealand
-
Backed by local technical and warranty support
Datasheet & Resources
📄 Download ZKTeco ProID101 Datasheet
FAQs – ZKTeco ProID101
Q1: What card formats does the ProID101 support?
A1: It supports 125kHz ID cards and 13.56MHz IC cards (Mifare).
Q2: Can the ProID101 be used outdoors?
A2: Yes, with its IP65 weatherproof rating, it is suitable for outdoor use.
Q3: Does it have tamper protection?
A3: Yes, the ProID101 has an anti-disassembly alarm to enhance security.
Q4: What output formats does it support?
A4: The reader supports adjustable Wiegand 26/34-bit output and RS485 communication.
Q5: Is the ProID101 available in different colours?
A5: Yes, it is available in black and white finishes.
