Protect your home, office or business with a Dahua 6MP TiOC WizSense CCTV Security Camera Kit, combining Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 6MP Smart Dual Illumination Active Deterrence IP cameras with a compatible Dahua WizSense PoE Network Video Recorder. Choose 2, 3 or 4 cameras and a 4-channel or 8-channel NVR configuration to suit your security requirements. The system delivers 6MP video, human and vehicle detection, SMD 4.0, Smart Dual Light, red/blue warning lights, audible deterrence, two-way audio and intelligent perimeter protection for advanced residential and commercial surveillance.
The DH-IPC-HDW3649H-AS-PV-ANZ-S2 is part of Dahua's WizSense TiOC range. Its deep-learning intelligence can distinguish people and vehicles for supported intrusion, tripwire and Smart Motion Detection events, helping reduce unwanted alerts. SMD 4.0 further filters non-target objects such as animals.
TiOC Active Deterrence
Rather than simply recording an event, the camera can actively respond to supported perimeter events using red and blue warning lights and an integrated speaker. The camera supports selectable built-in warning voices and customised voice importing, providing visible and audible deterrence when configured appropriately.
Smart Dual Illumination
Smart Dual Light combines infrared and warm-light illumination up to 30 metres. During normal night monitoring, infrared illumination can be used. When a target is detected in the configured monitoring area, warm light can activate so key events can be captured in colour. Once the target leaves, the camera can return to infrared illumination, helping minimise unnecessary visible lighting.
6MP High-Resolution Surveillance
Each camera uses a 1/2.7-inch CMOS sensor and produces up to 3072 × 2048 6MP video at 25/30 fps. Image functions include 120 dB WDR, 3D noise reduction, HLC, BLC, defog, Smart Illumination and AI Scene Self-adaptation.
Two-Way Audio
The camera includes built-in microphones and a speaker and supports two-way communication. This makes the system suitable for entrances, driveways, loading areas and other locations where seeing, hearing and communicating with a visitor or intruder may be useful.
Intelligent Human & Vehicle Detection
Dahua WizSense intelligence provides:
SMD 4.0 Smart Motion Detection
Human and vehicle classification
Intrusion detection
Tripwire detection
AcuPick support with compatible back-end equipment
AI Scene Self-adaptation
Smart Search with compatible Smart NVRs
One-tap arming/disarming support
The camera's intrusion and tripwire functions support classification and accurate detection of human and vehicle targets.
Choose Your Kit
Configure the system to match your property:
Camera Quantity

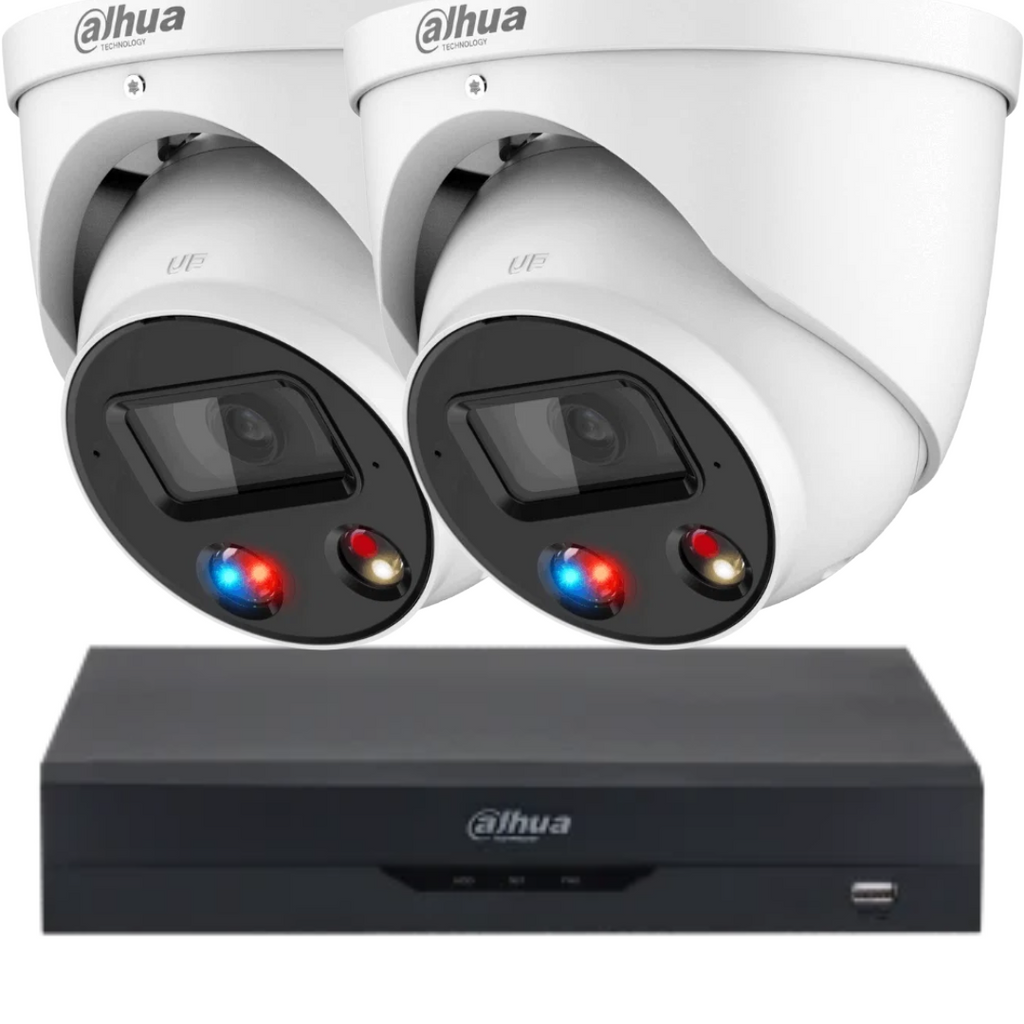

2 × Dahua 6MP TiOC cameras

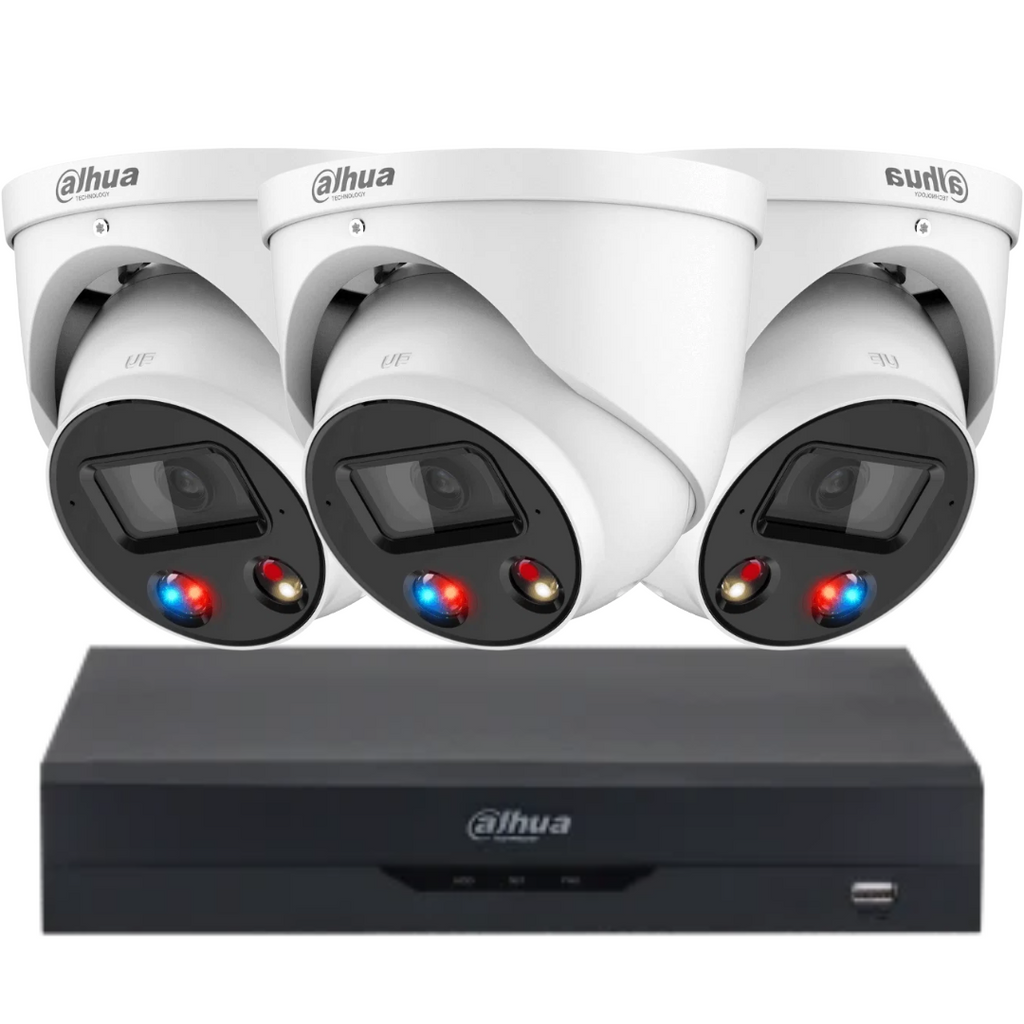

3 × Dahua 6MP TiOC cameras

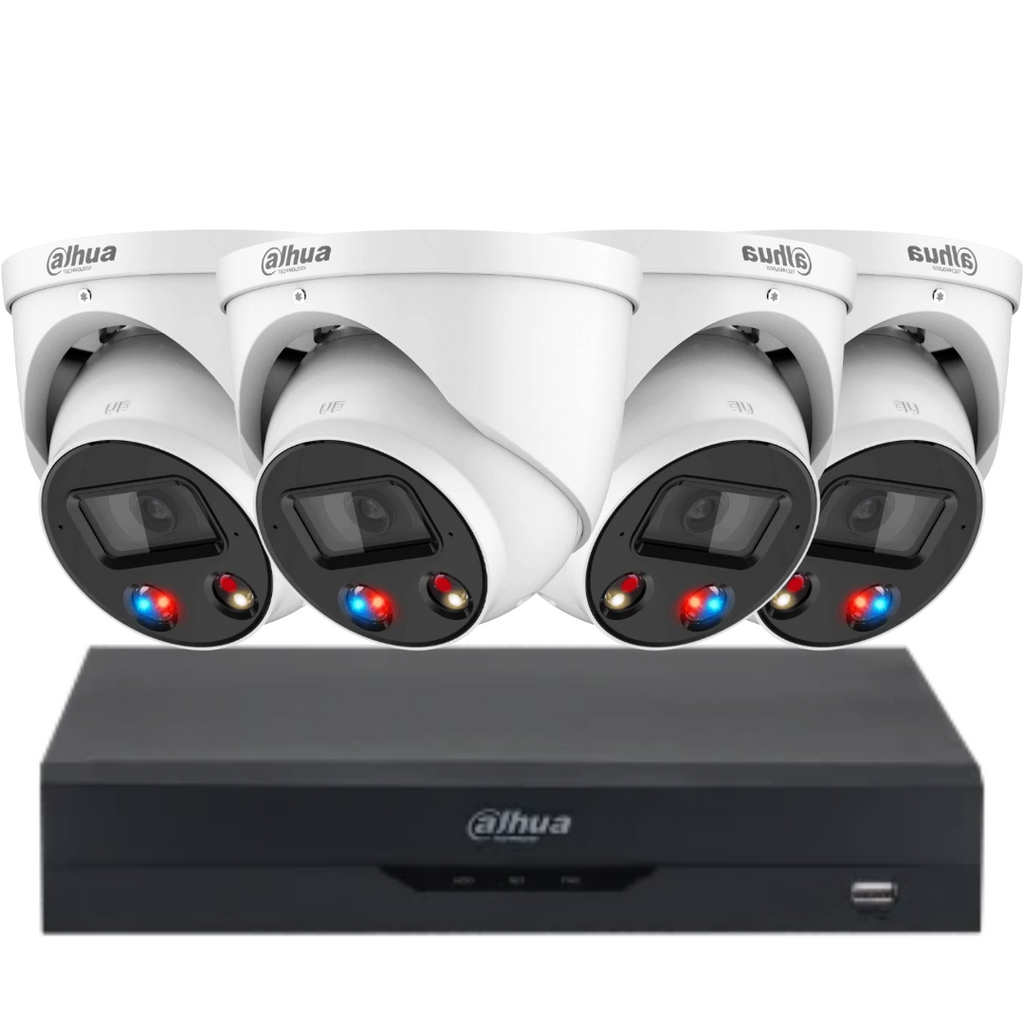

4 × Dahua 6MP TiOC cameras
NVR Options
4-Channel Dahua WizSense PoE NVR
8-Channel Dahua WizSense PoE NVR
The DHI-NVR4104HS-P-AI/ANZ 4-channel option provides four integrated PoE ports, making it particularly convenient for systems using up to four PoE cameras. Dahua specifies 80 Mbps incoming, recording and outgoing bandwidth, Smart H.265+/H.265 and Smart H.264+/H.264 compression, and support for IP camera resolutions up to 16MP.
What's Included in the Box
Depending on the configuration selected:

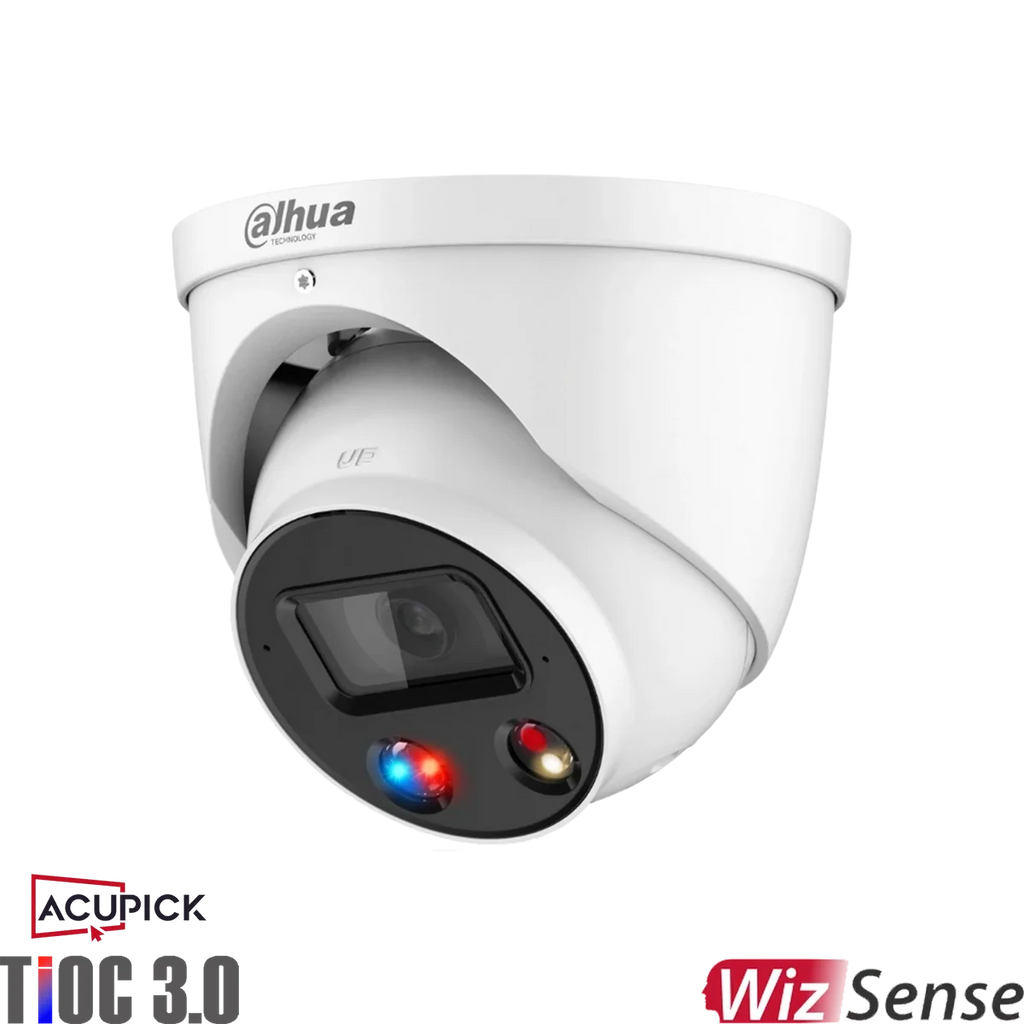

2, 3 or 4 × DH-IPC-HDW3649H-AS-PV-ANZ-S2 Dahua 6MP TiOC WizSense Active Deterrence Cameras
1 × selected Dahua 4CH or 8CH PoE NVR
Standard manufacturer-supplied accessories for the selected equipment
Hard drive, Ethernet cabling, monitor, and optional mounting accessories are not included and should not be assumed to be part of the kit.
Main Features
6MP resolution – up to 3072 × 2048 at 25/30 fps
Dahua TiOC Active Deterrence
Red and blue warning lights
Integrated audible warning capability
Smart Dual Light – IR + warm illumination
Up to 30 m IR illumination
Up to 30 m warm-light illumination
SMD 4.0 human and vehicle classification
Intelligent intrusion and tripwire detection
AcuPick support with compatible back-end equipment
Built-in microphones and speaker
Two-way audio
AI Scene Self-adaptation
120 dB WDR
H.265 / H.264 video compression
Smart H.265+ / Smart H.264+
AI H.265 / AI H.264 coding
MicroSD support up to 256GB per camera
PoE or 12V DC camera power
IP67 weather protection
Metal camera housing
DMSS mobile client support
ONVIF interoperability
One-tap arming/disarming support
Suitable for indoor and outdoor surveillance applications
Camera Specifications
Model: DH-IPC-HDW3649H-AS-PV-ANZ-S2 Series: Dahua WizSense 3 Series TiOC Camera Type: Fixed-focal eyeball network camera Image Sensor: 1/2.7" CMOS Maximum Resolution: 3072 × 2048 (6MP) Maximum Frame Rate: 6MP @ 25/30 fps Lens: 2.8 mm or 3.6 mm fixed focal, depending on selected variant Maximum Aperture: F1.0 Field of View – 2.8 mm: H 97°, V 70°, D 128° Field of View – 3.6 mm: H 78°, V 58°, D 102° WDR: 120 dB Noise Reduction: 3D NR IR Distance: Up to 30 m Warm Light Distance: Up to 30 m Smart Motion Detection: SMD 4.0 IVS: Intrusion and tripwire with human/vehicle classification AcuPick: Supported AI SSA: Supported Built-in Microphone: Yes Built-in Speaker: Yes Two-Way Talk: Supported MicroSD: Up to 256GB Network: RJ-45 10/100 Base-T Interoperability: ONVIF Profile S/G/T; CGI Power: 12 VDC or PoE Ingress Protection: IP67 Housing: Metal Dimensions: Ø122 × 110.9 mm Net Weight: 0.75 kg Operating Temperature: -40°C to +60°C Operating Humidity: ≤95%
4-Channel NVR Specifications
Model: DHI-NVR4104HS-P-AI/ANZ Type: 4-Channel Compact 1U 4PoE 1HDD WizSense Network Video Recorder IP Camera Channels: 4 Integrated PoE Ports: 4 × 10/100 Mbps IEEE 802.3af/at Network Bandwidth: 80 Mbps incoming / 80 Mbps recording / 80 Mbps outgoing Supported Resolution: Up to 16MP Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG Video Outputs: HDMI + VGA HDMI Maximum: 3840 × 2160 Playback: Up to 4 channels HDD: 1 × SATA USB: 2 Network: 1 × 10/100 Mbps RJ-45 Mobile Access: iOS / Android Operating System: Embedded Linux Operating Temperature: -10°C to +55°C Dimensions: 260 × 232.7 × 47.6 mm Net Weight: 0.86 kg
WizSense NVR AI Functions
With the DHI-NVR4104HS-P-AI/ANZ, Dahua specifies AI functions including:
Recorder-based face detection and recognition
2-channel recorder-based perimeter protection
4-channel recorder-based SMD
Up to 10 face databases
Up to 20,000 face images
Camera-side face detection and recognition
Camera-side perimeter protection and SMD
ANPR support by compatible camera
People counting
Stereo analysis
Heat map functionality
Availability of camera-side AI functions depends on the capabilities of the connected camera.
Practical Use Scenarios
This Dahua 6MP TiOC CCTV kit is well suited to security applications including:
Homes & Residential Properties – Monitor driveways, entrances, side access, garages, backyards and other key areas with intelligent human and vehicle detection.
Retail Stores & Offices – Protect entrances, stock areas, external access points and staff areas while benefiting from intelligent event searching.
Warehouses & Workshops – Use perimeter detection and active deterrence around entrances, loading areas and restricted zones.
Small Businesses – Build a scalable PoE surveillance system with local NVR recording and remote mobile access.
Car Parks & Driveways – Human and vehicle classification helps focus alerts on relevant movement rather than general scene changes.
After-Hours Security – Configure supported perimeter events to activate visual and audible deterrence when a human or vehicle enters a protected area.
Warranty Information
3 year Warranty
About Dahua Technology
Dahua Technology develops video-centric AIoT products and security solutions, including network cameras, network video recorders, access control, intercom and related security technologies. The WizSense range uses AI and deep-learning technologies with a particular focus on human and vehicle target recognition.
Excellence for the Australian and New Zealand Market
The DH-IPC-HDW3649H-AS-PV-ANZ-S2 camera and DHI-NVR4104HS-P-AI/ANZ recorder are ANZ-designated Dahua models, making this kit particularly relevant for Australian and New Zealand security installations.
The camera documentation lists CE-LVD and CE-EMC certification, while the NVR documentation lists FCC, CE-EMC and CE-LVD certifications. For Australian and New Zealand customers, purchasing through an authorised local supply channel can also simplify product support and warranty handling. Any claim that a particular kit is sourced exclusively through an authorised representative, carries a specific Australian warranty, or meets a particular Australian regulatory certification should be confirmed against the seller's supply arrangement before being advertised.
FAQs
What is included in the Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 CCTV kit?
The DH-IPC-HDW3649H-AS-PV-ANZ-S2 kit can be configured with 2, 3 or 4 Dahua 6MP TiOC cameras together with a selected 4-channel or 8-channel Dahua PoE NVR. Exact accessories and storage should be confirmed from the chosen package configuration.
What resolution does the DH-IPC-HDW3649H-AS-PV-ANZ-S2 camera provide?
The DH-IPC-HDW3649H-AS-PV-ANZ-S2 provides up to 6MP resolution at 3072 × 2048 and supports up to 25/30 fps at maximum resolution.
Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2 support active deterrence?
Yes. The DH-IPC-HDW3649H-AS-PV-ANZ-S2 supports siren and light active deterrence, including red and blue warning lights and audible warnings for configured perimeter events.
Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2 have colour night vision?
The DH-IPC-HDW3649H-AS-PV-ANZ-S2 uses Smart Dual Light with both infrared and warm-light illumination. When configured appropriately, warm light can activate when a target is detected so key events can be recorded in colour.
How far can the DH-IPC-HDW3649H-AS-PV-ANZ-S2 see at night?
The DH-IPC-HDW3649H-AS-PV-ANZ-S2 specifies up to 30 metres of IR illumination and up to 30 metres of warm-light illumination.
Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2 detect people and vehicles?
Yes. The DH-IPC-HDW3649H-AS-PV-ANZ-S2 supports SMD 4.0 and human/vehicle classification for supported intelligent functions such as intrusion and tripwire detection.
Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2 have two-way audio?
Yes. The DH-IPC-HDW3649H-AS-PV-ANZ-S2 includes built-in microphones and a speaker and supports two-way talk.
Is the DH-IPC-HDW3649H-AS-PV-ANZ-S2 suitable for outdoor installation?
Yes. The DH-IPC-HDW3649H-AS-PV-ANZ-S2 has an IP67-rated metal enclosure and a specified operating temperature range from -40°C to +60°C.
Can the DH-IPC-HDW3649H-AS-PV-ANZ-S2 be powered using PoE?
Yes. The DH-IPC-HDW3649H-AS-PV-ANZ-S2 supports PoE or 12V DC power, allowing network and power connectivity through a suitable PoE network installation.
How many cameras does the DHI-NVR4104HS-P-AI/ANZ support?
The DHI-NVR4104HS-P-AI/ANZ supports four IP camera channels and has four integrated PoE ports, making it suitable for Dahua CCTV systems containing up to four cameras.
Does the DHI-NVR4104HS-P-AI/ANZ support 6MP cameras?
Yes. The DHI-NVR4104HS-P-AI/ANZ supports IP camera resolutions up to 16MP, so the 6MP DH-IPC-HDW3649H-AS-PV-ANZ-S2 falls within its supported resolution range.
Does the DHI-NVR4104HS-P-AI/ANZ support smart human and vehicle detection?
Yes. The DHI-NVR4104HS-P-AI/ANZ supports recorder-based SMD and perimeter protection, while compatible cameras can provide additional camera-side AI functionality.
Can I choose between a 4CH and 8CH recorder with the DH-IPC-HDW3649H-AS-PV-ANZ-S2 kit?
Yes. The DH-IPC-HDW3649H-AS-PV-ANZ-S2 kit is intended to offer 4-channel and 8-channel NVR configuration choices. The exact 8-channel NVR product code and specifications should be confirmed for the package being sold.
Is a hard drive included with the DHI-NVR4104HS-P-AI/ANZ kit?
A hard drive is not confirmed as included in the supplied information for the DHI-NVR4104HS-P-AI/ANZ kit. HDD inclusion and storage capacity should therefore be specified separately for each package option.
