4 × Hanwha Wisenet ANE-L8082R 5MP IR Flateye Cameras
1 × Wisenet CT-ARN-410S 4-Channel AI NVR
Power Adapter & Cable
Installation Screws & Quick Setup Guide
Warranty and Compliance Documentation
🔧 Main Features

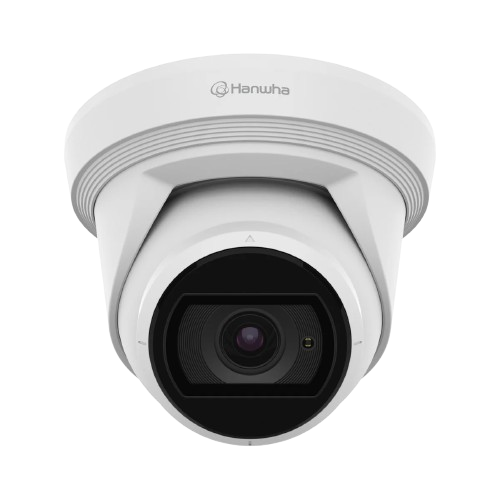

Cameras (ANE-L8082R):
5MP (2592×1944) CMOS sensor for high-resolution video
Motorized varifocal lens: 3.3–10.3 mm with auto-focus
Low-light sensitivity: 0.04 Lux (Color), 0 Lux with IR
Smart analytics: motion detection, tampering, virtual zones and lines
120dB WDR and Day/Night (ICR) support for challenging lighting
IR LED range up to 30m for superior night vision
IP66/IP67 and IK10 certified for weather and impact resistance
WiseStreamⅡ and H.265 compression for efficient storage

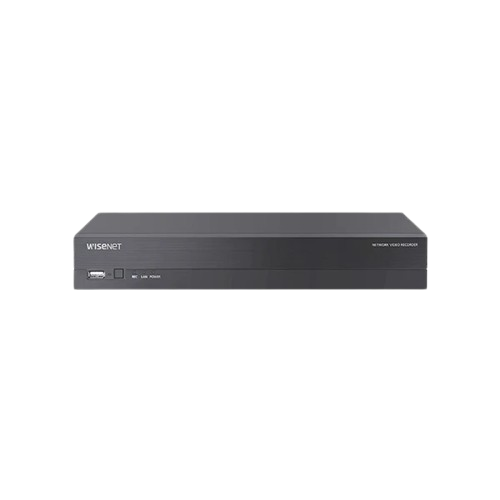

NVR (CT-ARN-410S):
Supports up to 4 IP channels, 8MP max input resolution
Integrated 4 PoE ports (IEEE802.3af) for easy plug-and-play setup
Supports H.265, H.264, MJPEG with up to 40Mbps recording bandwidth
HDMI output up to 4K UHD for crisp local monitoring
1 SATA HDD bay (supports up to 6TB HDD)
Dual USB 2.0 ports
Compact size and P2P remote viewing via Wisenet apps
🧩 Detailed Specifications
Cameras (ANE-L8082R)
Resolution: Up to 5MP
Lens: 3.3–10.3 mm, F1.6–F3.3
IR Range: 30m
Operating Temp: –30°C to +60°C
Protection: IP66, IP67, IK10
Analytics: Motion, Tampering, Virtual Line/Area
NVR (CT-ARN-410S)
Video Input: 4CH (8MP Max)
Storage: 1 HDD up to 6TB
Outputs: 1 HDMI (4K UHD)
PoE: 4 Ports
USB: 2 × USB 2.0
Power: 54V DC / 1.20A
🛡️ Warranty Information
Covered by Hanwha Vision's industry-leading 5-year warranty. Australian Consumer Law rights apply for added protection and confidence.
🏢 Brand Description
Hanwha Vision, formerly Hanwha Techwin, is a global leader in video surveillance technology. Their advanced security solutions offer smart analytics, robust performance, and trusted reliability tailored for diverse surveillance environments.
🛒 SKU
HAN-ANE-L8082R-4KIT
🔍 Practical Use Scenarios
Retail: Monitor customer behavior and deter theft.
Residential: Secure entry points, driveways, and garages.
Small Business: Protect offices, reception areas, and storage rooms.
Hospitality: Monitor guest areas, back-of-house, and cash counters.
🇦🇺🇳🇿 Excellence for the Australian and New Zealand Market
Certified to RCM, IP66/IP67, IK10 standards
Fully compliant with local safety and performance regulations
Exclusively sourced via authorized Hanwha Vision distributors
Warranty and servicing handled directly by Hanwha Vision in AU/NZ
Optimized for reliable operation across a wide temperature range
❓ FAQs
Q1: What is the product code for this system? A1: The product code is HAN-ANE-L8082R-4KIT.
Q2: Does the CT-ARN-410S NVR support 4K output? A2: Yes, the HDMI port supports up to 4K UHD resolution—Product Code HAN-ANE-L8082R-4KIT.
Q3: How many cameras can I connect to this system? A3: Up to 4 IP cameras—Product Code HAN-ANE-L8082R-4KIT.
Q4: Does this camera support advanced motion detection? A4: Yes, it includes motion, tampering, defocus detection, and virtual line/area analytics—Product Code HAN-ANE-L8082R-4KIT.
Q5: What is the maximum hard drive size supported by the NVR? A5: It supports a single SATA HDD up to 6TB—Product Code HAN-ANE-L8082R-4KIT.
Q6: Can I access this system remotely? A6: Yes, via the Wisenet Viewer and Mobile apps using the P2P QR scan feature—Product Code HAN-ANE-L8082R-4KIT.
