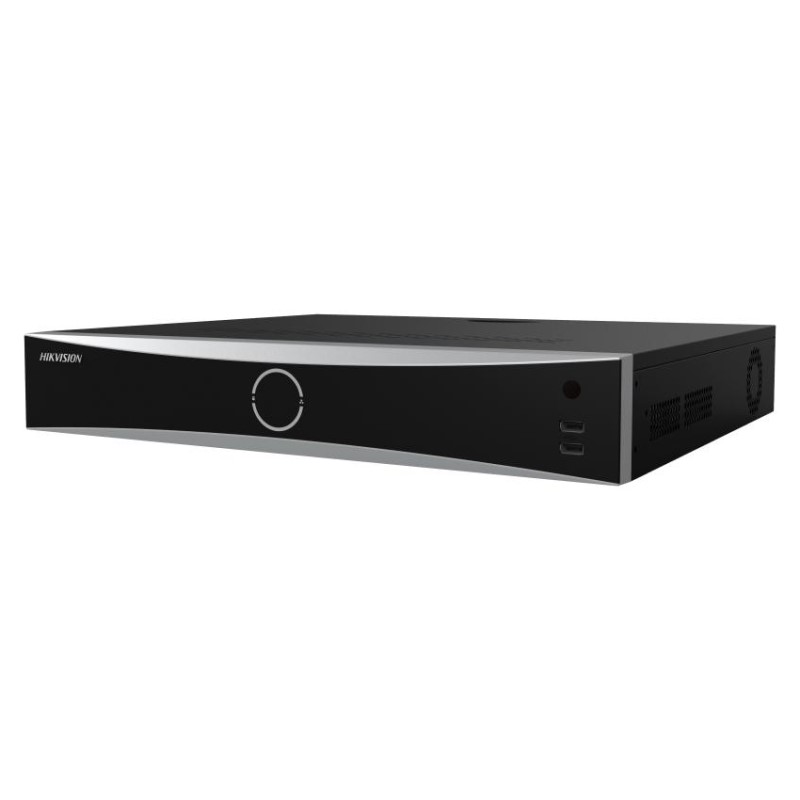

The HIK-7716NXM416PX Hikvision 16 Channel PoE DeepInMind Face Recognition NVR is a powerful enterprise-grade AI network video recorder designed for advanced surveillance, facial recognition, perimeter protection, and intelligent video analytics. Featuring 16 built-in PoE ports, support for up to 16 IP cameras, and advanced DeepinMind AI technology, this professional NVR provides intelligent security monitoring for commercial, industrial, retail, and high-security applications.
Supporting up to 8K HDMI video output, H.265+ video compression, facial recognition analytics, AcuSearch, ANPR, and video structuralization, the HIK-7716NXM416PX delivers high-performance surveillance management with enhanced storage efficiency and rapid event searching. With support for up to 4 SATA HDDs (HDDs not included), this NVR is ideal for large-scale surveillance installations requiring advanced AI-driven monitoring and forensic search capabilities.
What’s Included in the Box
- Hikvision DeepInMind 16 Channel NVR
- Power Cable
- Mounting Accessories
- Quick Start Guide
Note: Hard drives are not included.
Main Features
Advanced DeepInMind AI Analytics
- Facial recognition
- Perimeter protection
- AcuSearch intelligent search
- Video structuralization
16 Built-In PoE Ports
- Supports up to 16 IP cameras
- Plug-and-play PoE connectivity
8K Ultra HD Video Output
- HDMI output up to 8K resolution
- Dual independent HDMI outputs supported
High-Efficiency Video Compression
- H.265+/H.265/H.264+/H.264 support
- Reduces storage requirements by up to 75%
Facial Recognition Performance
- Up to 16-channel face recognition
- Supports up to 100,000 face images in list libraries
Intelligent Security Features
- ANPR (Automatic Number Plate Recognition)
- People counting
- Heat mapping
- Intrusion and line-crossing detection
Large Storage Capacity
- 4 × SATA interfaces
- Up to 16TB per HDD
Professional Surveillance Connectivity
- 16 alarm inputs / 4 alarm outputs
- RS-232 and RS-485 interfaces
- ONVIF compatibility
Technical Specifications
| Specification |
Details |
| Product Code |
HIK-7716NXM416PX |
| Model |
iDS-7716NXI-M4/16P/X |
| Recorder Type |
DeepInMind AI NVR |
| Channels |
16 IP Channels |
| PoE Ports |
16 × RJ45 PoE Ports |
| Maximum Camera Resolution |
Up to 32MP |
| HDMI Output |
Up to 8K |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| Incoming Bandwidth |
256 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| Face Recognition |
Up to 16 channels |
| AcuSearch |
Up to 691,200 targets/day |
| Perimeter Protection |
Up to 16 channels |
| Video Structuralization |
Up to 12 channels |
| HDD Bays |
4 SATA Bays |
| HDD Capacity |
Up to 16TB per HDD |
| Audio Output |
1-ch RCA |
| Two-Way Audio |
Supported |
| Alarm Inputs/Outputs |
16 / 4 |
| Network Interface |
1 × Gigabit RJ45 |
| USB Ports |
2 × USB 2.0, 1 × USB 3.0 |
| Operating Temperature |
-10°C to +55°C |
| Dimensions |
445 × 400 × 71 mm |
| Weight |
≤ 5 kg (without HDD) |
| Power Supply |
100–240 VAC |
| HDD Included |
No |
Technical specifications sourced from the official Hikvision datasheet.
Practical Use Scenarios
Commercial Surveillance Systems
Ideal for retail stores, shopping centres, and office buildings requiring advanced AI monitoring.
Facial Recognition Security
Supports intelligent face comparison and facial database management for secure access monitoring.
Warehouse & Industrial Monitoring
Provides perimeter protection and advanced analytics for large-scale facilities.
Vehicle & Traffic Monitoring
Supports ANPR functionality for parking systems and vehicle management applications.
Enterprise Security Installations
Suitable for high-capacity CCTV systems requiring intelligent event detection and forensic search.
Warranty Information
Manufacturer Warranty:
Covered by Hikvision manufacturer warranty policies.
About Hikvision
Hikvision is a global leader in professional video surveillance and AI-powered security technologies, providing advanced CCTV, video analytics, and intelligent monitoring solutions trusted worldwide.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels and optimized for professional surveillance installations throughout Australia and New Zealand.
Key advantages include:
- Genuine Hikvision product
- RCM certified compliance support
- Professional AI surveillance capabilities
- Compatible with ONVIF-supported cameras
- Installer-friendly PoE integration
- Warranty support through authorized suppliers
This ensures customers receive a high-performance and reliable AI surveillance recording solution suitable for commercial and enterprise security applications across Australia and New Zealand.
Datasheets & Resources
- Hikvision iDS-7716NXI-M4/16P/X Datasheet
- Installation Guide
- User Manual
- AI Analytics Configuration Guide
Official technical documentation:
FAQs – HIK-7716NXM416PX
1. What is the HIK-7716NXM416PX used for?
The HIK-7716NXM416PX is a 16-channel AI-powered network video recorder designed for advanced surveillance and facial recognition applications.
2. How many cameras can the HIK-7716NXM416PX support?
The HIK-7716NXM416PX supports up to 16 IP cameras with built-in PoE connectivity.
3. Does the HIK-7716NXM416PX include hard drives?
No, the HIK-7716NXM416PX is supplied without HDD storage.
4. Does the HIK-7716NXM416PX support facial recognition?
Yes, the HIK-7716NXM416PX supports advanced facial recognition and face picture comparison features.
5. What video resolution does the HIK-7716NXM416PX support?
The HIK-7716NXM416PX supports HDMI output resolutions up to 8K Ultra HD.
6. How much storage can the HIK-7716NXM416PX support?
The HIK-7716NXM416PX supports up to 4 SATA hard drives, with up to 16TB capacity per drive.
