Secure your home or business with the Hikvision 4-Channel 8MP CCTV Kit, featuring four high-performance DS-2CD2T86G2-ISU/SL 8MP IR Fixed Bullet Cameras and the reliable DS-7604NI-M1/4P PoE Network Video Recorder (NVR). This advanced surveillance bundle includes a pre-installed HDD, making it a complete, ready-to-install solution ideal for retail shops, homes, office environments, or small commercial premises.

The cameras are equipped with AcuSense AI for accurate detection of humans and vehicles, and Active Strobe Light and Audio Alarm deterrents that proactively warn intruders. With DarkFighter technology, these cameras deliver crisp, clear images even in very low-light conditions. Two-way audio, IP66 weather resistance, and built-in SD card support ensure both flexibility and performance.

Paired with the DS-7604NI-M1/4P NVR, this kit enables real-time monitoring and playback of high-resolution footage with remote access, dual-stream recording, and 8K HDMI output.

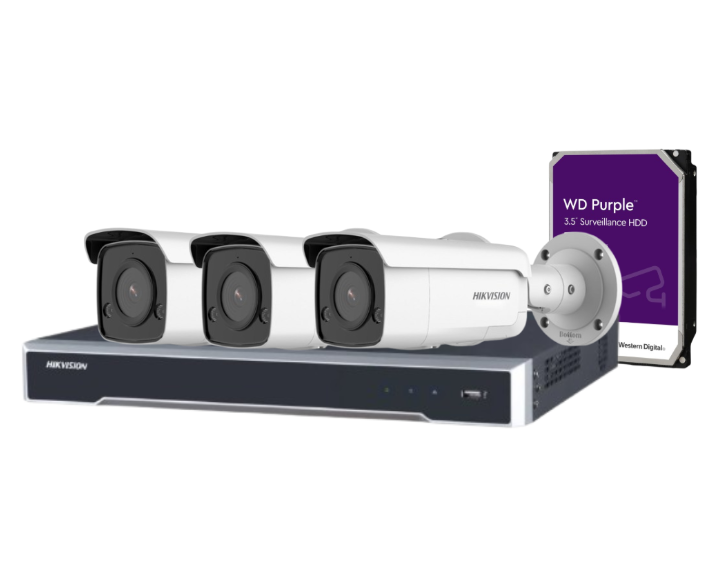

What's Included in the Box:

• 4 × Hikvision DS-2CD2T86G2-ISU/SL 8MP AcuSense Fixed IR Bullet Cameras

• 1 × Hikvision DS-7604NI-M1/4P 4-Channel PoE NVR

• 1 × Surveillance-grade Hard Drive (Capacity as selected)

• 1 × Power Adapter & Mouse for NVR

• 1 × Quick Start Guide, Screws, and Installation Manual

Main Features:

• 8MP Resolution (3840 × 2160) – Ultra-HD imaging for critical detail capture

• AcuSense Human & Vehicle Detection – Reduce false alarms and focus on real threats

• Strobe Light + Built-in Speaker Alarm – Deter intruders in real-time

• Powered-by-DarkFighter – Outstanding low-light performance

• Two-Way Audio – Integrated mic and speaker for real-time communication

• IP66 Weatherproof Housing – Built for harsh outdoor environments

• 60m IR Range – Long-distance night vision with smart IR

• 8K HDMI NVR Output – High-resolution viewing and playback

• H.265+ Compression – Saves storage while maintaining video quality

• Plug-and-Play PoE Setup – Simple and efficient installation

Detailed Specifications:

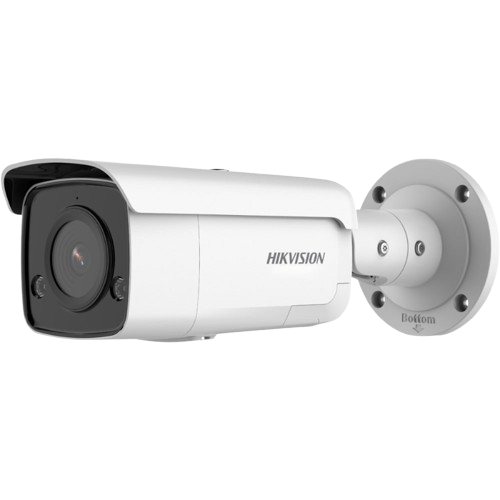

Cameras – DS-2CD2T86G2-ISU/SL

• Sensor: 1/1.8" Progressive Scan CMOS

• Lens Options: 2.8mm (111°), 4mm (87°), 6mm (51°)

• Strobe + Audio Alarm: Built-in

• Two-Way Audio: Speaker, microphone, line in/out

• Video Compression: H.265+/H.264+

• IR Range: Up to 60m

• WDR: 120dB

• Audio Compression: G.711, MP3, G.722, PCM, and more

• Smart Features: Face detection, line crossing, intrusion detection

• Power Supply: 12VDC or PoE

• Ingress Protection: IP66

• Onboard Storage: Up to 256GB microSD

• Material: Aluminum alloy body

• Dimensions: Ø105 × 287.6 mm

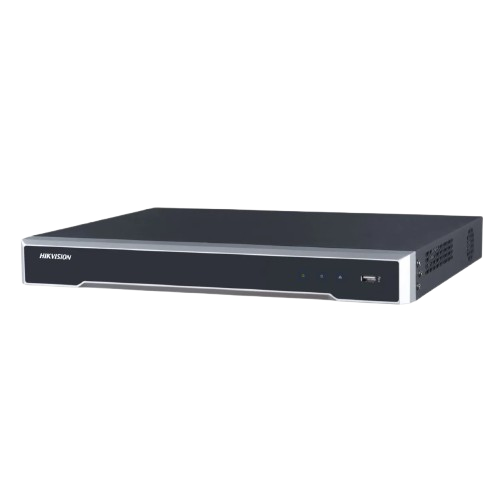

NVR – DS-7604NI-M1/4P

• Camera Inputs: 4 channels

• Max Resolution: Up to 32MP

• Decoding Capability: 4-ch @ 8MP

• Video Outputs: HDMI (up to 8K), VGA (1080p)

• Bandwidth: 40 Mbps incoming / 80 Mbps outgoing

• Recording Format: H.265+/H.265/H.264+/H.264

• Audio I/O: RCA In/Out with Two-Way Audio

• Storage: 1 SATA, up to 16TB

• PoE Ports: 4 × 10/100 Mbps

• Network Access: Supports up to 128 remote connections

• Power Supply: 48VDC | Consumption: ≤15W

• Operating Temp: -10°C to 50°C

Warranty Information:

This kit includes a 3-Year Manufacturer Warranty covering both the NVR and cameras, with support and servicing available through authorized Hikvision Australia representatives.

Brand Overview:

Hikvision is the world's leading provider of video surveillance products and solutions. The brand delivers industry-leading performance in security imaging, intelligent analytics, and system integration – trusted globally and highly regarded in the Australian and New Zealand markets.

SKU: DS-2CD2T86G2-ISU-KIT4

Practical Use Scenarios:

• Retail Storefronts – Warn off suspicious activity with audio/strobe alerts

• Office Entrances & Receptions – Two-way talk to interact with visitors

• Residential Gates & Driveways – Actively deter intruders before they reach the house

• Clinics & Schools – Monitor perimeters and entry points with smart analytics

• Small Warehouses & Workshops – Ensure full visibility with long-range night vision

Datasheets and Resources:

• Camera Datasheet – DS-2CD2T86G2-ISU/SL

• NVR Datasheet – DS-7604NI-M1/4P

Excellence for the Australian and New Zealand Market:

• ✅ RCM-Certified for AU/NZ Compliance – Meets local electrical and EMC regulations

• ✅ Optimized for Australian Lighting & Conditions – Includes wide dynamic range, strobe, and low-light support

• ✅ Local Warranty and Servicing – Backed by Hikvision’s authorized regional network

• ✅ Sourced via Official Channels Only – Ensures original product and full support

• ✅ Supports Local Storage Standards – Up to 256GB onboard SD + 16TB NVR-ready

Frequently Asked Questions (FAQs):

1. Does this system include strobe and audio alerts? (SKU: DS-2CD2T86G2-ISU-KIT4)
Yes, each DS-2CD2T86G2-ISU/SL camera has a built-in strobe light and speaker that can be triggered on motion or specific events.

2. Can I talk through the camera remotely? (SKU: DS-2CD2T86G2-ISU-KIT4)
Absolutely. The built-in microphone and speaker enable two-way audio, accessible through the Hik-Connect app or PC software.

3. Is this kit suitable for outdoor use? (SKU: DS-2CD2T86G2-ISU-KIT4)
Yes, the cameras are IP66-rated and built with a rugged aluminum body, perfect for harsh outdoor environments.

4. What is the night vision range? (SKU: DS-2CD2T86G2-ISU-KIT4)
Each camera provides up to 60 meters of IR night vision, ideal for large driveways or parking lots.

5. How is this kit powered? (SKU: DS-2CD2T86G2-ISU-KIT4)
The PoE NVR supplies power and data to each camera over a single Ethernet cable. Just plug and play—no extra power cables required.

6. Can I expand the system later? (SKU: DS-2CD2T86G2-ISU-KIT4)
You can swap or upgrade cameras, and the NVR supports ONVIF for future flexibility with other brands.

7. Does this support remote access and mobile viewing? (SKU: DS-2CD2T86G2-ISU-KIT4)
Yes, access live and recorded video anytime through Hik-Connect or compatible browser interfaces.
