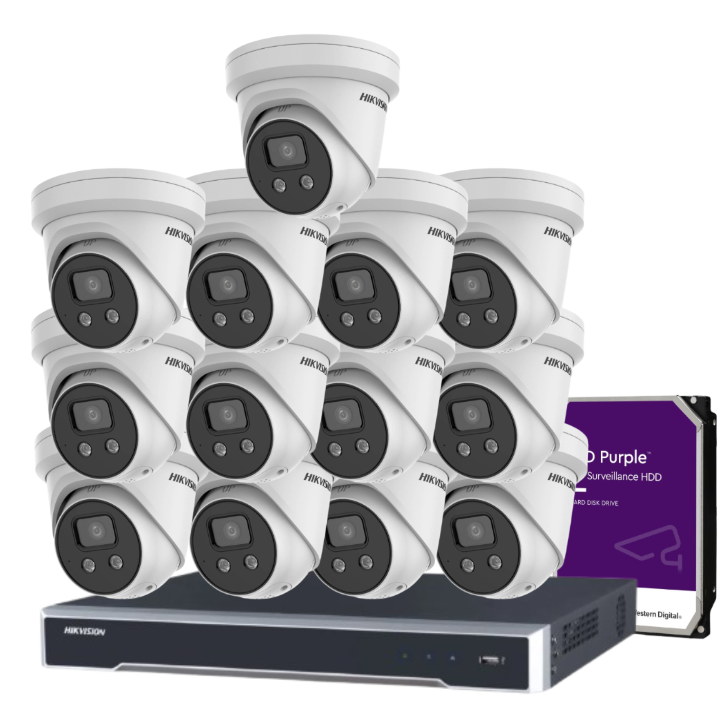

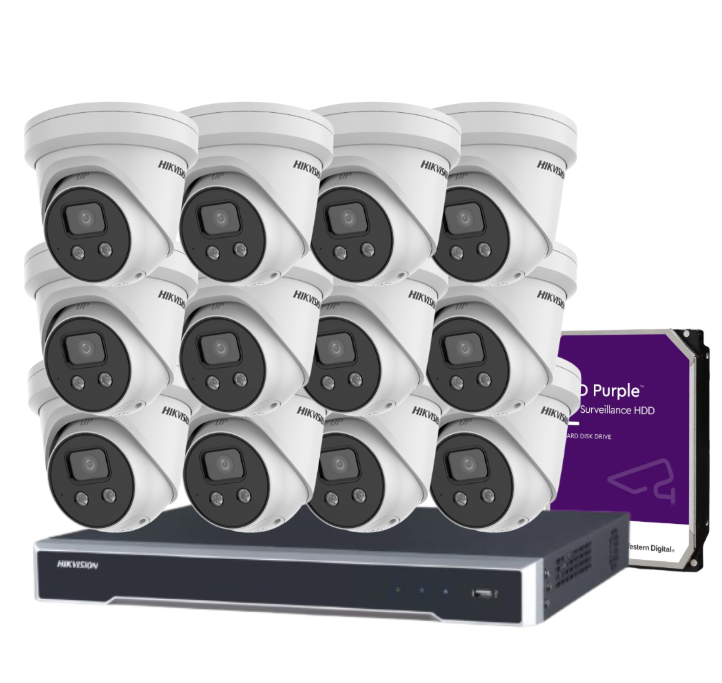

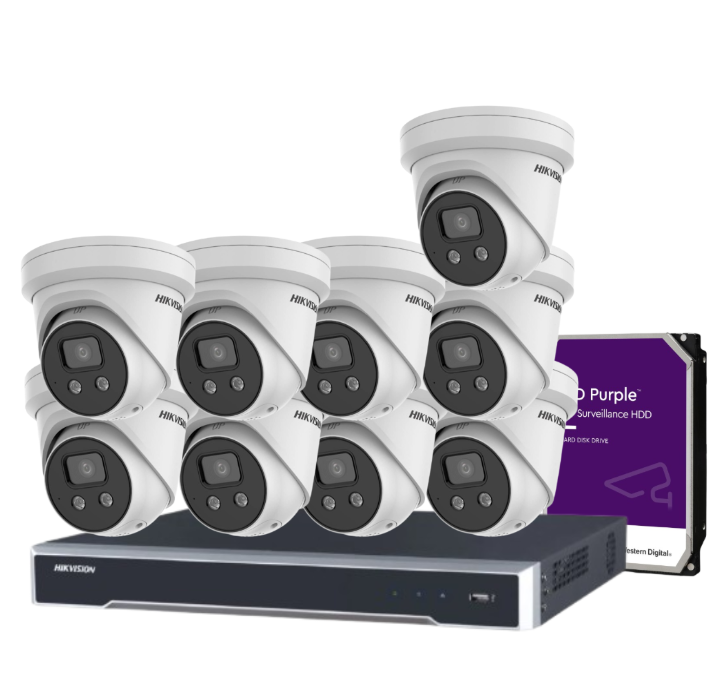

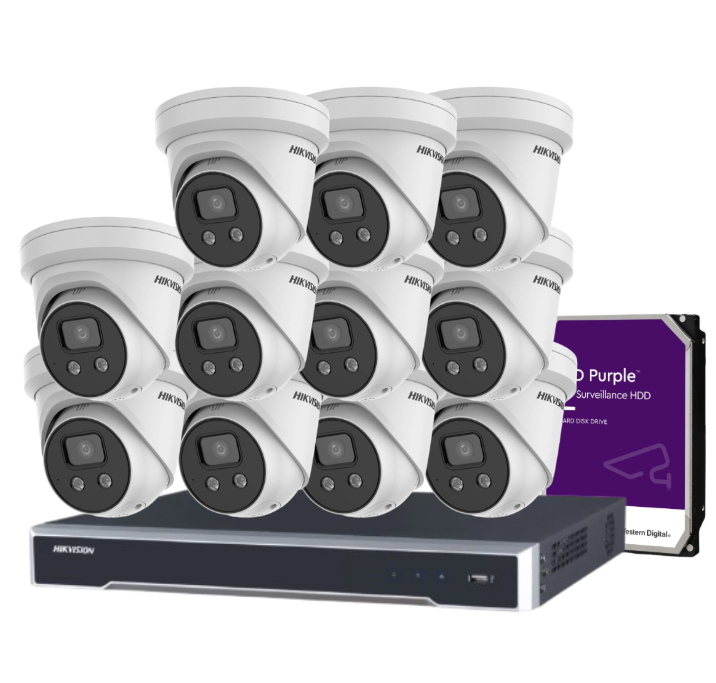

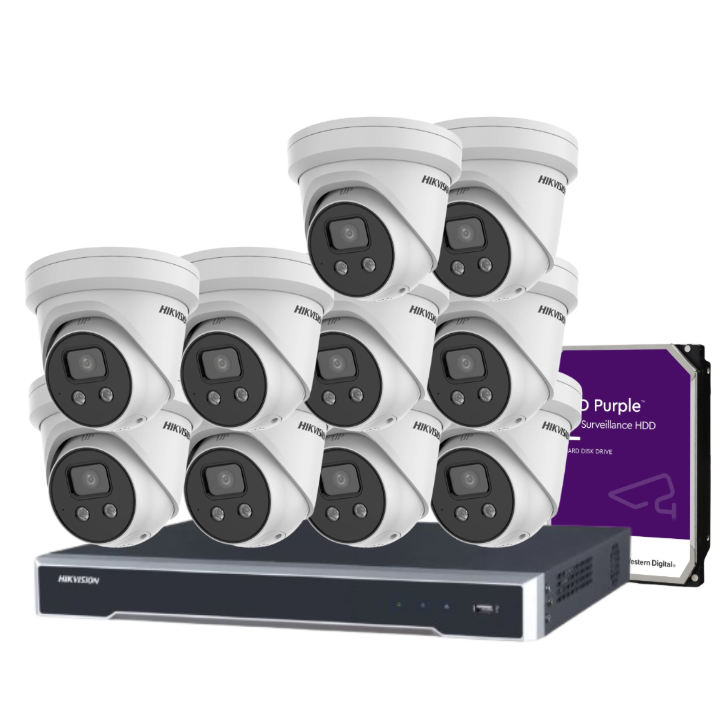

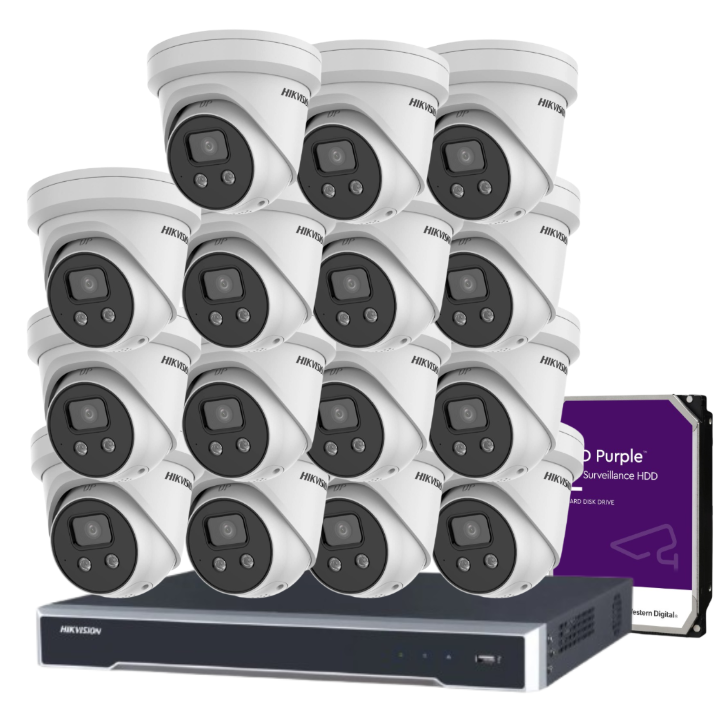

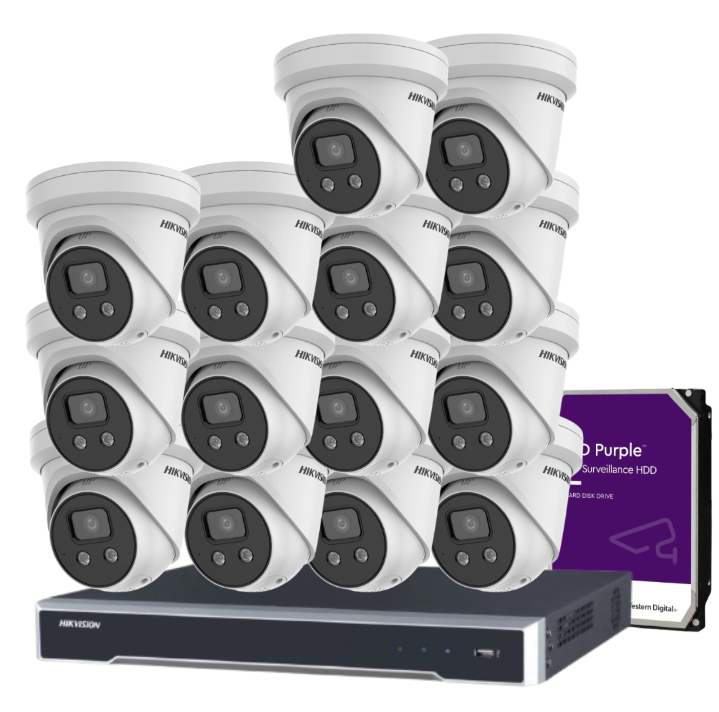

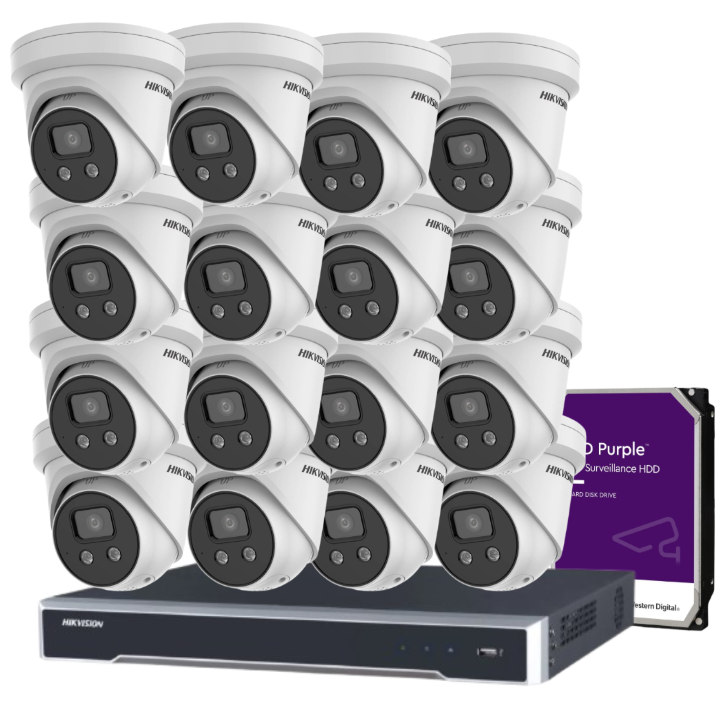

Ensure total property surveillance with the Hikvision 16-Camera CCTV Kit, designed for high-performance, large-scale installations. This all-in-one security solution combines sixteen DS-2CD2366G2-ISU/SL 6MP AcuSense Turret Cameras with the powerful HIK-7616NI-M2/16P 16-Channel 8K NVR and integrated HDD storage.
Engineered with AI-enhanced AcuSense technology, these cameras offer accurate human and vehicle detection, built-in strobe lights and speakers for active deterrence, and DarkFighter performance for superior low-light imaging. The 8K-ready NVR delivers 256 Mbps bandwidth, H.264+ compression, and supports up to 12 MP camera resolution, ensuring clear video playback and efficient storage management.
Perfect for commercial properties, campuses, industrial facilities, and multi-level buildings, this kit delivers comprehensive protection with remote access, intelligent alerts, and plug-and-play PoE setup.
What's Included in the Box:
-
16x Hikvision DS-2CD2366G2-ISU/SL 6MP AcuSense Fixed Turret Cameras
-
1x Hikvision HIK-7616NI-M2/16P 16-Channel PoE Network Video Recorder
-
1x Surveillance-Grade HDD
-
1x Power Adapter
-
1x User Manual
-
Installation Screws and Mounting Accessories
-
Quick Start Guide
Key Features:
-
6MP High-Resolution Imaging: Captures detailed surveillance footage up to 3200 × 1800
-
AcuSense AI Detection: Human/vehicle classification reduces false alarms
-
Active Deterrence: Built-in strobe light and 95 dB speaker to ward off intruders
-
Two-Way Audio: Integrated mic and speaker for real-time communication
-
DarkFighter Low-Light Technology: Color performance down to 0.003 Lux
-
120 dB True WDR: Handles challenging backlight environments
-
PoE Simplified Setup: 16-channel plug-and-play installation
-
NVR with 8K HDMI Output: View ultra-clear video with future-proof resolution
-
H.264+ Compression: Reduce storage and bandwidth requirements
-
Weatherproof Design (IP67): Built tough for outdoor or indoor use
-
256 Mbps Bandwidth: Supports simultaneous high-resolution camera streaming
Detailed Specifications:

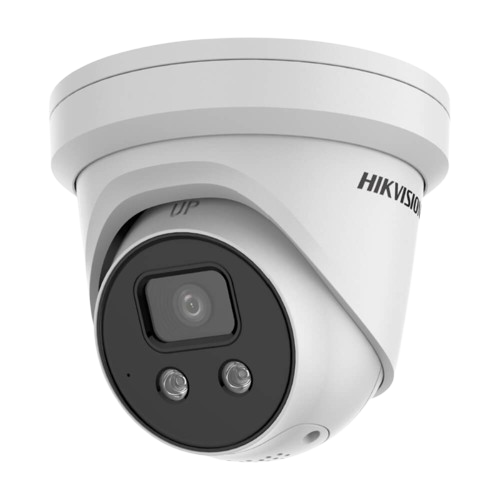

Camera – DS-2CD2366G2-ISU/SL:
-
Resolution: 6MP (3200 × 1800)
-
Lens: Fixed (2.8 mm/4 mm/6 mm optional)
-
Night Vision: Up to 30m IR range
-
WDR: 120 dB | SNR ≥ 52 dB
-
Audio: Built-in mic and 1.2W speaker
-
Deterrence: Strobe light and audible alarm
-
Storage: microSD/SDHC/SDXC up to 256 GB
-
Protection: IP67 Weather Rated
-
Power: PoE (802.3af) or 12VDC

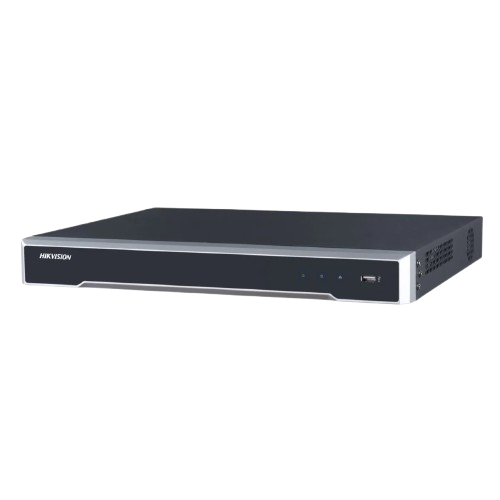

NVR – HIK-7616NI-M2/16P:
-
Channels: 16 IP camera inputs
-
Output: HDMI up to 8K, VGA up to 1080p
-
Decoding: Up to 12 MP recording per channel
-
Compression: H.264+ / H.264 / H.265
-
Storage: 2x SATA interfaces, up to 16TB
-
Bandwidth: 256 Mbps incoming
-
PoE: 16x PoE ports (IEEE 802.3 af/at)
-
Smart Analytics: VCA, intrusion detection, line crossing, people counting
-
Remote Access: Hik-Connect, browser, and iVMS-4200
Warranty Information:
The entire DS-2CD2366G2-ISU/SL-KIT16CH system is backed by a 3-Year Manufacturer Warranty covering hardware, performance, and support through Hikvision-authorized channels in Australia and New Zealand.
Brand Overview:
Hikvision is a global leader in professional-grade surveillance technologies. Their award-winning lineup features cutting-edge AI, superior image processing, and durable build quality trusted by governments, businesses, and homeowners worldwide.
SKU:
DS-2CD2366G2-ISU/SL-KIT16CH
Practical Use Scenarios:
-
Warehouses & Logistics Hubs: Monitor all vehicle access points and critical inventory areas with intelligent detection.
-
Office Parks & Campuses: Cover multiple buildings, entrances, and parking lots with advanced analytics.
-
Retail Centres & Shopping Precincts: Deter loitering and theft while enabling real-time engagement via two-way audio.
-
Gated Communities & High-Rise Apartments: Provide perimeter, lobby, and elevator coverage with proactive security alerts.
-
Construction Sites: Monitor high-risk zones and deter trespassing with active strobe and siren functions.
Datasheets & Downloadable Resources:
Excellence for the Australian and New Zealand Market:
-
✅ Certified to Australian Standards – Fully compliant with RCM and AS/NZS CISPR 32
-
✅ NDSS-Approved – Suitable for professional-grade monitored alarm environments
-
✅ Optimized for Local Networks – Seamless integration with AU/NZ power and internet protocols
-
✅ Locally Sourced – Shipped from authorized Australian Hikvision distributors
-
✅ Warranty & Support Handled Locally – Hassle-free service through Hikvision-certified support teams
Frequently Asked Questions (FAQs):
1. How many cameras can I connect to the DS-2CD2366G2-ISU/SL-KIT16CH?
The system supports up to 16 IP cameras, powered directly via PoE on the HIK-7616NI-M2/16P NVR.
2. Do the cameras in the DS-2CD2366G2-ISU/SL-KIT16CH include audio capabilities?
Yes, each camera features built-in microphones and speakers for full two-way communication.
3. Does the DS-2CD2366G2-ISU/SL-KIT16CH support intelligent detection?
Absolutely. It supports AI-based human/vehicle classification, face capture, line crossing, and more.
4. What is the video output resolution of the NVR in DS-2CD2366G2-ISU/SL-KIT16CH?
The NVR supports HDMI output up to 8K and VGA up to 1080P.
5. Is the DS-2CD2366G2-ISU/SL-KIT16CH suitable for outdoor use?
Yes, the IP67-rated cameras are designed for rugged outdoor installations.
6. What’s the total storage capacity supported in DS-2CD2366G2-ISU/SL-KIT16CH?
The NVR supports two SATA drives up to 16TB, totaling 32TB of storage.
7. Can I access the DS-2CD2366G2-ISU/SL-KIT16CH remotely?
Yes, via the Hik-Connect app, iVMS-4200, or browser interface.
8. Does the DS-2CD2366G2-ISU/SL-KIT16CH support live audio alerts?
Yes, cameras include loudspeakers and flashing lights for real-time intrusion warnings.
