The Hikvision HIK-2CD2T86G2H-2I is a high-performance outdoor surveillance camera designed for ultra-clear imaging and intelligent detection. It features an 8MP CMOS sensor delivering 3840 x 2160 resolution, ideal for capturing fine details in large outdoor areas.
This model is ideal for perimeter protection, car parks, warehouses, and other expansive outdoor settings where high-resolution and smart analytics are essential.
The included 8K HDMI NVR supports advanced video analytics, up to 32MP camera inputs, and dual-stream recording. With 8 independent PoE ports, setup is streamlined and clutter-free.

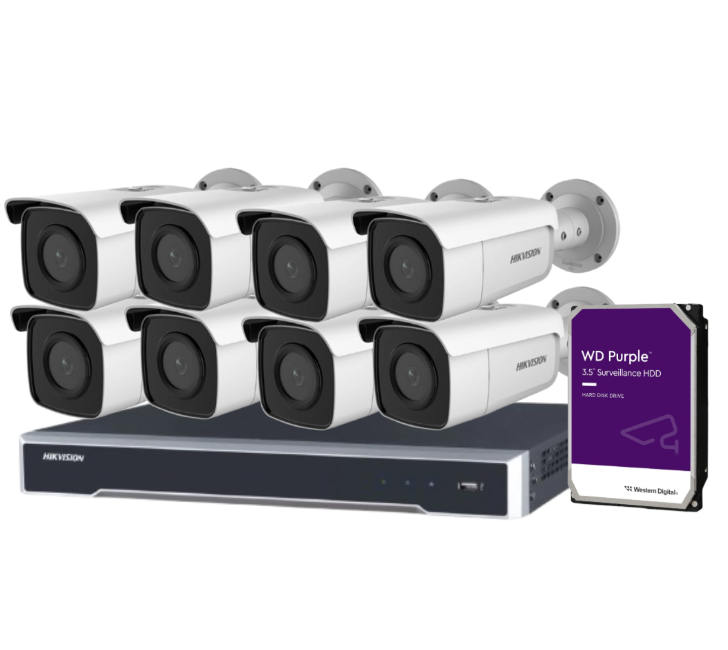

What's Included in the Box:
-

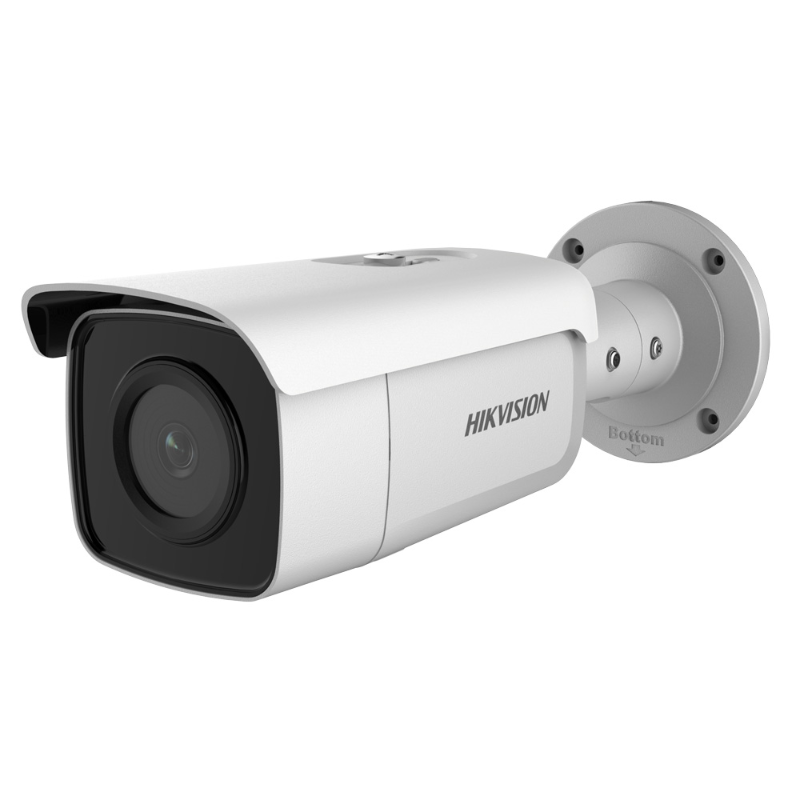

8 × Hikvision DS-2CD2T86G2H-2I or 4I 8MP Fixed IR Bullet Cameras
-

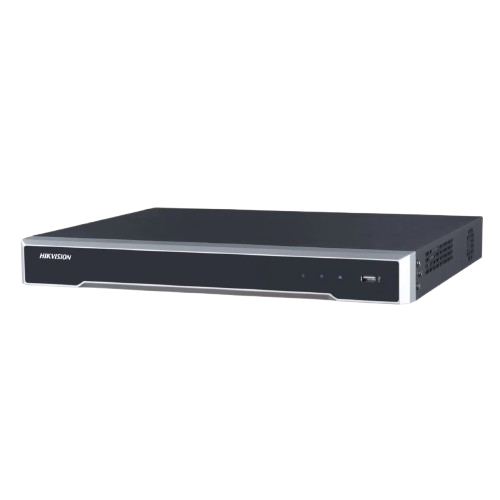

1 × Hikvision DS-7608NI-M2/8P 8-Channel 8K PoE NVR
-
1 × Surveillance HDD (Choose your HDD below)
-
1 × Power Adapter
-
1 × Mounting Screws and Installation Accessories
-
1 × Quick Start Guide and User Manual
Main Features:
- High quality imaging with 8MP resolution
- Excellent low-light performance via powered-by-Dark Fighter technology
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67)
Detailed Specifications:
Camera
-
Image Sensor: 1/1.8" Progressive Scan CMOS
-
Max. Resolution:3840 × 2160
-
Min. Illumination Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
-
Shutter Time1/3 s to 1/100,000 s
-
Day & Night: IR cut filter
-
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
-
Lens Type Fixed focal lens, 2.8 and 4 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4°
-
Lens Mount: M16
NVR – DS-7608NI-M2/8P
-
Camera Inputs: 8 Channels
-
Max Decoding: 10-ch @ 8MP
-
HDMI Output: Up to 8K (7680 × 4320)
-
VGA Output: 1920 × 1080
-
PoE Ports: 8 × RJ-45 10/100 Mbps
-
Bandwidth: 128 Mbps incoming / 256 Mbps outgoing
-
Storage: 2 × SATA up to 16TB each
-
Smart Features: ANPR, line crossing, intrusion, heat mapping, POS overlay
-
Power Supply: 100–240 VAC | Power Consumption: ≤ 15W (no HDD/PoE off)
Warranty Information:
This product comes with a 3-Year Manufacturer Warranty, covering the NVR, cameras, and included hard drive. Local warranty support is provided through Hikvision’s certified Australian network.
Brand Overview:
Hikvision is a globally trusted name in video surveillance technology. With a strong reputation for innovation, durability, and AI-driven performance, Hikvision systems are relied upon by government, commercial, and private users across Australia, New Zealand, and worldwide.
SKU: HIK-2T86G2H-7608M2-8CAM-KIT
Practical Use Scenarios:
-
Large Residential Homes – Monitor all access points, garages, and perimeters
-
Retail Chains & Supermarkets – Full-store coverage and integration with POS
-
Schools & Campuses – Real-time monitoring of entrances, classrooms, and grounds
-
Industrial Warehouses – High-resolution coverage of production lines and storage zones
-
Business Parks & Commercial Buildings – Detect unauthorized entry and manage visitor access
Datasheets and Resources:
Excellence for the Australian and New Zealand Market:
-
✅ RCM & CE Certified – Fully compliant with AU/NZ safety and communication standards
-
✅ Optimized for ANZ Conditions – Designed for local lighting, climate, and internet infrastructure
-
✅ Official Distribution Channels Only – 100% authentic Hikvision products
-
✅ Hassle-Free Warranty – Local servicing and support through certified channels
-
✅ NDSS Compliance – Suitable for regulated commercial and professional use
Frequently Asked Questions (FAQs):
1. How far can the night vision reach? DS-2CD2T86G2H-2I 8CH-KIT
The IR range is up to 50m for the 2I models and 80m for the 4I models, ideal for large outdoor spaces.
2. Is this system suitable for outdoor use? (SKU: DS-2CD2T86G2H-2I-8CH-KIT)
Yes, the cameras feature IP67-rated weatherproof casings and are built to withstand rain, dust, and harsh sunlight.
3. Can I access my system remotely? (SKU: DS-2CD2T86G2H-2I-8CH-KIT)
Absolutely. Use the Hik-Connect app or web browser for real-time monitoring from your phone or PC anywhere in the world.
4. Does this kit include all power supplies and cabling? (SKU:DS-2CD2T86G2H-2I-8CH-KIT)
Yes, the 8 PoE ports on the NVR deliver both data and power over a single Ethernet cable per camera. Cables are typically purchased separately based on required lengths.
5. How much recording time can I expect? (SKU: DS-2CD2T86G2H-2I-8CH-KIT)
With H.265+ compression and 8TB of storage, you can expect weeks of footage, depending on camera activity and settings.
6. Does this system support intelligent alerts? (SKU:DS-2CD2T86G2H-2I-8CH-KIT)
Yes, the system supports human/vehicle detection, motion alerts, line crossing detection, and email notifications.
7. Can I expand this system in the future? (SKU: DS-2CD2T86G2H-2I-8CH-KIT)
Yes, you can upgrade camera models, increase storage, and integrate additional devices like audio or alarm outputs through the NVR.
