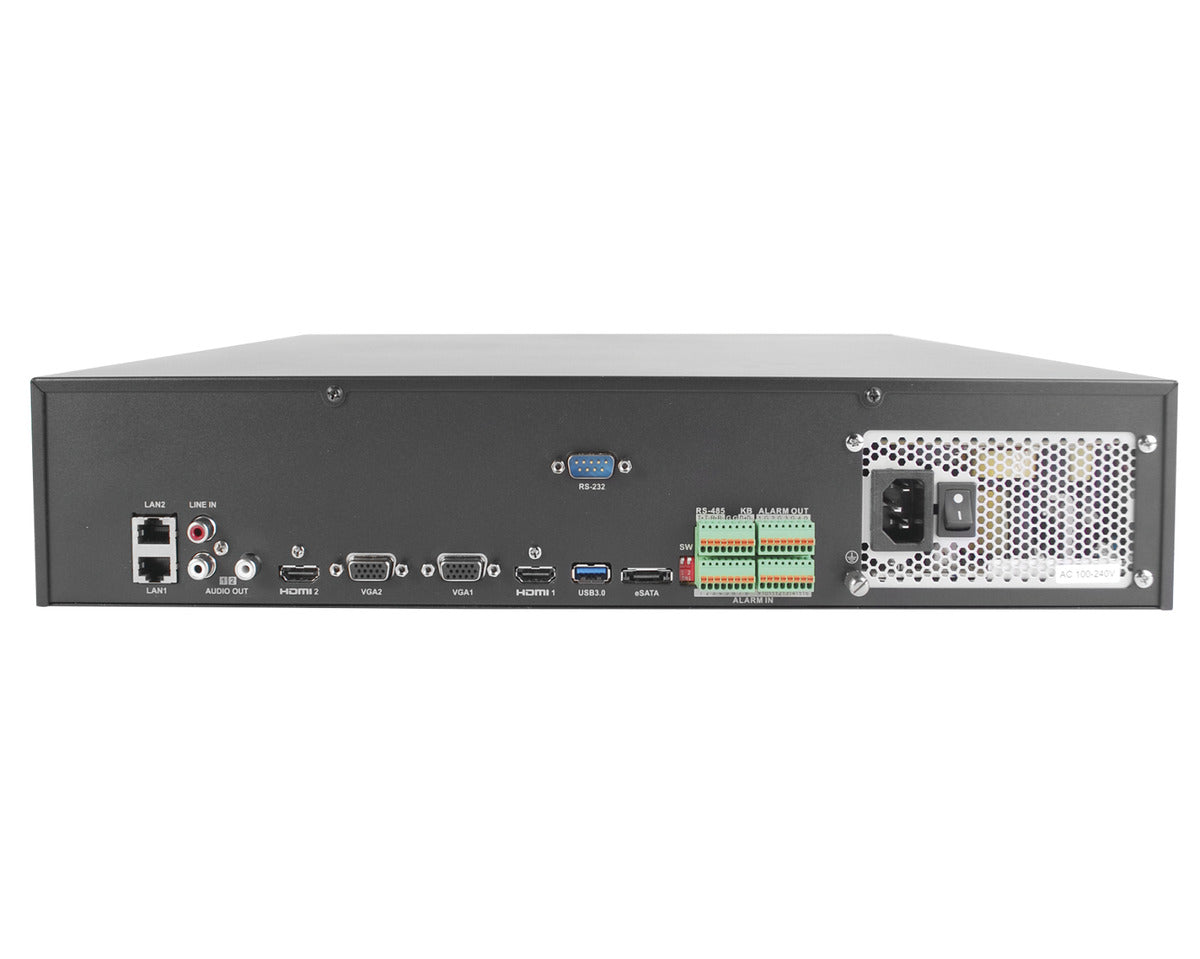

Hikvision 64ch M-Series NVR, 400Mbps, 8K, VGA/HDMI, 8 Bay, 3RU

Upgrade your security infrastructure with the Hikvision 64ch M-Series NVR, a robust and high-performance network video recorder designed for extensive surveillance systems. This NVR supports up to 64 IP camera inputs, ensuring comprehensive coverage and exceptional video quality for large-scale security applications.

Key Features:

• 8K Video Output: Delivers ultra-high-definition video output up to 8K resolution, providing crystal-clear imagery. Dual HDMI and VGA interfaces support simultaneous output, allowing for flexible monitoring setups.

• High Decoding Capacity: Capable of decoding up to 2 channels at 32 MP or 64 channels at 1080p, ensuring smooth and efficient video playback and recording across numerous camera feeds.

• Extensive Bandwidth: Supports up to 400 Mbps incoming and 400 Mbps outgoing bandwidth, enabling the handling of large data volumes and ensuring uninterrupted video streaming and recording.

• Advanced Camera Compatibility: Compatible with various special cameras including people counting, ANPR (automatic number plate recognition), and fisheye cameras, enhancing the functionality of your surveillance system.

• RAID Support: Features RAID 0, 1, 5, 6, 10, and N+M hot spare for reliable data storage and protection, significantly reducing the risk of data loss.

• Redundant Power Supply: Equipped with a redundant power supply to ensure continuous operation even in the event of a power failure.

Specifications:

• Video and Audio:

  • 64 IP Video Inputs
  • 400 Mbps Incoming Bandwidth, 400 Mbps Outgoing Bandwidth
  • Multiple HDMI and VGA Outputs supporting various resolutions up to 8K

• Decoding:

  • Formats: H.265+/H.265/H.264+/H.264
  • Resolution Support: Up to 32 MP
  • Synchronous Playback: Up to 16 channels

• Network:

  • Dual RJ-45 10/100/1000 Mbps Ethernet interfaces
  • Supports protocols including TCP/IP, DHCP, IPv4/IPv6, DNS, and more

• Storage:

  • 8 SATA interfaces with hot-plug support
  • Up to 16 TB capacity per disk

• Auxiliary Interface:

  • Serial Interfaces: 1 RS-485 (full-duplex), 1 RS-232
  • USB Ports: 2 USB 2.0 (front), 2 USB 3.0 (rear)
  • Alarm In/Out: 16/9

• General:

  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Power Consumption: ≤ 50 W (without HDD)
  • Operating Temperature: -10 °C to 55 °C
  • Humidity: 10% to 90%
  • Chassis: 2U, dimensions 445 × 465 × 93 mm
  • Weight: ≤ 10 kg (without HDD)

• Certifications:

  • CE, FCC

Ideal For:

This NVR is perfect for large enterprises, public institutions, and any environment requiring extensive surveillance coverage with high-resolution video quality and robust data management.

Enhance your security system with the Hikvision 64ch M-Series NVR and experience top-tier performance and reliability in video surveillance.
