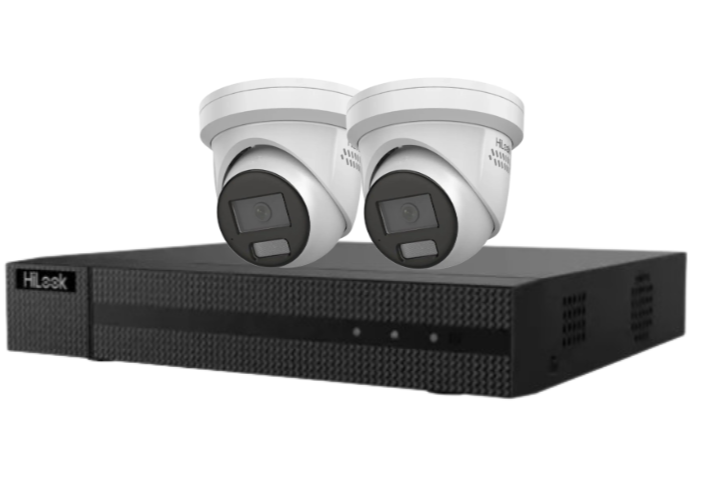

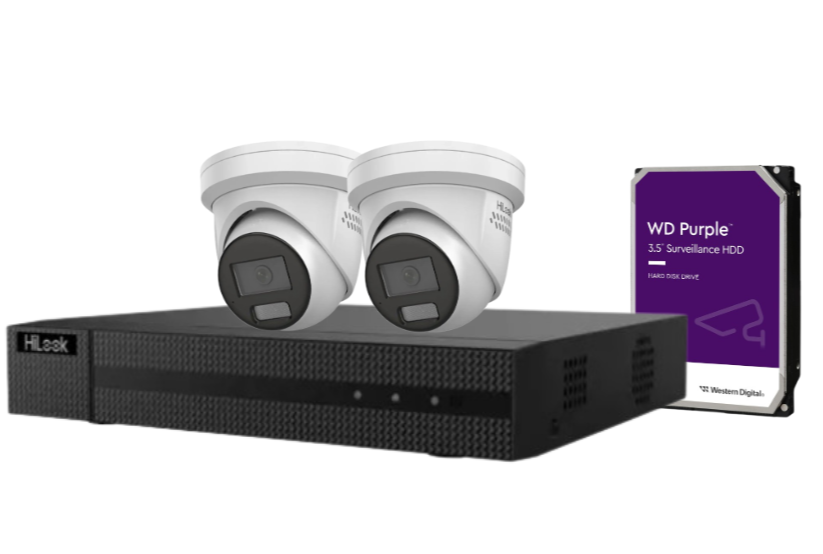

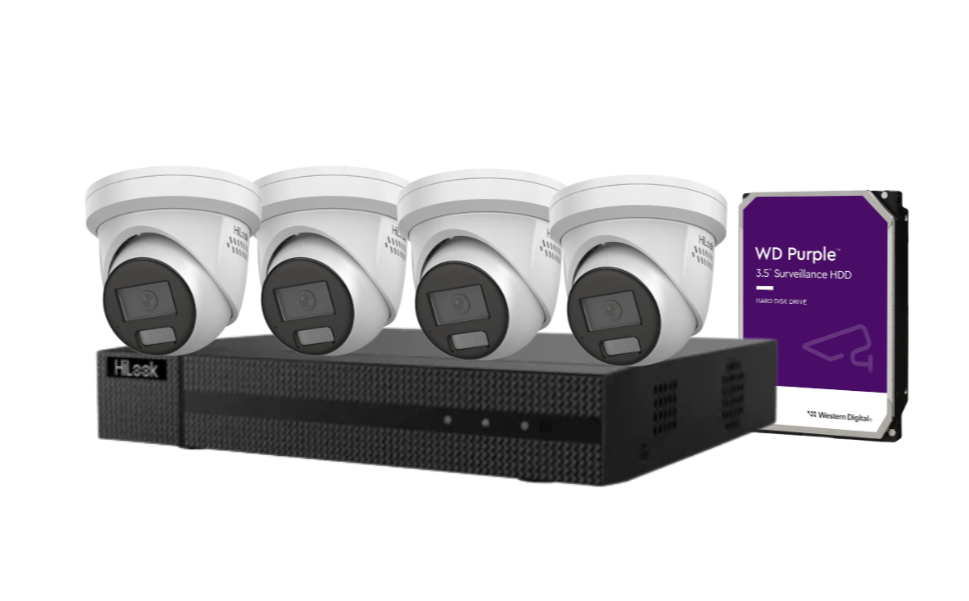

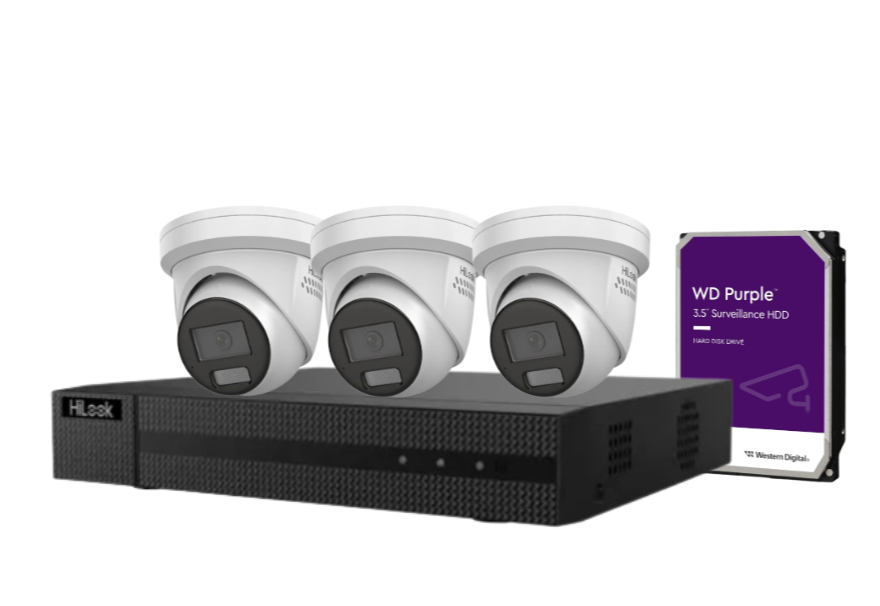

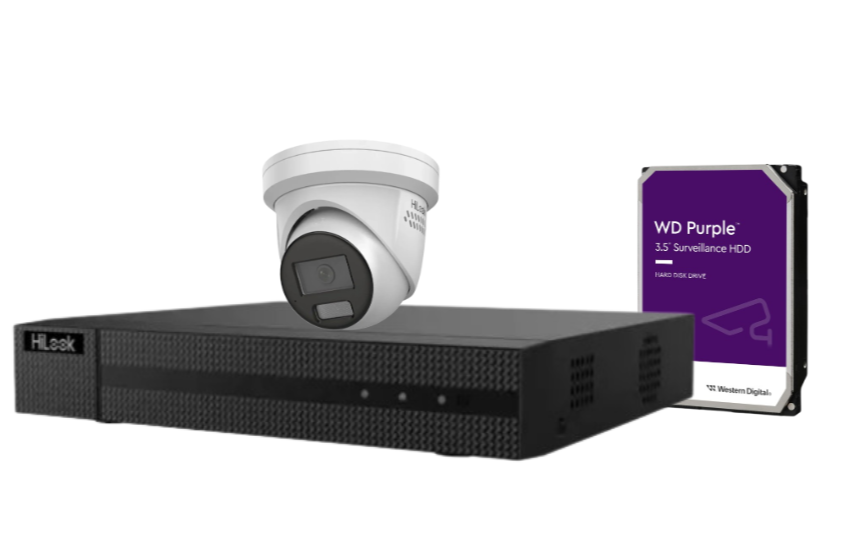

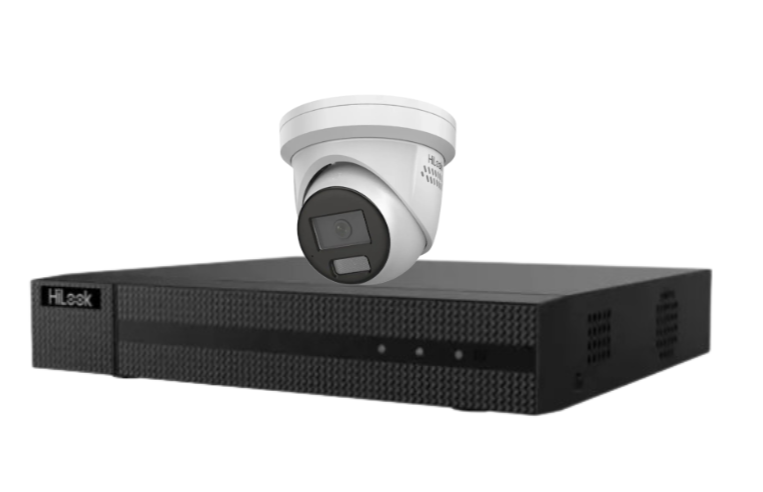

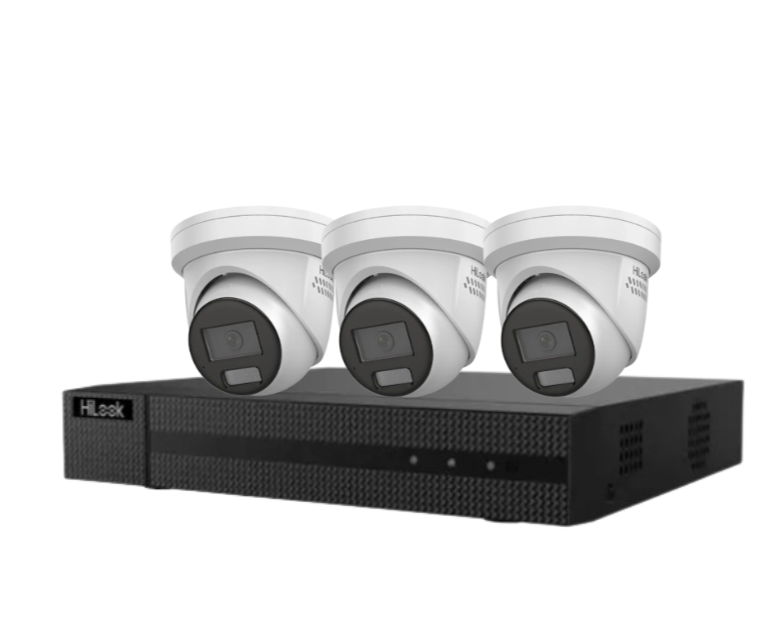

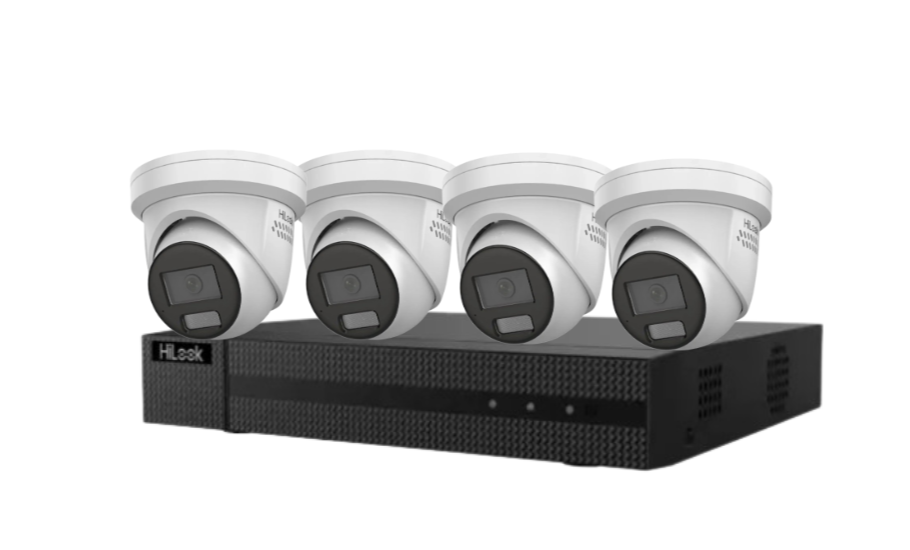

Experience next-level surveillance with the HiLook 4K CCTV Kit, featuring up to four IPC-T289H-MU/SL All-in-One Fixed Turret Cameras paired with a powerful 4-Channel 4K PoE Network Video Recorder (HL-NVR-104MH-C/4P(B)). Designed for both indoor and outdoor applications, this kit provides comprehensive coverage with 8MP ultra-HD video, intelligent human and vehicle detection, and active deterrence features such as flashing lights and audio alarms.
Whether securing residential properties, small businesses, or industrial zones, this kit offers unbeatable reliability and clarity. The cameras are equipped with Smart Hybrid Light (IR and white light), real-time two-way audio, H.265+ compression, and IP67 weatherproofing. The NVR supports 4K input/output, PoE for simplified cabling, and efficient storage management—making this an all-inclusive, plug-and-play security solution.
What’s Included in the Box
-
Up to 4 × HiLook IPC-T289H-MU/SL 8MP Fixed Turret Cameras (2.8mm or 4mm lens options)
-
1 × HiLook 4CH 4K PoE Network Video Recorder (HL-NVR-104MH-C/4P(B))
-
HDD for video storage (capacity based on selection)
-
Waterproof accessories and mounting kits
-
Built-in microphone and speaker per camera
-
Quick start guides and installation manuals
-
Ethernet cables for camera connections
-
Power cables and installation screws
Main Features
✅ 4K Ultra HD Video (8MP – 3840 × 2160 resolution)
✅ Smart Hybrid Light with IR/White light up to 30m
✅ Dual Microphone & Two-Way Audio for real-time interaction
✅ AI-Powered Human & Vehicle Classification
✅ Red & Blue Flashing Lights and Audio Alarm for Active Deterrence
✅ True WDR (120dB) – Excellent clarity in mixed lighting
✅ H.265+ Compression – Efficient video storage and bandwidth usage
✅ IP67 Weatherproof Rating – Ideal for outdoor surveillance
✅ Flexible Lens Options – 2.8mm (wide angle) or 4mm (narrower field)
✅ Compatible with Wall, Ceiling, Pole, and Corner Mounts
✅ ONVIF Compliant – Integrates with third-party systems
✅ PoE-Powered Cameras – Simplified installation via Ethernet
Technical Specifications
Camera (IPC-T289H-MU/SL):
-
Image Sensor: 1/2.8” Progressive Scan CMOS
-
Resolution: 3840 × 2160 (8MP)
-
Lens: Fixed 2.8mm (108°) / 4mm (88°)
-
Lighting: 0 Lux with IR/White Light up to 30m
-
Audio: Dual microphones, built-in speaker
-
Smart Features: Human/vehicle detection, line crossing, intrusion alert
-
Power: 12V DC / PoE (802.3at)
-
Operating Temp: -30°C to +60°C
-
Storage: MicroSD up to 512GB
-
Build: Metal housing, IP67 rated
-
Mounting: Ceiling, wall, pole, corner options
NVR (HL-NVR-104MH-C/4P(B)):
-
Video Inputs: 4 IP channels
-
Decoding: 1-ch@8MP / 3-ch@4MP / 6-ch@1080p
-
Compression: H.265+/H.265/H.264+/H.264
-
Bandwidth: Up to 40 Mbps
-
PoE Ports: 4 ports, built-in
-
Resolution Support: Up to 4K output
-
Form Factor: Compact 1U mini design
Warranty Information
✅ 2-Year Manufacturer Warranty
✅ Warranty service handled through authorized HiLook distributors and resellers in ANZ
Brand Overview – HiLook
HiLook is a trusted sub-brand of Hikvision, specializing in accessible, high-performance video surveillance technology for homes and businesses. Offering reliability, ease of use, and robust feature sets, HiLook products meet global standards for quality and innovation. Their extensive R&D and stringent quality controls make them a top choice for entry- to mid-level surveillance solutions.
SKU Options
Practical Use Scenarios
🏡 Home Surveillance: Monitor front doors, garages, and yards in crisp 4K, day or night
🏬 Shops & Offices: Detect suspicious behavior and ensure safety with smart AI alerts
🏗️ Construction Sites: Prevent theft and monitor activity 24/7 with light + audio deterrence
🏢 Warehouse Security: Track vehicle movement and personnel in large spaces
🚗 Car Parks & Entrances: Identify license plates and facial features in any light
Datasheets and Resources
Excellence for the Australian and New Zealand Market
✔️ RCM Certified – Legal for sale and installation in Australia and New Zealand
✔️ Meets AS/NZS CISPR 32:2015 EMC standards
✔️ Durable in high heat, rain, coastal environments, and dust-prone zones
✔️ Directly sourced from authorized HiLook ANZ partners
✔️ Local technical support and warranty handling – no overseas shipping required
Frequently Asked Questions (FAQs)
Q1: Is the IPC-T289H-MU/SL (SKU: IPC-T289H-MU/SL-2.8MM) compatible with third-party NVRs?
Yes, it supports ONVIF Profiles S & G for broad interoperability with third-party systems.
Q2: Can I power the IPC-T289H-MU/SL (SKU: IPC-T289H-MU/SL-4MM) via PoE and not use a power adapter?
Absolutely, PoE (802.3at) allows simple single-cable power and data transmission.
Q3: How does the Smart Hybrid Light function in IPC-T289H-MU/SL (SKU: IPC-T289H-MU/SL-2.8MM-BLACK)?
The camera auto-switches between infrared and white light based on ambient conditions, ensuring ideal night vision and visibility.
Q4: Does the IPC-T289H-MU/SL (SKU: IPC-T289H-MU/SL-2.8MM) support real-time two-way communication?
Yes, it features dual microphones and a speaker for two-way audio via the HiLookVision app.
Q5: Is the IPC-T289H-MU/SL (SKU: IPC-T289H-MU/SL-4MM) suitable for harsh outdoor environments?
Yes, the IP67-rated housing is designed for full outdoor exposure in Australia and NZ climates.
Q6: What’s the detection range of IPC-T289H-MU/SL (SKU: IPC-T289H-MU/SL-2.8MM)?
With a 2.8mm lens: Detect 84m, Observe 33m, Recognize 16m, Identify 8m. With a 4mm lens: Detect 117m, Recognize 11m.
Q7: Can I remotely view footage from the HL-NVR-104MH-C/4P(B)?
Yes, using the HiLookVision app, you can monitor, playback, and get alerts from anywhere via your smartphone or tablet.
