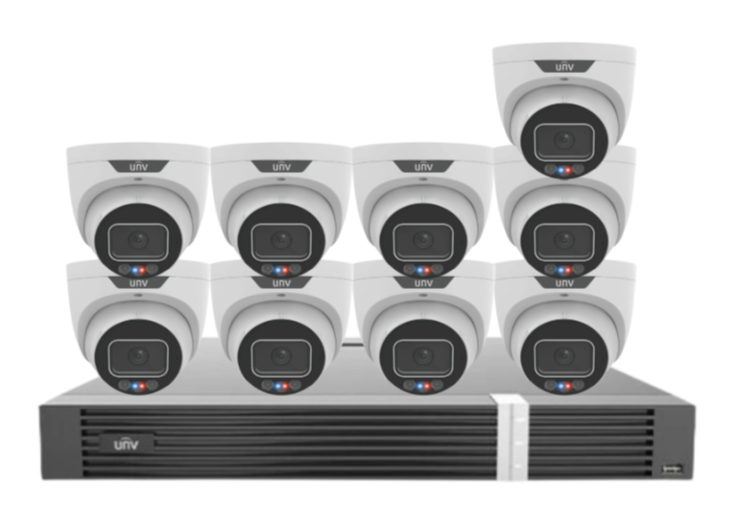

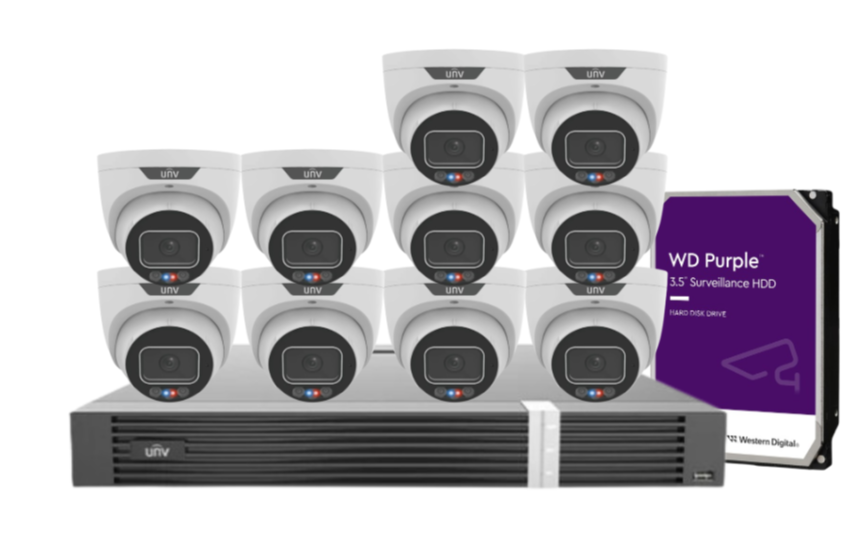

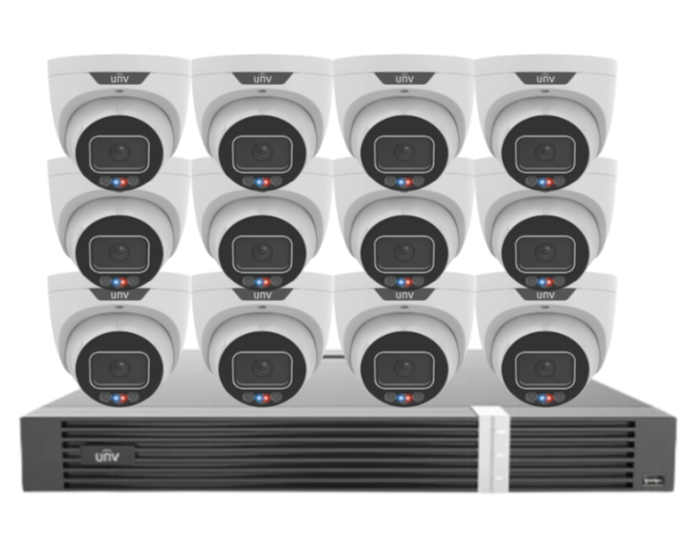

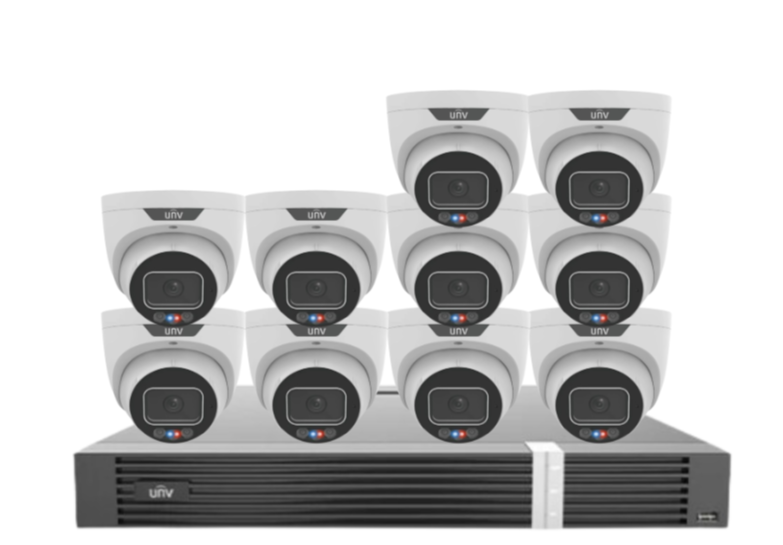

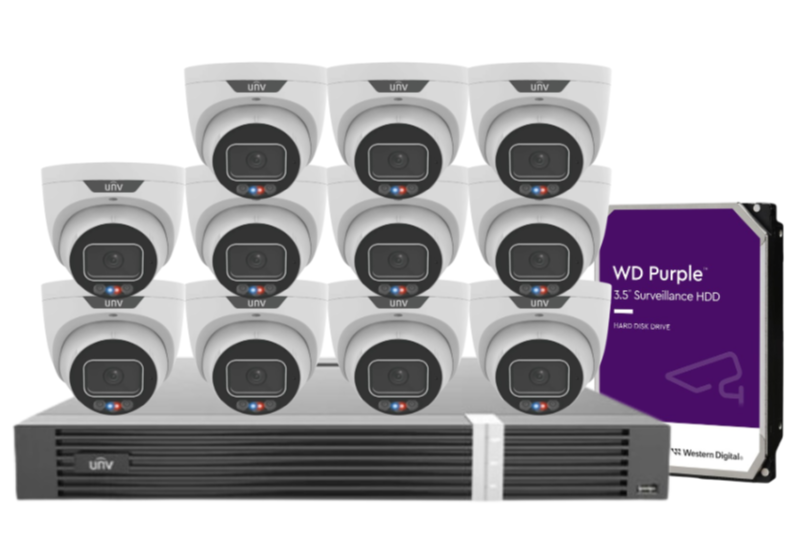

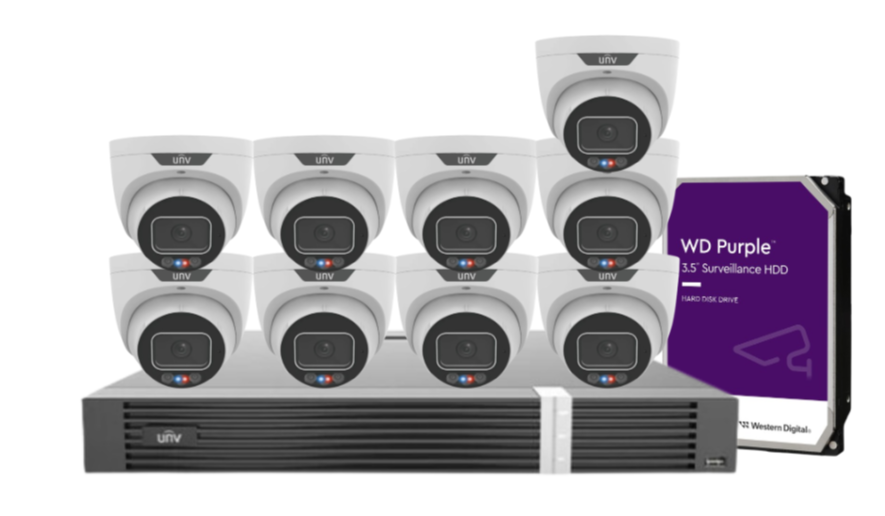

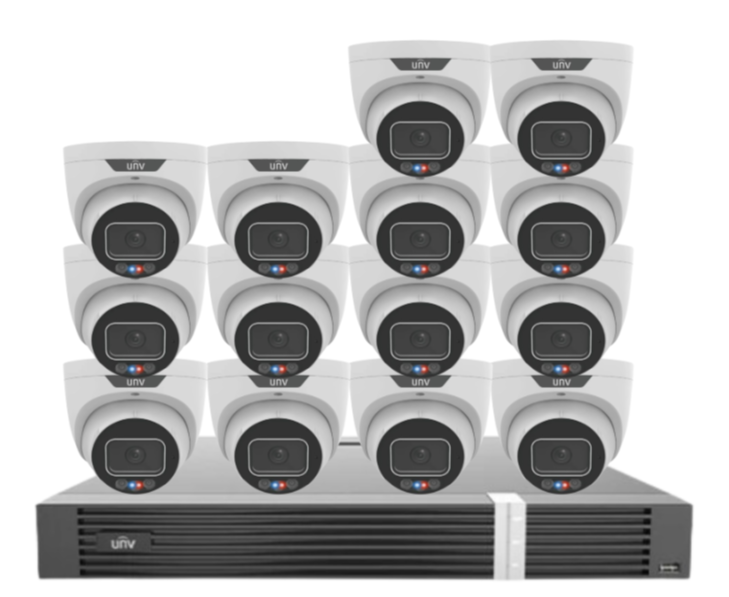

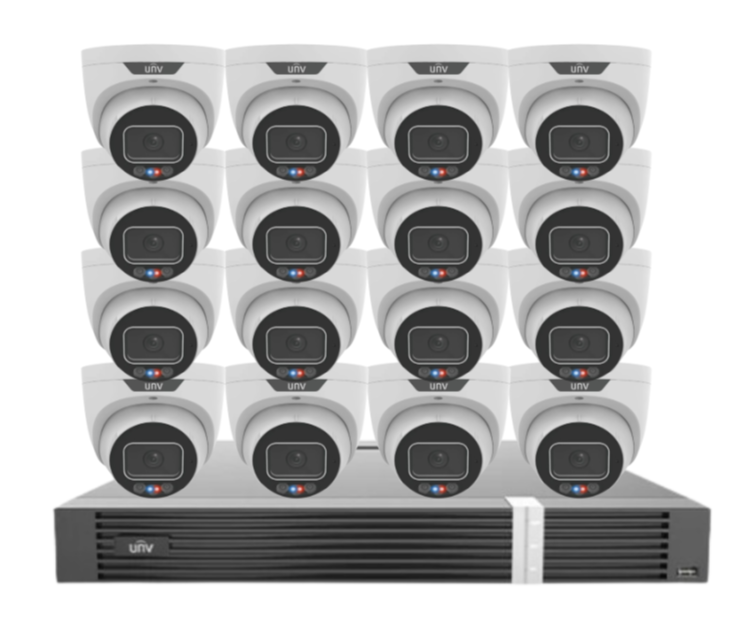

Secure large-scale properties with exceptional clarity using the Uniview 8MP CCTV Kit, designed for professional-grade installations requiring up to 16 high-resolution cameras. Featuring the 8MP Triguard Turret Fixed IP Cameras and the advanced Uniview Prime Series 16-Channel AI NVR, this comprehensive surveillance system combines AI analytics, powerful deterrence features, and up to 20TB storage support.

With true WDR, intelligent perimeter detection, red/blue strobe lights, and two-way audio, this system delivers proactive protection for schools, factories, retail complexes, and large estates. Plug-and-play PoE ports ensure easy deployment, while 4K HDMI output and ANR support make it reliable, scalable, and ready for enterprise-level surveillance.

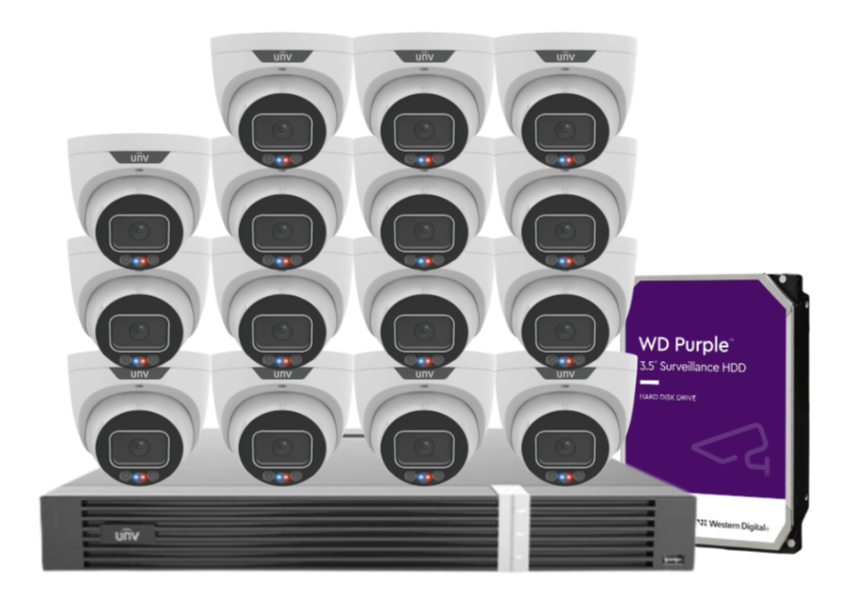

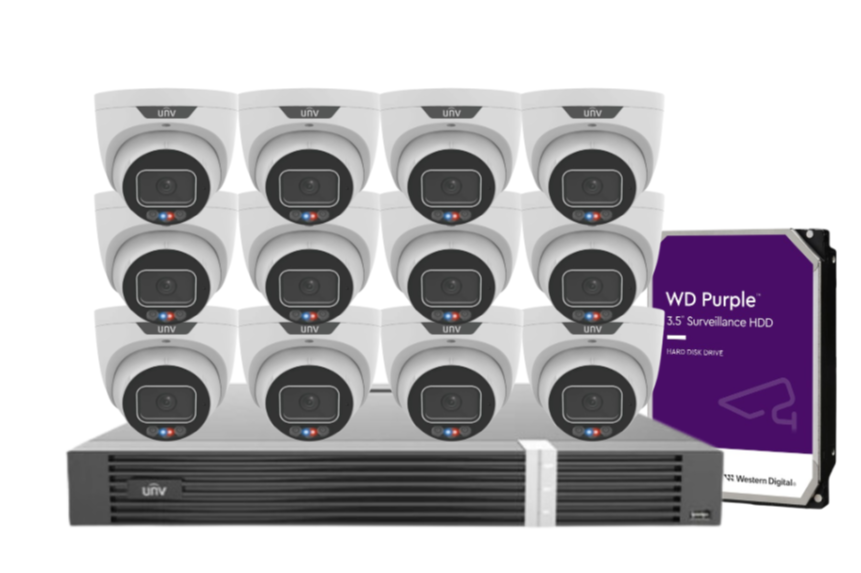

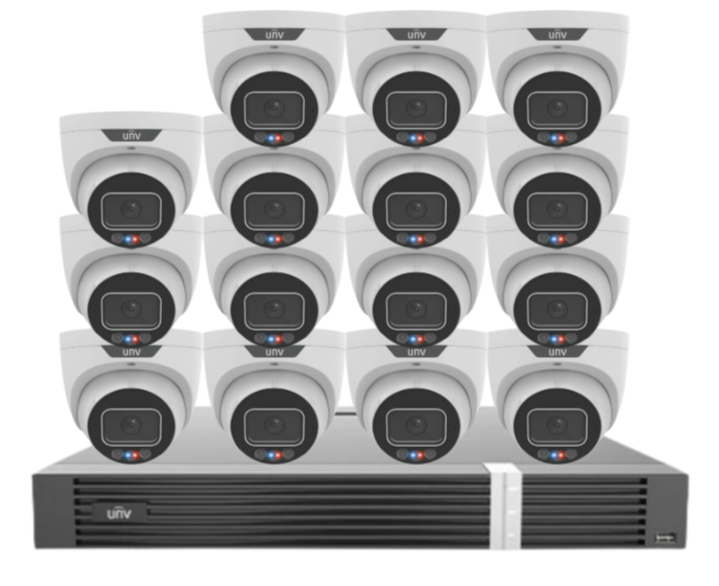

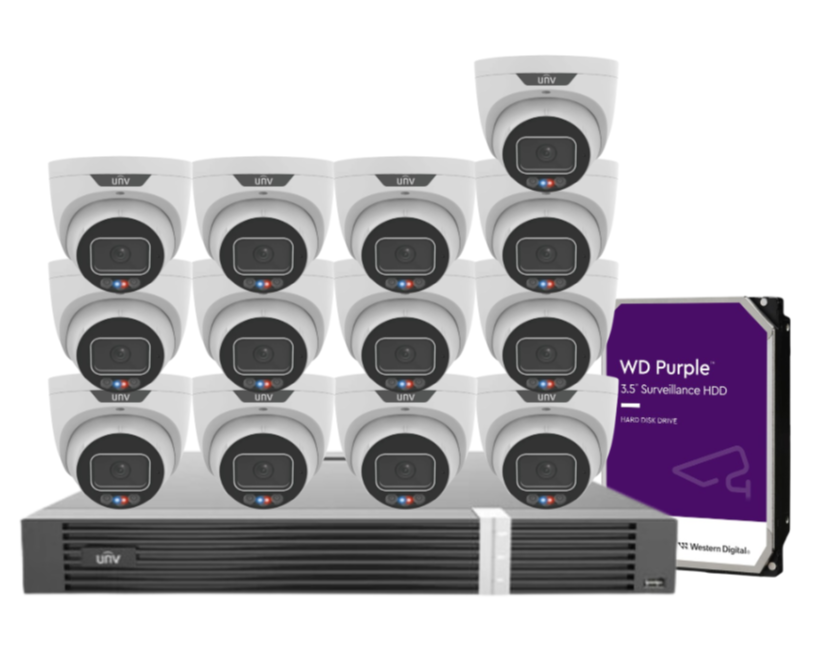

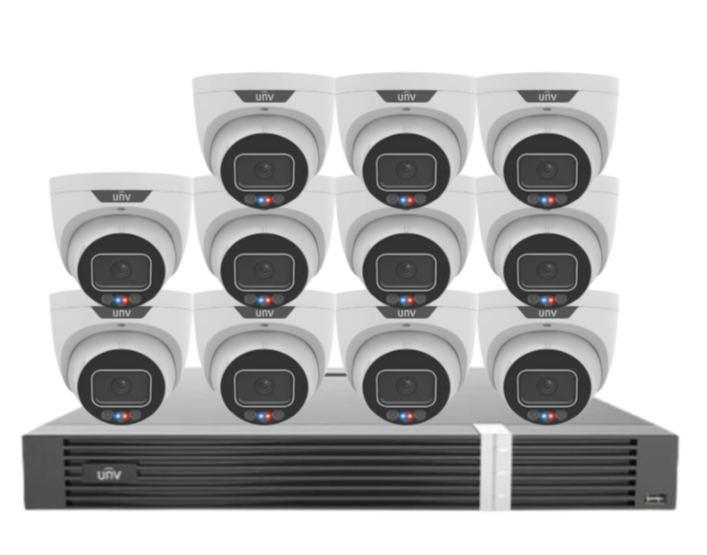

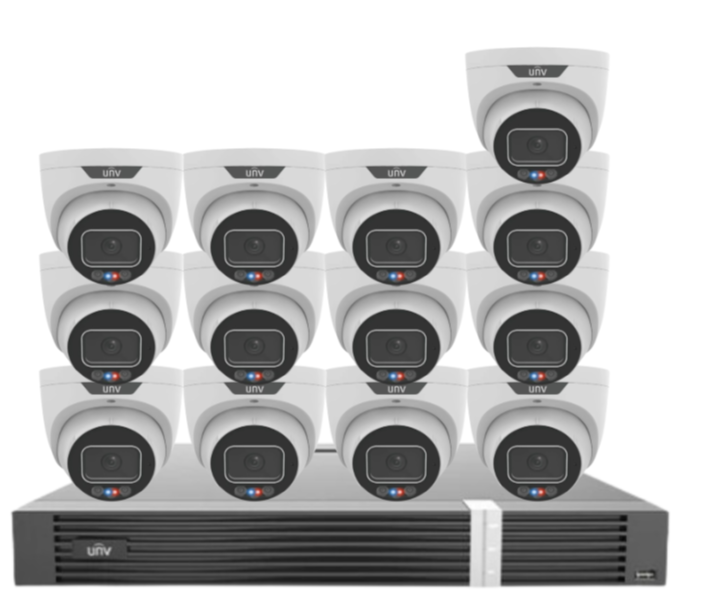

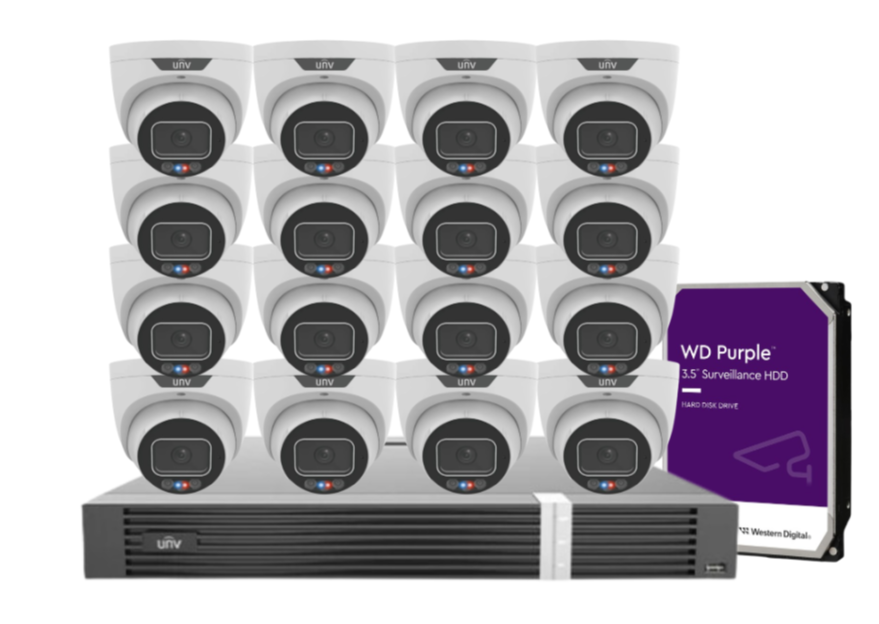

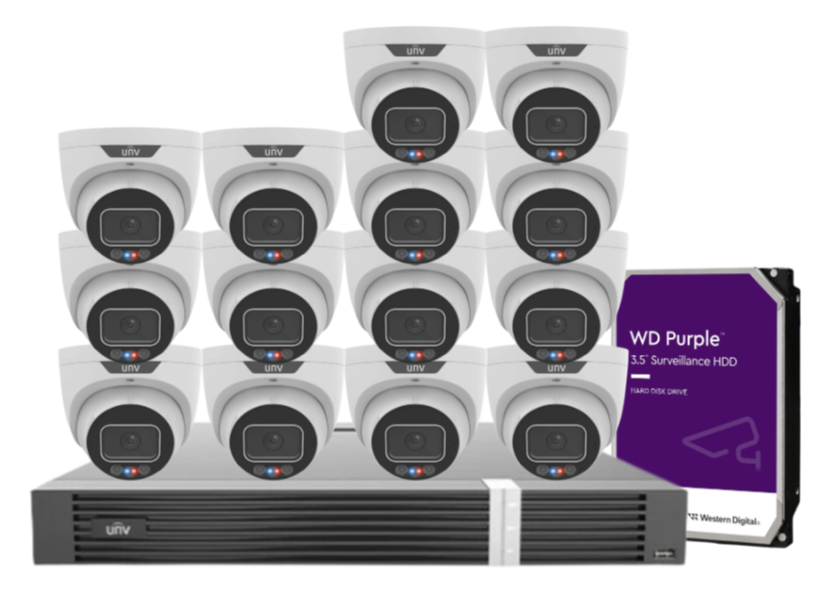

What's Included in the Box

• Up to 16 x Uniview 8MP Triguard Turret IP Cameras (Model: IPC3638SS-ADF28KMC-I1)

• 1 x Uniview 16-Channel PoE AI Network Video Recorder (Model: NVR302-16E2-P16-IQ)

• 1 x  Hard Disk Drive (HDD)

• 1 x USB Mouse

• 1 x Power Adapter

• 1 x Quick Start Guide

• 1 x Warranty Card

Main Features

Cameras – IPC3638SS-ADF28KMC-I1SEC:

• Resolution: 8MP (3840×2160) CMOS @ 30fps

• Lens: 2.8mm fixed, 106.5° wide field of view

• Compression: Ultra 265, H.265, H.264, MJPEG

• Deterrence: Red & blue LED warning lights

• IR Range: Up to 30m (Smart IR Night Vision)

• Audio: Built-in mic and speaker for 2-way audio

• AI Analytics: Intrusion detection, line crossing, crowd monitoring

• WDR: 130dB true wide dynamic range

• Storage: MicroSD up to 256GB

• Ingress Protection: IP67-rated for all-weather outdoor use

• Power: PoE IEEE 802.3af, Max 10W

NVR – NVR302-16E2-P16-IQ:

• Channels: 16-channel IP input

• PoE Ports: 16 x 10/100 Mbps, up to 30W per port

• Recording Resolution: Supports up to 12MP recording

• Outputs: HDMI (4K) + VGA (1080p) simultaneous

• Decoding:

  • AI Off: 1x12MP@30, 2x4K@30, 5x4MP@30, 10x1080P@30

  • AI On: 1x12MP@30, 2x4K@30, 4x4MP@30, 8x1080P@30

• Audio Support: RCA in/out + camera 2-way audio

• Storage: 2 x SATA HDD ports (up to 10TB each = 20TB total)

• Smart Functions: Face detection, people counting, vehicle alerts

• Bandwidth: 160Mbps input/output (AI on)

• Remote Viewing: Supports up to 128 users

• Firmware: Cloud upgradeable

• Browser Support: IE11, Chrome, Firefox, Edge (latest versions)

Warranty Information

• Cameras: 3-Year Manufacturer Warranty

• NVR: 2-Year Manufacturer Warranty
  Service and support are provided via authorized Uniview centers throughout Australia and New Zealand.

Brand Description

Uniview is a leading innovator in IP surveillance systems with a global presence. Recognized for its Ultra 265 compression, AI-enhanced detection, and industry-grade reliability, Uniview is trusted across critical security sectors including education, government, healthcare, and industrial facilities.

Practical Use Scenarios

• Shopping Centers: Cover entrances, corridors, and parking zones with deterrent-equipped 8MP cameras

• Warehousing & Logistics: Protect valuable stock, monitor dock activity, and control unauthorized access

• Large Residential Properties: Ensure complete perimeter protection and intelligent motion alerts

• Educational Institutions: Secure campuses with face and people recognition analytics

• Office Buildings: Streamline building security with corridor mode, multi-zone monitoring, and alerts

Datasheets & Downloadable Resources

• Uniview 8MP Camera Datasheet – IPC3638SS-ADF28KMC-I1

• Uniview NVR302-16E2-P16-IQ Datasheet

Excellence for the Australian and New Zealand Market

• ✅ Australian & NZ Standards Compliant: Safety and EMC certified

• ✅ NDSS Approved: Eligible for applications in regulated and supported sectors

• ✅ Optimized Networking: Designed to operate seamlessly with ANZ ISPs and infrastructure

• ✅ Officially Sourced Hardware: Direct from Uniview-authorized distributors

• ✅ Local Service & Support: All warranty and technical claims handled locally for faster resolution

FAQs

Q1: What resolution is supported by the IPC3638SS-ADF28KMC-I1SEC camera?
A1: The camera supports 8MP (3840×2160) @ 30fps for high-definition video. (SKU: IPC3638SS-ADF28KMC-I1)

Q2: How many IP cameras can I connect to the NVR302-16E2-P16-IQ?
A2: The NVR supports up to 16 IP cameras with dedicated PoE ports. (SKU: NVR302-16E2-P16-IQ)

Q3: Is this kit suitable for outdoor installations?
A3: Yes, the cameras are IP67-rated and built with a robust metal body for extreme weather. (SKU: IPC3638SS-ADF28KMC-I1)

Q4: Can I record if the network disconnects?
A4: Yes, ANR (Automatic Network Replenishment) allows cameras to save footage to SD cards and sync once reconnected. (SKU: NVR302-16E2-P16-IQ)

Q5: What storage capacity is supported?
A5: The NVR supports 2 SATA drives up to 10TB each, providing up to 20TB of local storage. (SKU: NVR302-16E2-P16-IQ)

Q6: Is remote access available?
A6: Yes, the system supports remote live view and playback for up to 128 users via browser and mobile app. (SKU: NVR302-16E2-P16-IQ)

Q7: Are AI features included?
A7: Yes, the system supports face detection, people counting, intrusion detection, and more. (SKU: NVR302-16E2-P16-IQ)

Q8: What is the warranty on this complete kit?
A8: The cameras include a 3-year warranty, and the NVR includes a 2-year warranty. (SKU: IPC3638SS-ADF28KMC-I1SEC & NVR302-16E2-P16-IQ)
