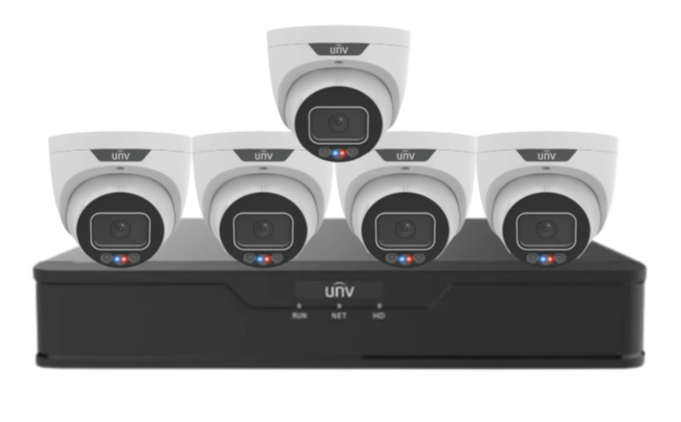

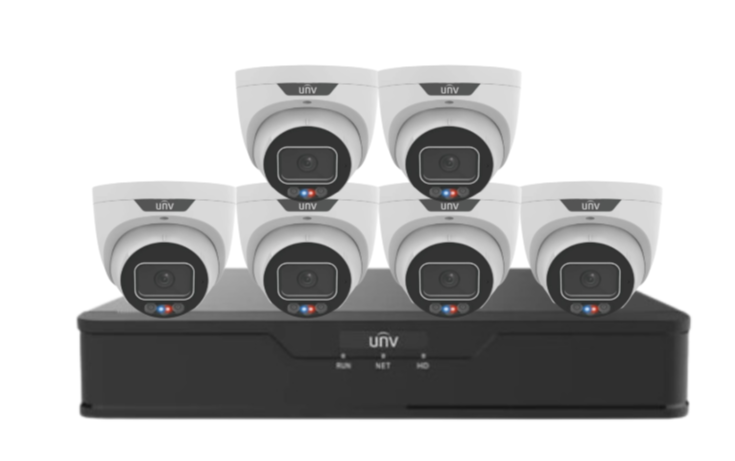

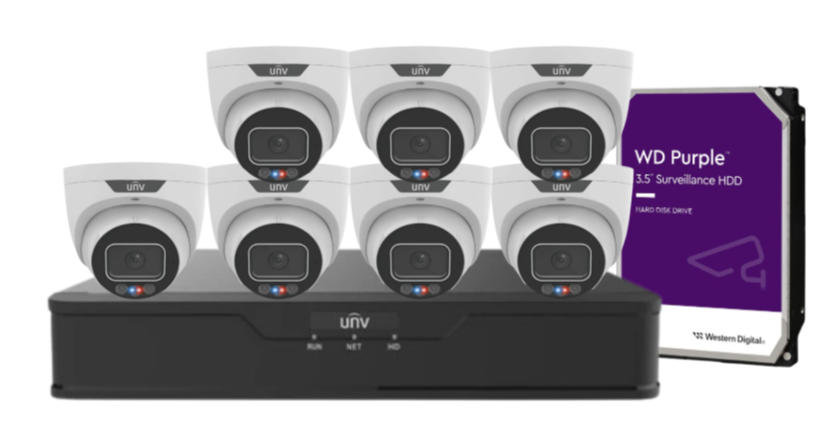

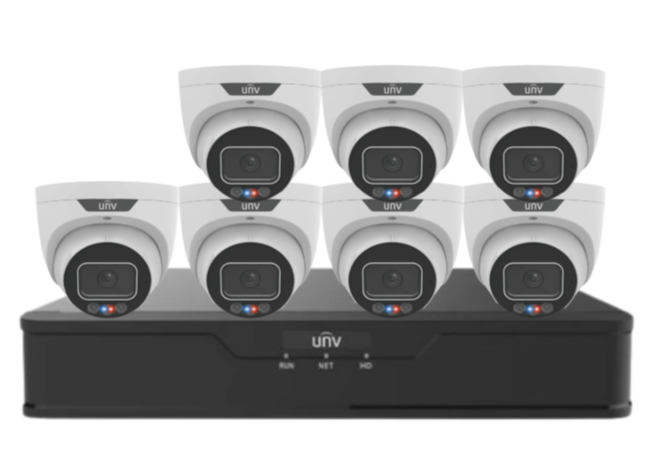

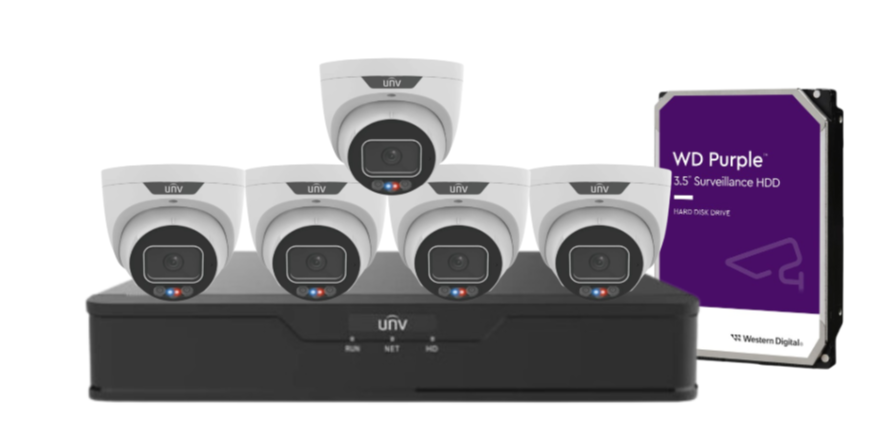

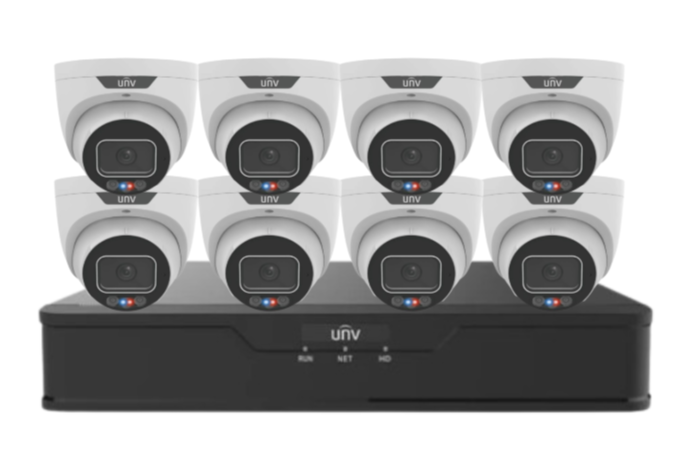

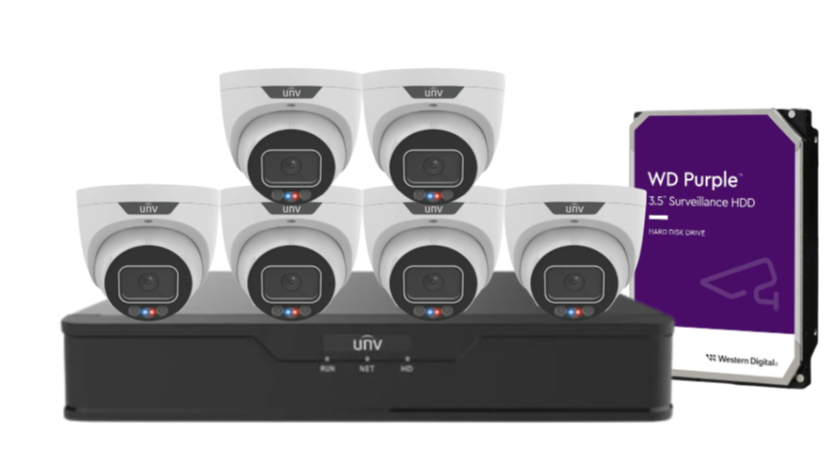

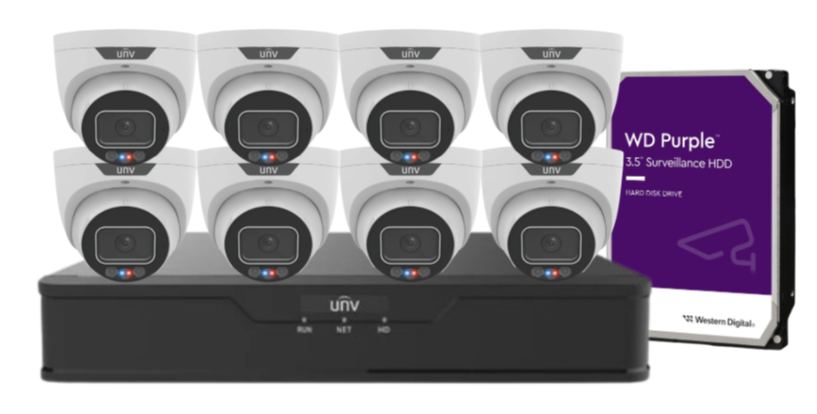

Ensure powerful, ultra-HD surveillance for medium-scale security environments with the Uniview 8MP CCTV Kit, equipped with up to eight 8MP Triguard Turret Fixed IP Cameras and the high-performance 8-channel Uniview NVR301-08B-P8-IQ. This comprehensive kit delivers premium video clarity, active deterrence features, advanced AI analytics, and robust night vision, all in a plug-and-play configuration powered by PoE technology.

Perfectly suited for commercial buildings, large homes, and retail premises, this system supports real-time remote monitoring, intelligent perimeter protection, and edge storage, backed by true WDR imaging and built-in audio communication for complete situational awareness.
What's Included in the Box
Main Features
Cameras – IPC3638SS-ADF28KMC-I1:
-
8MP CMOS Sensor (3840×2160): Captures crisp ultra-HD video at 30fps
-
Fixed Lens: 2.8mm with 106.5° horizontal viewing angle
-
Video Compression: Ultra 265 / H.265 / H.264 / MJPEG
-
WDR: 130dB True Wide Dynamic Range for excellent low/high contrast balance
-
Audio: Built-in microphone & speaker for two-way audio communication
-
Night Vision: Smart IR up to 30m (98.4 ft)
-
Deterrence Lighting: Red & blue warning LEDs
-
AI Detection: Intrusion, line crossing, people counting, target classification
-
Storage: Micro SD card support up to 256GB
-
Weatherproof: IP67-rated housing for harsh outdoor conditions
-
PoE Support: IEEE 802.3af compliant (max 10W)
NVR – NVR301-08B-P8-IQ:
-
Channels: 8 IP camera inputs
-
PoE: 8 × 10/100 Mbps ports (up to 30W per port)
-
Decoding Support:
-
Smart Off: 2 × 12MP@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps
-
Smart On: 2 × 4K@30fps, 4 × 4MP@30fps, 8 × 1080P@30fps
-
Outputs: HDMI (4K) and VGA (1080p) simultaneous
-
Compression: Ultra 265, H.265, H.264
-
ANR Support: Records on SD cards during network failure and syncs to NVR afterward
-
Audio: RCA in/out; supports 2-way communication
-
Recording Resolution: Up to 12MP
-
Remote Access: Up to 128 users via browser/app
-
Storage: 1 × SATA interface, supports up to 10TB
Warranty Information
-
Cameras: 3-Year Manufacturer Warranty
-
NVR: 2-Year Manufacturer Warranty
Warranty covers all manufacturer defects and hardware issues under standard use, processed through authorized Uniview centers in Australia and New Zealand.
Brand Description
Uniview is a globally respected leader in professional video surveillance. Renowned for pioneering Ultra 265 compression and offering high-performance IP solutions, Uniview provides security systems trusted by professionals in retail, government, and industrial environments.

Practical Use Scenarios
-
Retail Stores: Cover storefronts, registers, and aisles with AI detection and deterrent lighting
-
Warehouse & Logistics: Secure perimeters and inventory zones with high-resolution coverage
-
Multi-Level Residential Homes: Monitor driveways, entrances, backyards, and internal spaces
-
Educational Facilities: Protect access points and gather crowd insights
-
Corporate Offices: Deter unauthorized access and maintain compliance using advanced AI surveillance
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
-
✅ Certified to Australian and NZ Electrical Standards
-
✅ NDSS Approved: Ideal for projects requiring regulatory compliance or accessibility features
-
✅ Locally Optimized: Designed for compatibility with ANZ network configurations
-
✅ Genuine Uniview Products: Supplied via authorized distributors with complete warranty support
-
✅ Australian-Based Warranty Handling: Simplifies after-sales service and replacements
FAQs
Q1: What is the resolution of the IPC3638SS-ADF28KMC-I1SEC camera?
A1: The camera offers 8MP (3840x2160) @ 30fps resolution for ultra-HD clarity. (SKU: IPC3638SS-ADF28KMC-I1)
Q2: How many cameras can the NVR301-08B-P8-IQ support?
A2: This NVR supports up to 8 IP cameras via 8 PoE ports. (SKU: NVR301-08B-P8-IQ)
Q3: Is the system weatherproof and suitable for outdoor installation?
A3: Yes, the cameras are IP67-rated, ensuring protection from dust and heavy rain. (SKU: IPC3638SS-ADF28KMC-I1)
Q4: Can the system be monitored remotely?
A4: Absolutely. Up to 128 users can access live and recorded footage via mobile apps or browsers. (SKU: NVR301-08B-P8-IQ)
Q5: Does the camera support two-way audio?
A5: Yes, the camera features built-in mic and speaker for real-time audio communication. (SKU: IPC3638SS-ADF28KMC-I1)
Q6: What is ANR technology?
A6: ANR allows the camera to record locally during network outages and syncs the footage back to the NVR later. (SKU: NVR301-08B-P8-IQ)
Q7: What video compression formats are supported?
A7: The system supports Ultra 265, H.265, H.264, and MJPEG for optimal storage efficiency. (SKU: IPC3638SS-ADF28KMC-I1SEC / NVR301-08B-P8-IQ)
Q8: What are the warranty terms for this kit?
A8: 3-year warranty on cameras and 2-year warranty on NVR via official ANZ Uniview service partners. (SKU: IPC3638SS-ADF28KMC-I1SEC / NVR301-08B-P8-IQ)
