描述
套件包括
4x 大华 6MP TiOC 2.0 子弹头摄像机 - DH-IPC-HFW3649T1-AS-PV-ANZ
1x 大华 4 通道 WizSense AI NVR - DHI-NVR4104HS-P-AI/ANZ

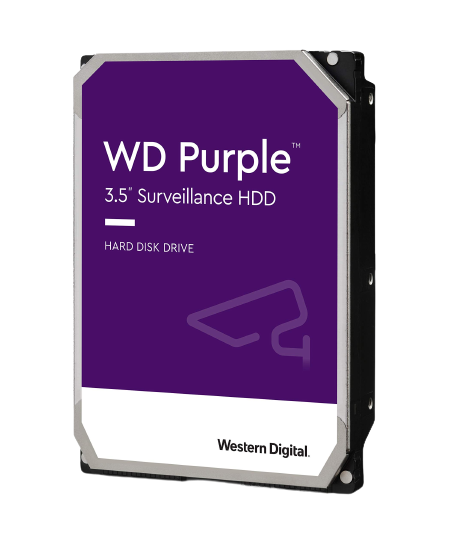

1x 西部数据紫色监控硬盘
大华TIOC（热成像、人工智能、光学成像和彩色）技术是视频监控和安防解决方案领域的前沿创新。这项先进技术结合了多种元素来提高监控系统的有效性。
-
热成像：大华 TIOC 采用热成像摄像机，即使在完全黑暗的情况下也可以检测热信号并提供清晰的图像。此功能使其成为在弱光或恶劣天气条件下识别入侵者和潜在安全威胁的理想选择。
-
人工智能 (AI) ：AI 算法是 TIOC 的关键组成部分，可实现智能视频分析。这些算法可以实时识别和分析物体、行为和异常，有助于减少误报并提高安全监控的准确性。
-
光学成像：光学相机在白天提供高分辨率图像和视频。这些相机通过提供颜色和细节来补充热感相机，从而更容易准确地识别个人和物体。
-
颜色：TIOC 技术中包含彩色成像可确保安全人员能够更精确地识别对象。这在颜色编码信息对于决策至关重要的情况下特别有用。
大华TIOC技术用途广泛，可用于周界安全、关键基础设施保护和公共安全等各种应用。通过结合热成像、人工智能、光学和彩色成像功能，大华 TIOC 技术提供全面可靠的监控解决方案，增强安全性和态势感知能力。
IPC-HFW3649T1-AS-PV-ANZ
6MP 智能双照明主动威慑定焦子弹头 WizSense 网络摄像机
* 以下参数和数据表仅适用于 3649-PV-ANZ 系列。 · 6-MP 1/2.7" CMOS 图像传感器，低亮度、高清晰度图像。 > 最大输出 6 MP (3200 × 1800) @25/30 fps
> H.265编解码器，高压缩率，超低码率。
>内置暖光灯和IR LED；最大。红外照明距离为30m，暖光照明距离为30m。
> ROI、SMART H.264+/H.265+、AI H.264/H.265，灵活编码，适用于各种带宽和存储环境。
>旋转模式、WDR、3D NR、HLC、BLC、数字水印，适用于各种监控场景。
>智能监控：入侵、绊线（两项功能支持车辆和人员的分类和精确检测）
>异常检测：移动检测、隐私遮挡、场景切换、音频检测、无SD卡、SD卡满、SD卡错误、网络断开、IP冲突、非法访问、电压检测。
>报警：1进1出；音频：1进1出；最大支持256G Micro SD卡；内置双 MIC； 1路扬声器；支持双向通话。
> 12 VDC/PoE 电源。
> IP67防护等级。
>声光报警（红灯和蓝灯）。
>贴片4.0。
>通过报警输入一键布撤防。
大华 DHI-NVR4104HS-4P-4KS2/L 4 通道紧凑型 1U 4PoE 4K H265 Lite 网络录像机
主要特征：
- 新的4.0用户界面，安全基线2.1
- H.264、H.265、智能 H.264+ 和智能 H.265+。 H.265自动切换
- 最大限度。解码能力：8×1080p@30fps。支持自适应
解码 - 支持ONVIF、RTSP协议主流摄像机
- P2P远程监控，移动设备视频播放
- VGA/HDMI同时视频输出，HDMI最高分辨率
是 4K - 摄像头人工智能：人脸检测、周界防护、IVS、人员
计数、热图和 SMD - 支持IPC的远程配置和管理，如设置
设置参数、获取信息、升级IPC
批量模型
功能：
摄像头周边保护： 自动过滤动物、树叶沙沙声、强光等引起的误报，使系统能够对目标进行二次识别。提高报警准确度。
摄像头人脸检测： 人脸检测是检测视频中是否出现人脸。该技术采用深度学习算法，支持人脸检测、跟踪、优化和抓拍，然后输出最佳的人脸快照。
SMD Plus by Camera ：大华智能移动检测技术通过智能算法，对触发移动检测的目标进行分类，过滤掉非关注目标触发的移动检测报警，实现有效、准确的报警。
DMSS： 当网络出现故障时，将视频记录在网络摄像机的SD卡中，当网络恢复后，将视频传输到设备中，然后记录在设备中。
TiOC 2.0
What is TiOC 2.0?
With its foundation from the previous generation of TiOC, a variety of new innovative technologies are introduced in the latest TiOC 2.0 for the first time, achieving breakthroughs and quality improvements in illuminators, audio and images. At the same time, TiOC 2.0 can be integrated with alarm system through software upgrades. It provides better ecosystem that offers more convenient operation and better user experience.
Smart Dual Light
• Smart Illumination Mode (Default): Switch between IR Mode and warm light when target is detected.
• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary warm light is not required, significantly reducing light pollution.
• Warm Light Mode (Optional): Only the warm light is ON. It is suitable for scenes that require color video footages.
VoiceCatcher Technology
• Newly-designed Dual Mic Array intercepts external circuit interference.
• Audio pick-up distance is increased by 7 meters compared with the previous version of TiOC in a lab environment.
• The Dahua VoiceCatcher reduces noise and extracts audible audio signals.
Better Image
• First Dahua camera powered by OPC (Optical Path Technology). It corrects the refraction angle of different light path. With F1.0 large aperture lens, it outputs brighter and clearer black & white images.
• 4K Real-time: Smooth 4K real-time images at 30 fps even when AI is enabled, with high brightness using F1.0 large aperture.
Easy Operation
• Alarm-in Port: Allows alarm receiving or one-tap disarming through the alarm system interface.
• One-tap Disarming: Turns on/off the warning light and siren via the DMSS or alarm-in port.
• Alarm Sounds: Offers 11 built-in sounds and supports importing of custom voice audio for different scenarios.
AI Features
SMD 4.0: Reduces false alarms caused by animals
With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.
Perimeter Protection
The perimeter protection function based on tripwire and area intrusion sends an alarm only when unwanted movements triggered by human or vehicle targets occur, saving users from unnecessary actions caused by false alarms.
AI SSA
With the continuous development of video surveillance and AI, the demand for images with higher quality is also increasing.
The Dahua AI SSA (Scene Self-adaption) technology is based on deep learning algorithm that can intelligently identify multiple scenes and adjust to their optimal images.
Auto Tracking 3.0 (PTZ)
Smooth Tracking Process
Combined with PFA 3.0 algorithm (a deep fusion of intelligent algorithms and focusing algorithms), it realizes touchless focusing during the tracking and capturing process.
Long Tracking Distance
With the Automatic Tracking 2.0 algorithm as its foundation, the requirements on the tracking size of the target are further reduced, making the target size smaller and the tracking distance longer. The tracking distance of Automatic Tracking 3.0 can reach up to 870 meters.
Applications
Private Places
• Less Light Pollution: Less use of white light means less light pollution
• Active Deterrence: Warn off intruders during the intrusion
• Color Monitoring: Presents color alarm videos
• Scenarios: Villas, shops, warehouses, etc.
Public Areas
• Active Deterrence: Customized sounds and light alarm to warn the target in the area
• Accurate Detection: Focuses on human and vehicle targets to accurately identify real targets
• Ecosystem: One-tap disarming with alarm-in port or DMSS.
• Scenarios: Fire exits, emergency exits, etc.
