Enhance your surveillance system with the Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2, a next-generation 6MP TiOC 3.0 IP camera with AcuPick AI search, active deterrence, and dual illumination. Paired with the Dahua NVR5216-16P-AI/ANZ, this CCTV kit supports configurations of up to 4, 8, or 16 cameras, making it ideal for scalable security deployments in residential, retail, and commercial environments.
TiOC 3.0 delivers Three-in-One Security: full-colour video, active deterrence (light + siren), and smart AI analytics including SMD 4.0, perimeter protection, and deep-learning-based AcuPick search. The camera’s 6MP CMOS sensor ensures high-resolution footage day or night, with IR and warm LED lights extending visibility up to 30m.
With AcuPick integration, users can instantly search for human or vehicle targets in live or recorded video. The system’s strong cybersecurity, smart event filtering, and 3-stream encoding provide unmatched surveillance efficiency.

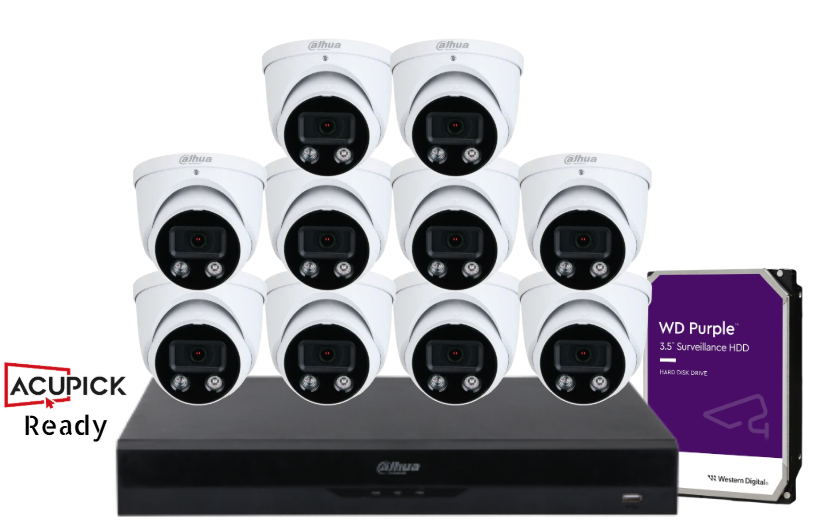

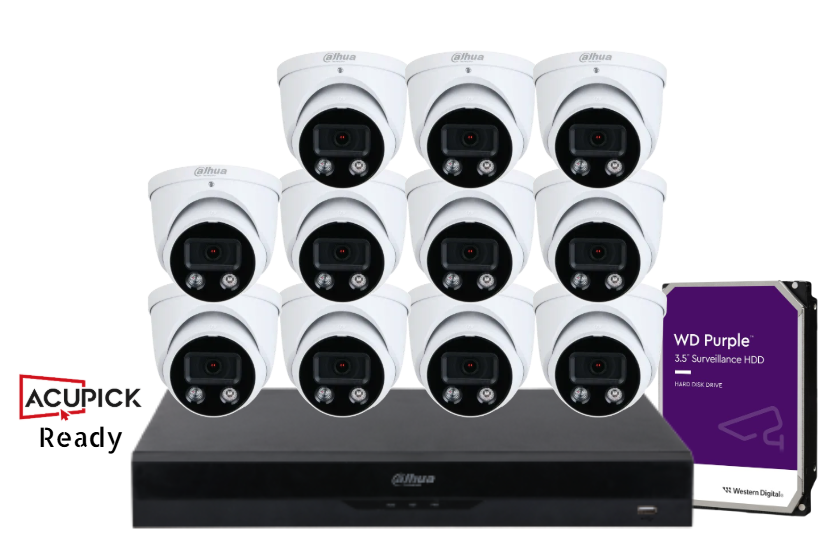

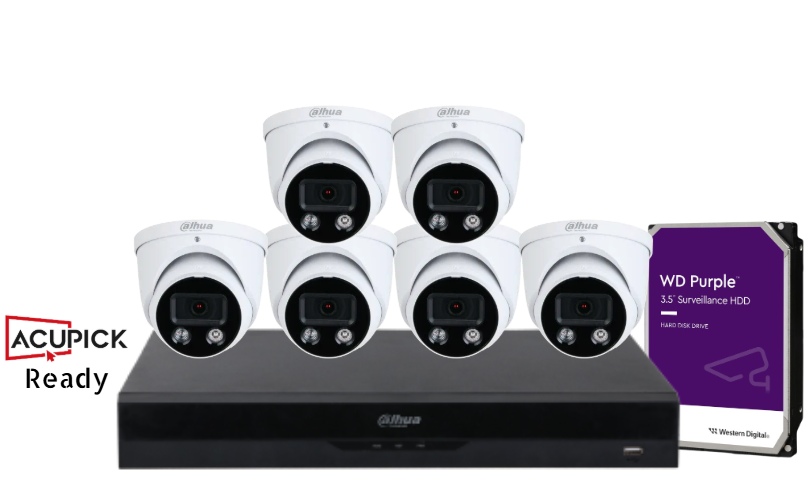

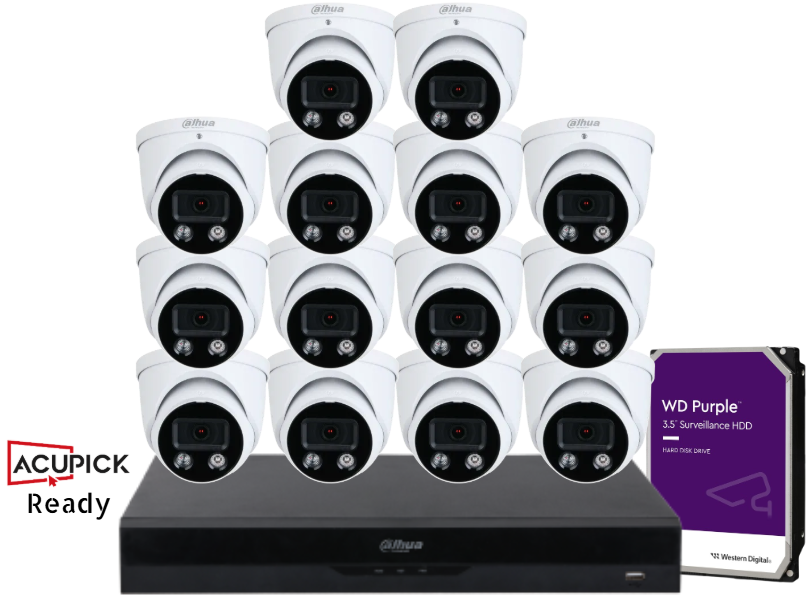

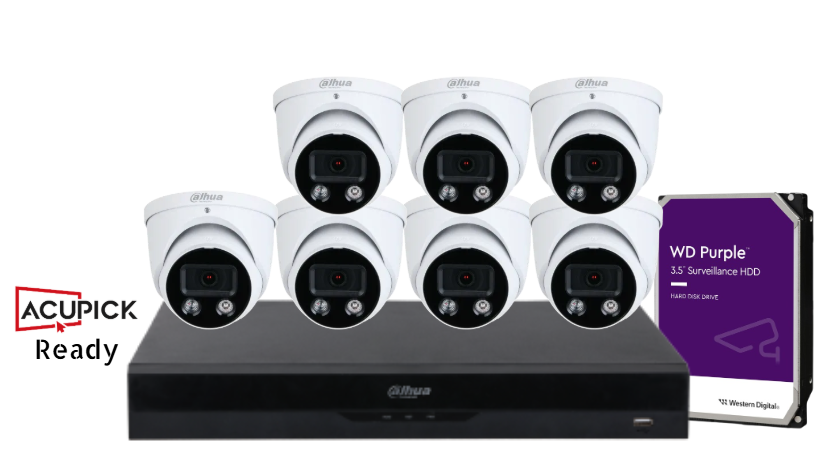

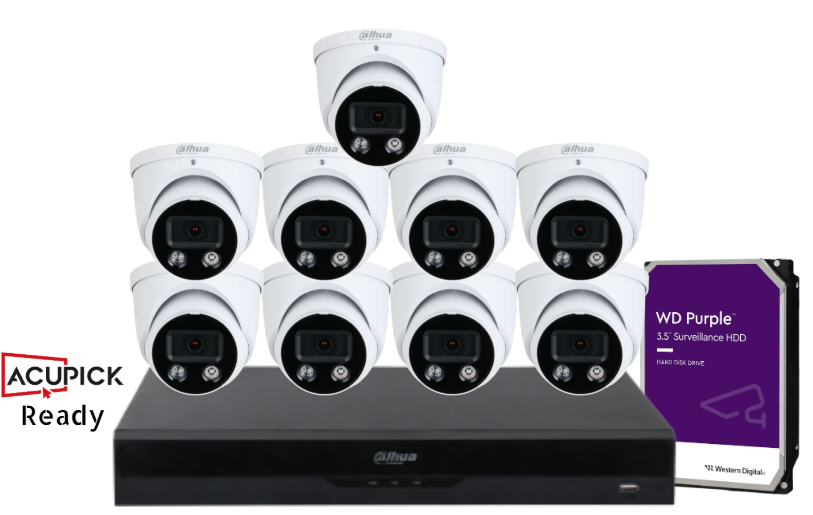

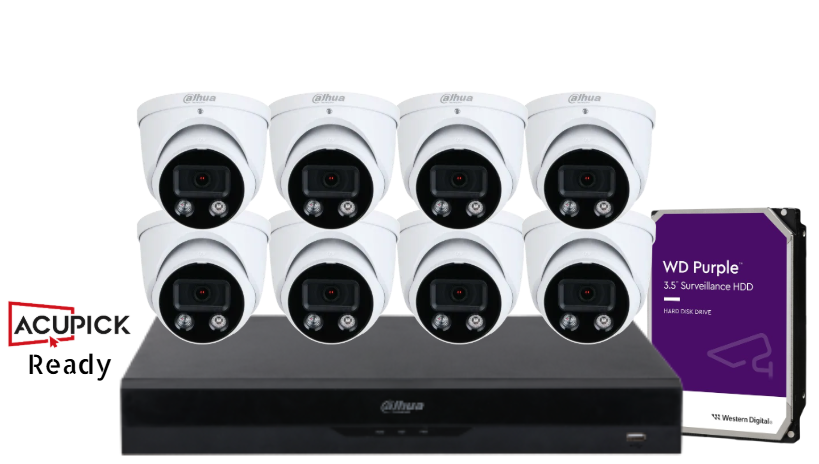

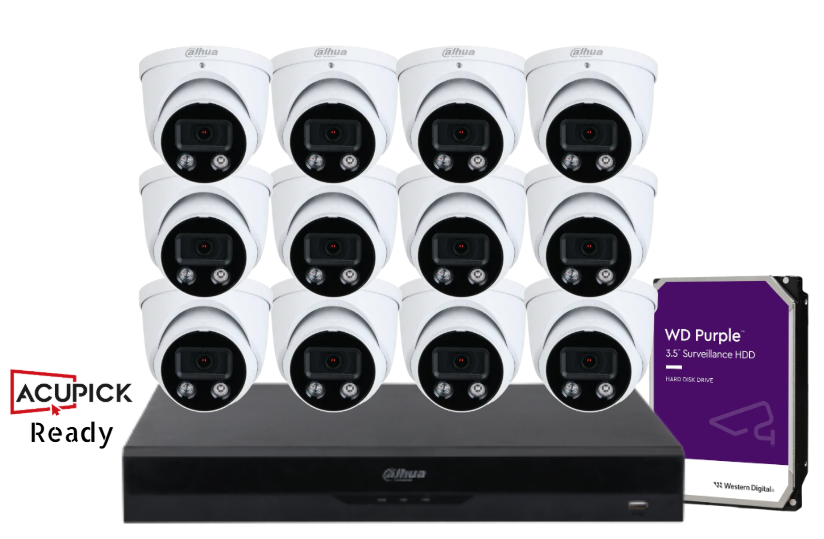

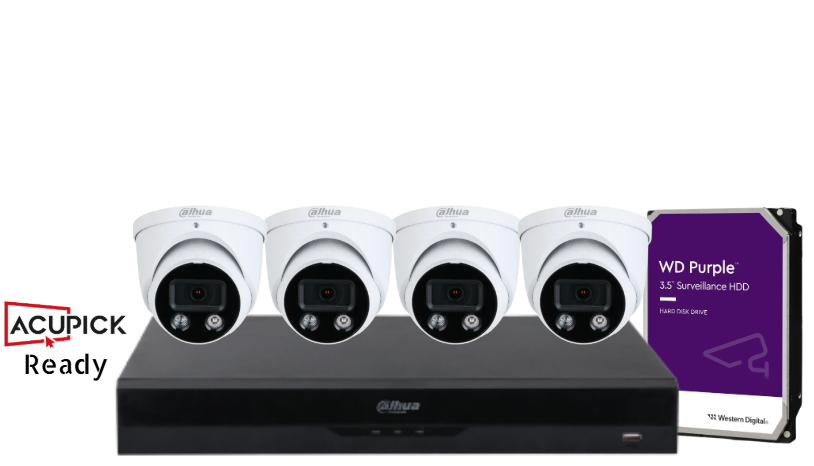

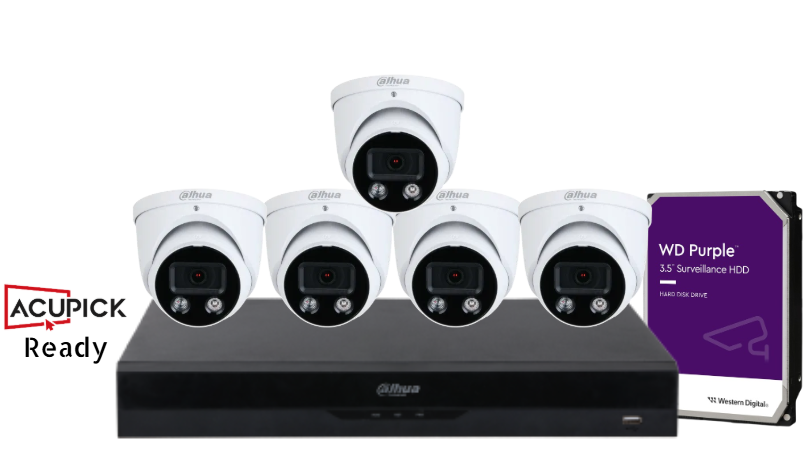

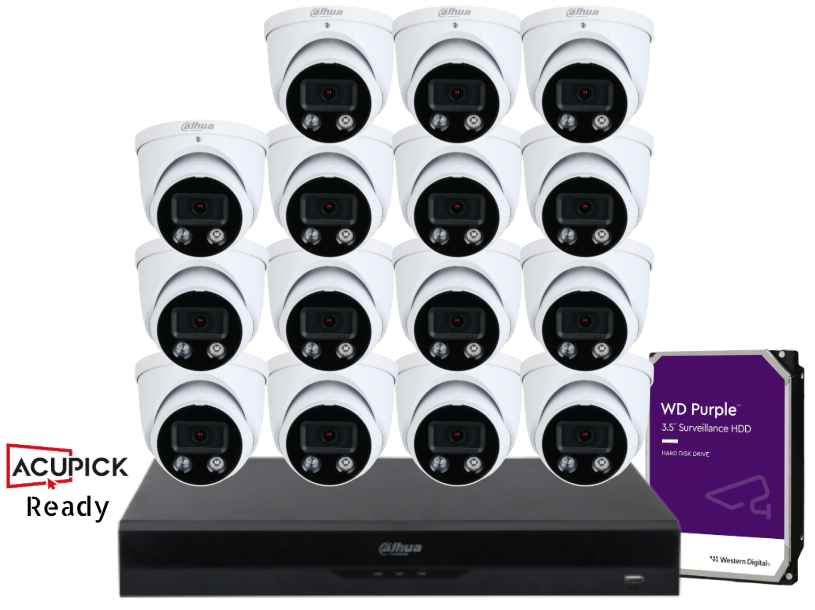

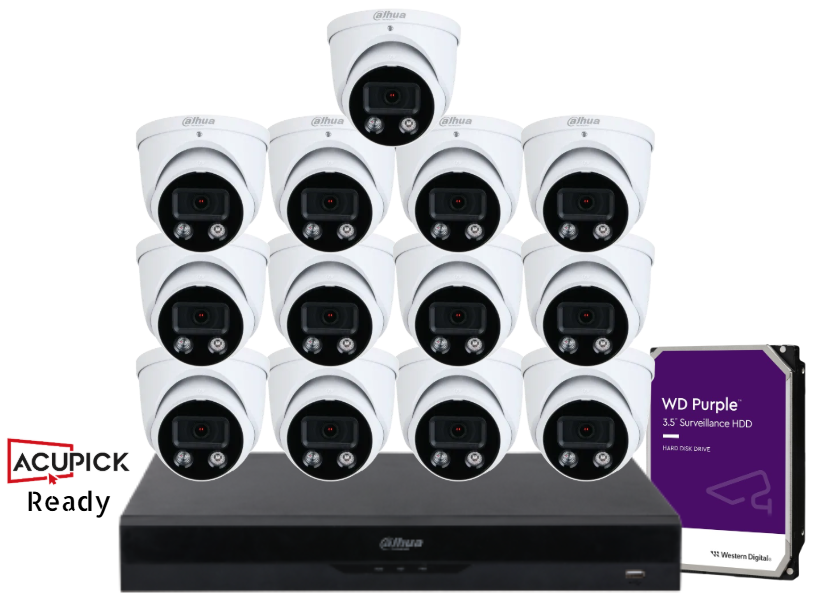

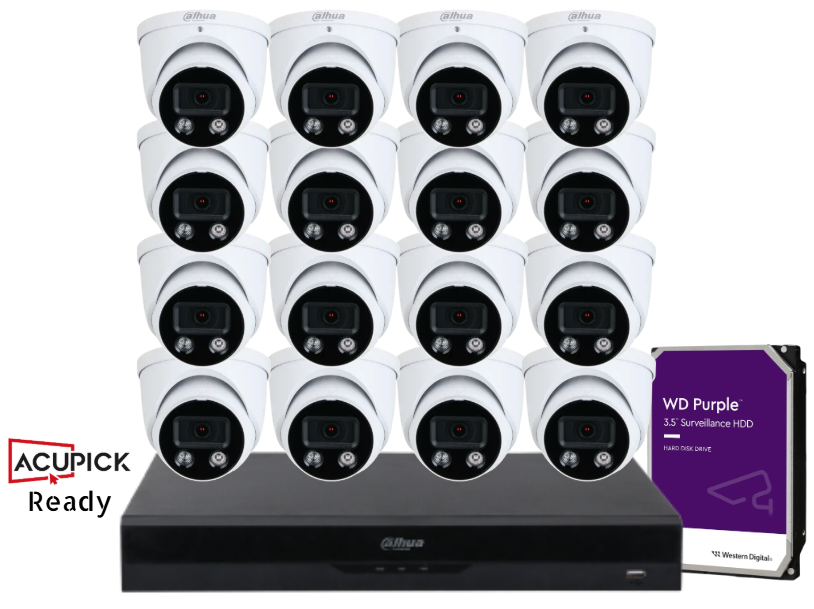

What's Included in the Box
Up to 16 × Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 6MP TiOC 3.0 IP Cameras
1 × Dahua NVR5216-16P-AI/ANZ 16-Channel PoE NVR
1 ×Surveillance-Grade HDD
Power Adapter
USB Mouse
Quick Start Guide
Mounting Accessories (for each camera)
Dahua AcuPick – Intelligent Video Search Made Simple
Dahua AcuPick is an advanced AI-powered video search technology that enables users to locate people, vehicles, or animals in recorded footage with remarkable speed and accuracy. By simply clicking on a subject within recorded video, AcuPick identifies and retrieves all matching appearances across multiple camera feeds—no need to review footage manually.
Key Features:
Instant Target Search: Reduces search time by up to 99% using intelligent image-based detection.
One-Click Operation: Select a person, vehicle, or object in playback, and the system does the rest.
Smart Filtering: Supports pre-search filters like motion detection, tripwires, or specific attributes like clothing color.
Enhanced Accuracy (AcuPick 2.0): Now includes animal tracking, facial recognition support, and trajectory mapping.
Privacy-Conscious: Uses appearance-based identification, not facial biometrics, ensuring data privacy compliance.
Low Infrastructure Cost: Processes searches directly on compatible Dahua cameras or NVRs—no external servers required.
Ideal For:
Retail and commercial spaces
Security and law enforcement applications
Property management and loss prevention
Pet and family monitoring in residential settings
Dahua AcuPick is supported by select Dahua WizMind cameras and NVRs, offering unmatched efficiency for surveillance operations. Let me know if you'd like help choosing the best AcuPick-enabled products for your needs.
Main Features
6MP Resolution (3072 × 2048) at 25/30 fps – Captures rich detail in every frame.
TiOC 3.0 (Three-in-One Camera): Active deterrence, AI detection, and full-colour video.
Dual Illumination: IR + Warm LED for 30m night vision and deterrence lighting.
AcuPick AI Search: Quickly identifies and tracks human/vehicle targets in footage.
SMD 4.0 and IVS: Smart Motion Detection, tripwire, and intrusion with human/vehicle classification.
Two-Way Audio: Built-in mic and speaker for real-time communication.
IP67 Weatherproof and IK10 Vandal-Resistant – Built for outdoor environments.
3D NR, 120dB WDR, SSA: Optimized imaging even in complex lighting.
PoE or 12V DC Powered, with low energy draw (Max: 8.8W).
Technical Specifications

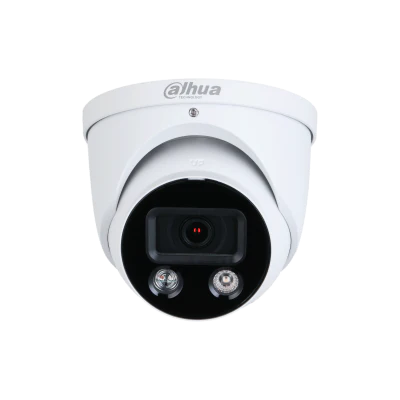

Camera – DH-IPC-HDW3649H-AS-PV-ANZ-S2
Sensor: 1/2.7" CMOS, 6MP
Illumination: IR & Warm Light – Up to 30m
Aperture: F1.0 for ultra-low light performance
Field of View:
2.8mm: H 97°, V 70°, D 128°
3.6mm: H 78°, V 58°, D 102°
DORI Range (2.8mm): Detect: 66m | Identify: 6.6m
Smart Functions: AcuPick, SMD 4.0, IVS, SSA
Storage: MicroSD card (up to 256GB), NAS, FTP
Smart Codecs: AI H.265/H.264, Smart H.265+, Smart H.264+
Streams: Triple-streaming
Power: 12V DC or PoE (Max. 8.8W)
Build: Metal casing, IP67 weatherproof, Ø122 × 110.9 mm, 0.75 kg

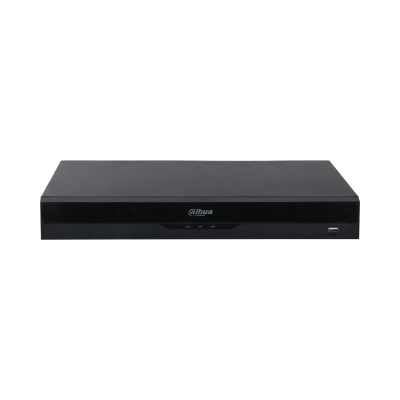

NVR – NVR5216-16P-AI/ANZ
Channels: 16 IP inputs with 16 PoE ports
Recording Resolution: Up to 12MP
Decoding: AI-enabled decoding for face detection, SMD Plus, perimeter protection
Storage: 2 × SATA ports, up to 32TB total (16TB each)
Video Outputs: HDMI (4K) + VGA
AI by Recorder:
Face detection: 2 ch
SMD Plus: 8 ch
Perimeter Protection: 4 ch
AcuPick AI search
Audio I/O: 1 in, 1 out (RCA)
ANR, Smart Playback, Heat Mapping
PoE Power Budget: 130W total, 25.5W per port
Warranty Information
Camera: 3-Year Manufacturer Warranty
NVR: 3-Year Manufacturer Warranty Both components include access to authorized service support in Australia and New Zealand.
Brand Description
Dahua Technology is a global pioneer in intelligent video surveillance. Known for its innovations in AI and edge computing, Dahua’s TiOC and AcuPick solutions set a new benchmark in proactive monitoring, offering end-to-end protection across commercial, industrial, and residential sectors.
SKU
DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW
Practical Use Scenarios
Commercial Retail: Monitor entrances and customer flow with alerts for unauthorized access.
Warehouse & Logistics: Secure large perimeters with AcuPick target tracing and siren deterrence.
Residential Homes: Two-way audio and smart lighting deter intruders and allow homeowner interaction.
Education & Campus Security: Identify events with intelligent filtering and quick retrieval via AcuPick.
Government Facilities: Monitor high-security zones with AI-enhanced event recognition.
Excellence for the Australian and New Zealand Market
Fully RCM & CE Certified for electrical and safety compliance.
NDSS-Compliant: Approved for high-integrity installations.
Optimized Firmware for regional network environments and video formats.
Authorized Distribution Channels: Genuine Dahua hardware sourced for ANZ.
Warranty Managed Locally with full-service centers in Australia and New Zealand.
FAQs – Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW
Q: What makes the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW a TiOC 3.0 camera? A: TiOC 3.0 combines three core functions: AI detection, full-colour night vision, and active deterrence (siren + lights), in one smart device.
Q: Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW support AcuPick search? A: Yes, it works seamlessly with Dahua NVRs like NVR5216-16P-AI/ANZ to provide instant human/vehicle video search.
Q: What storage options are available for the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW system? A: Cameras support up to 256GB microSD, and the NVR supports two HDDs up to 16TB each.
Q: Can I talk and listen remotely with the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW? A: Yes, with its built-in microphones and speaker, real-time two-way audio is fully supported.
Q: How durable is the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW for outdoor use? A: It’s IP67 rated for all-weather protection and built from vandal-resistant metal.
Q: What is the maximum number of supported cameras in the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW kit? A: The system supports up to 16 IP cameras connected to the Dahua 16-channel NVR.
Q: Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW support ONVIF for third-party cameras? A: Yes, it complies with ONVIF Profiles S, G, T, allowing integration with various IP cameras.
Q: Is remote access available with the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW system? A: Yes, you can access the system remotely via Dahua DMSS mobile app or web browser.
FREE SHIPPING ON ALL ORDERS OVER $200 AUSTRALIA WIDE
All orders are delivered using the Australia Post shipping method and this is the most efficient method of delivery.
A flat rate of $12 applies to all orders under $200.
Delivery typically takes 3-5 business days all over Australia including Tasmania.
New Zealand: 10-15 business days.
Processing Times
We process orders from Monday to Friday, ensuring they are shipped within 24 hours of placement, excluding weekends and public holidays.
Tracking Your Order
Once your order is packed and dispatched from our warehouse, you will receive an email with a tracking number. This tracking number can be used to monitor your parcel's progress.
For your convenience, if you are not home at the time of delivery, the delivery driver will leave your parcel in a secure place if deemed safe. If it is not safe to leave the parcel, or if the parcel is too large, a card will be left with instructions on how to retrieve your parcel from the local depot.
Warranty period is given in the product description.
CCTV Importers’s Products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure of the Product and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Products repaired or replaced if the Products fail to be of acceptable quality and the failure does not amount to a major failure.
With its foundation from the previous generation of TiOC, a variety of new innovative technologies are introduced in the latest TiOC 2.0 for the first time, achieving breakthroughs and quality improvements in illuminators, audio and images. At the same time, TiOC 2.0 can be integrated with alarm system through software upgrades. It provides better ecosystem that offers more convenient operation and better user experience.
Smart Dual Light
• Smart Illumination Mode (Default): Switch between IR Mode and warm light when target is detected.
• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary warm light is not required, significantly reducing light pollution.
• Warm Light Mode (Optional): Only the warm light is ON. It is suitable for scenes that require color video footages.
VoiceCatcher Technology
• Newly-designed Dual Mic Array intercepts external circuit interference.
• Audio pick-up distance is increased by 7 meters compared with the previous version of TiOC in a lab environment.
• The Dahua VoiceCatcher reduces noise and extracts audible audio signals.
Better Image
• First Dahua camera powered by OPC (Optical Path Technology). It corrects the refraction angle of different light path. With F1.0 large aperture lens, it outputs brighter and clearer black & white images.
• 4K Real-time: Smooth 4K real-time images at 30 fps even when AI is enabled, with high brightness using F1.0 large aperture.
Easy Operation
• Alarm-in Port: Allows alarm receiving or one-tap disarming through the alarm system interface.
• One-tap Disarming: Turns on/off the warning light and siren via the DMSS or alarm-in port.
• Alarm Sounds: Offers 11 built-in sounds and supports importing of custom voice audio for different scenarios.
AI Features
SMD 4.0: Reduces false alarms caused by animals
With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.
Perimeter Protection
The perimeter protection function based on tripwire and area intrusion sends an alarm only when unwanted movements triggered by human or vehicle targets occur, saving users from unnecessary actions caused by false alarms.
AI SSA
With the continuous development of video surveillance and AI, the demand for images with higher quality is also increasing. The Dahua AI SSA (Scene Self-adaption) technology is based on deep learning algorithm that can intelligently identify multiple scenes and adjust to their optimal images.
Auto Tracking 3.0 (PTZ)
Smooth Tracking Process
Combined with PFA 3.0 algorithm (a deep fusion of intelligent algorithms and focusing algorithms), it realizes touchless focusing during the tracking and capturing process.
Long Tracking Distance
With the Automatic Tracking 2.0 algorithm as its foundation, the requirements on the tracking size of the target are further reduced, making the target size smaller and the tracking distance longer. The tracking distance of Automatic Tracking 3.0 can reach up to 870 meters.
Applications
Private Places
• Less Light Pollution: Less use of white light means less light pollution
• Active Deterrence: Warn off intruders during the intrusion
• Color Monitoring: Presents color alarm videos
• Scenarios: Villas, shops, warehouses, etc.
Public Areas
• Active Deterrence: Customized sounds and light alarm to warn the target in the area
• Accurate Detection: Focuses on human and vehicle targets to accurately identify real targets
• Ecosystem: One-tap disarming with alarm-in port or DMSS.
