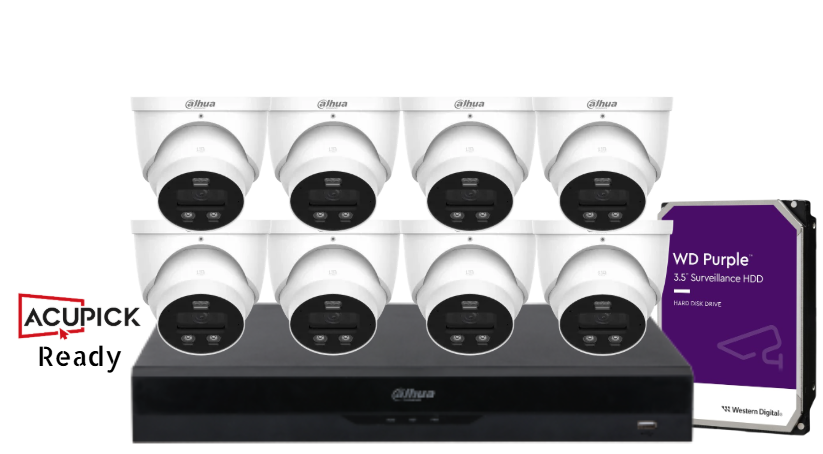

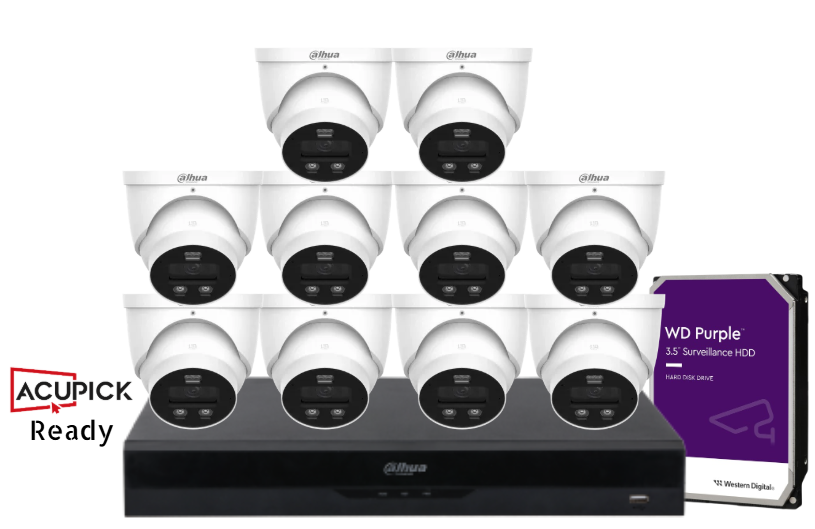

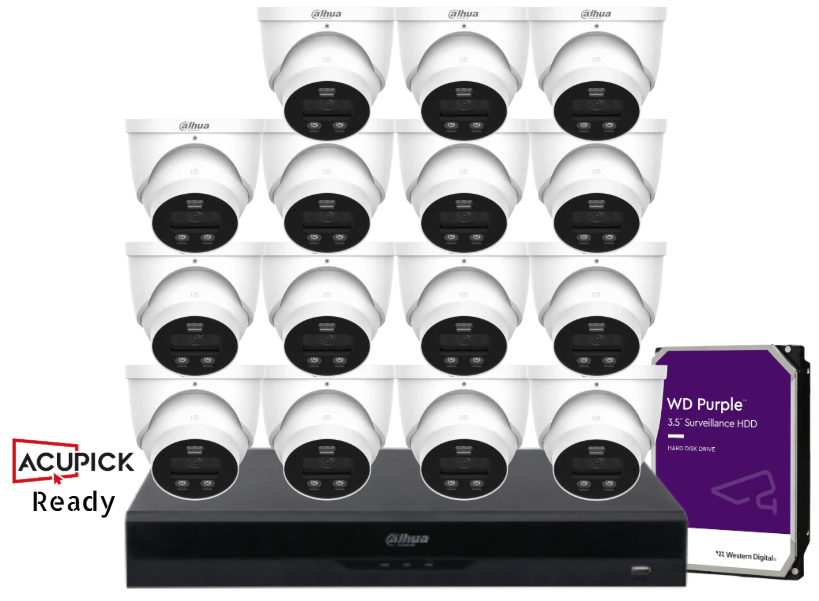

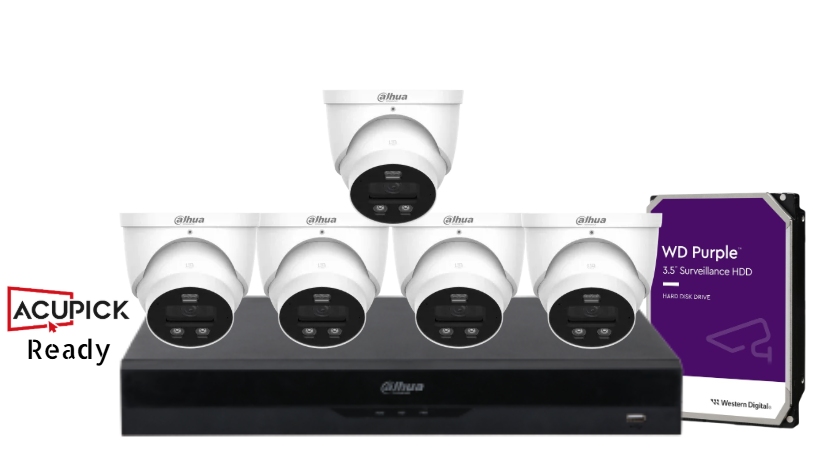

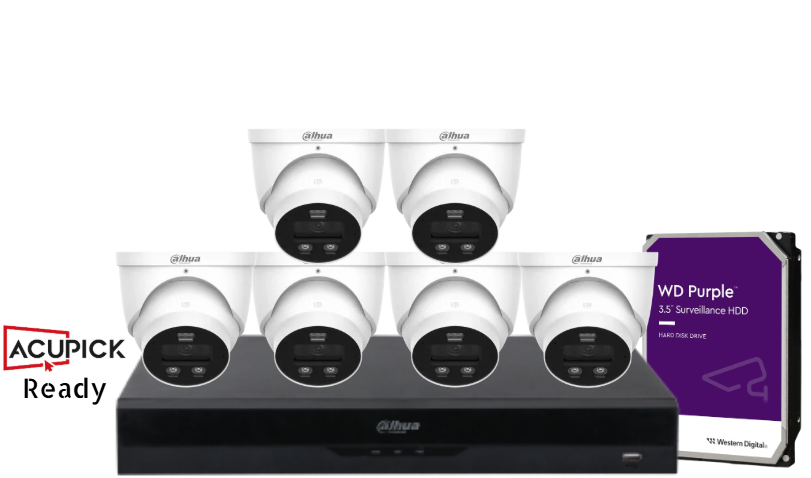

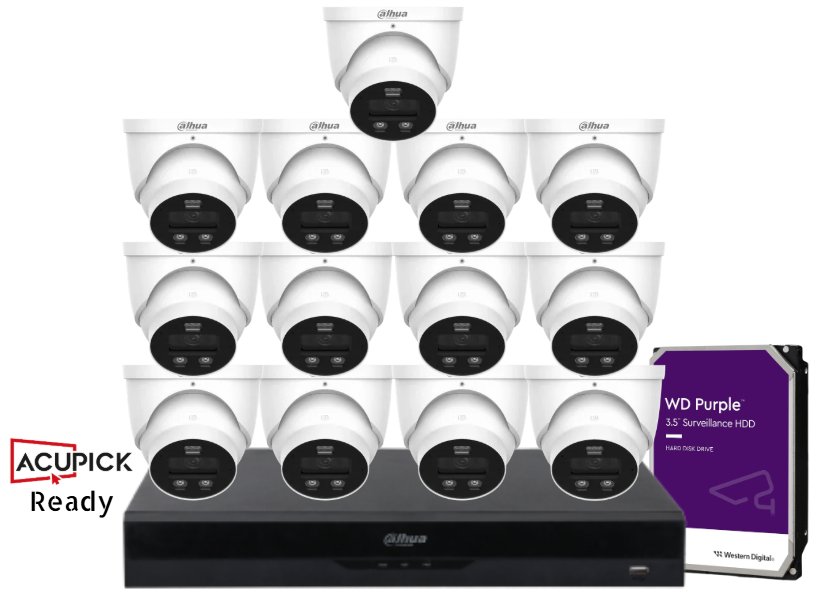

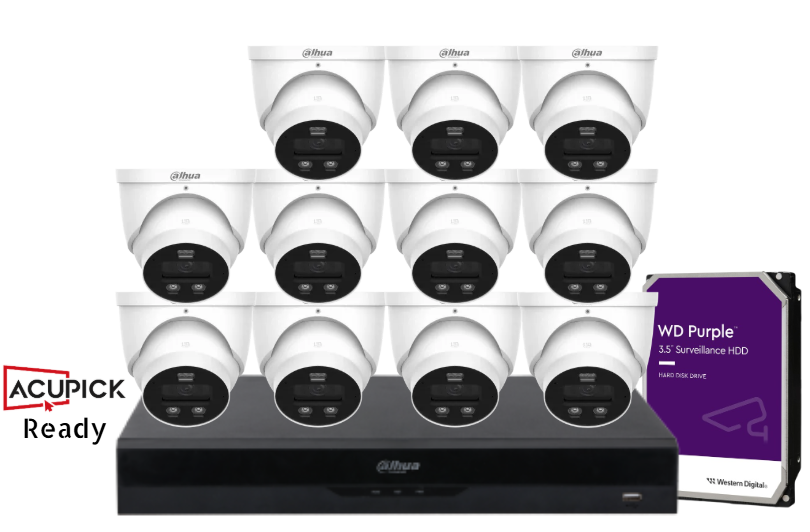

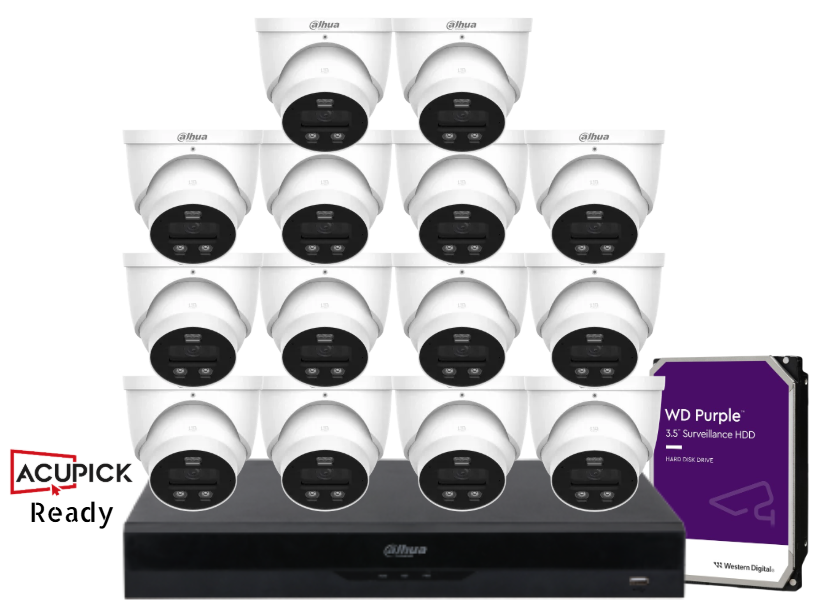

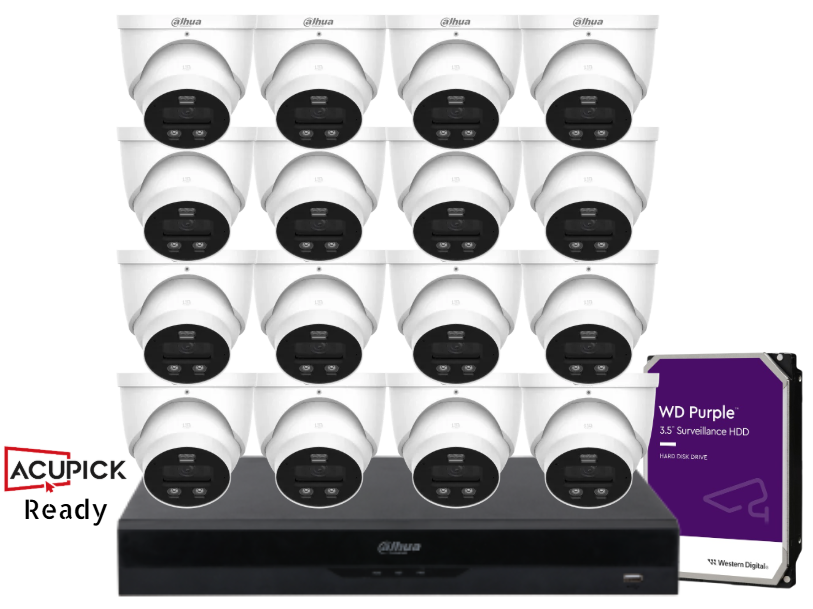

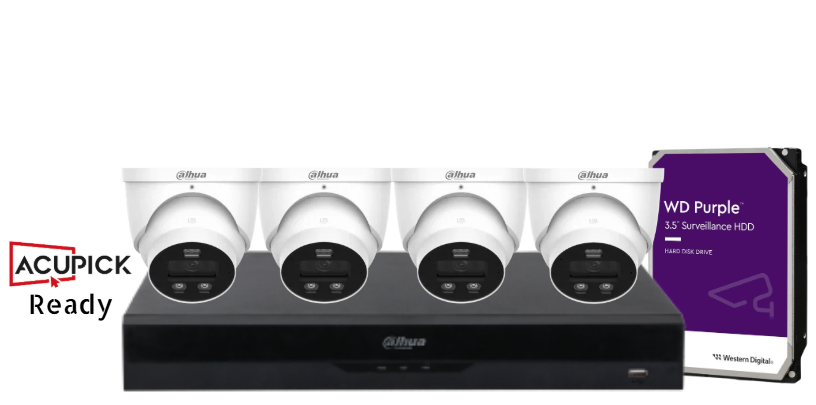

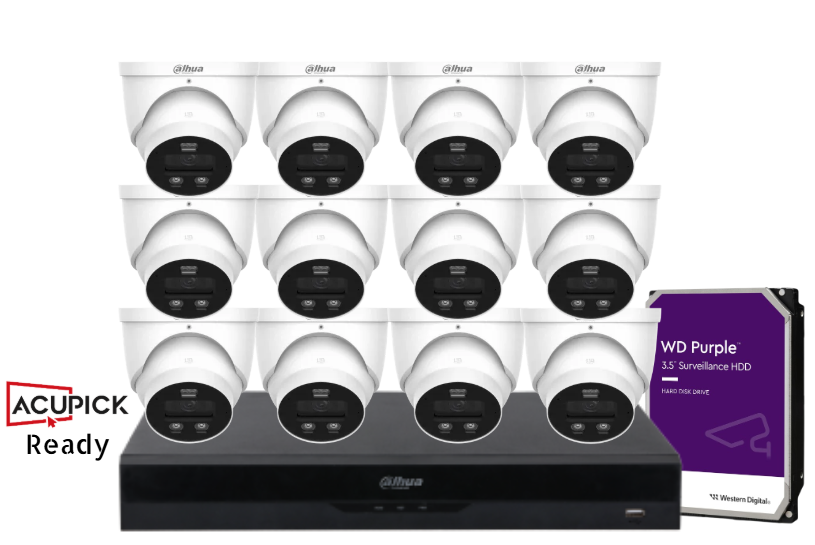

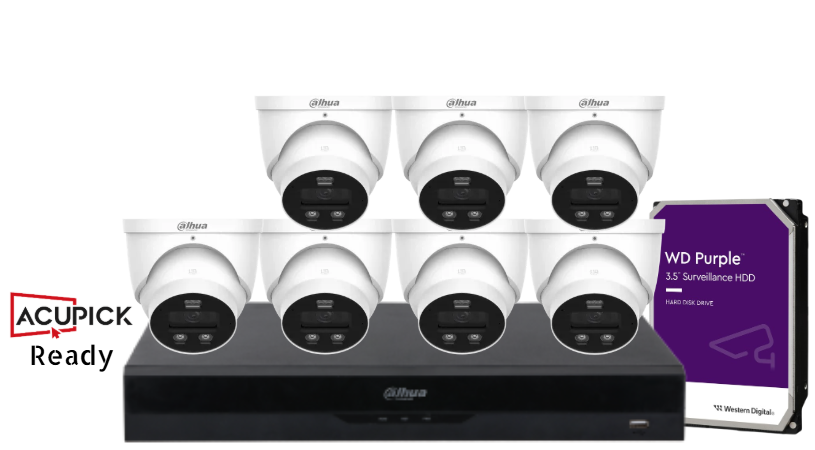

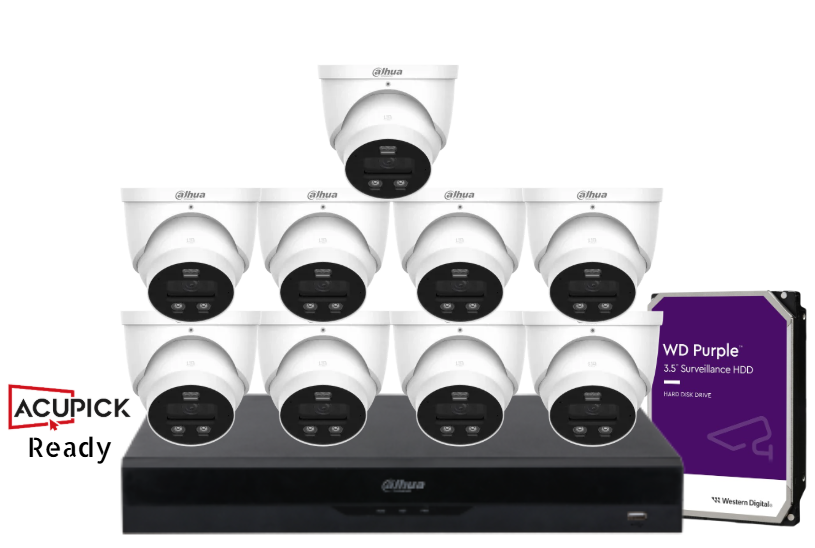

Strengthen your security infrastructure with the Dahua DH-IPC-HDW3867EM-S-IL-ANZ-TW AcuPick CCTV Kit, a premium surveillance solution combining the precision of 8MP (4K) fixed turret cameras with the powerful capabilities of a 16-channel AI NVR. Built with Dahua’s WizSense technology and Starlight imaging, this IP camera kit ensures high-definition video capture, AI-based detection, and reliable performance in all lighting and weather conditions. Available in 4, 8, or 16 camera configurations, it’s ideal for residential, commercial, and industrial surveillance applications.

What’s Included in the Box

• 4 / 8 / 16 × Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP Starlight Fixed Turret Cameras

• 1 × Dahua NVR5216-16P-AI/ANZ 16-Channel AI Network Video Recorder with PoE

• 1 × Surveillance-grade HDD (Capacity based on configuration)

• Mounting accessories

• USB mouse, power cable, SATA data cables

• Quick Start Guide & Installation Manuals

Dahua AcuPick – Intelligent Video Search Made Simple

Dahua AcuPick is an advanced AI-powered video search technology that enables users to locate people, vehicles, or animals in recorded footage with remarkable speed and accuracy. By simply clicking on a subject within recorded video, AcuPick identifies and retrieves all matching appearances across multiple camera feeds—no need to review footage manually.

Key Features:

• Instant Target Search: Reduces search time by up to 99% using intelligent image-based detection.

• One-Click Operation: Select a person, vehicle, or object in playback, and the system does the rest.

• Smart Filtering: Supports pre-search filters like motion detection, tripwires, or specific attributes like clothing color.

• Enhanced Accuracy (AcuPick 2.0): Now includes animal tracking, facial recognition support, and trajectory mapping.

• Privacy-Conscious: Uses appearance-based identification, not facial biometrics, ensuring data privacy compliance.

• Low Infrastructure Cost: Processes searches directly on compatible Dahua cameras or NVRs—no external servers required.

Main Features

Cameras – DH-IPC-HDW3867EM-S-IL-ANZ

• 8MP (4K) Resolution: Ultra-clear video with 3840 × 2160 at 25/30 fps

• Fixed 2.8mm Lens: Wide field of view for broad area monitoring

• Starlight Technology: Crisp low-light performance down to 0.007 lux

• IR & Warm Light: Up to 30m night vision with Smart Dual Light

• Intelligent Detection: AI-powered intrusion, tripwire, motion detection

• Audio Support: Built-in microphone for video context

• Durable Design: IP67-rated metal housing for harsh environments

• PoE & 12V DC Power: Flexible power options for easy setup

Recorder – NVR5216-16P-AI/ANZ

• 16 Channels with PoE: Connect and power up to 16 cameras

• AI Integration: Face recognition, perimeter protection, AcuPick smart search

• High Storage: 2 SATA ports supporting up to 32TB total

• H.265+/H.264+ Compression: Efficient storage usage

• HDMI/VGA Outputs: High-resolution display compatibility

• Remote Monitoring: Access via mobile app for iOS & Android

• ONVIF Compliant: Broad third-party camera compatibility

Detailed Specifications

Camera (DH-IPC-HDW3867EM-S-IL-ANZ):

• Sensor: 1/2.7" CMOS

• Resolution: 8MP (3840 × 2160) @ 30fps

• Lens: 2.8mm fixed

• Smart Detection: Motion, tampering, scene change, AcuPick

• Illumination: 30m IR/Warm light, 0 lux with IR on

• Audio: Built-in mic

• Compression: H.265/H.264/MJPEG

• Power: PoE / 12V DC

• Storage: microSD (up to 512GB), NAS support

• Operating Temp: -40°C to +60°C

• Dimensions: 105.5 mm × 122.0 mm

Recorder (NVR5216-16P-AI/ANZ):

• Channels: 16 IP

• AI Processing: Up to 12 channels @ 4MP

• Video Outputs: HDMI (4K), VGA

• Storage: 2 × SATA, up to 16TB each

• Power Supply: 100–240 VAC

• PoE Budget: 130W total

• Interfaces: USB 2.0/3.0, RCA audio, alarm I/O

• Temperature Range: –10°C to +55°C

Warranty Information

• Warranty: 3-Year Manufacturer Warranty

• Covers all system components under standard use conditions

Brand Description

Dahua Technology is a globally recognized leader in security and surveillance systems. Committed to innovation, reliability, and user-focused design, Dahua delivers cutting-edge AI-powered cameras and NVRs trusted in over 180 countries across commercial, governmental, and private sectors.

SKU

DH-IPC-HDW3867EM-S-IL-ANZ-TW

Practical Use Scenarios

• Residential Monitoring: Monitor driveways, entry points, and backyards with superior low-light clarity.

• Retail Surveillance: Analyze customer behavior and prevent shrinkage with smart detection.

• Industrial Security: Protect perimeter and high-value assets using AcuPick analytics.

• Education Facilities: Secure campuses and access points with face recognition-ready technology.

• Business Premises: Integrate with access systems and monitor workspaces via mobile.

Datasheets and Downloads

• DH-IPC-HDW3867EM-S-IL-ANZ_datasheet

• NVR5216-16P-AI/ANZ

Excellence for the Australian and New Zealand Market

• Fully certified under Australian and New Zealand standards

• NDSS-compliant with firmware optimized for ANZ networks

• Directly sourced through authorized ANZ distributors for genuine quality

• Local warranty and support through certified partners

• Suitable for both domestic and commercial ANZ security applications

FAQs – DH-IPC-HDW3867EM-S-IL-ANZ

Q1: What resolution does the DH-IPC-HDW3867EM-S-IL-ANZ camera offer?
A1: The DH-IPC-HDW3867EM-S-IL-ANZ-TW delivers 8MP (3840 × 2160) resolution at up to 30 fps for 4K video clarity.

Q2: How effective is the low-light performance of the DH-IPC-HDW3867EM-S-IL-ANZ?
A2: The DH-IPC-HDW3867EM-S-IL-ANZ-TW uses Starlight technology with 0.007 lux sensitivity and 30m IR/warm light range for excellent night vision.

Q3: Can the DH-IPC-HDW3867EM-S-IL-ANZdetect humans and vehicles separately?
A3: Yes, the DH-IPC-HDW3867EM-S-IL-ANZ-TW features AI-based detection to distinguish humans and vehicles, reducing false alerts.

Q4: Is the DH-IPC-HDW3867EM-S-IL-ANZ camera weatherproof?
A4: Absolutely. The DH-IPC-HDW3867EM-S-IL-ANZ-TW is IP67-rated for dust and water resistance, making it ideal for outdoor use.

Q5: What storage options does the DH-IPC-HDW3867EM-S-IL-ANZ support?
A5: The DH-IPC-HDW3867EM-S-IL-ANZ-TW supports microSD cards up to 512GB and NAS/cloud recording.

Q6: How does AcuPick enhance surveillance with the DH-IPC-HDW3867EM-S-IL-ANZ?
A6: AcuPick in the DH-IPC-HDW3867EM-S-IL-ANZ-TW provides fast video retrieval by filtering human and vehicle activity for efficient incident review.

Q7: Is mobile access supported with the DH-IPC-HDW3867EM-S-IL-ANZ system?
A7: Yes, the DH-IPC-HDW3867EM-S-IL-ANZ-TW can be accessed via Dahua's mobile app on both iOS and Android platforms.

Q8: Can the DH-IPC-HDW3867EM-S-IL-ANZ camera integrate with third-party VMS platforms?
A8: Yes, the DH-IPC-HDW3867EM-S-IL-ANZ-TW supports ONVIF, CGI, and Dahua SDK/API for wide compatibility.

Q9: What mounting accessories are compatible with the DH-IPC-HDW3867EM-S-IL-ANZ?
A9: Accessories for the DH-IPC-HDW3867EM-S-IL-ANZ-TW include PFA139 (Junction Box), PFB204W (Wall Mount), PFA106 (Ceiling Mount), and PFA152-E (Pole Mount).

Q10: How is support managed for DH-IPC-HDW3867EM-S-IL-ANZ in Australia and New Zealand?
A10: All DH-IPC-HDW3867EM-S-IL-ANZ-TW kits are backed by a 3-year warranty and local support via authorized ANZ service providers.
