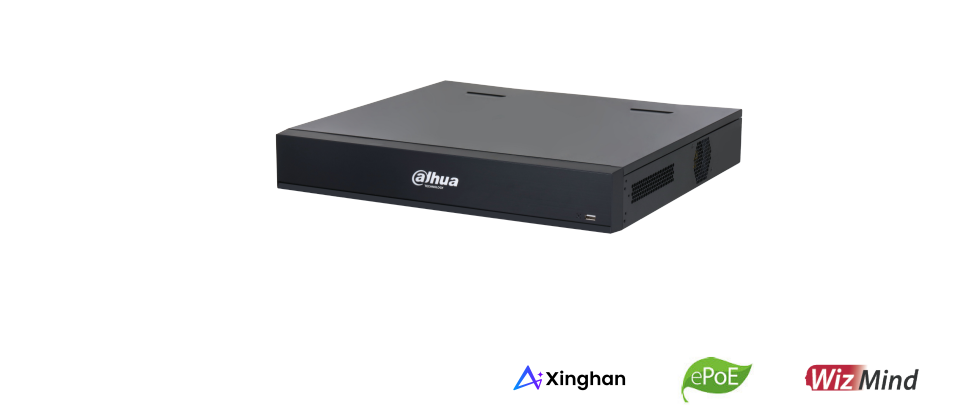

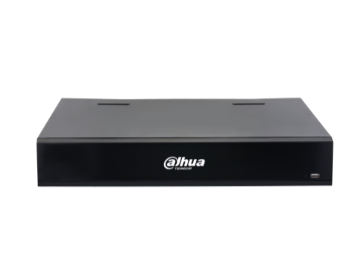

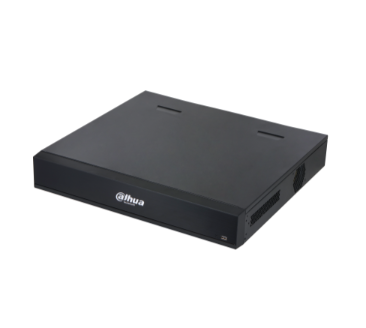

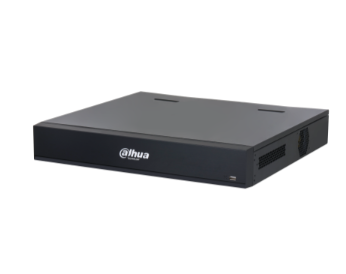

The Dahua DHI-NVR5432-16HP-AI/ANZ-PRO 32 Channel WizMind AI Network Video Recorder delivers next-generation intelligent CCTV surveillance with 16 integrated PoE ports, WizSeek natural-language video search, Xinghan Large-Scale AI Models, AcuPick intelligent search, 8K HDMI output and four SATA HDD bays supporting up to 104TB of internal storage. Designed for professional security installations across Australia and New Zealand, this advanced Dahua AI NVR supports up to 32MP IP cameras, intelligent video analytics and high-performance recording for commercial and industrial surveillance applications.
Powered by Dahua's innovative Xinghan Large-Scale AI Model technology, the DHI-NVR5432-16HP-AI/ANZ-PRO introduces intelligent video search capabilities that transform traditional security monitoring. Its revolutionary WizSeek technology enables operators to search recorded surveillance footage using natural-language descriptions, helping locate specific people, vehicles, objects and events without manually reviewing extensive video recordings.
As part of Dahua's professional WizMind series, this powerful 32-channel network video recorder combines high-resolution recording with deep-learning analytics, offering sophisticated functions including face recognition, perimeter protection, video metadata extraction, SMD Plus, AcuPick and intelligent event detection.
Main Features and Benefits
32-Channel IP Camera Recording
Supports up to 32 compatible IP security cameras with resolutions up to 32MP, providing comprehensive surveillance coverage for large and complex installations.
WizSeek Natural-Language Video Search
Powered by Xinghan Large-Scale AI Models, WizSeek allows operators to find relevant people, vehicles, objects and events using natural-language descriptions rather than relying entirely on manual footage review.
AcuPick Intelligent Target Search
Rapidly locate specific human and vehicle targets across extensive video recordings, with support for up to 8 recorder-based channels when Xinghan AI is enabled or 16 channels when disabled.
16 Integrated PoE Ports
Simplifies installation using 16 IEEE 802.3af/at PoE ports with a shared 200W power budget. Ports 1–8 support ePoE for compatible camera deployments.
Up to 104TB Internal Storage
Four SATA HDD bays support up to 26TB per drive, allowing extensive high-resolution recording storage when populated with compatible surveillance hard drives.
Intelligent Perimeter Protection
Supports up to 16 channels of recorder-based perimeter protection with Xinghan enabled or 32 channels when disabled, helping filter irrelevant alarm triggers.
Advanced Face Detection and Recognition
Supports intelligent facial analysis and up to 20 face databases containing 200,000 images, providing powerful face recognition functionality for suitable security applications.
8K HDMI Video Output
Dual HDMI and dual VGA display outputs support professional security monitoring configurations, including HDMI resolutions up to 7680 × 4320.
High-Performance Network Recording
Supports up to 512Mbps incoming and recording bandwidth when AI is disabled, with advanced Smart H.265+ compression for efficient surveillance recording.
Remote Monitoring and Third-Party Integration
Supports iOS and Android access, ONVIF interoperability, N+M clustering and iSCSI storage integration for flexible security system management.
Detailed Technical Specifications
System and Recording
|
Specification
|
Details
|
|
Model
|
DHI-NVR5432-16HP-AI/ANZ-PRO
|
|
Product Series
|
Dahua WizMind
|
|
Recorder Type
|
32 Channel Network Video Recorder
|
|
Main Processor
|
Industrial-grade processor
|
|
Operating System
|
Embedded Linux
|
|
Operating Interface
|
Web, Local GUI
|
|
User Interface
|
NVR NEXT
|
|
Camera Channels
|
32
|
|
Maximum IP Camera Resolution
|
32MP
|
|
Incoming Bandwidth (AI Disabled)
|
512Mbps
|
|
Recording Bandwidth (AI Disabled)
|
512Mbps
|
|
Outgoing Bandwidth (AI Disabled)
|
384Mbps
|
|
Incoming/Recording/Outgoing (AI Enabled)
|
200/200/200Mbps
|
|
Video Compression
|
Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
|
|
Audio Compression
|
G.711a, G.711u, PCM, G.726
|
|
Multi-Channel Playback
|
Up to 16 channels
|
|
Recording Modes
|
General, motion detection, intelligent, alarm, POS
|
|
Backup Methods
|
USB device and network
|
Xinghan AI, WizSeek and Intelligent Analytics
|
AI Feature
|
Capability
|
|
AI Architecture
|
Xinghan Large-Scale AI Models
|
|
WizSeek
|
Natural-language video search
|
|
WizSeek Search Targets
|
Humans, vehicles, objects and events
|
|
WizSeek Processing
|
Up to 16 targets/s
|
|
WizSeek Modelling Capacity
|
Up to 1,382,400 targets/day
|
|
WizSeek with Compatible Intelligent Cameras
|
Up to 32 channels
|
|
WizSeek with Recorder AcuPick/Metadata
|
Up to 8 channels
|
|
WizSeek with Recorder IVS
|
Up to 16 channels
|
|
AcuPick (Xinghan Enabled)
|
8 channels
|
|
AcuPick (Xinghan Disabled)
|
16 channels
|
|
Face Detection (Xinghan Enabled)
|
8 channels
|
|
Face Detection (Xinghan Disabled)
|
16 channels
|
|
Face Recognition
|
Supported
|
|
Face Database Capacity
|
Up to 20 databases
|
|
Maximum Face Images
|
200,000
|
|
Total Face Database Size
|
44GB
|
|
Perimeter Protection (Xinghan Enabled)
|
16 channels
|
|
Perimeter Protection (Xinghan Disabled)
|
32 channels
|
|
IVS Rules
|
10 per channel
|
|
SMD Plus (Xinghan Disabled)
|
32 channels
|
|
SMD Plus (Xinghan Enabled)
|
Not supported by recorder
|
|
Video Metadata (Xinghan Enabled)
|
8 channels, 23 attributes
|
|
Video Metadata (Xinghan Disabled)
|
16 channels, 23 attributes
|
|
ANPR
|
Supported by compatible cameras
|
|
Maximum Licence Plate Database
|
20,000 plate numbers
|
|
Plate Management
|
Allowlist and blocklist
|
|
PPE Detection
|
Supported by compatible cameras
|
|
People Counting
|
Supported by compatible cameras
|
|
Heat Map
|
Supported by compatible cameras
|
Simultaneous AI functionality and channel availability depend on the selected AI operating mode, connected camera capabilities and recorder configuration.
Video Output and Decoding
|
Specification
|
Details
|
|
HDMI Outputs
|
2
|
|
VGA Outputs
|
2
|
|
Maximum HDMI Resolution
|
7680 × 4320 (8K)
|
|
Maximum VGA Resolution
|
1920 × 1080
|
|
Main Screen Display Modes
|
1/4/8/9/16/25/36
|
|
Sub Screen Display Modes
|
1/4/8/9/16
|
|
Decoding (AI Disabled)
|
Up to 2 × 32MP@30fps or 10 × 8MP@30fps
|
|
Decoding (AI Enabled)
|
Up to 1 × 32MP@30fps or 6 × 8MP@30fps
|
|
Multi-Channel Playback
|
Up to 16 channels
|
Network, PoE and Storage
|
Specification
|
Details
|
|
Network Port
|
1 × 10/100/1000Mbps RJ-45
|
|
PoE Ports
|
16 × 10/100Mbps
|
|
PoE Standard
|
IEEE 802.3af/at
|
|
ePoE Support
|
Ports 1–8
|
|
Total PoE Budget
|
200W
|
|
Maximum Per-Port PoE Output
|
25.5W
|
|
Internal HDD Interfaces
|
4 × SATA
|
|
Maximum HDD Capacity
|
Up to 26TB per drive
|
|
Potential Internal Storage
|
Up to 104TB
|
|
eSATA
|
1
|
|
iSCSI
|
Supported
|
|
N+M Cluster
|
Supported
|
|
USB
|
1 × USB 2.0 front, 2 × USB 3.0 rear
|
|
ONVIF Support
|
Profiles T, S, G and M
|
|
Additional Integration
|
CGI, SDK
|
|
Mobile Access
|
iOS and Android
|

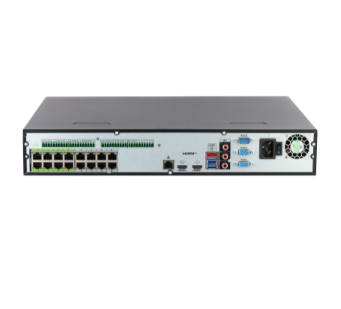

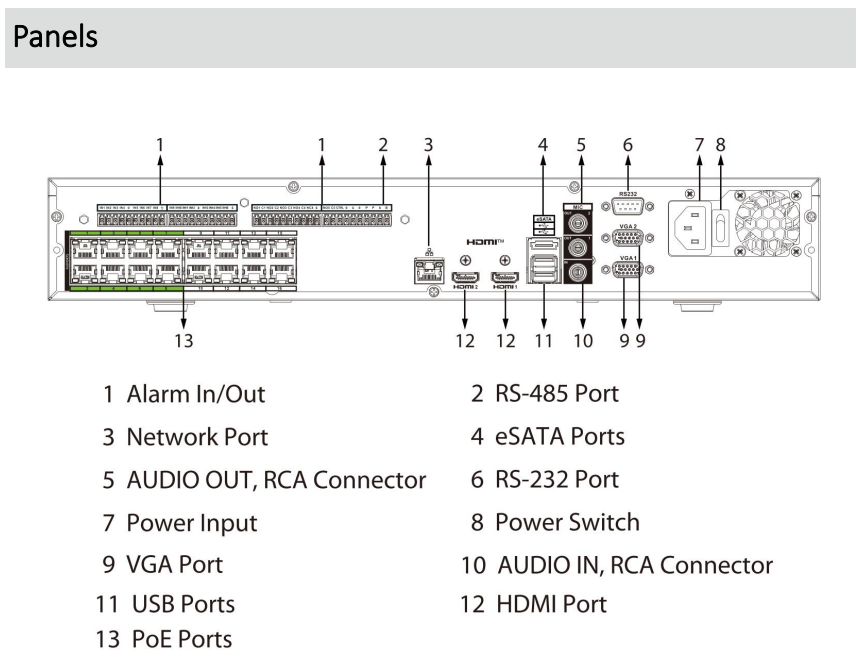

Connections, Power and Environmental
|
Specification
|
Details
|
|
Audio Input
|
1 × RCA
|
|
Audio Outputs
|
2 × RCA
|
|
Alarm Inputs
|
16
|
|
Alarm Outputs
|
6
|
|
RS-232
|
1
|
|
RS-485
|
1
|
|
Form Factor
|
1.5U
|
|
Power Supply
|
100–240VAC, 50–60Hz
|
|
Recorder Power Consumption
|
Less than 18W without HDDs
|
|
PoE Power Budget
|
200W
|
|
Net Weight
|
4.62kg
|
|
Gross Weight
|
6.75kg
|
|

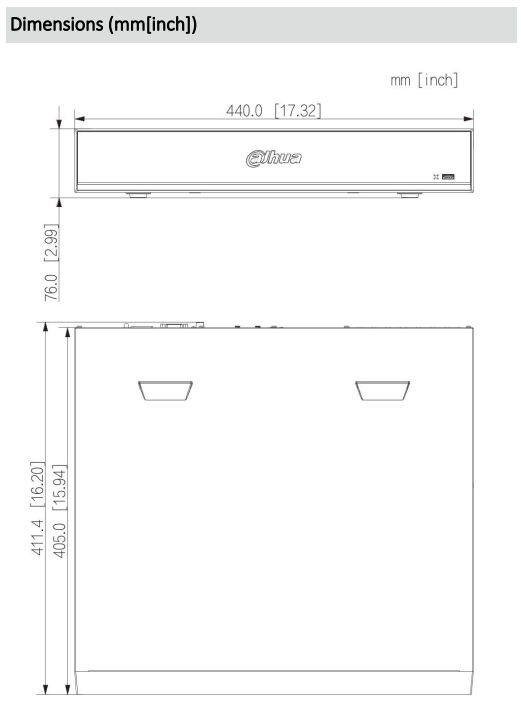

Product Dimensions (W × D × H)
|
440 × 411.4 × 76mm
|
|
Packaging Dimensions
|
529 × 500 × 211mm
|
|
Operating Temperature
|
–10°C to +55°C
|
|
Storage Temperature
|
–20°C to +60°C
|
|
Operating Humidity
|
10%–93% RH, non-condensing
|
What's Included in the Box?
- 1 × Dahua DHI-NVR5432-16HP-AI/ANZ-PRO Network Video Recorder
Important: This product is sold as a standalone network video recorder. Hard drives (HDDs), IP cameras, network cables and other optional accessories are not included and must be purchased separately.
Practical Applications and Use Scenarios
Commercial Offices and Corporate Security
Centralise video recording across office buildings, entrances, corridors and restricted areas. WizSeek natural-language searching helps authorised operators locate specific recorded events efficiently.
Retail Stores and Shopping Centres
Manage surveillance of sales floors, customer entrances, storage rooms and checkout areas, with additional supported analytics through compatible AI cameras.
Warehouses and Logistics Facilities
Monitor storage areas, loading docks, vehicle movement zones and warehouse perimeters using intelligent detection and event-based recording.
Industrial and Manufacturing Facilities
Integrate perimeter analytics, AI-assisted video investigation and compatible PPE detection cameras for professional industrial surveillance applications.
Schools, Universities and Educational Campuses
Manage security cameras across campus facilities, access points and shared spaces using intelligent video search and centralised monitoring.
Car Parks and Vehicle Access Control
Use compatible ANPR cameras alongside vehicle metadata analytics and licence plate databases to support vehicle monitoring and access-related investigations.
Large Residential and Multi-Building Developments
Support up to 32 IP camera channels across multiple security zones, with extensive storage capacity and remote monitoring capabilities.

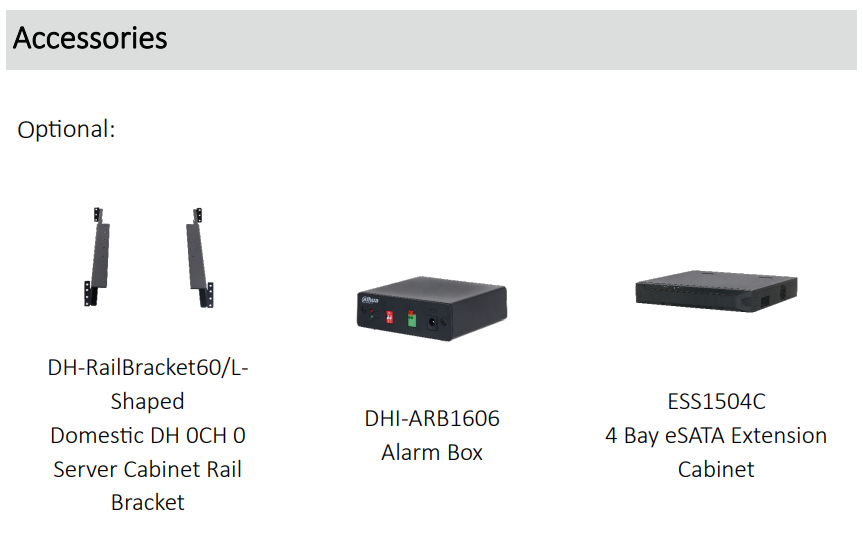

Optional Accessories and System Expansion
The Dahua DHI-NVR5432-16HP-AI/ANZ-PRO supports optional system expansion accessories, including:
|
Product Code
|
Description
|
|
DH-RailBracket60/L-Shaped
|
Server Cabinet Rail Bracket
|
|
DHI-ARB1606
|
Alarm Box
|
|
ESS1504C
|
Four-Bay eSATA Extension Cabinet
|
All optional accessories, surveillance HDDs, compatible IP cameras and installation cables are sold separately.
Warranty Information
The Dahua DHI-NVR5432-16HP-AI/ANZ-PRO is supplied with a 3-year warranty, providing confidence for professional CCTV and commercial security installations.
Warranty claims and product support are handled in accordance with the applicable supplier and manufacturer warranty conditions.
Australian customers also retain applicable rights under Australian Consumer Law, while New Zealand customers may have rights under relevant consumer protection legislation.
About Dahua Technology
Dahua Technology is a global provider of advanced video surveillance, AIoT and intelligent security technologies. Its extensive product portfolio includes IP cameras, network video recorders, video management platforms, thermal imaging products and AI-powered surveillance systems.
The Dahua WizMind series focuses on professional, project-oriented security solutions using advanced deep-learning algorithms to provide intelligent analytics, accurate event detection and sophisticated surveillance management.
With the introduction of Xinghan Large-Scale AI Models and WizSeek natural-language video search, Dahua continues to develop technologies that improve security investigation efficiency and professional video monitoring.
Product Identification and SEO Details
|
Field
|
Details
|
|
Brand
|
Dahua Technology
|
|
Series
|
WizMind
|
|
Product Code
|
DHI-NVR5432-16HP-AI/ANZ-PRO
|
|
SKU
|
DHI-NVR5432-16HP-AI/ANZ-PRO
|
|
Product Type
|
AI Network Video Recorder
|
|
Camera Channels
|
32
|
|
PoE Ports
|
16
|
|
HDD Bays
|
4
|
|
Maximum Internal Storage
|
104TB
|
|
Video Output
|
Up to 8K HDMI
|
|
Intelligent Search
|
WizSeek, AcuPick
|
|
Warranty
|
3 Years
|
Suggested SEO URL Slug: dahua-dhi-nvr5432-16hp-ai-anz-pro-32-channel-wizmind-ai-nvr
SEO Keywords: Dahua DHI-NVR5432-16HP-AI/ANZ-PRO, Dahua 32 Channel AI NVR, Dahua WizMind NVR, WizSeek NVR Australia, Dahua Xinghan AI NVR, 16 PoE NVR, 4 HDD Network Video Recorder, 104TB NVR, Dahua AcuPick NVR, 8K CCTV Recorder, Professional CCTV NVR Australia, Dahua NVR New Zealand.
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
The Dahua DHI-NVR5432-16HP-AI/ANZ-PRO is an ANZ-designated WizMind network video recorder designed for consideration in professional security installations throughout Australia and New Zealand.
Australian and New Zealand Security Applications: Its 32-channel recording capacity, intelligent AI functions, wide-range power input and compatibility with professional IP camera systems make it well suited to regional commercial and industrial CCTV applications.
Quality and Certification: The manufacturer's documentation identifies CE electromagnetic compatibility and electrical safety standards, including EN 55032, EN 55035, EN 50130-4 and EN 62368-1. Applicable Australian or New Zealand product compliance requirements should be independently verified.
Professional Product Sourcing: Globlelink focuses on supplying reliable security technology for the Australian and New Zealand markets. Any claim of exclusive sourcing through authorised Dahua representatives should be supported by confirmed supplier authorisation.
3-Year Warranty Protection: The recorder is supplied with a 3-year warranty, with warranty assistance and claims handled in accordance with the relevant supplier and brand warranty arrangements.
Flexible Professional Integration: With ONVIF interoperability, PoE connectivity, intelligent analytics, extensive storage options and advanced video search, the DHI-NVR5432-16HP-AI/ANZ-PRO provides a capable security recording solution for professional integrators.
Frequently Asked Questions (FAQs)
1. How many IP cameras does the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO support?
The Dahua DHI-NVR5432-16HP-AI/ANZ-PRO supports up to 32 compatible IP cameras, including 16 built-in PoE connections. Additional cameras can be connected through a suitable external network infrastructure, subject to the recorder's bandwidth and compatibility requirements.
2. What is WizSeek on the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO?
WizSeek is Dahua's advanced natural-language video search technology powered by Xinghan Large-Scale AI Models. The DHI-NVR5432-16HP-AI/ANZ-PRO enables operators to search surveillance recordings using descriptive language to locate relevant people, vehicles, objects and events.
3. What is the maximum storage capacity of the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO?
The DHI-NVR5432-16HP-AI/ANZ-PRO has four SATA HDD bays supporting up to 26TB per drive, providing a potential maximum internal storage capacity of 104TB. Supported capacity depends on compatible drives and environmental conditions.
4. Are hard drives included with the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO?
No. The DHI-NVR5432-16HP-AI/ANZ-PRO is supplied without hard drives. Compatible surveillance HDDs must be purchased separately.
5. Are IP cameras and network cables included with the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO?
No. The DHI-NVR5432-16HP-AI/ANZ-PRO is sold as a standalone network video recorder. IP cameras, network cables and optional installation accessories are not included.
6. Does the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO have built-in PoE ports?
Yes. The DHI-NVR5432-16HP-AI/ANZ-PRO features 16 integrated IEEE 802.3af/at PoE ports with a total 200W PoE power budget. Ports 1–8 also support ePoE technology.
7. What is the difference between WizSeek and AcuPick on the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO?
WizSeek enables natural-language searches of surveillance footage, while AcuPick provides intelligent target searching using AI analysis. Both technologies improve the efficiency of locating relevant recorded events.
8. Does the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO support 8K HDMI output?
Yes. The DHI-NVR5432-16HP-AI/ANZ-PRO supports HDMI output resolutions up to 7680 × 4320, providing 8K display compatibility for suitable monitoring configurations.
9. Can the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO recognise faces?
Yes. The DHI-NVR5432-16HP-AI/ANZ-PRO supports face detection and face recognition, with capacity for up to 20 face databases containing a total of 200,000 face images. Use of facial recognition should comply with applicable privacy and surveillance laws.
10. Does the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO support H.265+ video compression?
Yes. The DHI-NVR5432-16HP-AI/ANZ-PRO supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG formats for flexible recording and storage management.
11. Is the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO compatible with third-party IP cameras?
Yes. The DHI-NVR5432-16HP-AI/ANZ-PRO supports ONVIF interoperability and compatible third-party cameras from manufacturers including Axis, Panasonic, Sony, Hanwha, Canon and others. Available AI and recording functions may vary by camera model.
12. Can the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO be accessed remotely?
Yes. The DHI-NVR5432-16HP-AI/ANZ-PRO supports remote access through compatible iOS and Android devices, subject to network configuration and user access permissions.
13. Does the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO support intelligent perimeter protection?
Yes. The DHI-NVR5432-16HP-AI/ANZ-PRO supports up to 16 channels of recorder-based perimeter protection with Xinghan AI enabled or up to 32 channels when disabled.
14. Is the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO suitable for Australian and New Zealand CCTV installations?
The DHI-NVR5432-16HP-AI/ANZ-PRO is an ANZ-designated model offering professional recording and AI surveillance capabilities for commercial and industrial applications. Installation-specific compatibility and regulatory requirements should be verified.
15. What warranty is included with the Dahua DHI-NVR5432-16HP-AI/ANZ-PRO?
The Dahua DHI-NVR5432-16HP-AI/ANZ-PRO comes with a 3-year warranty, subject to the relevant supplier and manufacturer warranty terms.
