描述
这款三星韩华 WISENET CT-QRN-1630S Q 系列 16 路 NVR 提供可靠的性能和 8MP 分辨率。它支持多达 16 个摄像头、H.265、H.264 和 MJPEG 编解码器,提供 128Mbps 网络摄像头录制,并配有 2 个 SATA 插槽,可提供高达 20TB 的存储空间。支持自动重启系统,更加方便。使用P2P服务和二维码轻松连接到NVR。

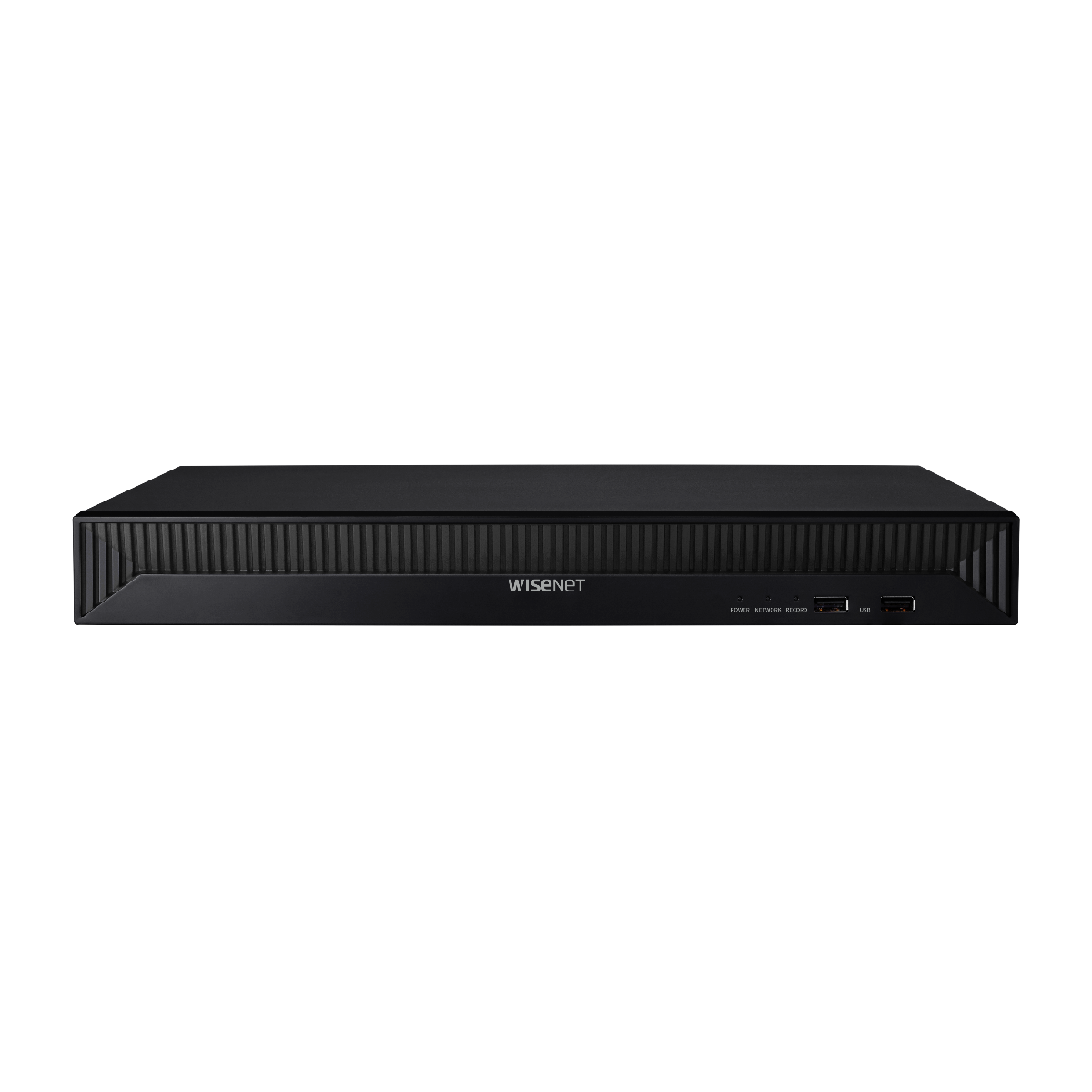

CT-QRN-1630S
WISENET Q 系列 16 路 NVR,8MP
特征
-
支持高达 16CH、8MP 摄像头
-
H.265、H.264、MJPEG 编解码器
-
128Mbps网络摄像机录像
-

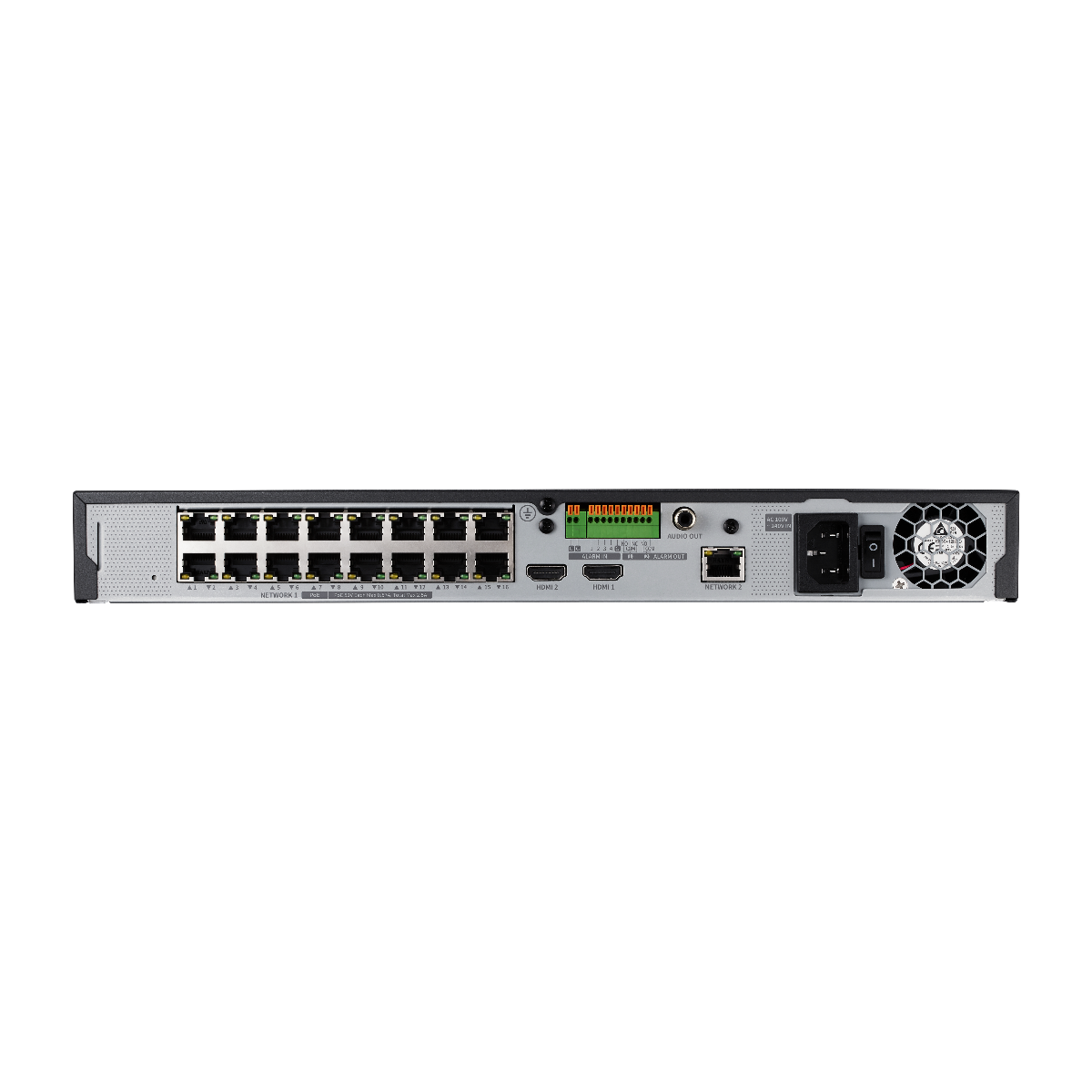

即插即用 16 PoE(LAN, 10/100), 1PoE(WAN, 1Gbps)
-
SATA 2ea(高达20TB)
-
支持ARB
-
支持P2P服务(二维码连接)
WISENET Q series
The Q series delivers sharp and clear image quality with H.265 compression, ideal in securing small to medium sized applications such as retail, banking and offices. Enhanced features include intelligent video analytics, Wide Dynamic Range, Built-in IR, Hallway View, & WiseStream II.
Wisenet Q series Network Cameras
High Quality Cameras Offering Cost Effective Solutions
Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices
Compact design with affordable price
5MP & 2MP resolution
Maximum 30fps framerate
WDR 120dB
WiseStream II
Intelligent video analytics
IR viewable length up 30m
Hallway view (Rotate 90° / 270°)
Micro SD/SDHC/SDXC memory slot
Video output CVBS, PoE
5MP and 2MP resolutions
The Wisenet Q series is available in two resolution options to give you the freedom to choose the cameras that best fits your security needs. 5MP Q series cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance providing crisp and vivid monitoring.
Various lens options
Fixed Lens
The Wisenet Q series fixed-lens models are available with focal lengths of 2.8mm, 4.0mm and 6.0mm. The 2.8mm lens is available if you prefer a wide-angle view. If an area to monitor is located further away from the camera, the 6.0mm lens can be utilized
Varifocal Lens
The 3.2 ~ 10mm (3.1x) varifocal lens, created by Hanwha echwin’s own advanced technology, offers greater flexibility in the field of view. The motorized varifocal option provides quick and easy focus using the simple focus feature
Enhanced video analytics
Wisenet Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility
Reduce bandwidth requirements by up to 99% usingWiseStream II
Using WiseStream II, Hanwha Techwin’s own video ompression technology, with H.265 compression allows Wisenet Q series cameras to reduce bandwidth usage by up to 99% when compared to H.264 technology. As a result, system costs, such as network infrastructure and data storage, are also greatly reduced.
Analog video output for easier installation
The Wisenet Q series cameras support analog video (CVBS)
output for easier installation. During the installation, a
monitor can be connected to the monitor port to adjust
and configure the viewing angle and the focus.*
Hallway view for monitoring vertical shaped areas
Conventional horizontally oriented video streams waste bandwidth and storage along their edges in narrow areas such as store aisles or long hallways. Hallway view created a vertically oriented 3 : 4 or 9 : 16 ratio video stream to maximize usable image space in a narrow environment.
Business intelligence for smarter retail
People Counting
People counting applications within a store allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and better understand buying patterns.
HDMI live video output for Public View Monitor
Public view monitors are a convenient way of promoting the safety of retail customers and staff for store management. Wisenet Q mini cameras support HDMI video output for easy connection with Public View Monitors.
