The Hikvision DS-2CD2T66G2H-2I is a high-performance outdoor surveillance camera that blends vivid daytime colour imaging with powerful infrared night vision. It features a 6MP sensor (3200 x 1800 resolution) and Dark Fighter technology, enabling excellent low-light performance even in near darkness.

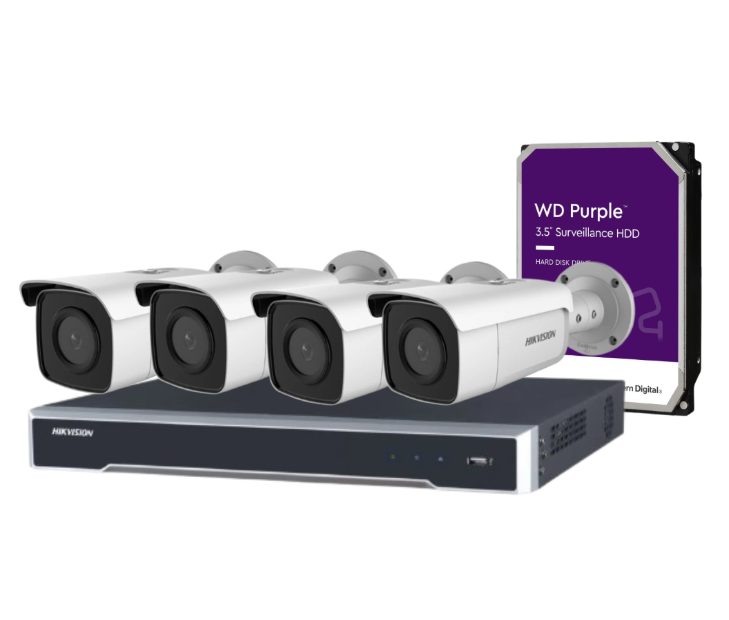

What's Included in the Box:

• 4 × Hikvision DS-2CD2T66G2-2I/4I 6 MP Bullet Cameras (lens options: 2.8mm / 4mm / 6mm)

• 1 × Hikvision DS-7604NI-M1/4P 4-Channel PoE NVR

• 1 × HDD (Choose your HDD below)

• 1 × NVR Power Adapter

• Mounting Accessories

• Quick Start Guides & Documentation

Main Features:

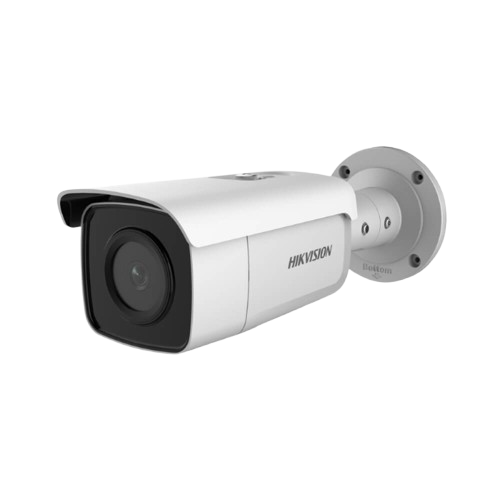

Cameras DS-2CD2T66G2H-2I

• Image Sensor :1/2.4" Progressive Scan CMOS
• Max. Resolution : 3200 × 1800
• Min. Illumination Color:  0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time:1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

  2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112

• Lens Mount:M12
• Iris Type :Fixed
• Aperture :F1.0
• Depth of Field: 2.8 mm: 1.7 m to ∞ 4 mm: 2.2 m to ∞

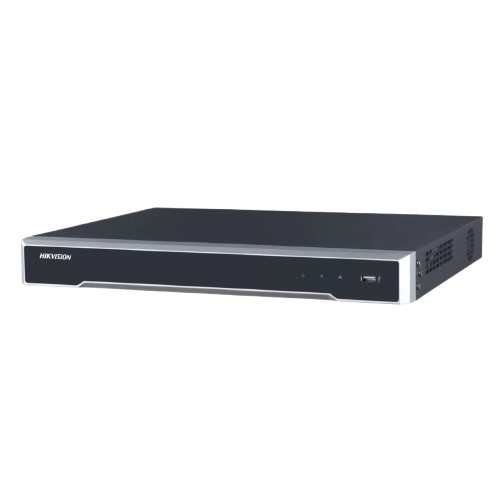

Recorder (DS-7604NI-M1/4P):

• 4-channel IP input

• Up to 32 MP recording resolution

• 8K HDMI + 1080p VGA simultaneous output

• Built-in 4 PoE ports for easy installation

• H.265+/H.265/H.264+/H.264 compression support

• Dual-stream recording

• Synchronous playback for 4 channels

• 1 SATA interface (up to 16TB capacity)

Detailed Specifications:

Cameras (DS-2CD2T66G2-2I):

• High quality imaging with 6MP resolution
• Excellent low-light performance with powered-by-Dark Fighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67)

NVR (DS-7604NI-M1/4P):

• Max. Bandwidth: 40 Mbps (in), 80 Mbps (out)

• Output Resolution: Up to 8K (HDMI), 1080p (VGA)

• Decoding Capability: 4 × 8MP @30fps

• PoE Budget: ≤ 60 W total

• USB Interface: 2 × USB 2.0

• Operating Temp: -10°C to 50°C

• Dimensions: 320 × 240 × 48 mm

Warranty Information:

This Hikvision CCTV Kit is covered by a 3-Year Manufacturer Warranty, providing complete peace of mind for hardware reliability and performance.

Brand Overview:

Hikvision is a global leader in professional video surveillance, known for pioneering technologies like AcuSense and Dark Fighter. With a commitment to innovation and security, Hikvision delivers high-performance solutions for residential, commercial, and government applications worldwide.

SKU: HIK-2CD2T662H2I2

Practical Use Scenarios:

• Retail Stores: Monitor entrances, cash registers, and aisles for theft prevention and customer safety.

• Residential Homes: Secure driveways, gates, and backyards with AI-filtered alerts.

• Office Buildings: Track visitor access, parking zones, and staff activity 24/7.

• Warehouses: Detect intrusion, monitor loading docks, and protect valuable inventory.

• Schools & Campuses: Watch over playgrounds, hallways, and main gates with wide-angle coverage.

Datasheets & Resources:

• HIK-2CD2T662H2I2 Datasheet.pdf

• NVR Data Sheet (DS-7604NI-M1/4P)

Excellence for the Australian and New Zealand Market:

• ✅ Complies with AU/NZ electrical safety standards (RCM certified)

• ✅ Supports 230V local power and regional IP compliance

• ✅ Backed by authorized Hikvision representatives in Australia/New Zealand

• ✅ Warranty and support handled locally

• ✅ Meets NDSS and AS/NZS CISPR 32:2015 EMC standards

Frequently Asked Questions (FAQs)

1. Can the cameras in this kit record at night?

Yes. The Hikvision DS-2CD2T66G2H-2I cameras feature advanced DarkFighter low-light technology and built-in infrared illumination with a range of up to 60 metres, providing clear surveillance footage even in complete darkness.

2. Is remote access supported?

Yes. With a compatible Hikvision NVR connected to the internet, you can remotely view live footage and access recordings through the Hik-Connect mobile app or compatible PC software, providing convenient security monitoring from anywhere with an internet connection.

3. Are the cameras weatherproof?

Yes. The Hikvision 6MP bullet cameras feature an IP67 weatherproof rating, providing excellent protection against dust and water ingress. They are suitable for indoor and outdoor security installations.

4. What's the difference between the 2I and 4I camera models?

The main difference is their infrared night vision range. The 2I model offers up to 60 metres of IR illumination, while the 4I model provides up to 80 metres. This CCTV kit includes the 2I version with 60m infrared night vision.

5. Does the kit include a hard drive?

Yes. The kit includes a surveillance-grade hard drive based on your selected storage capacity, allowing you to record and store security footage locally on the NVR.

6. Can I expand the number of cameras later?

The included 4-channel Hikvision NVR supports up to 4 compatible IP cameras. Since this kit includes four cameras, all available channels are occupied. To expand your surveillance system beyond four cameras, you will need to upgrade to a higher-capacity NVR, such as an 8-channel or 16-channel model.
