Upgrade your security system with the Hikvision 4 Camera 8MP CCTV Kit, featuring the powerful DS-7604NI-M1/4P 8K NVR and AcuSense turret cameras. Designed for homes and businesses, this system delivers ultra-clear 4K/8MP video, advanced AI detection, and reliable PoE connectivity for seamless installation and high-performance surveillance.
This professional-grade kit combines cutting-edge H.265+ compression, AI-powered human & vehicle detection, and 8K HDMI output, ensuring superior clarity, storage efficiency, and intelligent monitoring for modern security needs.
What’s Included in the Box
1 × Hikvision DS-7604NI-M1/4P 4-Channel 8K NVR
choose up to 4 × Hikvision DS-2CD2386G2H-IU 8MP Turret Cameras
4 × Pre-configured PoE Ports (built into NVR)
Power Supply for NVR
Mouse for setup
User Manual & Quick Start Guide
Choose your HDD Below
Main Features
Ultra HD Surveillance Performance
8MP (4K) resolution cameras for crystal-clear footage
HDMI output up to 8K resolution (7680 × 4320)
Wide Dynamic Range (120 dB) for balanced lighting
Smart AI Detection (AcuSense Technology)
Human & vehicle classification reduces false alarms
Smart events: intrusion, line crossing, region detection
Heat mapping, people counting, and ANPR support
Advanced Video Compression
H.265+ reduces storage usage by up to 75%
Dual-stream recording for bandwidth optimisation
Powerful 4-Channel NVR
Supports up to 4 IP cameras (expandable resolution up to 32MP input)
40 Mbps incoming bandwidth
4-channel synchronous playback
Plug & Play PoE Setup
4 built-in PoE ports for easy installation
No additional switches required
Stable and secure connection
Superior Low-Light & Night Vision
DarkFighter technology for ultra-low light performance
IR night vision up to 30m
0 Lux with IR for complete darkness monitoring
Secure & Reliable System
TLS encrypted video streaming
Dual verification for playback/download
Supports HTTPS, SSL/TLS security protocols
Detailed Specifications

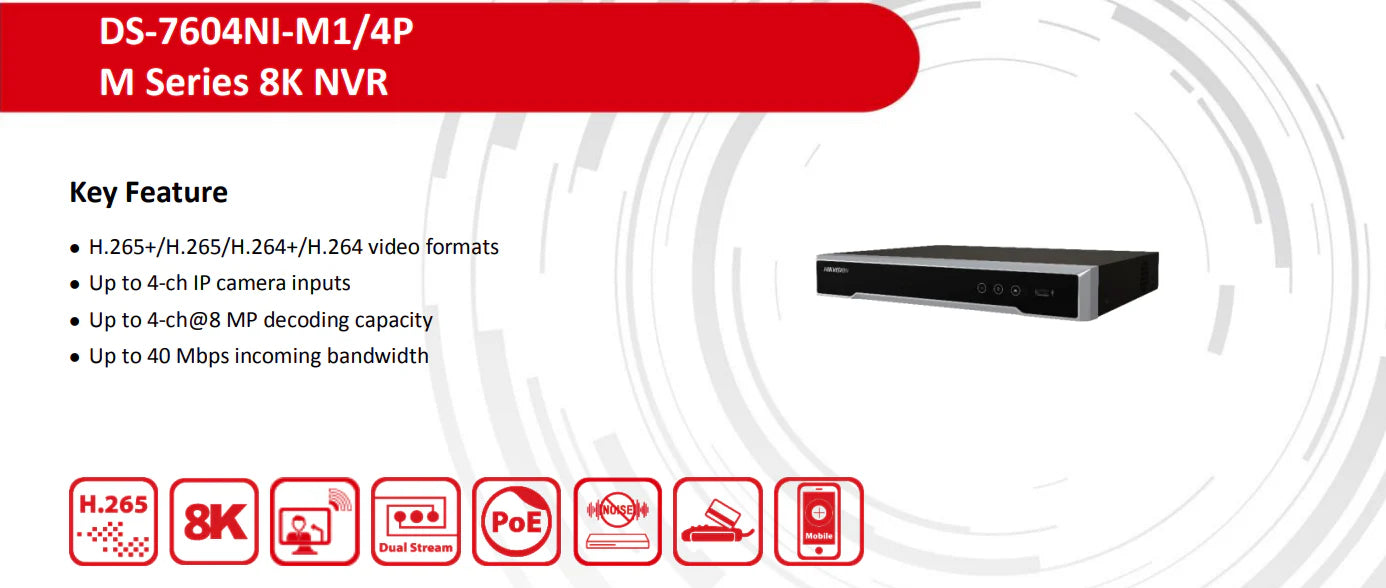

NVR (DS-7604NI-M1/4P)
Channels: 4 IP channels
Decoding: 4 × 8MP @ 30fps
Video Output: HDMI (8K), VGA (1080p)
Storage: 1 × SATA (up to 16TB)
Network: Gigabit Ethernet
PoE Ports: 4 × RJ45 (IEEE 802.3af/at)
Playback: 4-channel synchronous

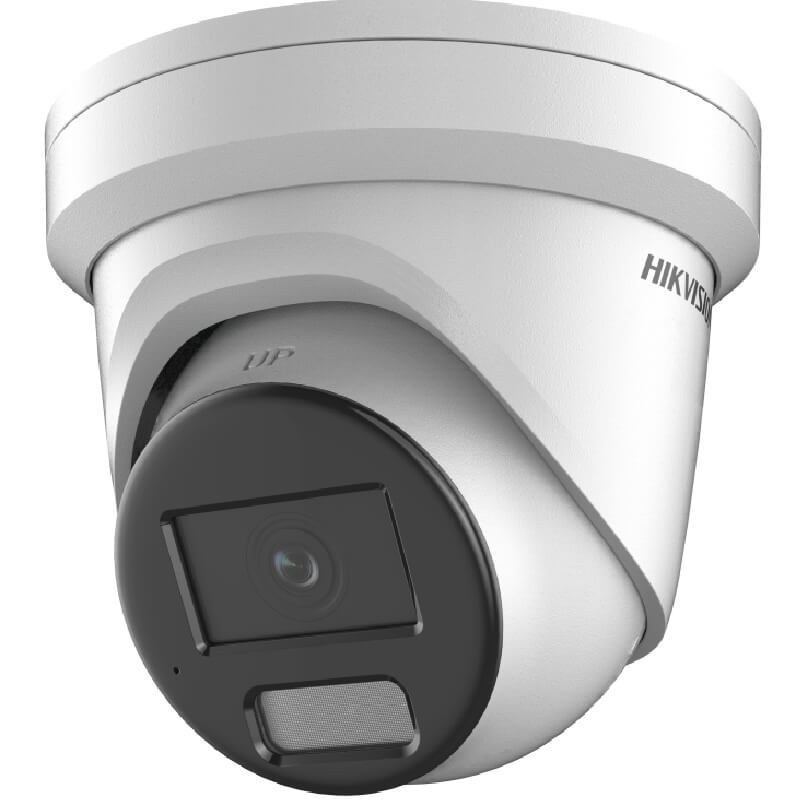

Camera (DS-2CD2386G2H-IU)
Resolution: 8MP (3840 × 2160)
Sensor: 1/1.8" CMOS
Lens: 2.8mm or 4mm options
Night Vision: Up to 30m IR
Audio: Built-in microphone (-U models)
Protection: IP67 weatherproof
AI Features: Human/vehicle detection, perimeter protection
Practical Use Scenarios
Residential homes (front yard, driveway, backyard)
Retail shops & POS-integrated surveillance
Warehouses & logistics monitoring
Offices requiring smart intrusion alerts
Small to medium commercial premises
Warranty Information
Manufacturer Warranty: 3 Years
Backed by official Hikvision distribution channels
Local support and warranty handling available
About the Brand – Hikvision
Hikvision is a global leader in video surveillance solutions, known for its innovation in AI-powered security, reliable hardware, and enterprise-grade technology trusted worldwide.
Excellence for the Australian and New Zealand Market
This Hikvision CCTV kit is tailored for the Australian and New Zealand market, ensuring:
Compliance with local electrical and safety standards
RCM-certified components where applicable
Reliable performance in Australian weather conditions (IP67 rated cameras)
Sourced from authorised distributors only
Full local warranty support with direct brand handling
Optimised for NBN and local network environments
FAQs
Q1: Does the DS-7604NI-M1/4P-KIT-4X2386G2H support remote viewing?
Yes, the DS-7604NI-M1/4P-KIT-4X2386G2H supports remote viewing via Hik-Connect app and web browsers without plug-ins.
Q2: Can I upgrade storage on the DS-7604NI-M1/4P-KIT-4X2386G2H?
Yes, the DS-7604NI-M1/4P-KIT-4X2386G2H supports up to 16TB HDD via its SATA interface.
Q3: Are the cameras in DS-7604NI-M1/4P-KIT-4X2386G2H suitable for outdoor use?
Yes, all cameras in the DS-7604NI-M1/4P-KIT-4X2386G2H are IP67-rated, making them fully weatherproof.
Q4: Does DS-7604NI-M1/4P-KIT-4X2386G2H include audio recording?
Yes, the cameras include built-in microphones (-U models) for real-time audio recording.
Q5: Is installation easy for the DS-7604NI-M1/4P-KIT-4X2386G2H?
Yes, thanks to PoE plug-and-play functionality, the DS-7604NI-M1/4P-KIT-4X2386G2H is simple to install with minimal cabling.
Q6: What AI features are available in DS-7604NI-M1/4P-KIT-4X2386G2H?
The DS-7604NI-M1/4P-KIT-4X2386G2H supports human and vehicle detection, intrusion alerts, line crossing, and advanced analytics.
