Designed for large-scale surveillance operations, the Hikvision 16-Camera 8MP CCTV Kit features sixteen DS-2CD2386G2-I(U) AcuSense Fixed Turret Cameras and a powerful DS-7616NI-M2/16P 16-Channel PoE NVR, complete with HDD storage. This enterprise-ready solution delivers exceptional video quality, AI-enhanced threat detection, and built-in audio—all in one complete package tailored for warehouses, commercial buildings, and large estates.

Each 8MP turret camera is equipped with DarkFighter low-light technology, smart human/vehicle detection (AcuSense), and built-in microphones for real-time audio recording. With up to 8K HDMI video output, 256 Mbps bandwidth, and dual SATA storage, the included NVR ensures you never miss a detail—day or night.

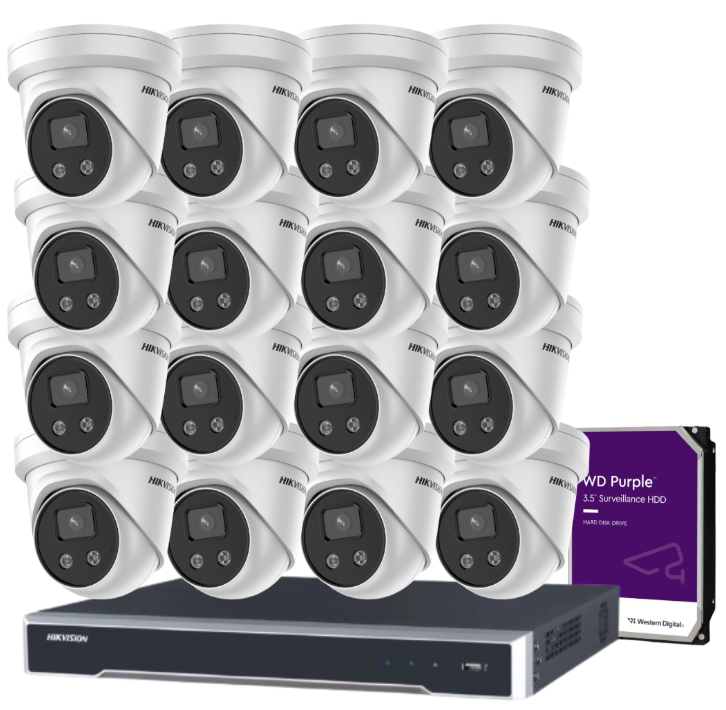

What’s Included in the Box:

• 16 × Hikvision DS-2CD2386G2-I(U) 8MP AcuSense Fixed Turret Cameras with Microphone

• 1 × Hikvision DS-7616NI-M2/16P 16-Channel PoE NVR (8K Output)

• 1 × Hard Disk Drive (HDD)

• 1 × Power Adapter & Mounting Accessories

• 1 × Quick Start Guide & User Manual

Key Features:

• 8MP Ultra HD Recording (3840 × 2160 @ 25fps) for high-detail coverage

• Built-in Audio (-U model) with real-time mono microphone

• AcuSense AI Detection: Human and vehicle classification for smarter alerts

• DarkFighter Technology: Superior low-light performance

• Smart IR Night Vision: 30m range with IR illumination

• H.265+ Compression: Significantly reduces bandwidth and storage usage

• IP67 Weatherproof Casing: Reliable in extreme outdoor conditions

• Plug-and-Play PoE Setup: Power and data through a single cable

• 8K HDMI & 1080P VGA Outputs: Crystal-clear video playback

• 256 Mbps Bandwidth & Dual SATA Bays: Scalable high-capacity storage

Technical Specifications:

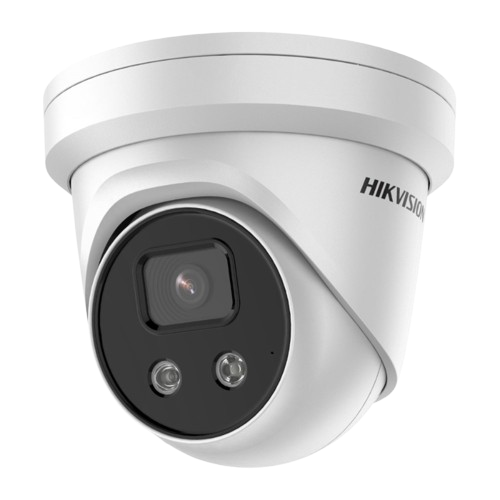

Camera (DS-2CD2386G2-I(U)):

• Image Sensor: 1/1.8” Progressive Scan CMOS

• Max Resolution: 8MP (3840 × 2160)

• IR Range: Up to 30m

• Audio: Built-in microphone (-U model)

• Lens Options: 2.8mm / 4mm / 6mm (up to 131° FOV)

• Smart Features: Face detection, line crossing, intrusion alerts, motion detection

• Protection: IP67 Rated

• Onboard Storage: Supports up to 256GB microSD

• Power: 12VDC or PoE (802.3af), max 6.8W

• Operating Temp: -30°C to 60°C

• Dimensions: Ø138.3 × 126.3 mm

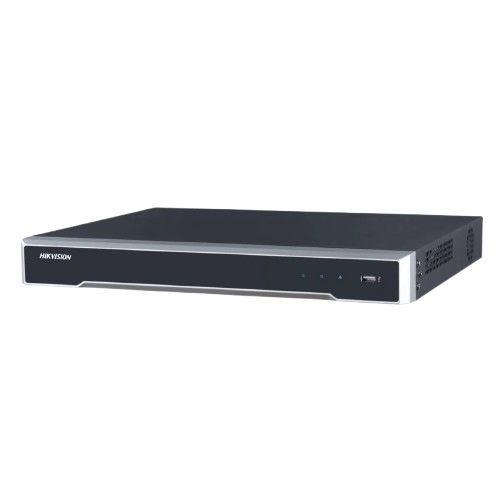

NVR (DS-7616NI-M2/16P):

• IP Channels: 16

• Recording Resolution: Up to 12MP

• HDMI Output: 8K (7680 × 4320)

• VGA Output: 1080P

• Incoming Bandwidth: 256 Mbps

• PoE: 16 × 10/100 Mbps Ports

• Storage: 2 SATA interfaces (up to 16TB each)

• Smart Analytics: VCA, motion detection, dual-stream recording

• Form Factor: 1RU

• Dimensions: 385 × 315 × 52 mm

• Operating Temp: -10°C to 55°C

Warranty Information:

This product includes a 3-Year Manufacturer Warranty for the cameras, NVR, and HDD. Local warranty support is provided through authorized Hikvision partners across Australia and New Zealand.

Brand Overview:

Hikvision is a world leader in video surveillance innovation. Trusted globally for its AI-integrated camera systems, Hikvision offers professional-grade security solutions built for performance, reliability, and long-term scalability. Perfect for enterprise, government, commercial, and residential security applications.

SKU: DS-2CD2386G2-I(U)-KIT-16CH

Practical Use Scenarios:

• Commercial Complexes – Monitor multiple building access points, corridors, and storage zones

• Distribution Warehouses – Secure loading bays, docks, aisles, and inventory areas

• Large Retail Chains – Oversee customer traffic, POS areas, and entry points

• Gated Estates & Apartments – Provide perimeter security, monitor parking, and common areas

• Educational Institutions – Keep campus perimeters, halls, and play areas secure with intelligent alerts

Datasheets / Downloadable Resources:

• DS-2CD2386G2-I(U) Camera Datasheet

• DS-7616NI-M2/16P NVR Datasheet


Excellence for the Australian and New Zealand Market:

• ✅ RCM Certified & CE Compliant – Adheres to local electrical and surveillance standards

• ✅ Optimized for AU/NZ Networks – Fully compatible with Australian/NZ IP and power infrastructure

• ✅ Sourced from Official Hikvision Partners – Authentic products with guaranteed manufacturer support

• ✅ Direct Local Warranty – Seamless warranty claims via accredited AU/NZ Hikvision representatives

• ✅ Tested for Harsh Environments – Designed to withstand Australia’s varied weather conditions with IP67-rated durability

Frequently Asked Questions (FAQs):

1. How many cameras can I connect to this system? (SKU: DS-2CD2386G2-I(U)-KIT-16CH)
This kit supports up to 16 IP cameras, all connected and powered via built-in PoE ports.

2. Are the cameras suitable for outdoor use? (SKU: DS-2CD2386G2-I(U)-KIT-16CH)
Yes, the cameras are IP67-rated, ensuring protection against dust, rain, and harsh outdoor environments.

3. Do these cameras support audio? (SKU: DS-2CD2386G2-I(U)-KIT-16CH)
Yes, the -U model includes a built-in microphone for capturing mono audio with each video stream.

4. Can I view the system remotely? (SKU: DS-2CD2386G2-I(U)-KIT-16CH)
Absolutely. Use the Hik-Connect app or desktop software to view live and recorded footage from anywhere.

5. Does the NVR come with storage? (SKU: DS-2CD2386G2-I(U)-KIT-16CH)
Yes, the NVR comes with a pre-installed HDD, and supports up to 32TB with two SATA bays.

6. What smart detection features are available? (SKU: DS-2CD2386G2-I(U)-KIT-16CH)
Smart analytics include motion detection, face detection, line crossing, intrusion detection, and AcuSense classification for human/vehicle alerts.

7. Is this system plug-and-play? (SKU: DS-2CD2386G2-I(U)-KIT-16CH)
Yes. With 16 integrated PoE ports, cameras can be connected directly with no external power adapters required.
