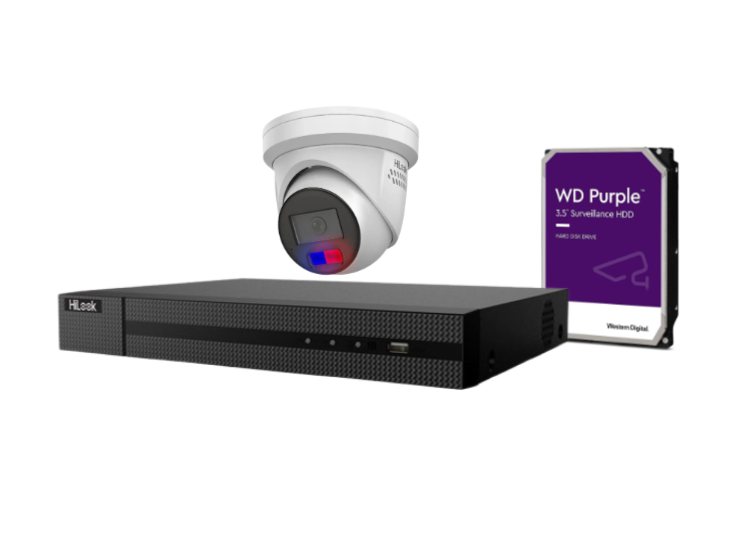

HiLook 6MP CCTV Kit with 4x All-in-One Cameras + 4CH NVR + HDD – IPC-T269H-MU/SL

Upgrade your surveillance with the HiLook 6MP All-in-One CCTV Kit, combining crystal-clear image quality, advanced deterrence features, and hassle-free installation. This complete security solution includes 4 x 6MP Smart Turret Cameras, a reliable 4-channel PoE NVR, and a WD Purple Surveillance HDD—making it an ideal fit for residential, retail, or small business environments.

Product Description

The HiLook IPC-T269H-MU/SL Camera Kit is a powerful and modern security system built to deliver proactive protection and high-definition video monitoring. Each 6MP turret camera features Smart Dual-Light Technology with active strobe lights and audio alarms to deter intruders in real-time. With IP67-rated durability, true 120dB WDR, and built-in microphones, these cameras provide unmatched situational awareness in any lighting condition.

Paired with a compact 4CH NVR (model: HL-NVR-104MH-C/4P(B) or recommended Hikvision 7604NI-M1-4P for advanced performance), the system supports up to 6MP recording, 4K HDMI output, and remote mobile access. Whether for DIY installation or professional deployment, this kit delivers excellent performance and smart features at a budget-friendly price.

What’s Included in the Box

• 4 × HiLook IPC-T269H-MU/SL 6MP All-in-One Turret Cameras

• 1 × 4-Channel PoE NVR – HL-NVR-104MH-C/4P(B) (or upgrade to Hikvision 7604NI-M1-4P)

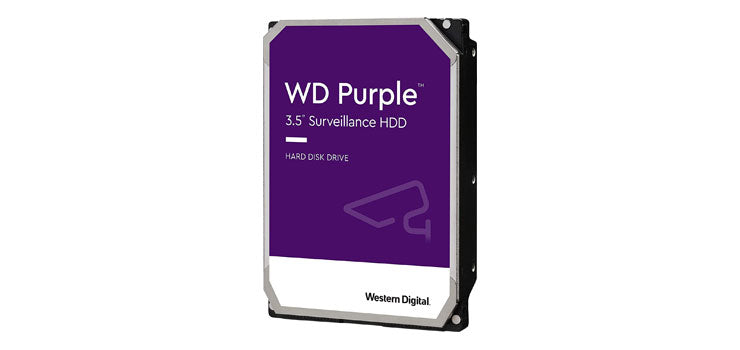

•  WD Purple Surveillance HDD (Choose your HDD below)

• Power Adapter for NVR

• Ethernet Cables

• USB Mouse

• User Manual & Quick Installation Guide

Main Features

• 6MP Resolution (3072 x 2048) for ultra-clear video

• 2.8mm Fixed Lens for wide-angle monitoring

• Smart Dual-Light: Auto-switches between IR and white light

• Active Intruder Deterrence: Red/blue strobe lights and audio alarm

• True 120dB WDR: Handles challenging lighting conditions

• H.265 Compression: Efficient video storage

• Built-in Microphones for audio recording

• PoE Simplified Setup: One cable for power and data

• IP67 Weatherproof: Suitable for indoor and outdoor use

• 4K HDMI Output for high-definition video display

• Remote Viewing: View cameras via mobile app (iOS & Android)

Technical Specifications

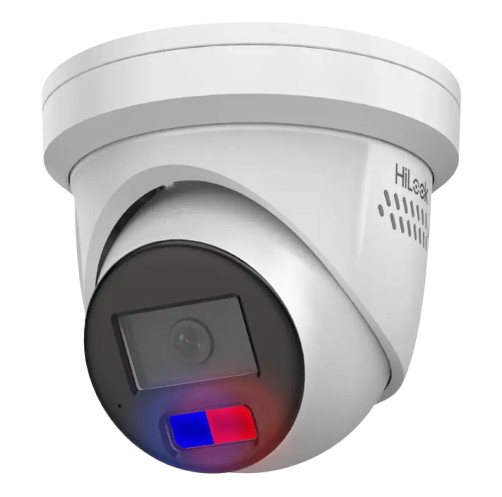

HiLook IPC-T269H-MU/SL Cameras

• Image Sensor: 1/2.7” Progressive Scan CMOS

• Resolution: 6MP (3072 × 2048)

• Lens: 2.8mm Fixed

• IR Range: Up to 30 meters

• Night Vision: Smart Dual-light (IR & White light)

• Built-in Features: Mic, Strobe light, Audio warning

• Protection: IP67-rated

• Codec: H.265 / H.264

• Power Supply: PoE or 12V DC

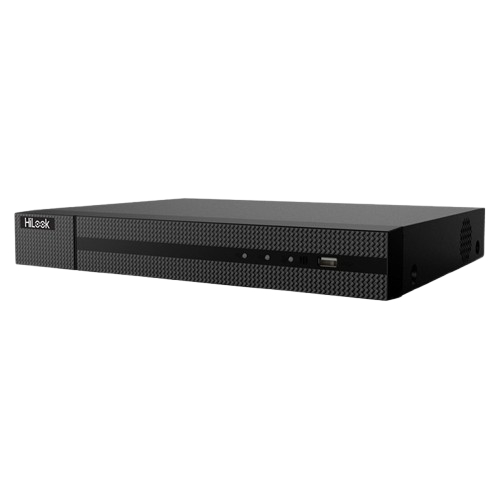

HL-NVR-104MH-C/4P(B)

• Channels: 4 IP Camera Inputs

• Video Compression: H.265+/H.265/H.264+/H.264

• Decoding: 1-ch@8MP or 3-ch@4MP

• Max Bandwidth: 40 Mbps incoming

• Video Outputs: HDMI (up to 4K), VGA

• Storage: 1 x SATA HDD (WD Purple pre-installed)

• PoE Ports: 4 built-in

• Remote Access: Via CMS or Mobile App

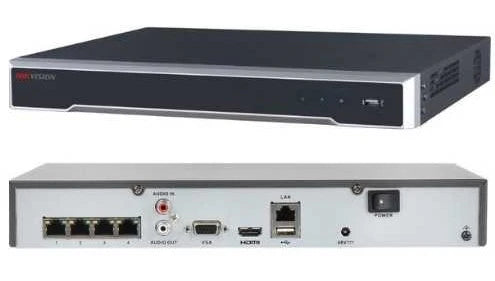

Hikvision 7604NI-M1-4P (Optional Upgrade)

• Enhanced decoding: Up to 4 × 8MP

• Bandwidth: 40 Mbps input / 80 Mbps output

• Stream encryption: TLS

• VCA: Advanced analytics like people counting, line crossing, intrusion detection

• Output: HDMI (up to 8K), VGA

Warranty Information

• 3-Year Manufacturer Warranty
  Covers all included cameras and NVR components. Support is available through authorized HiLook/Hikvision partners in Australia and New Zealand.

Brand Information – HiLook by Hikvision

HiLook, a sub-brand of Hikvision, offers reliable and cost-effective surveillance solutions for entry-level security projects. It combines Hikvision’s advanced technology with simplified setup and usability, ideal for residential and small commercial users.

SKU

HIL-IPC-T269H-MU/SL-KIT-4CH

Practical Use Scenarios

• Residential Security: Monitor driveways, entry points, and backyards with 24/7 color visuals and smart alerts.

• Retail Stores: Deter theft with strobe light and audio warning while recording sharp HD video.

• Small Businesses: Cover key operational areas with real-time monitoring and motion-triggered alerts.

• Warehouses & Garages: Capture high-resolution footage in dark environments with active deterrence features.

Datasheets & Downloadable Resources

• 📄 HiLook IPC-T269H-MU/SL Camera Datasheet (PDF)

• 📄 HL-NVR-104MH-C/4P(B) NVR Datasheet (PDF)

• 📄 Hikvision 7604NI-M1-4P NVR Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The HiLook 6MP CCTV Kit is built to align with Australian and New Zealand technical standards, featuring localized firmware, region-appropriate power adapters, and full NDSS compatibility where applicable. All components are sourced from authorized Hikvision/HiLook distributors in ANZ, ensuring product authenticity, faster warranty support, and optimized performance in local environments. Whether you choose the included NVR or upgrade to the Hikvision 7604NI-M1-4P, you’re investing in a secure and future-proof system trusted by thousands across the region.

FAQs – HIL-IPC-T269H-MU/SL-KIT-4CH

Q1: Does the HIL-IPC-T269H-MU/SL-KIT-4CH support full-color night vision?
Yes, it uses Smart Dual-Light technology to maintain full-color imaging with white light activation when events are triggered.

Q2: Can I upgrade the NVR in the HIL-IPC-T269H-MU/SL-KIT-4CH to a Hikvision model?
Absolutely. We recommend the Hikvision 7604NI-M1-4P for enhanced decoding and analytics support.

Q3: Is the HIL-IPC-T269H-MU/SL-KIT-4CH suitable for outdoor use?
Yes, the cameras are IP67-rated, making them fully weatherproof for outdoor environments.

Q4: Does the HIL-IPC-T269H-MU/SL-KIT-4CH record audio?
Yes, each camera includes a built-in microphone for real-time audio monitoring.

Q5: How is this system powered?
The NVR includes 4 built-in PoE ports, powering each camera and transmitting data via a single Ethernet cable.

Q6: Can I access the HIL-IPC-T269H-MU/SL-KIT-4CH remotely?
Yes, you can view live feeds and playback via mobile app or web browser, supported on both iOS and Android devices
