Protect your home, business, warehouse, retail store, office, or commercial property with the powerful Uniview 6MP LightHunter CCTV Security Kit, featuring a professional-grade 4 Channel PoE Network Video Recorder (NVR301-04B-P4-IQ) and your choice of up to 4 Uniview IPC3616SB-ADF28KM-I0 6MP IP Cameras. Delivering exceptional image clarity, advanced AI analytics, intelligent intrusion prevention, and superior low-light performance, this security solution provides reliable 24/7 surveillance while remaining easy to install and manage.
The included Uniview LightHunter cameras utilise cutting-edge low-light technology, enabling full-colour image capture in extremely challenging lighting conditions. Combined with intelligent analytics such as face capture, people counting, cross-line detection, intrusion detection, and crowd density monitoring, this system offers enterprise-level security features suitable for both residential and commercial environments.
What's Included in the Box
Base Kit Includes
- 1 × Uniview NVR301-04B-P4-IQ 4 Channel PoE Network Video Recorder
- 1 × Power Supply for NVR
- 1 × Mouse
- Quick Start Guide
Camera Options
Choose from:

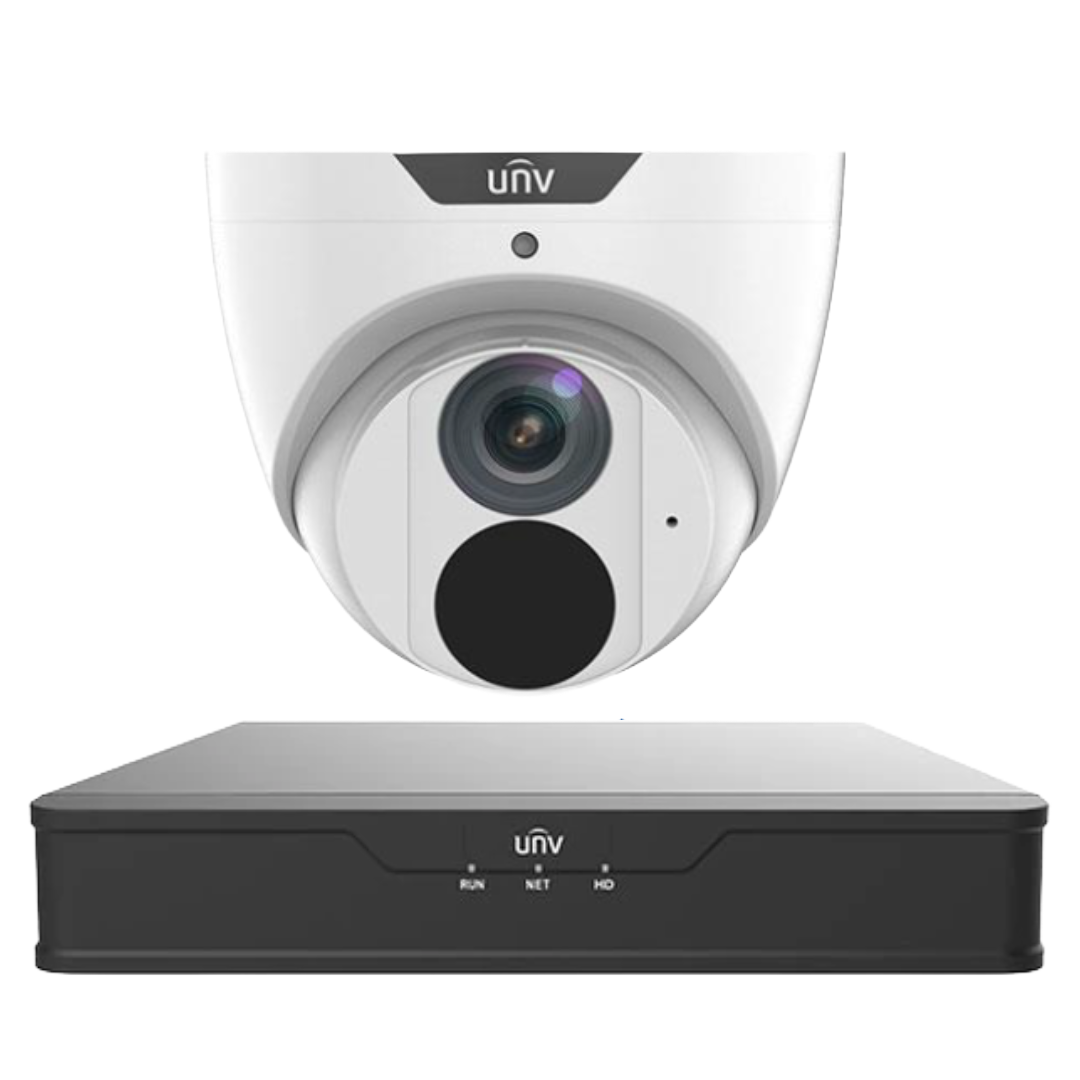

- 1 × Uniview IPC3616SB-ADF28KM-I0 6MP Camera

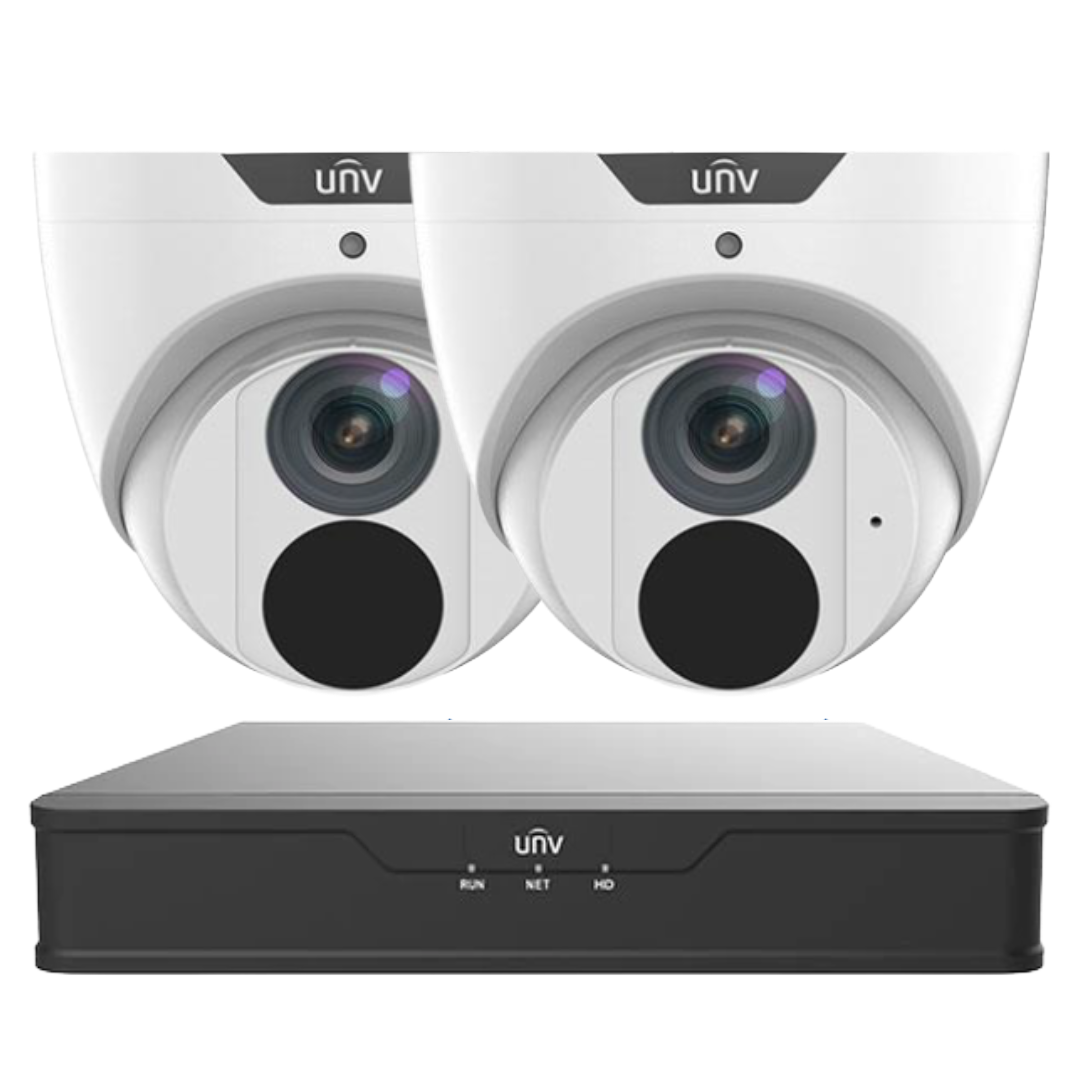

- 2 × Uniview IPC3616SB-ADF28KM-I0 6MP Cameras

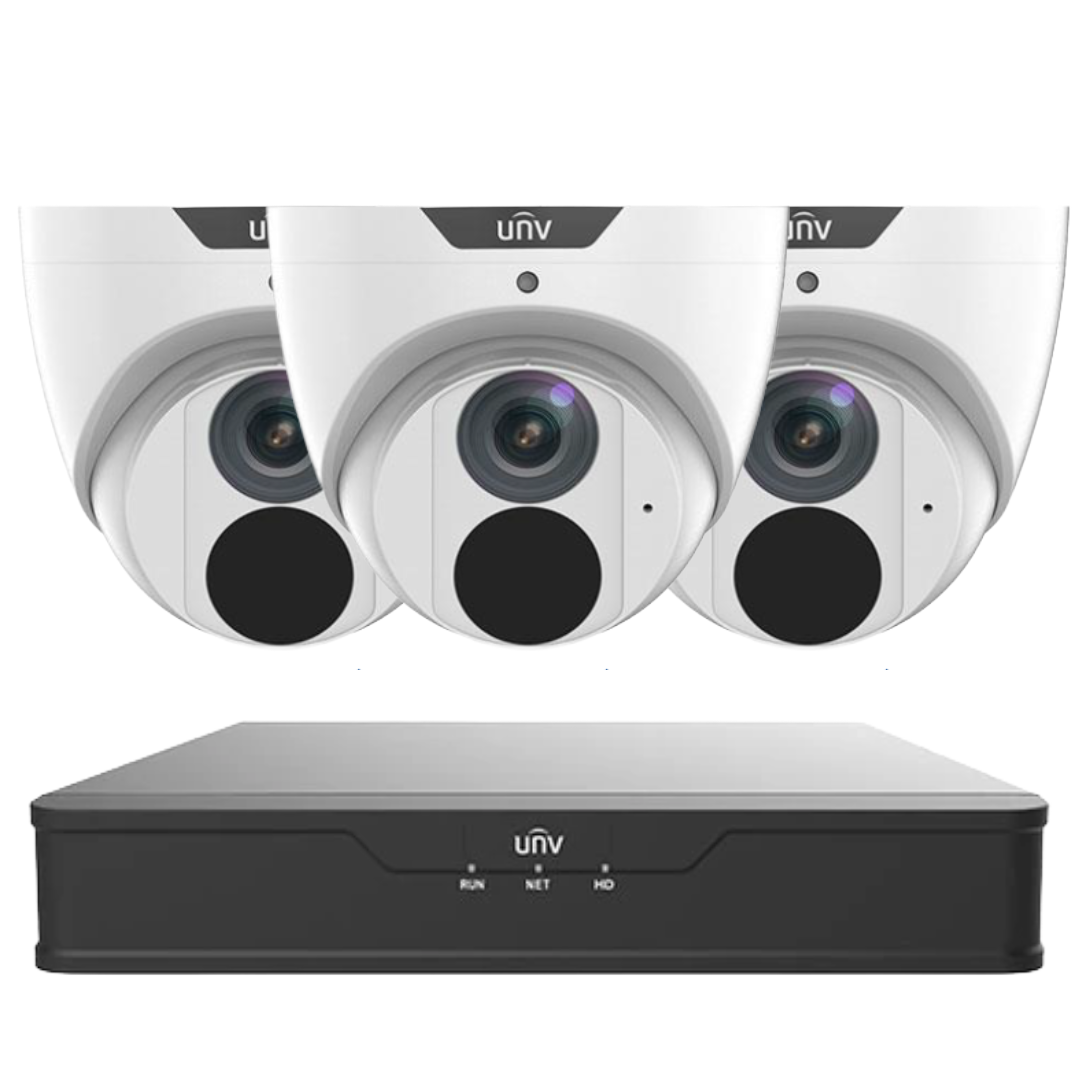

- 3 × Uniview IPC3616SB-ADF28KM-I0 6MP Cameras

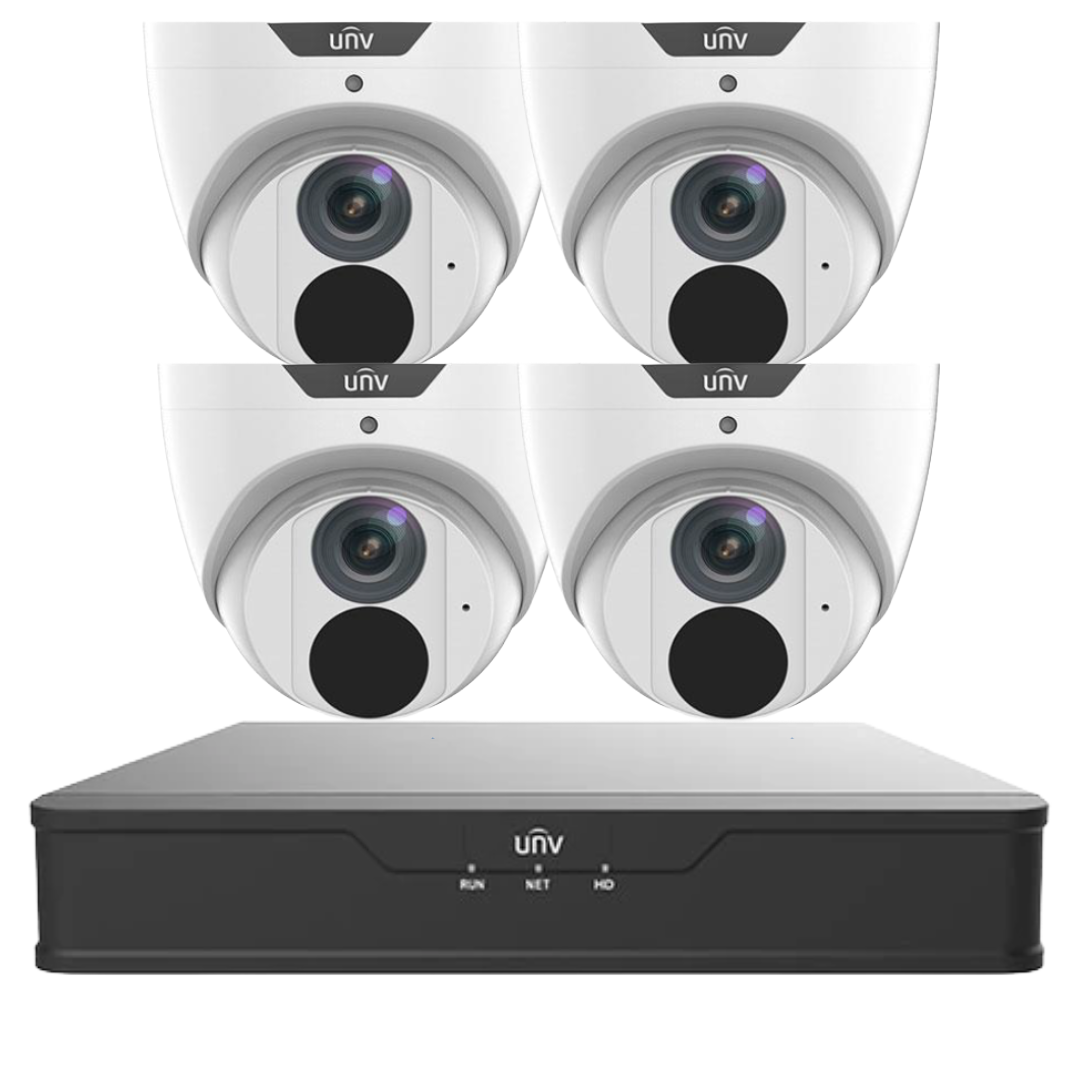

- 4 × Uniview IPC3616SB-ADF28KM-I0 6MP Cameras
Hard drive sold separately unless specified.
Main Features
6MP Ultra HD Surveillance
- Crystal-clear 3072 × 2048 resolution
- Superior image detail compared to standard 4MP systems
- Up to 25fps recording at full 6MP resolution
LightHunter Low-Light Technology
- Exceptional image quality in near-dark conditions
- Colour illumination down to 0.0025 Lux
- Automatic day/night switching
Intelligent AI Detection
- Cross Line Detection
- Intrusion Detection
- Enter Area Detection
- Leave Area Detection
- False Alarm Filtering
- Human Detection
- Face Capture Technology
People Counting Analytics
- People flow monitoring
- Crowd density monitoring
- Ideal for retail stores, schools, offices, and public facilities
Professional Audio Recording
- Built-in microphone in each camera
- Captures audio alongside video evidence
Weatherproof Outdoor Protection
- IP67-rated metal housing
- Suitable for harsh Australian weather conditions
- Dustproof and waterproof construction
Smart Video Compression
- Ultra 265
- H.265
- H.264
- Reduced bandwidth and storage requirements
Plug & Play PoE Installation
- Power and data through a single Ethernet cable
- Simplified installation
- Dedicated PoE ports on NVR
4 Channel NVR
- Supports up to 4 IP cameras
- HDMI and VGA outputs
- Up to 12MP recording support
- Cloud upgrade support
Camera Specifications
Uniview IPC3616SB-ADF28KM-I0
Image Sensor
- 1/2.7" Progressive Scan CMOS
- 6 Megapixel Resolution
Lens
- Fixed 2.8mm Lens
- F1.6 Aperture
Viewing Angles
- Horizontal: 101.34°
- Vertical: 54.46°
- Diagonal: 119.72°
Night Vision
- IR Range: Up to 30 metres
- 850nm Infrared LEDs
Wide Dynamic Range
Audio
Storage
- MicroSD Support up to 256GB
Video Compression
- Ultra 265
- H.265
- H.264
- MJPEG
Weather Rating
Power
Operating Temperature
NVR Specifications
Uniview NVR301-04B-P4-IQ
Channels
- 4 Channel IP Camera Input
Recording Resolution
Video Outputs
Network Bandwidth
- 80 Mbps Incoming
- 80 Mbps Outgoing
Playback
- Up to 16 Channel Playback
Hard Drive Support
- 1 SATA Bay
- Supports up to 10TB HDD
PoE Ports
Smart Functions
- Face Detection
- Face Comparison
- Smart Intrusion Prevention
- Ultra Motion Detection
- Vehicle Detection
- People Counting
Remote Access
Compatible with:
- Uniview EZView
- EZLive
- EZStation
Browser Support
- Chrome
- Edge
- Firefox
- Internet Explorer
Warranty Information
- 3 year Manufacturer Warranty Included
- Warranty serviced through authorised Uniview distribution channels
- Full manufacturer support available for eligible warranty claims
Brand Overview
Uniview
Uniview is one of the world's leading manufacturers of professional IP video surveillance solutions. Renowned for innovative imaging technologies, AI-powered analytics, reliable hardware, and enterprise-grade security solutions, Uniview products are trusted globally across residential, commercial, industrial, education, healthcare, and government sectors.
SKU
KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM
Ideal Applications
- Residential homes
- Retail stores
- Warehouses
- Offices
- Schools
- Healthcare facilities
- Manufacturing plants
- Car parks
- Commercial buildings
- Small business security
Datasheets & Downloads
Available upon request:
Excellence for the Australian and New Zealand Market
This Uniview CCTV solution has been selected specifically for Australian and New Zealand security requirements, offering robust performance in demanding environmental conditions. The cameras feature IP67 weatherproof protection suitable for outdoor installations exposed to dust, rain, and temperature extremes commonly experienced across Australia and New Zealand.
Key benefits include:
- Suitable for Australian and New Zealand residential and commercial installations
- Compliant with international safety and EMC standards including CE, FCC, UL, RoHS, and WEEE certifications
- Genuine Uniview products sourced through authorised distribution channels
- Local warranty support through authorised suppliers
- Optimised for reliable operation in harsh outdoor environments
- Advanced AI analytics for modern security applications
- Professional-grade surveillance technology trusted worldwide
FAQs
What resolution does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM CCTV system record in?
The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM includes 6MP cameras capable of recording at up to 3072 × 2048 resolution for exceptional image clarity.
How many cameras can I connect to the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM?
The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports up to four IP cameras through its built-in 4-channel PoE NVR.
Does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM support night vision?
Yes. The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM features LightHunter low-light technology and infrared night vision with up to 30 metres of coverage.
Does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM record audio?
Yes. Each camera in the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM includes a built-in microphone for audio recording.
Can I view the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM remotely?
Yes. The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports remote viewing through Uniview EZView, EZLive, and EZStation applications.
Is the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM suitable for outdoor use?
Yes. The cameras included in the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM feature an IP67 weatherproof rating for reliable outdoor operation.
Does the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM support AI analytics?
Yes. The KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports face capture, people counting, intrusion detection, cross-line detection, and other advanced AI functions.
What hard drive capacity can the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM support?
The NVR included with the KIT-UNV-6MP-LIGHTHUNTER-4CH-CUSTOM supports one SATA hard drive up to 10TB capacity.
