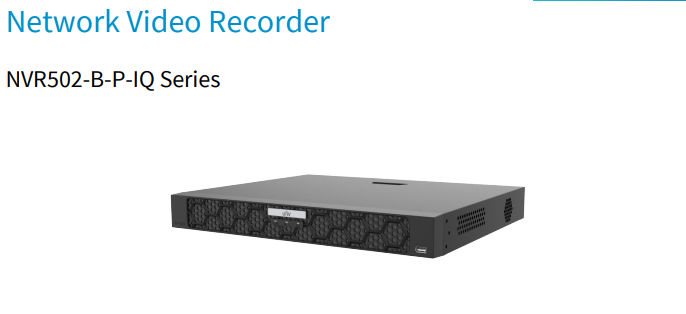

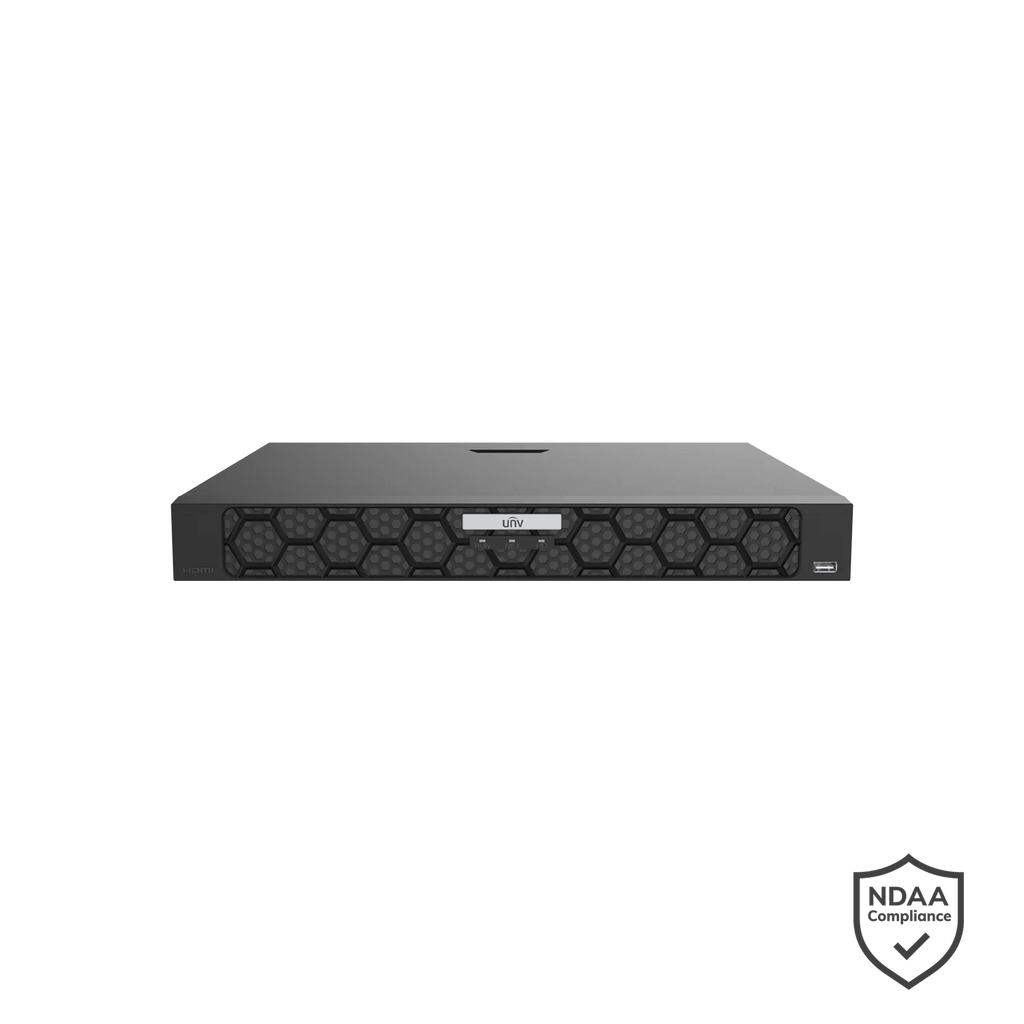

The Uniview NVR502-16B-P16-IQ 16 Channel Network Video Recorder is a powerful and reliable surveillance management solution designed for professional CCTV systems. Supporting Ultra 265, H.265, and H.264 compression, this advanced 16-channel NVR records up to 16MP resolution, delivering ultra-clear video quality while optimizing storage efficiency. With 16 built-in PoE ports for plug-and-play camera connectivity, 4K HDMI output, and dual SATA bays supporting up to 16TB per drive, this NVR is ideal for commercial, industrial, and large residential security deployments. Designed for seamless integration with ONVIF compliant IP cameras, it offers robust network protocols, smart video analytics, and reliable recording performance. (HDD not included.)

What’s Included in the Box

• 1 × Uniview NVR502-16B-P16-IQ 16CH Network Video Recorder

• 1 × Power Cable

• 1 × Mouse

• 1 × Network Cable

• 1 × Quick Start Guide

• Mounting Accessories

(Hard Disk Drive not included)

Main Features

16 Channel IP Camera Support

Supports up to 16 IP cameras with high-resolution recording up to 16MP, making it ideal for large surveillance installations.

Built-in 16 Port PoE Switch

Integrated 16× PoE ports allow direct camera connection with plug-and-play setup, simplifying installation and reducing cabling requirements.

Ultra 265 Compression Technology

Advanced Ultra 265 video compression dramatically reduces storage usage and bandwidth while maintaining exceptional video quality.

4K HDMI Video Output

Supports HDMI output up to 3840×2160 (4K) resolution for crystal-clear live monitoring and playback.

Intelligent Video Analytics

Supports smart detection functions including:

• Face Detection & Face Comparison

• Vehicle Detection

• Intrusion Detection

• Cross Line Detection

• Ultra Motion Detection (UMD)

• People Counting

• Crowd Density Monitoring

• Fire & Smoke Detection

Reliable Recording with ANR

Automatic Network Replenishment (ANR) ensures video recording continuity even during temporary network interruptions.

Large Storage Capacity

Features 2 SATA bays supporting up to 16TB per HDD, allowing large-scale video storage.

Detailed Specifications

System

• Model: NVR502-16B-P16-IQ

• Channels: 16 IP Channels

• Video Compression: Ultra 265 / H.265 / H.264

Recording & Decoding

• Max Recording Resolution: 16MP

• Decoding Capability (Smart Off):

  • 2 × 16MP @30fps

  • 2 × 12MP @30fps

  • 4 × 4K @30fps

  • 8 × 4MP @30fps

  • 10 × 3MP @30fps

  • 16 × 1080P @30fps

Video Output

• HDMI: 4K (3840×2160)

• VGA: Up to 1920×1080

• Independent HDMI & VGA Output: Supported

Storage

• HDD Bays: 2 × SATA

• Max Capacity: Up to 16TB per HDD

• RAID Support: RAID 1

Network

• Incoming Bandwidth:

  • 320 Mbps (Smart Off)

  • 160 Mbps (Smart On)

• Outgoing Bandwidth: 160 Mbps

• Remote Users: 128

• Supported Protocols:
  TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4

PoE Interface

• Ports: 16× RJ45 PoE

• Standard: IEEE 802.3af / 802.3at

• Max Power per Port: 30W

• Total PoE Power: 240W

Audio

• Audio Compression: G.711A / G.711U

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

Alarm Interface

• Alarm Input: 8-Channel

• Alarm Output: 2-Channel

External Interfaces

• Ethernet: 1× RJ45 Gigabit

• USB:

  • 1 × USB2.0 (Front)

  • 1 × USB3.0 (Rear)

• RS485: 1

Environmental

• Operating Temperature: -10°C to 50°C

• Humidity: ≤ 90% RH (non-condensing)

Power

• Power Supply: AC 100–240V

• Power Consumption (without HDD): ≤ 12W

Physical

• Dimensions: 380 × 322 × 53 mm

• Weight (without HDD): ≤ 2.7 kg

• Height: 1U Rack Mount

Certifications

• CE

• FCC

• UL

• RoHS

• WEEE

Practical Use Scenarios

The Uniview NVR502-16B-P16-IQ is designed for a wide range of professional surveillance applications:

• Retail stores and shopping centres

• Office buildings and corporate security

• Warehouses and logistics facilities

• Schools and universities

• Hospitals and healthcare facilities

• Large residential CCTV systems

• Industrial and manufacturing sites

• Hotels and hospitality environments

Warranty Information

This product includes a manufacturer-backed warranty covering defects in materials and workmanship under normal use conditions. Warranty claims are handled through authorized distributors or directly with the brand.

Brand Description – Uniview

Uniview (UNV) is a global leader in video surveillance technology and a pioneer in IP video monitoring solutions. Known for innovation in AI surveillance, Ultra 265 compression technology, and high-performance NVR systems, Uniview products are widely used in enterprise, commercial, and government security systems worldwide.

SKU

NVR502-16B-P16-IQ

Datasheets & Downloadable Resources

• Datasheet

  Quick Guide

Excellence for the Australian and New Zealand Market

This product is carefully sourced to meet the expectations of professional installers and businesses across Australia and New Zealand.

• Complies with relevant international quality and safety standards

• Suitable for commercial and professional CCTV deployments

• Supplied through authorized brand distribution channels

• Fully compatible with ANZ surveillance system requirements

• Warranty support handled through direct brand-authorized service channels

FAQs

What cameras are compatible with the NVR502-16B-P16-IQ?

The NVR502-16B-P16-IQ supports Uniview IP cameras as well as ONVIF Profile S, G, and T compliant cameras, allowing compatibility with many third-party IP cameras.

Does the NVR502-16B-P16-IQ include a hard drive?

No, the NVR502-16B-P16-IQ does not include a hard drive. Users must install their own HDD, with support for 2 SATA drives up to 16TB each.

What is the maximum recording resolution of the NVR502-16B-P16-IQ?

The NVR502-16B-P16-IQ supports recording resolutions up to 16 Megapixels, enabling ultra-high-definition surveillance.

How many PoE ports does the NVR502-16B-P16-IQ have?

The NVR502-16B-P16-IQ includes 16 built-in PoE ports, allowing direct connection and power supply for IP cameras.

Does the NVR502-16B-P16-IQ support 4K display?

Yes, the NVR502-16B-P16-IQ supports 4K HDMI output (3840×2160) for high-resolution monitoring.

Can the NVR502-16B-P16-IQ be accessed remotely?

Yes, the NVR502-16B-P16-IQ supports remote access via network protocols and P2P connectivity, enabling monitoring from computers and mobile devices.

What compression formats does the NVR502-16B-P16-IQ support?

The NVR502-16B-P16-IQ supports Ultra 265, H.265, and H.264 compression, optimizing storage while maintaining high video quality.
