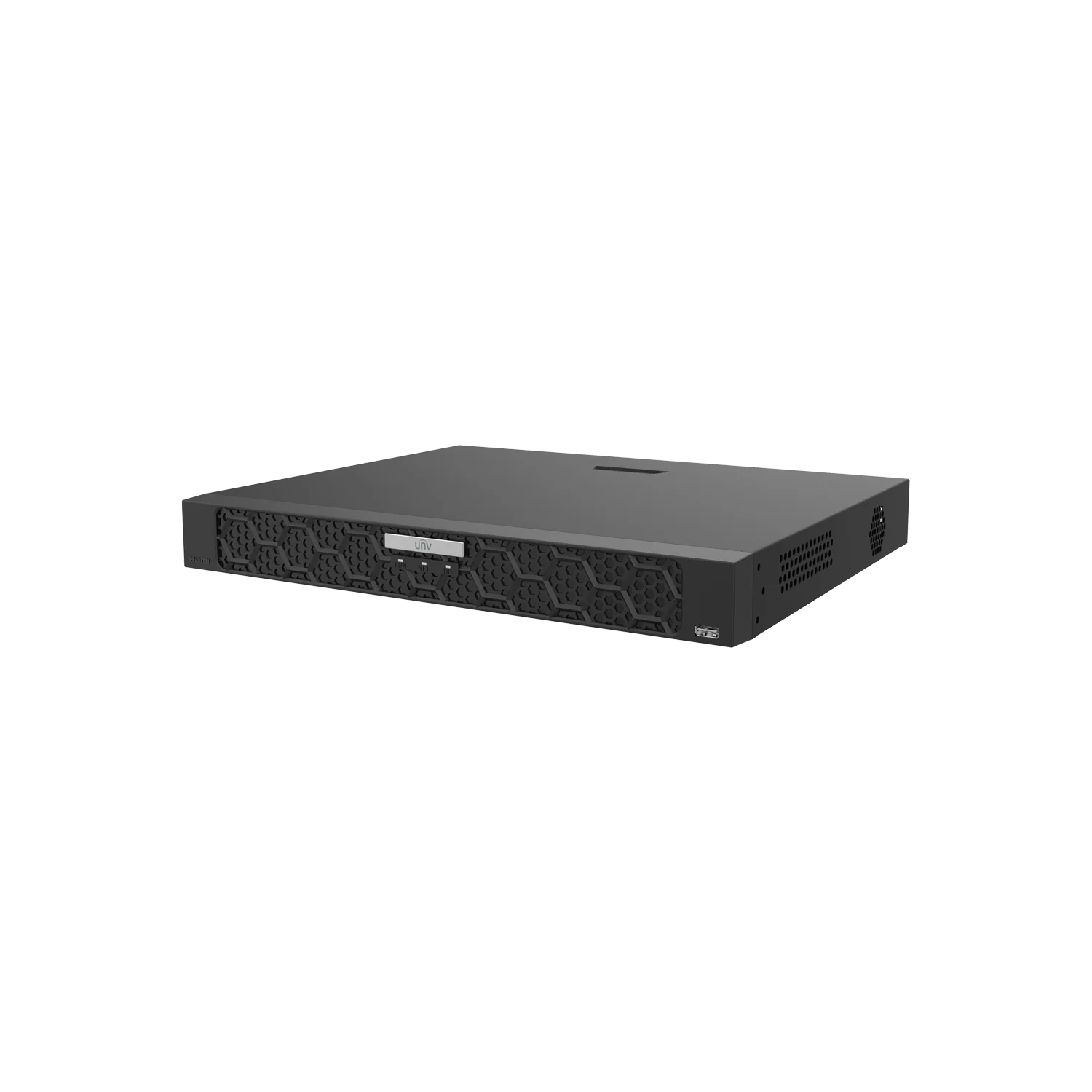

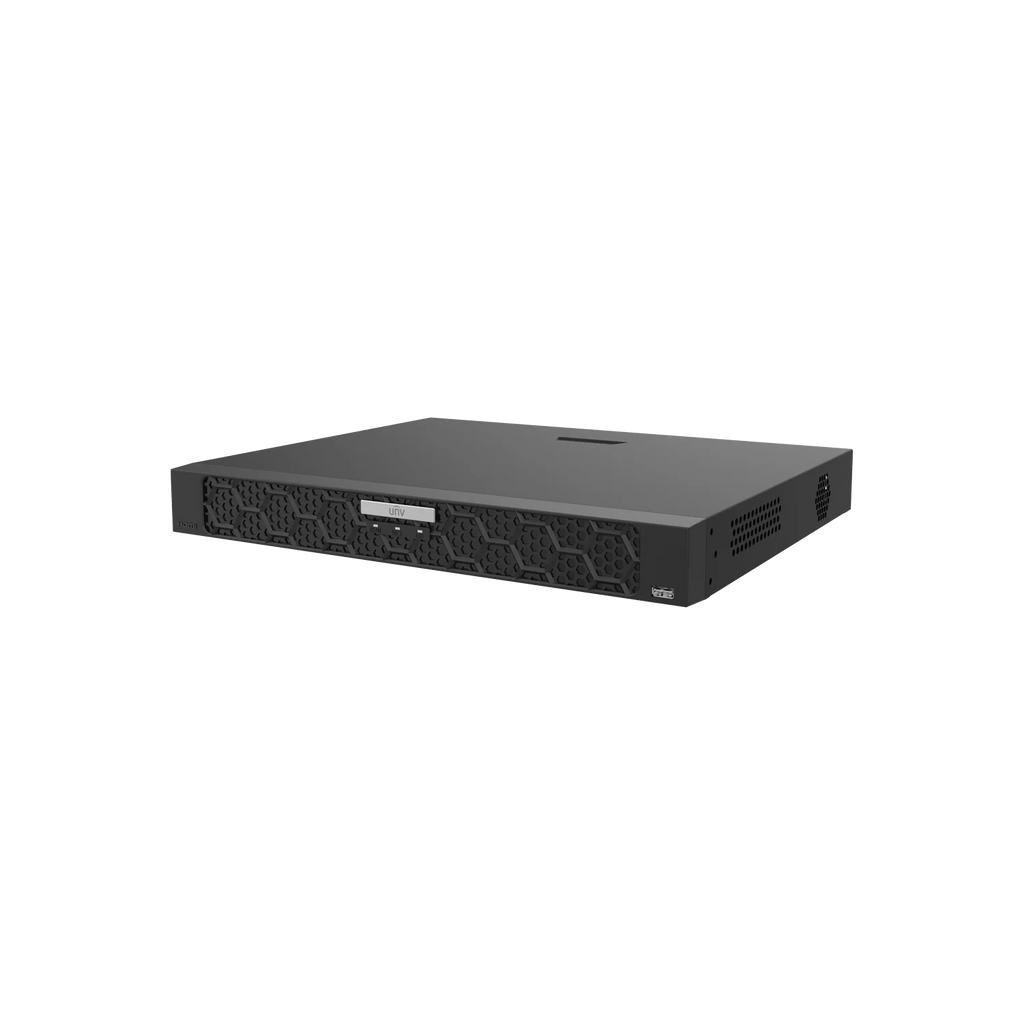

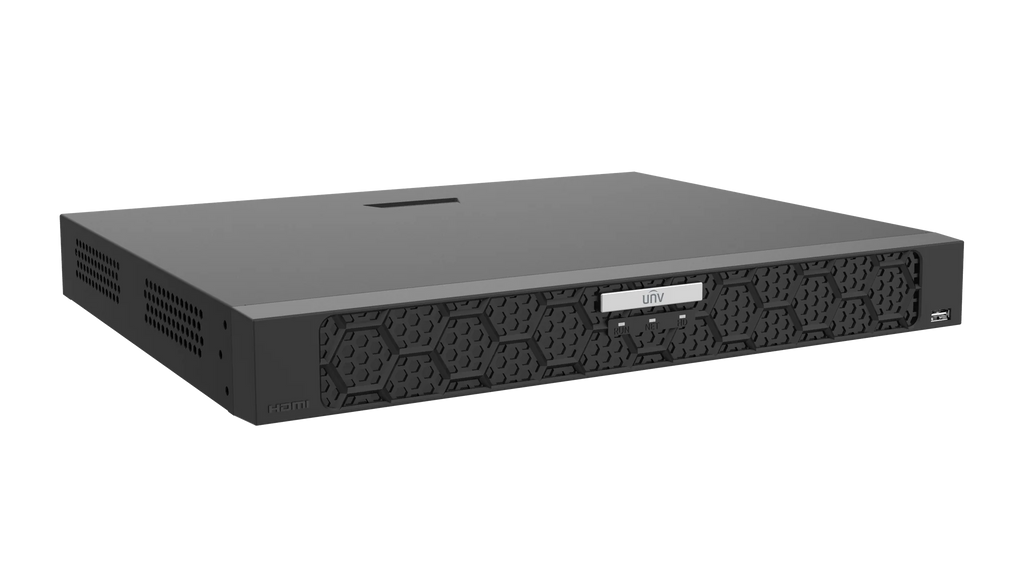

The Uniview NVR502-32E-IM-G 32 Channel IM Series Network Video Recorder is a high-performance surveillance solution designed for large-scale security systems requiring advanced analytics and ultra-high-resolution recording. Supporting up to 32 IP camera channels and 32MP recording resolution, this professional NVR features Ultra H.265/H.265/H.264 compression, intelligent video analytics including Face Detection, Face Comparison, License Plate Recognition, and Video Metadata, and powerful SeekFree smart search technology. With 192 Mbps bandwidth, dual HDMI/VGA simultaneous output, ANR reliability protection, and two SATA HDD bays, the NVR502-32E-IM-G delivers scalable and efficient video management for enterprise, commercial, and high-security environments.
What’s Included in the Box
Main Features
-
Supports Ultra H.265 / H.265 / H.264 video compression
-
32 Channel IP camera input
-
Up to 32 Megapixel video recording
-
SeekFree intelligent search technology
-
Search by text function for efficient video investigation
-
192 Mbps incoming and outgoing bandwidth
-
Dual HDMI and VGA simultaneous output
-
Advanced AI analytics including Face Detection, LPR and Video Metadata
-
ANR (Automatic Network Replenishment) to prevent recording loss
-
Dual SATA HDD storage support
-
External USB keyboard support
-
Cloud upgrade support
-
ONVIF Profile S compatibility
Detailed Specifications
Video & Decoding
-
Video Compression: Ultra 265 / H.265 / H.264
-
Maximum Recording Resolution: 32MP
-
Decoding Capability:
-
Up to 32 × 1080P @30fps
-
Up to 8 × 4K @30fps
-
Maximum IP Camera Input: 32 Channels
-
Snapshot: 16-channel snapshot (max 8MP)
Network
-
Incoming Bandwidth: 192 Mbps
-
Outgoing Bandwidth: 192 Mbps
-
Maximum Users Added: 32
-
Maximum Remote Users: 128
-
Supported Protocols:
TCP/IP, P2P, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv4, IPv6, HTTPS
Video Output
-
HDMI Output: up to 4K (3840×2160) @30Hz
-
VGA Output: up to 1920×1080 @60Hz
-
HDMI and VGA simultaneous display supported
-
Live View Display Layout:
1 / 4 / 6 / 8 / 9 / 16 / 25 / 32
Smart AI Analytics
-
Face Detection
-
Face Comparison
-
License Plate Recognition (LPR)
-
Smart Intrusion Prevention (SIP)
-
Video Metadata Analysis
-
Vehicle & Human Body Search
-
People Counting
-
AcuSearch & SmartSearch+
-
SeekFree intelligent event search
-
Search by image support
Storage
Interfaces
Audio
Environmental
-
Operating Temperature: -10°C to 55°C
-
Operating Humidity: ≤ 90% RH (non-condensing)
-
Power Supply: DC 12V / 3A
-
Power Consumption: ≤25W (without HDD)
Physical
-
Form Factor: 1U Rackmount
-
Dimensions: 380 × 322.4 × 53 mm
-
Weight (without HDD): 1.87 kg
Certifications
-
CE
-
FCC
-
UL
-
RoHS
-
WEEE
-
NDAA Compliant
Practical Use Scenarios
-
Large retail stores and shopping centres
-
Multi-building office complexes
-
Warehouses and logistics facilities
-
Industrial and manufacturing sites
-
Airports, transport hubs, and parking facilities
-
Smart city and traffic monitoring systems
-
Schools, universities, and government facilities
Warranty Information
This product includes a manufacturer-backed warranty, with service and technical support handled through authorised Uniview distributors and brand representatives, ensuring genuine firmware updates and certified repair support.
About the Brand – Uniview
Uniview (UNV) is a global leader in IP video surveillance technology and one of the pioneers of professional network video recording solutions. Uniview is widely recognised for its innovation in AI-powered video analytics, advanced compression technologies, and enterprise-grade security systems, trusted worldwide for commercial and government deployments.
Datasheets & Resources
Excellence for the Australian and New Zealand Market
This product is supplied through authorised distribution channels, ensuring compatibility with surveillance deployments across Australia and New Zealand. The NVR502-32E-IM-G complies with recognised international certifications including CE, FCC, UL, RoHS, and NDAA compliance, meeting strict professional installation standards. Products distributed for the Australian and New Zealand market are supported through recognised brand representatives, ensuring reliable warranty handling, firmware support, and long-term system compatibility.
FAQs
What cameras are compatible with the NVR502-32E-IM-G?
The NVR502-32E-IM-G supports Uniview IP cameras as well as third-party cameras using the ONVIF Profile S protocol, making it suitable for mixed CCTV environments.
Does the NVR502-32E-IM-G include a hard drive?
No, the NVR502-32E-IM-G is supplied without HDD, allowing users to install compatible surveillance drives up to 16TB each.
What is the maximum resolution supported by the NVR502-32E-IM-G?
The NVR502-32E-IM-G supports up to 32MP recording resolution, enabling ultra-high-definition surveillance recording.
How many cameras can be connected to the NVR502-32E-IM-G?
The NVR502-32E-IM-G supports up to 32 IP cameras, making it suitable for medium to large CCTV installations.
Does the NVR502-32E-IM-G support AI video analytics?
Yes, the NVR502-32E-IM-G includes built-in analytics such as Face Detection, Face Comparison, License Plate Recognition, and Smart Intrusion Prevention.
Can the NVR502-32E-IM-G connect to two monitors?
Yes, the NVR502-32E-IM-G supports simultaneous HDMI and VGA outputs, enabling dual monitor surveillance setups.
What is SeekFree search in the NVR502-32E-IM-G?
SeekFree technology in the NVR502-32E-IM-G enables intelligent searching across recorded footage, allowing users to quickly find specific objects, vehicles, or people.
