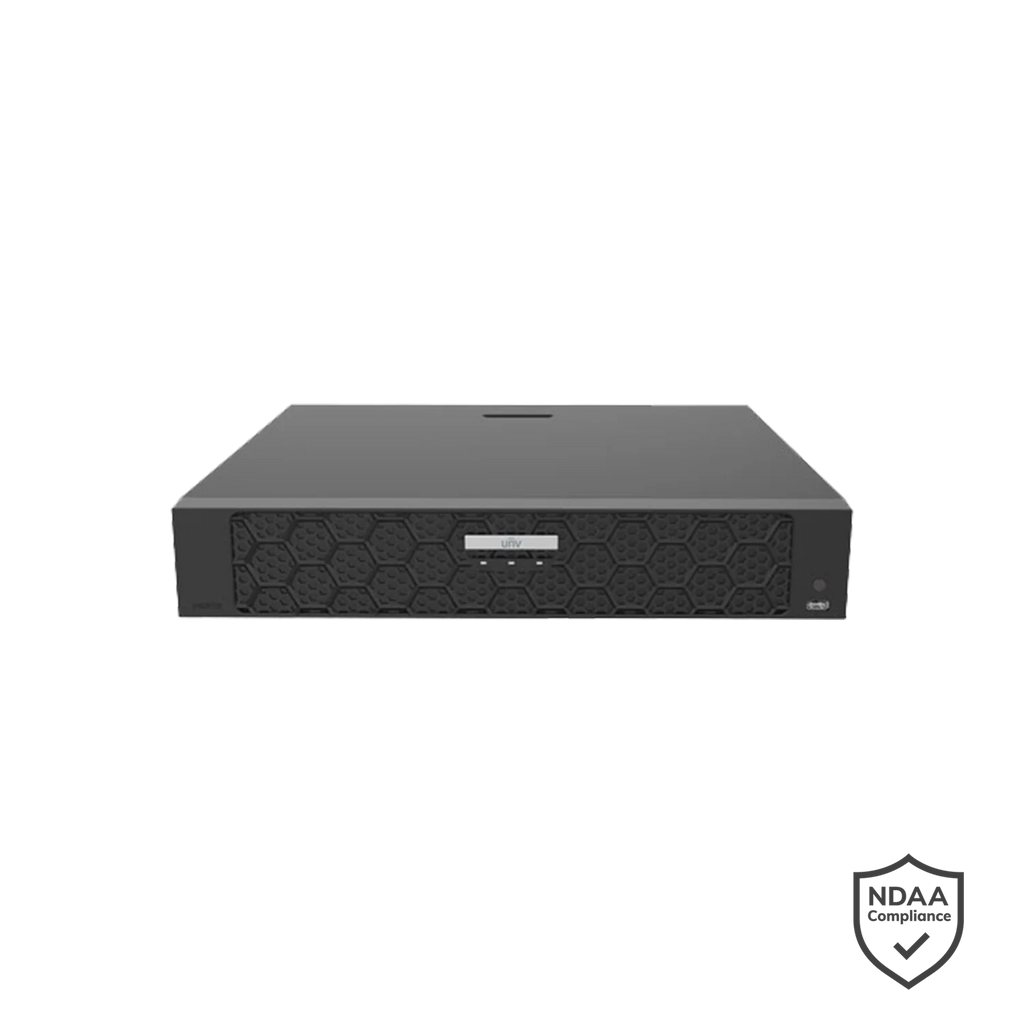

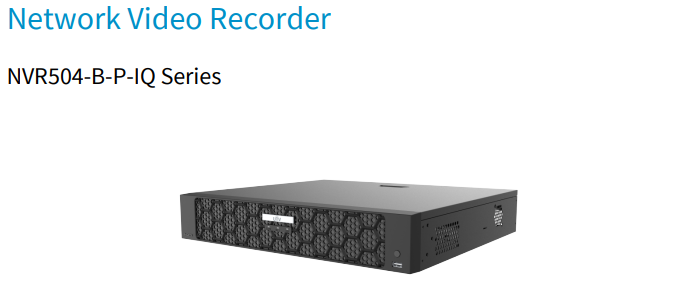

The Uniview NVR504-32B-P16-IQ 32 Channel Network Video Recorder is a high-performance professional surveillance recorder designed for large-scale CCTV deployments. Supporting Ultra 265, H.265, and H.264 compression, this powerful 32-channel NVR records up to 16MP resolution, delivering exceptional video clarity while optimizing bandwidth and storage usage. Featuring 16 built-in PoE ports for direct camera connectivity, 4K HDMI output, and four SATA bays supporting up to 16TB per drive, the NVR504-32B-P16-IQ is ideal for enterprise security systems, commercial buildings, warehouses, and multi-site monitoring environments. With advanced AI analytics, ONVIF compatibility, and reliable ANR technology, it provides efficient, scalable, and intelligent surveillance management. (Hard drive not included.)

What’s Included in the Box

• 1 × Uniview NVR504-32B-P16-IQ 32CH Network Video Recorder

• 1 × Power Cable

• 1 × USB Mouse

• 1 × Network Cable

• 1 × Quick Start Guide

• Mounting Accessories

(Hard Disk Drives not included)

Main Features

32 Channel IP Camera Support

Supports up to 32 IP cameras, allowing extensive surveillance coverage for large facilities or multi-building environments.

Built-in 16 Port PoE Switch

Includes 16 PoE ports enabling plug-and-play installation with compatible IP cameras, simplifying setup and reducing additional network equipment.

Ultra 265 Advanced Compression

Utilizes Ultra 265 technology to significantly reduce storage requirements and bandwidth consumption while maintaining high-quality video.

4K HDMI Video Output

Provides HDMI output up to 4K (3840 × 2160) resolution for ultra-clear live monitoring and playback.

Advanced Smart Video Analytics

Supports powerful AI-based analytics including:

• Face Detection & Face Comparison

• Vehicle Detection

• Intrusion Detection

• Cross Line Detection

• Ultra Motion Detection (UMD)

• People Counting

• Crowd Density Monitoring

• Traffic Monitoring

• Fire and Smoke Detection

Reliable Recording with ANR

Automatic Network Replenishment (ANR) ensures that video is recorded locally on cameras and automatically synchronized once the network connection is restored.

Large Enterprise Storage Capacity

Equipped with 4 SATA HDD bays, supporting up to 16TB per drive, enabling massive storage capacity for long-term surveillance recording.

Detailed Specifications

System

• Model: NVR504-32B-P16-IQ

• Channels: 32 IP Channels

• Video Compression: Ultra 265 / H.265 / H.264

Recording & Decoding

• Maximum Recording Resolution: 16MP

• Decoding Capability (Smart Off):

  • 2 × 16MP @30fps

  • 2 × 12MP @30fps

  • 4 × 4K @30fps

  • 8 × 4MP @30fps

  • 10 × 3MP @30fps

  • 16 × 1080P @30fps

  • 32 × 720P @30fps

Video Output

• HDMI: 4K (3840 × 2160)

• VGA: Up to 1920 × 1080

• HDMI & VGA Independent Output: Supported

Storage

• HDD Bays: 4 × SATA

• Maximum Capacity: Up to 16TB per HDD

• RAID Support: RAID 1, RAID 5

Network

• Incoming Bandwidth:

  • 320 Mbps (Smart Off)

  • 160 Mbps (Smart On)

• Outgoing Bandwidth: 160 Mbps

• Maximum Remote Users: 128

Supported Network Protocols:

TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv4, IPv6

PoE Interface

• Ports: 16 × RJ45 PoE

• Standard: IEEE 802.3af / 802.3at

• Maximum Power per Port: 30W

• Total PoE Power Budget: 150W

Audio

• Compression: G.711A / G.711U

• Audio Input: 1 × RCA

• Audio Output: 1 × RCA

Alarm Interface

• Alarm Inputs: 16 Channels

• Alarm Outputs: 4 Channels

External Interfaces

• Network: 1 × Gigabit RJ45

• USB Ports:

  • Front: 1 × USB 2.0

  • Rear: 1 × USB 3.0

• RS485: 1

Environmental Conditions

• Operating Temperature: -10°C to 50°C

• Humidity: ≤ 90% RH (non-condensing)

Power

• Power Supply: AC 100–240V

• Power Consumption (without HDD): ≤ 12W

Physical Specifications

• Dimensions: 400 × 368 × 74 mm

• Weight (without HDD): ≤ 4 kg

• Height: 1.5U Rack Mount

Certifications

• CE

• FCC

• UL

• RoHS

• WEEE

Practical Use Scenarios

The Uniview NVR504-32B-P16-IQ is ideal for large-scale security systems including:

• Shopping centres and retail chains

• Warehouses and logistics facilities

• Industrial manufacturing plants

• Office buildings and corporate campuses

• Hospitals and healthcare facilities

• Airports and transport hubs

• Universities and schools

• Large residential estates

• Multi-site business surveillance

Warranty Information

This product includes a manufacturer-backed warranty, covering defects in materials and workmanship under normal operating conditions. Warranty support is handled through authorized distributors or directly with the brand.

Brand Description – Uniview

Uniview (UNV) is a globally recognized manufacturer of professional video surveillance equipment and a pioneer in IP video technology. Known for its innovations in AI-powered surveillance, Ultra 265 compression technology, and enterprise-level security solutions, Uniview products are trusted by businesses, governments, and security professionals worldwide.

SKU

NVR504-32B-P16-IQ

Datasheets & Downloadable Resources

• Datasheet

  User Manual

  Quick Guide

Excellence for the Australian and New Zealand Market

This product is sourced and supplied with the needs of Australian and New Zealand security installers and businesses in mind.

• Designed to meet international safety and quality standards

• Ideal for commercial and enterprise CCTV installations

• Supplied via authorized brand distribution channels

• Compatible with professional surveillance infrastructure used across Australia and New Zealand

• Warranty support managed through direct communication with authorized brand representatives

FAQs

What cameras are compatible with the NVR504-32B-P16-IQ?

The NVR504-32B-P16-IQ supports Uniview IP cameras as well as third-party cameras that comply with ONVIF Profiles S, G, and T, ensuring wide compatibility.

Does the NVR504-32B-P16-IQ come with a hard drive?

No, the NVR504-32B-P16-IQ is supplied without a hard drive. Users can install up to four SATA HDDs with a maximum capacity of 16TB per drive.

How many cameras can the NVR504-32B-P16-IQ support?

The NVR504-32B-P16-IQ supports up to 32 IP camera channels, making it suitable for large surveillance systems.

Does the NVR504-32B-P16-IQ support PoE cameras?

Yes, the NVR504-32B-P16-IQ includes 16 built-in PoE ports, allowing direct connection and power supply for compatible IP cameras.

What is the maximum recording resolution of the NVR504-32B-P16-IQ?

The NVR504-32B-P16-IQ supports recording resolutions up to 16 Megapixels, enabling high-definition security monitoring.

Does the NVR504-32B-P16-IQ support RAID storage?

Yes, the NVR504-32B-P16-IQ supports RAID 1 and RAID 5, providing enhanced storage reliability and data protection.

Can I view cameras remotely on the NVR504-32B-P16-IQ?

Yes, the NVR504-32B-P16-IQ supports remote access via network connectivity and P2P technology, allowing monitoring through computers or mobile devices.
