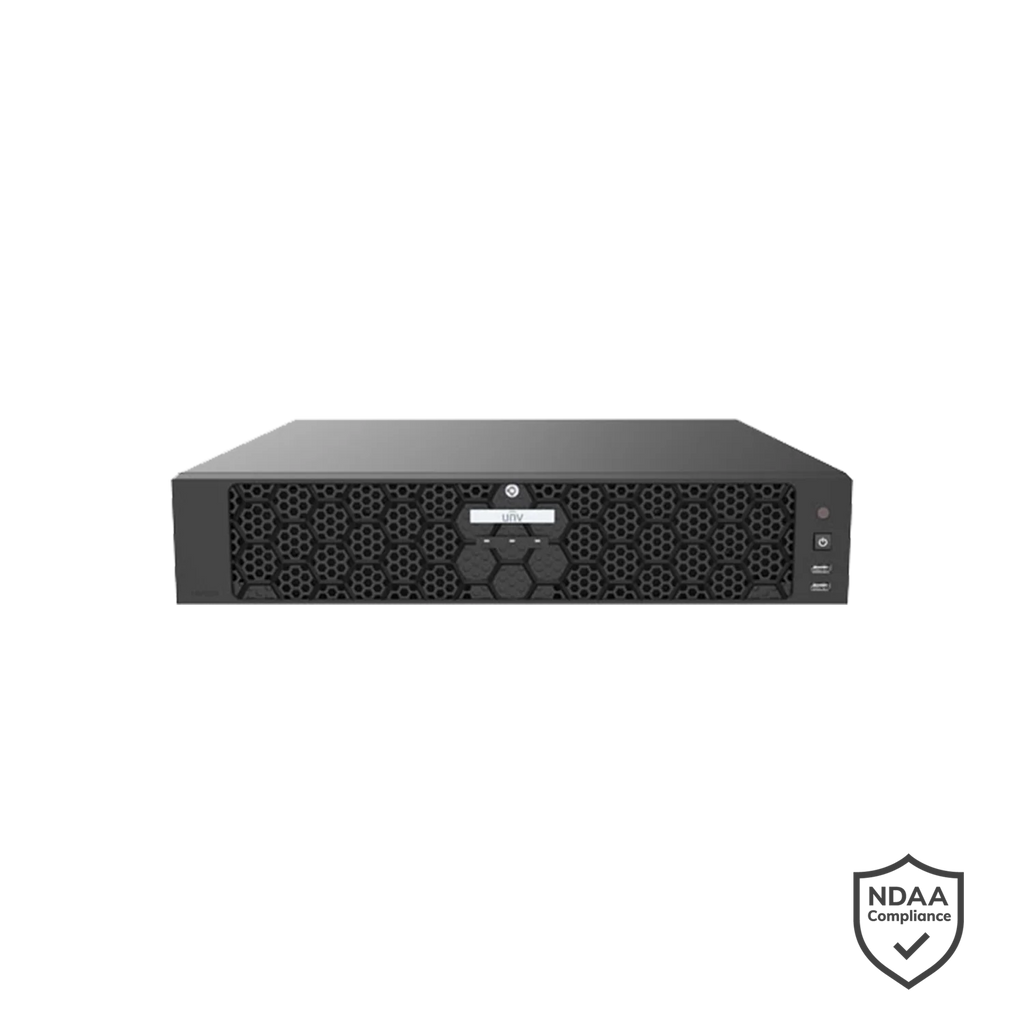

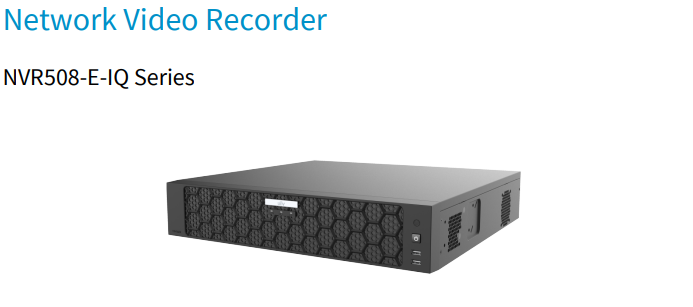

The Uniview NVR508-64E-IQ 64 Channel Network Video Recorder is a high-capacity professional surveillance recorder built for demanding commercial and enterprise CCTV systems. Supporting Ultra 265, H.265, and H.264 compression, this powerful 64-channel NVR records up to 32MP resolution for exceptional image detail while improving storage efficiency. With dual HDMI and dual VGA outputs, 8 SATA bays supporting up to 16TB per drive, RAID 0/1/5/6/10, and advanced smart analytics support, the Uniview NVR508-64E-IQ is ideal for large sites that need reliable, scalable, and intelligent video recording. Designed for integration with ONVIF Profile S, G and T compliant cameras and RTSP streams, this NVR is a strong solution for enterprise-grade monitoring. (HDD not included.)

What’s Included in the Box

• 1 × Uniview NVR508-64E-IQ 64CH Network Video Recorder

• Power cable

• Quick start documentation

• Standard supplied accessories

(Hard drives not included)

Main Features

64 Channel IP Camera Support

Supports up to 64 IP video channels, making it suitable for large-scale surveillance deployments across multi-building or enterprise environments.

Up to 32MP Recording Resolution

Records at resolutions up to 32 Megapixels, enabling extremely high-detail video capture for advanced security applications.

Ultra 265 / H.265 / H.264 Compression

Supports Ultra 265, H.265, and H.264 video formats to help reduce bandwidth and storage consumption without sacrificing recording quality.

Dual HDMI and Dual VGA Outputs

Equipped with 2 HDMI and 2 VGA outputs for flexible multi-monitor operation. VGA1/HDMI1 and VGA2/HDMI2 can operate simultaneously, with independent output groups for efficient monitoring.

Advanced Smart Video Analytics

Supports intelligent surveillance features including:

• Face Detection

• Face Comparison

• Vehicle Detection

• Smart Intrusion Prevention (SIP)

• Cross Line Detection

• Enter Area / Leave Area Detection

• Ultra Motion Detection (UMD)

• Temperature Detection

• Fire Detection

• Smoking Detection

• Smoke and Fire Detection

• People Counting

• Crowd Density Monitoring

• Video Metadata

• Traffic Monitoring

N+1 Hot Spare Support

Supports N+1 hot spare, improving system resilience in larger security installations.

ANR Storage Reliability

ANR technology helps enhance storage reliability when the network is disconnected by assisting with recording continuity.

Massive Storage Capacity with RAID

Features 8 SATA interfaces with support for up to 16TB per HDD, plus RAID 0, 1, 5, 6, and 10 for flexible performance and redundancy options.

Detailed Specifications

System

• Model: NVR508-64E-IQ

• Channels: 64 IP channels

• Video Compression: Ultra 265 / H.265 / H.264

Recording and Decoding

• Maximum Recording Resolution: 32MP

• Decoding Capability (Smart Off):

  • 2 × 32MP @30fps

  • 4 × 16MP @30fps

  • 5 × 12MP @30fps

  • 8 × 4K @30fps

  • 10 × 6MP @30fps

  • 12 × 5MP @30fps

  • 16 × 4MP @30fps

  • 20 × 3MP @30fps

  • 32 × 1080P @30fps

  • 64 × 720P @30fps

• Decoding Capability (Smart On):

  • 1 × 32MP @30fps

  • 3 × 16MP @30fps

  • 4 × 12MP @30fps

  • 6 × 4K @30fps

  • 8 × 6MP @30fps

  • 9 × 5MP @30fps

  • 12 × 4MP @30fps

  • 16 × 3MP @30fps

  • 24 × 1080P @30fps

  • 48 × 720P @30fps

Audio

• Audio Compression: G.711A / G.711U

• RCA Audio Input: 1-channel

• RCA Audio Output: 2-channel

• Two-way Audio: 1-channel RCA

Network

• Incoming Bandwidth:

  • 384 Mbps (Smart Off)

  • 200 Mbps (Smart On)

• Outgoing Bandwidth:

  • 384 Mbps (Smart Off)

  • 200 Mbps (Smart On)

• Remote Users: 128

• Supported Protocols:
  TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4

• Browser Support:
  IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video and Display

• HDMI Output:

  • 4K (3840 × 2160) @60Hz

  • 4K (3840 × 2160) @30Hz

  • 1920 × 1080 @60Hz

  • 1600 × 1200 @60Hz

  • 1280 × 1024 @60Hz

  • 1280 × 720 @60Hz

  • 1024 × 768 @60Hz

• VGA Output:

  • 1920 × 1080 @60Hz

  • 1600 × 1200 @60Hz

  • 1280 × 1024 @60Hz

  • 1280 × 720 @60Hz

  • 1024 × 768 @60Hz

Live View Display

• HDMI1 / VGA1:
  1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64

• HDMI2 / VGA2:
  1 / 4 / 6 / 8 / 9 / 16

Snapshot and Playback

• Snapshot: 16-channel snapshot

• Snapshot Resolution: Up to 8MP video resolution with 1080P snapshot resolution

Smart Functions

• Smart by IPC:
  Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

• Smart by NVR:
  Face Detection, Face Comparison, SIP, UMD

• SIP by NVR: 8-channel

• UMD by NVR: 16-channel

• Vehicle Picture Library:
  Up to 5 libraries, with up to 25,000 vehicle pictures

• Snapshot Record Capacity:

  • 3 million face snapshot records

  • 2 million vehicle snapshot records

  • 2 million SIP records

  • 2 million video metadata records

Hard Disk and RAID

• HDD Bays: 8 SATA interfaces

• Maximum Capacity: Up to 16TB per HDD

• Disk Group: Supported

• Redundant Storage: Supported

• Disk Array Type: RAID 0 / 1 / 5 / 6 / 10

External Interfaces

• Network Interface: 2 × RJ45 10/100/1000 Mbps self-adaptive Ethernet

• USB:

  • Front panel: 2 × USB 2.0

  • Rear panel: 2 × USB 3.0

• RS485: 1

• RS232: 1

• Alarm Input: 16-channel

• Alarm Output: 10-channel

• eSATA: 1

• Power Output: 12V

Power and Environmental

• Power Supply: AC 100–240V

• Operating Temperature: -10°C to 50°C

• Operating Humidity: ≤ 90% RH (non-condensing)

• Power Consumption (without HDD): ≤ 35W

Physical Specifications

• Dimensions: 442 × 432 × 86 mm

• Weight (without HDD): ≤ 5.5kg

• Height: 2U

Certifications

• CE

• FCC

• UL

• RoHS

• WEEE

Warranty Information

This product includes a manufacturer-backed warranty against defects in materials and workmanship under normal operating conditions. Warranty support is typically managed through authorized supply channels and brand-supported service processes.

Brand Description – Uniview

Uniview (UNV) is a well-known manufacturer of professional video surveillance solutions, offering advanced IP cameras, NVRs, and intelligent security technologies for commercial and enterprise applications. Uniview products are widely used where reliable recording, smart analytics, and scalable CCTV infrastructure are required.

SKU

NVR508-64E-IQ

Practical Use Scenarios

The Uniview NVR508-64E-IQ is well suited to:

• Large warehouses and logistics centres

• Shopping centres and retail complexes

• Hospitals and healthcare campuses

• Universities and school networks

• Industrial sites and manufacturing plants

• Corporate headquarters and multi-level offices

• Transport hubs and infrastructure projects

• Multi-site business surveillance systems

• Large residential estates and strata security networks

Datasheets & Downloadable Resources

• Datasheet

  Quick Guide

Excellence for the Australian and New Zealand Market

The Uniview NVR508-64E-IQ is a strong fit for professional security installations across Australia and New Zealand, where large-scale, dependable CCTV infrastructure is essential.

• Suitable for demanding commercial and enterprise surveillance deployments

• Supports advanced recording and redundancy features valued by professional installers

• Designed for integration with modern IP camera systems used across the ANZ market

• Supplied through authorized brand representatives and distribution channels

• Warranty handling is supported through direct brand-aligned service pathways

• Built for businesses seeking reliable, scalable, and high-capacity video recording solutions

FAQs

Does the NVR508-64E-IQ support 64 camera channels?

Yes, the NVR508-64E-IQ supports up to 64 IP camera channels, making it suitable for large surveillance systems.

Does the NVR508-64E-IQ come with a hard drive?

No, the NVR508-64E-IQ is supplied without HDDs, so storage drives must be purchased separately.

What is the maximum recording resolution on the NVR508-64E-IQ?

The NVR508-64E-IQ supports recording resolutions up to 32MP, which is ideal for high-detail video surveillance applications.

How many hard drives can the NVR508-64E-IQ support?

The NVR508-64E-IQ has 8 SATA interfaces and supports up to 16TB per HDD.

Does the NVR508-64E-IQ support RAID?

Yes, the NVR508-64E-IQ supports RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 for flexible storage performance and redundancy.

Is the NVR508-64E-IQ compatible with ONVIF cameras?

Yes, the NVR508-64E-IQ supports mainstream cameras with ONVIF Profile S, Profile G, and Profile T conformance, as well as RTSP protocols.

Does the NVR508-64E-IQ support dual monitor output?

Yes, the NVR508-64E-IQ includes 2 HDMI and 2 VGA outputs, with simultaneous and independent display output support.

Can the NVR508-64E-IQ be used for enterprise CCTV systems?

Yes, the NVR508-64E-IQ is designed for large-scale and enterprise-grade CCTV environments where high channel counts, advanced analytics, and storage redundancy are required.

Does the NVR508-64E-IQ support hot spare functionality?

Yes, the NVR508-64E-IQ supports N+1 hot spare, helping improve reliability in larger surveillance deployments.

What smart analytics are available on the NVR508-64E-IQ?

The NVR508-64E-IQ supports analytics such as face detection, face comparison, vehicle detection, SIP, UMD, people counting, traffic monitoring, and temperature-related detection features.
