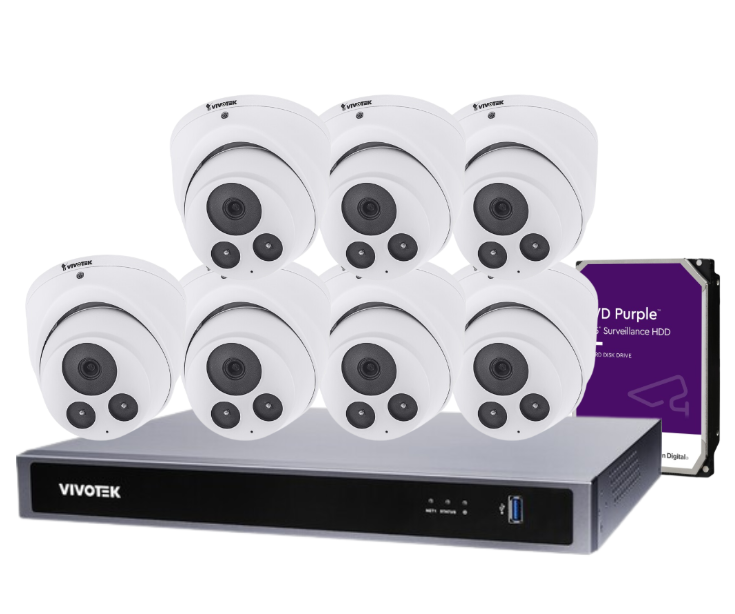

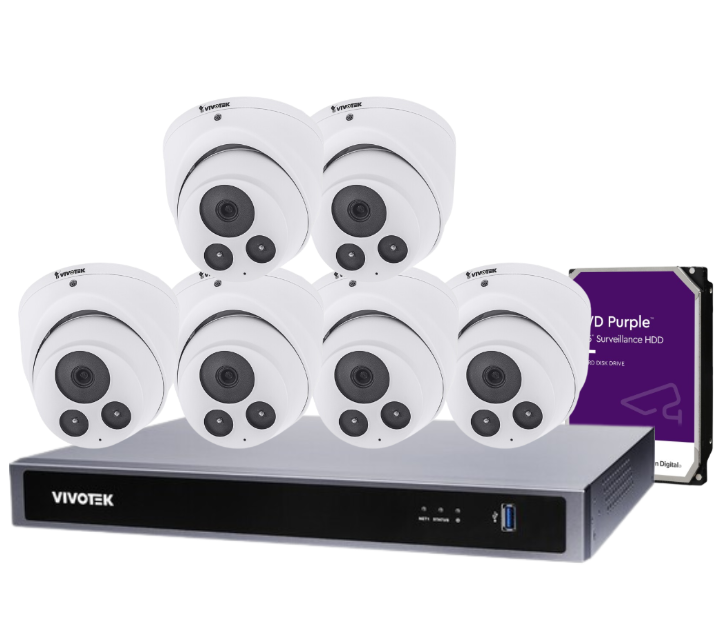

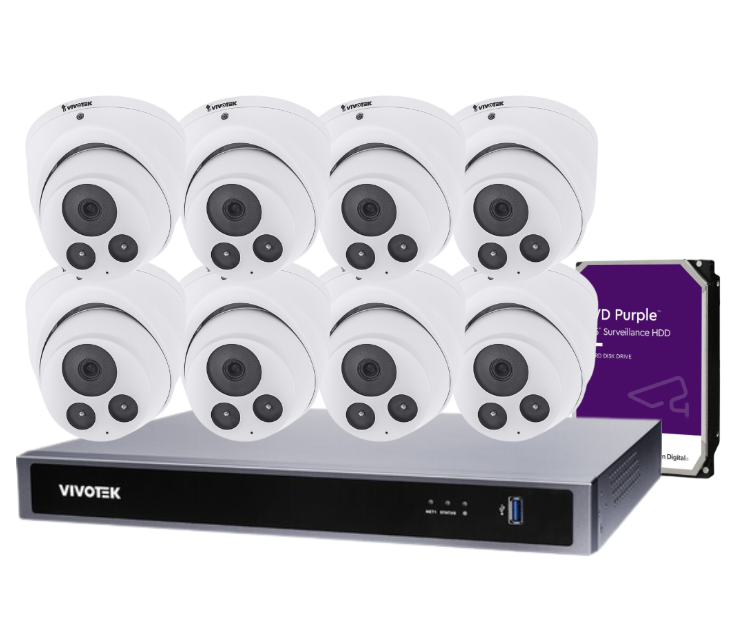

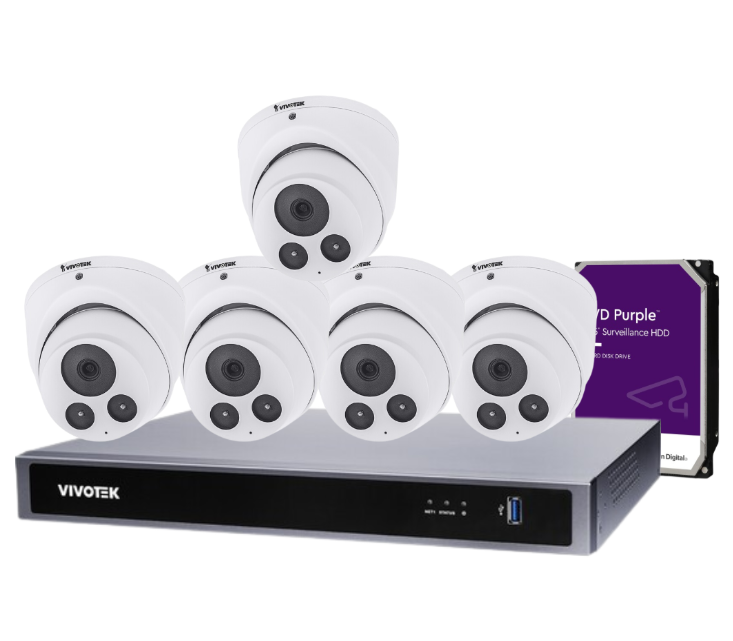

The Vivotek IT9380-H 5MP CCTV Kit delivers high-performance surveillance with 8 turret dome cameras and an AI-powered 8-channel network video recorder (ND9326P). Designed for professional-grade installations, this kit offers ultra-clear imaging, AI-assisted event detection, reliable video storage, and seamless remote monitoring.

Each IT9380-H camera provides 5MP resolution, WDR Pro, and Smart Stream III, making it ideal for day and night environments with variable lighting. Paired with the ND9326P recorder, the system supports deep AI search, RAID storage, and 4K output, offering complete video intelligence and future-ready capabilities.

Built tough with IP66 weatherproof and IK10 vandal-resistant enclosures, this kit is ready for both indoor and outdoor deployment, making it a robust security solution for commercial, industrial, and large residential settings.

What's Included in the Box

• 8 x Vivotek IT9380-H 5MP Turret Dome Cameras (choose 2.8mm or 3.6mm lenses)

• 1 x Vivotek ND9326P 8-Channel NVR with 8 PoE Ports

• 1 x Surveillance-Grade HDD

• Mounting kits: L-brackets, adapters, and outdoor junction boxes

• Alignment stickers, cable glands, and screw packs

• Quick start guides and documentation

• Power and network connection accessories

Main Features

• High-Definition 5MP Cameras – 2560x1920 resolution with WDR Pro for low and high light

• Smart IR Night Vision up to 30m – Ensures clarity in total darkness

• Weatherproof and Vandalproof – IP66 & IK10-rated for harsh outdoor environments

• AI-Powered NVR – Deep Search for people, vehicles, clothing color, behavior, and more

• Efficient Storage with H.265 + Smart Stream III – Up to 192Mbps throughput with RAID 0/1

• Built-in Microphones on All Cameras – One-way audio capture (5m effective range)

• Remote Viewing – Via VIVOCloud, VORTEX, and iViewer (iOS/Android)

• ONVIF Compatibility – Works with third-party ONVIF-compliant devices

Detailed Specifications

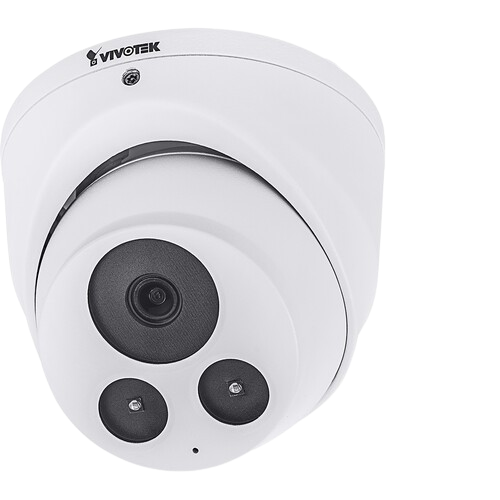

Camera (IT9380-H)

• Resolution: 5MP (2560x1920), 20fps

• Lens Options: 2.8mm (103° H) or 3.6mm (76° H)

• IR Range: Up to 30 meters with Smart IR

• Audio: Built-in microphone, 5m range

• Power Supply: IEEE 802.3af PoE

• Min. Illumination: 0.03 lux (Color), <0.005 lux (B/W), 0 lux (IR on)

• Smart Functions: Motion detection, tampering, cybersecurity triggers

• Certifications: RCM (AS/NZS), CE, FCC, UL, IK10, IP66

• Dimensions: Ø 105 x 82.5 mm

• Weight: 475g

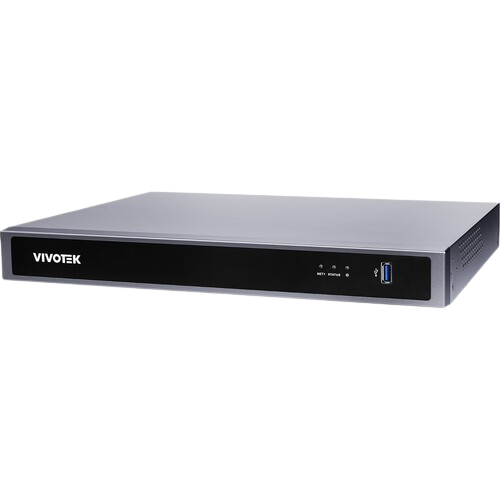

Recorder (ND9326P)

• Channels Supported: 8

• Video Output: HDMI (4K), VGA (1080p)

• Storage: 2 x 3.5” bays with RAID 0/1 support

• Compression: H.265 / H.264 / MJPEG

• Recording Throughput: 192 Mbps

• Deep Search AI Functions: People, vehicle, scene, attribute search

• PoE Ports: 8 x IEEE 802.3at/af (Max. 120W total)

• Playback: Smart VCA search, multi-layout, storyboard

• Network Ports: 2 x RJ-45 Gigabit Ethernet

• Remote Access: Web, Mobile Apps, VAST Security Station

• Power: 100–240V AC, Max. 190W

• Dimensions: 365 x 315 x 44 mm

• Certifications: RCM, CE, FCC, CB, UL, C-Tick

Warranty Information

• 3-Year Warranty on all cameras and NVR

• Local support and service provided by Vivotek-authorized representatives in Australia and New Zealand

Brand Description

Vivotek, a leading name in professional surveillance, brings intelligent monitoring with AI integration, robust cybersecurity, and unmatched reliability. Trusted by industries worldwide, Vivotek products are designed for mission-critical environments, offering peace of mind with every deployment.

SKU

IT9380-H

Practical Use Scenarios

• Multi-site Business Premises – Secure multiple zones with PoE efficiency and AI smart alerts

• Educational Institutions – Protect campuses with high-resolution video and remote management

• Retail Chains & Supermarkets – Capture detailed visual evidence with 8 points of view

• Manufacturing & Warehousing – Monitor operations 24/7 with RAID-protected storage

• High-Security Residences – Discreet yet powerful surveillance with smart notifications

Datasheets & Resources

• Download Camera Datasheet (IT9380-H)

• Download NVR Datasheet (ND9326P)

Excellence for the Australian and New Zealand Market

The Vivotek IT9380-H 8-Camera Kit has been developed with strict compliance to Australian and New Zealand standards, including RCM certification (AS/NZS CISPR 32 Class B). The cameras' IP66/IK10 ratings are ideal for variable weather and security requirements across urban and remote areas. Locally sourced via authorized Vivotek distributors, this system benefits from direct manufacturer support, NDSS-compliant certifications, and warranty servicing in-region—ensuring long-term peace of mind and regulatory assurance.

FAQs – Vivotek IT9380-H (Product Code: IT9380-H)

Q1: Can I expand the system beyond 8 cameras?
A1: No, this kit supports up to 8 cameras, matching the 8 PoE ports and 8 channels of the ND9326P. (Product Code: IT9380-H)

Q2: What’s the difference between 2.8mm and 3.6mm lens options?
A2: The 2.8mm offers a wider field of view (103°), ideal for broader coverage; the 3.6mm provides a narrower, more focused view (76°). (Product Code: IT9380-H)

Q3: Is the Vivotek IT9380-H kit suitable for outdoor use?
A3: Yes, all 8 cameras are IP66 weatherproof and IK10 vandal-proof, making them suitable for outdoor deployments. (Product Code: IT9380-H)

Q4: Does the kit include hard drives?
A4: Yes, a surveillance-grade HDD is pre-installed for recording and playback. (Product Code: IT9380-H)

Q5: How is video accessed remotely?
A5: Users can access live or recorded footage via VIVOCloud, VORTEX, or iViewer mobile apps on iOS and Android. (Product Code: IT9380-H)

Q6: Does the NVR support AI-based search features?
A6: Absolutely. Deep Search allows filtering by people, vehicles, attributes (e.g., clothing color), and behaviors. (Product Code: IT9380-H)
