描述
该 Wisenet 套件包括：
- 10x Wisenet CT-QNE-8011R 5MP Q 系列三星红外平眼相机
- 韩华视觉 CT-ARN-1610S 16 路 8MP H.265 AI NVR，带 PoE 交换机
- 硬盘
韩华视觉 CT-ARN-1610S 16 路 8MP H.265 AI NVR，带 PoE 交换机
Hanwha Vision CT-ARN-1610S NVR 专为实现最大监控性能而设计，提供多达 16 个通道和 8 兆像素分辨率，实现可靠监控。它支持H.265和H.264等高质量编解码器，允许80Mbps网络摄像机录制。 NVR 还具有 16 个 PoE 端口，用于与摄像机进行即插即用连接，并可通过两个 HDD 插槽存储高达 12TB 的数据。其他功能包括 HDMI/VGA 本地显示器兼容性以及用于轻松远程访问的 Wisenet Viewer & Mobile。
CT-ARN-1610S
韩华 Vision 16CH 8MP H.265 AI NVR 带 PoE 交换机
特征
- 多达 16 个通道，支持 8 兆像素
- 支持 H.265、H.264、MJPEG 编解码器
- 80Mbps网络摄像机录像
- 16 个 PoE 端口即插即用
- 最多支持 2 个 HDD（每个最多 6Tb）
- HDMI/VGA本地显示器
- 使用 Wisenet Viewer 和 Wisenet Mobile 轻松远程访问的 P2P 服务

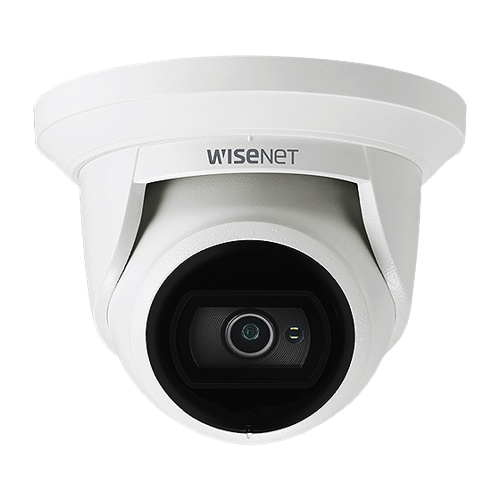

Wisenet CT-QNE-8011R 5MP Q 系列三星红外平眼摄像机
使用 Wisenet CT-QNE-8011R 5MP Q 系列三星红外平眼相机享受无与伦比的图像质量。该相机能够以每秒 30 帧的流畅速度拍摄分辨率高达 5 兆像素 (2592 x 1944) 的清晰图像。尖端的 H.265、H.264 和 MJPEG 编解码器保证可靠的数据流。凭借 0.15 的低照度等级和 20m 的最大红外可视长度，您将获得清晰、清晰的夜视覆盖范围。此外，该摄像机还具有高达 120dB 的 WDR、白天和夜间、篡改检测等功能，可满足您的安全需求。
CT-QNE-8011R
Wisenet Q 系列 / 5M H.265 西北红外平眼摄像机
特征
- 最大限度。 5兆像素 (2592 x 1944) 分辨率
- 2.8mm定焦镜头
- 0.15Lux（彩色），0Lux（黑白，IR LED 开启）
- 最大限度。 30fps@5MP (H.265 / H.264)
- H.265、H.264、MJPEG 编解码器支持、多流
- 白天和夜晚，WDR (120dB)
- 篡改、运动检测、散焦检测
- Micro SD / SDHC / SDXC 内存插槽（最大 128GB）
- 走廊视图，WiseStream II 支持
- 红外可视长度20m
- 最不发达国家、以太网供电
WISENET Q series
The Q series delivers sharp and clear image quality with H.265 compression, ideal in securing small to medium sized applications such as retail, banking and offices. Enhanced features include intelligent video analytics, Wide Dynamic Range, Built-in IR, Hallway View, & WiseStream II.
Wisenet Q series Network Cameras
High Quality Cameras Offering Cost Effective Solutions
Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices
Compact design with affordable price
5MP & 2MP resolution
Maximum 30fps framerate
WDR 120dB
WiseStream II
Intelligent video analytics
IR viewable length up 30m
Hallway view (Rotate 90° / 270°)
Micro SD/SDHC/SDXC memory slot
Video output CVBS, PoE
5MP and 2MP resolutions
The Wisenet Q series is available in two resolution options to give you the freedom to choose the cameras that best fits your security needs. 5MP Q series cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance providing crisp and vivid monitoring.
Various lens options
Fixed Lens
The Wisenet Q series fixed-lens models are available with focal lengths of 2.8mm, 4.0mm and 6.0mm. The 2.8mm lens is available if you prefer a wide-angle view. If an area to monitor is located further away from the camera, the 6.0mm lens can be utilized
Varifocal Lens
The 3.2 ~ 10mm (3.1x) varifocal lens, created by Hanwha echwin’s own advanced technology, offers greater flexibility in the field of view. The motorized varifocal option provides quick and easy focus using the simple focus feature
Enhanced video analytics
Wisenet Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility
Reduce bandwidth requirements by up to 99% usingWiseStream II
Using WiseStream II, Hanwha Techwin’s own video ompression technology, with H.265 compression allows Wisenet Q series cameras to reduce bandwidth usage by up to 99% when compared to H.264 technology. As a result, system costs, such as network infrastructure and data storage, are also greatly reduced.
Analog video output for easier installation
The Wisenet Q series cameras support analog video (CVBS)
output for easier installation. During the installation, a
monitor can be connected to the monitor port to adjust
and configure the viewing angle and the focus.*
Hallway view for monitoring vertical shaped areas
Conventional horizontally oriented video streams waste bandwidth and storage along their edges in narrow areas such as store aisles or long hallways. Hallway view created a vertically oriented 3 : 4 or 9 : 16 ratio video stream to maximize usable image space in a narrow environment.
Business intelligence for smarter retail
People Counting
People counting applications within a store allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and better understand buying patterns.
HDMI live video output for Public View Monitor
Public view monitors are a convenient way of promoting the safety of retail customers and staff for store management. Wisenet Q mini cameras support HDMI video output for easy connection with Public View Monitors.
